Name: Yorkville YXL12 600 Watt 12" Full Range Active Loudspeaker FOH / Monitor Combo
SKU: 9739
Availability: InStock

Description

Yorkville YXL12 600 Watt 12″ Full Range Active Loudspeaker FOH / Monitor Combo

The YXL Series is Yorkville Sound’s most affordable and versatile speaker lineup. Designed as an all-purpose speaker to be integrated into small and medium systems, YXL unpowered loudspeakers can be used vertically on the floor or a speaker stand, wedged as a stage monitor, or flown.

The YXL12 uses a single 12” driver and a 90° x 40° horn with a 1-inch throat and 1-inch compression driver. The cabinet is constructed with strong polypropylene for reliability and durability.

YXL delivers clear sound, exceptional value, and the best price-to-performance ratio of any Yorkville Sound PA series.

Features

1200 W Peak Power (600 Watts Program)
12” woofer with 2” voice coil
1” compression driver
Polypropylene cabinet construction

Specifications

System Type	Unpowered Loudspeaker
Power Rating	1200 W Peak (600 W Program)
Nominal Impedance (Ohms)	8Ω
Sensitivity (dB AT 1Watt/1m)	97 dB
Max SPL	122 dB Continuous
Frequency Response (Hz +/- 3dB)	55 Hz – 16 kHz
Dispersion (H x V)	90° x 40°
Crossover Frequency	1.6 kHz
HF Driver(s)	1” compression driver
HF Horn	Integrated into Baffle
LF Driver(s)	12” with 2” Voice Coil

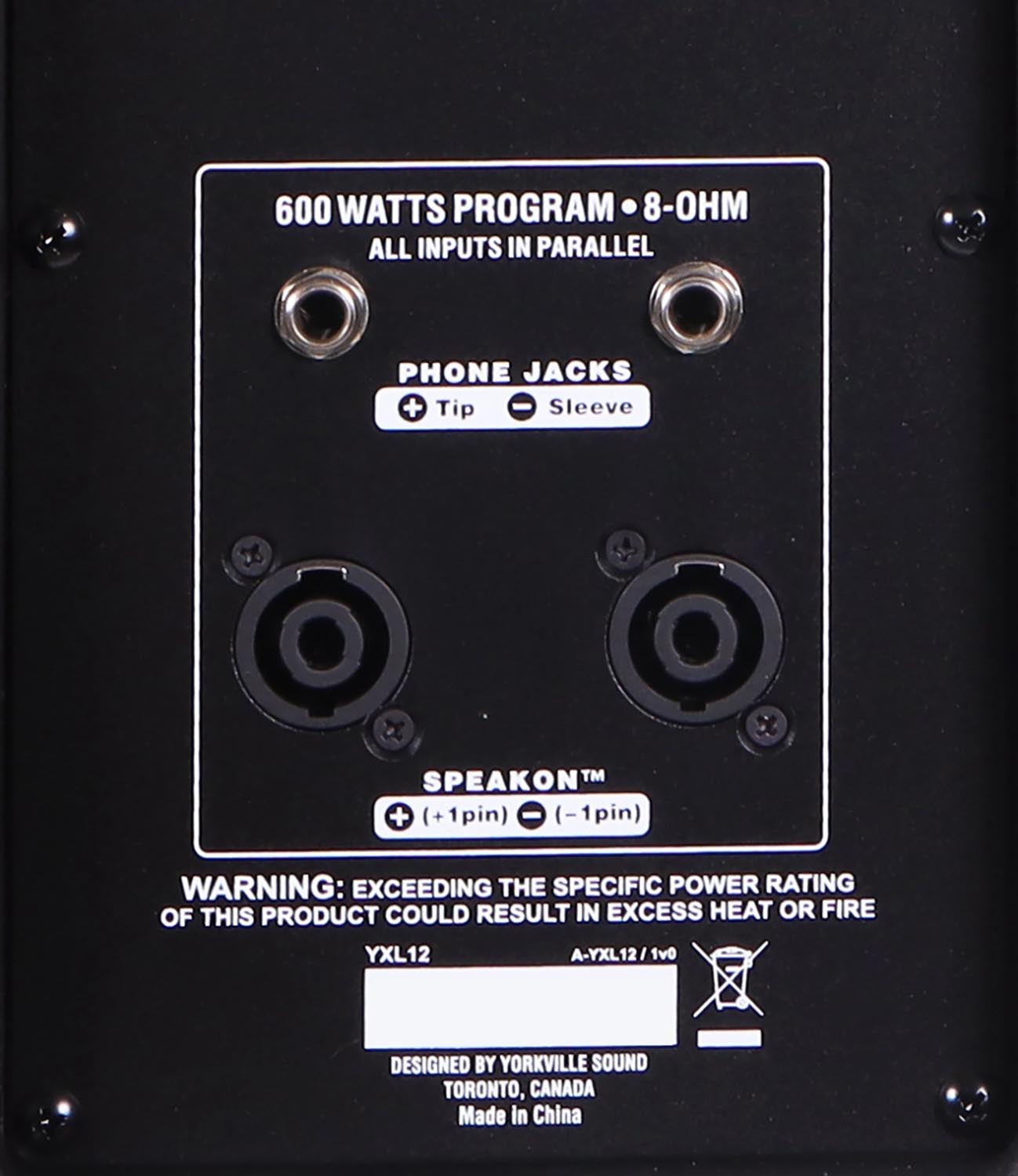

Inputs	2x Speakon 2x 1/4″
Bar Handles	2 (1x Side, 1x Back)
Flypoints	2 (2x Top, 1x Pullback)
Flying Hardware	M8 Metric Threading
Pole Mount Adapter (1 3/8	Dual Angle (1x Bottom)
Enclosure Materials	Polypropylene
Dimensions (DWH)	13.5″ x 14″ x 23″ (34 cm x 35.5 cm x 58.5 cm)
Weight	38 lbs / 17.24 kg
