Name: Yorkville YXL10 300 Watt 10" Full Range Active Loudspeaker FOH / Monitor Combo
SKU: 9675
Availability: InStock

Description

Yorkville YXL10 300 Watt 10″ Full Range Active Loudspeaker FOH / Monitor Combo

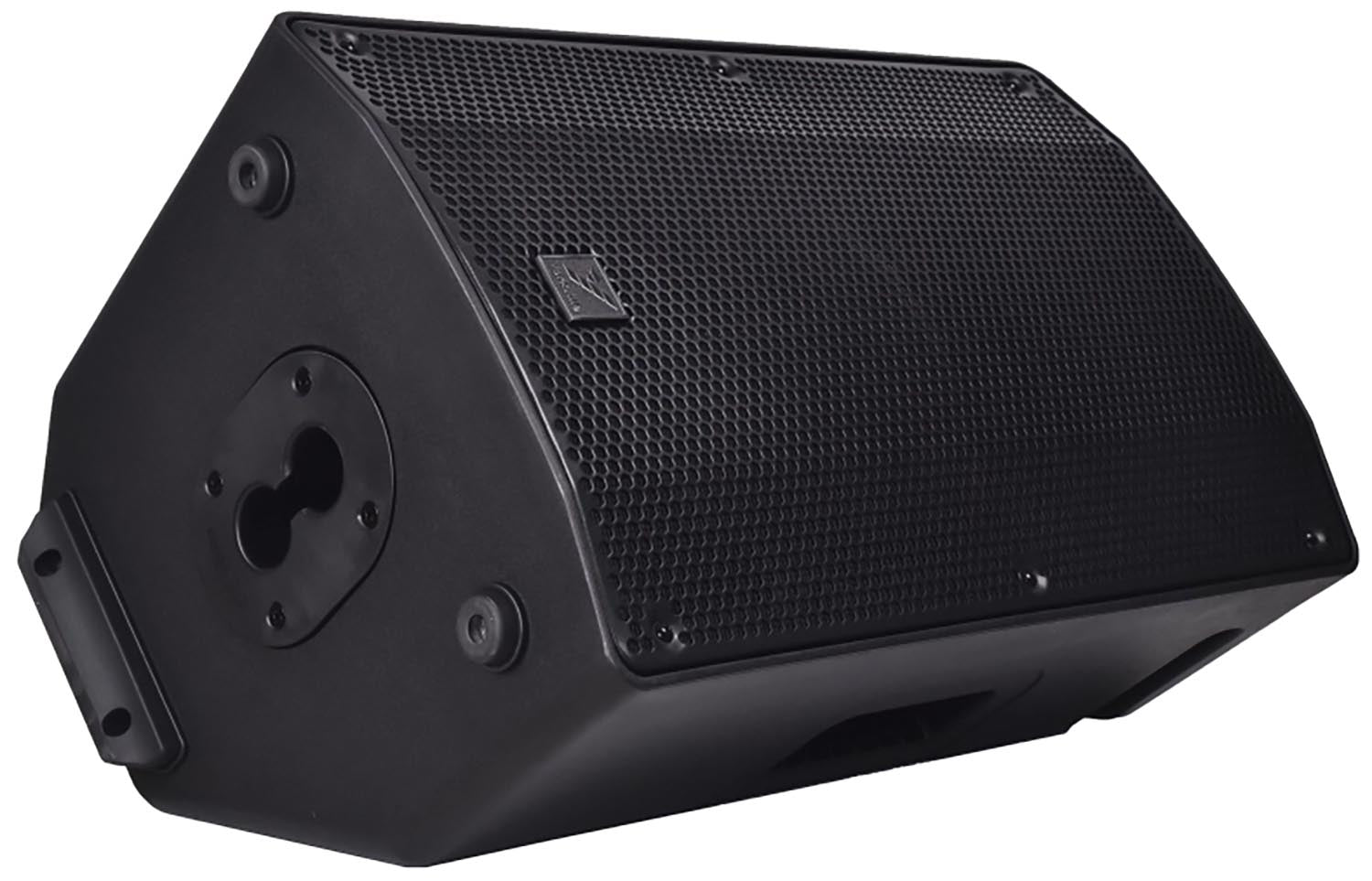

The YXL series is Yorkville Sound’s most affordable and versatile speaker lineup, and the YXL10 is the lightest, most compact YXL unpowered loudspeaker. Designed for rehearsal spaces and small venues with external power amplifiers, YXL unpowered loudspeakers can be used vertically on the floor or a speaker stand, wedged as a stage monitor, or flown.

The YXL10 uses a single 10-inch woofer and a 90° x 40° horn with a 1-inch throat and 1-inch compression driver. The cabinet is constructed with strong polypropylene for reliability and durability.

YXL delivers clear sound, exceptional value, and the best price-to-performance ratio of any Yorkville Sound PA series.

Features

600 W Peak Power (300 W Program)
10” Woofer with 2” Voice Coil
1” Compression Driver
Polypropylene Cabinet Construction

Specifications

System Type	Unpowered Loudspeaker
Power Rating	1200 W Peak (600 W Program)
Nominal Impedance (Ohms)	8Ω
Sensitivity (dB AT 1Watt/1m)	97 dB
Max SPL	122 dB Continuous
Frequency Response (Hz +/- 3dB)	55 Hz – 16 kHz
Dispersion (H x V)	90° x 40°
Crossover Frequency	1.6 kHz
HF Driver(s)	1” compression driver
HF Horn	Integrated into Baffle
LF Driver(s)	10” with 2” Voice Coil

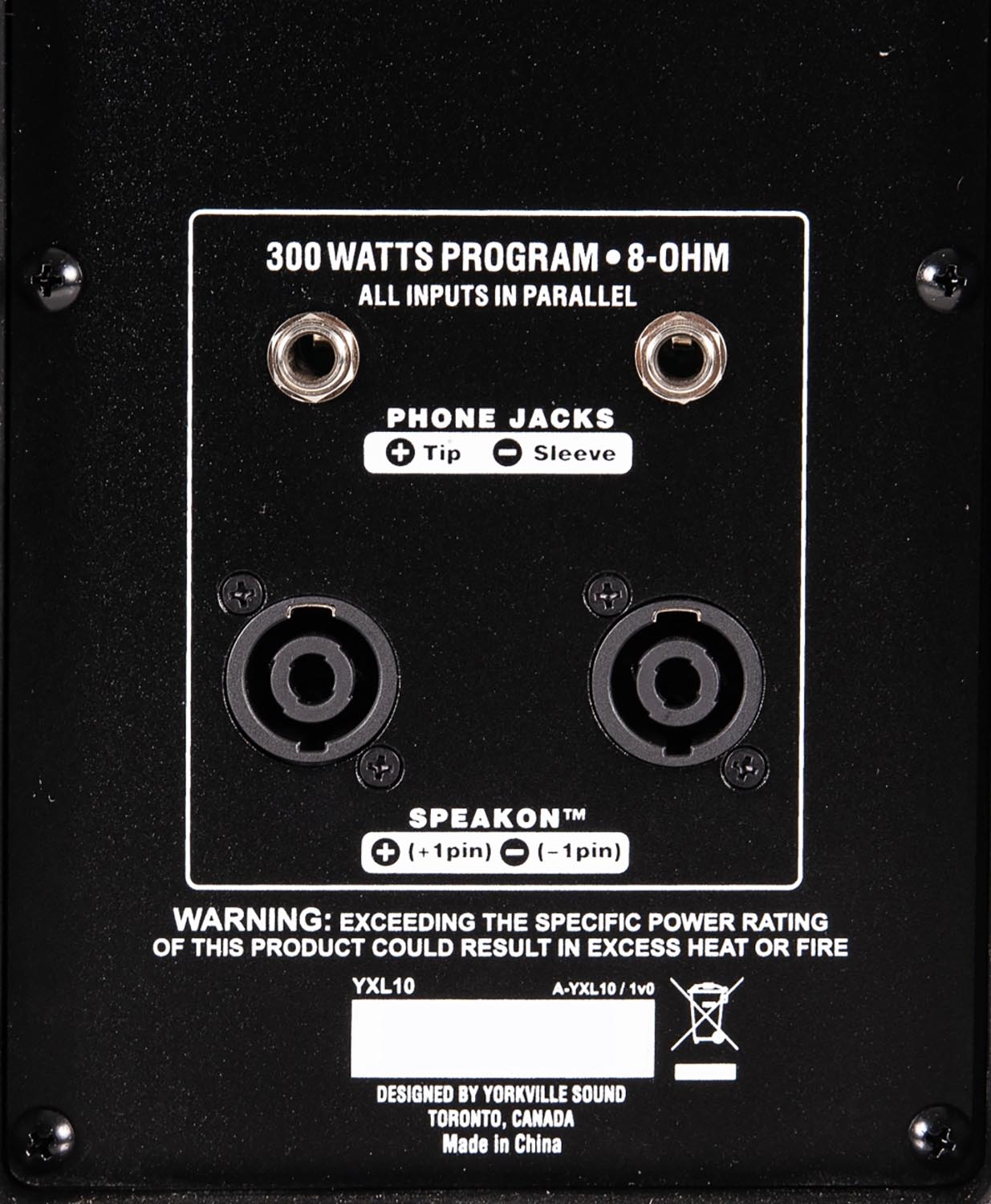

Inputs	2x Speakon 2x 1/4″

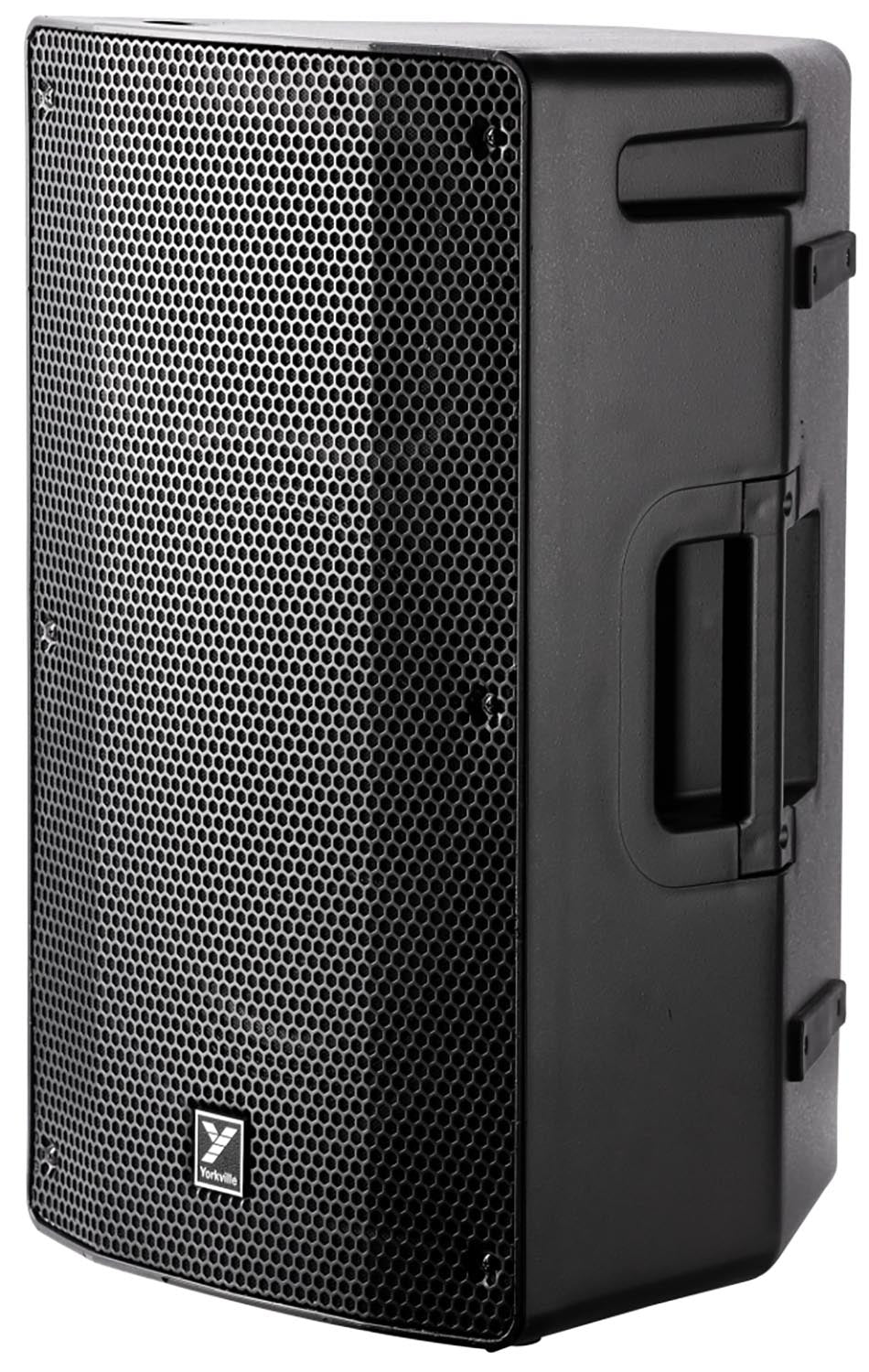

Bar Handles	2 (1x Side, 1x Back)
Flypoints	2 (2x Top, 1x Pullback)
Flying Hardware	M8 Metric Threading
Pole Mount Adapter (1 3/8	Dual Angle (1x Bottom)
Enclosure Materials	Polypropylene
Dimensions (DWH)	11” x 13.3” x 20.5” (28 cm x 33.5 cm x 52 cm)
Weight	29.9 lbs / 13.6 kg
