Description

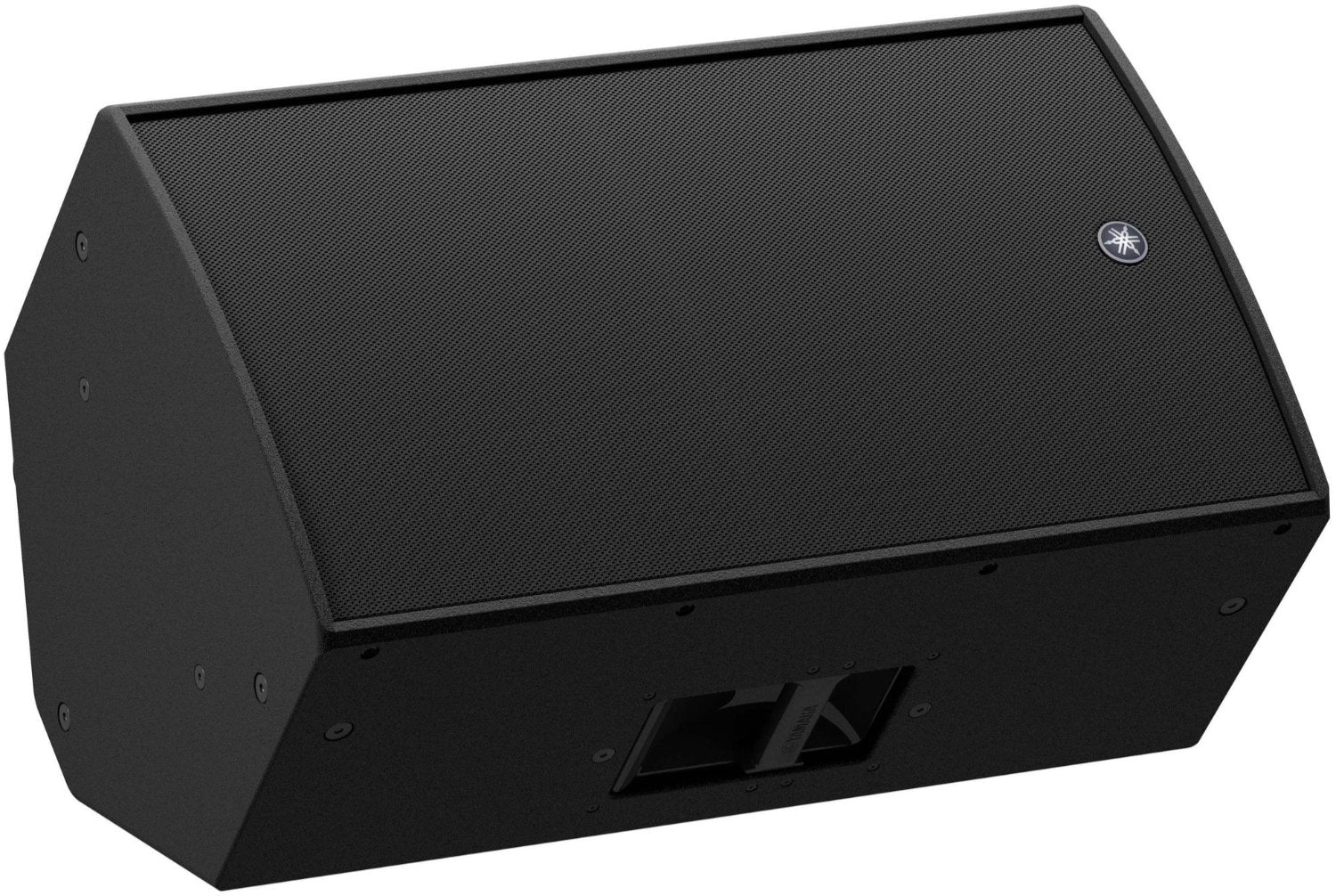

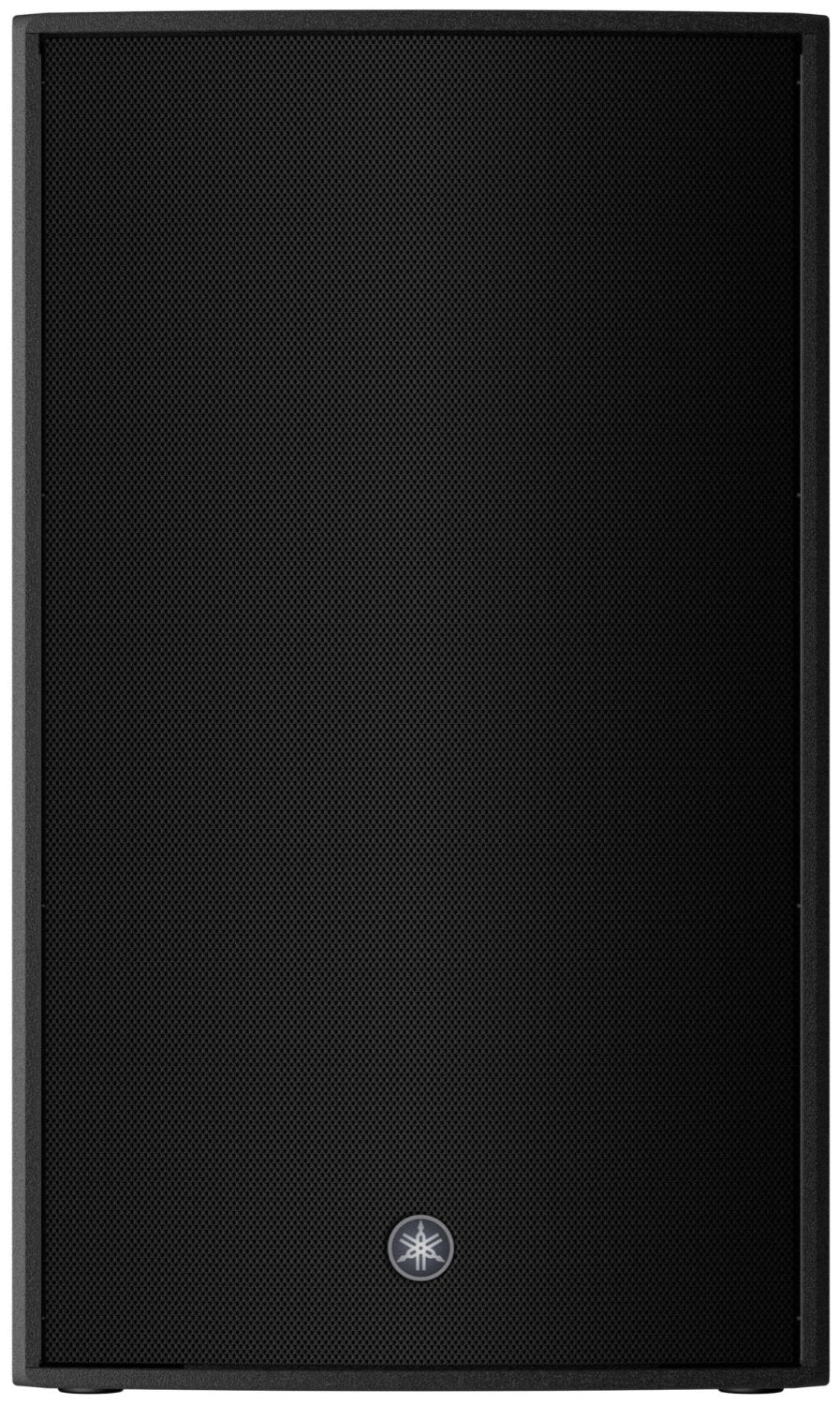

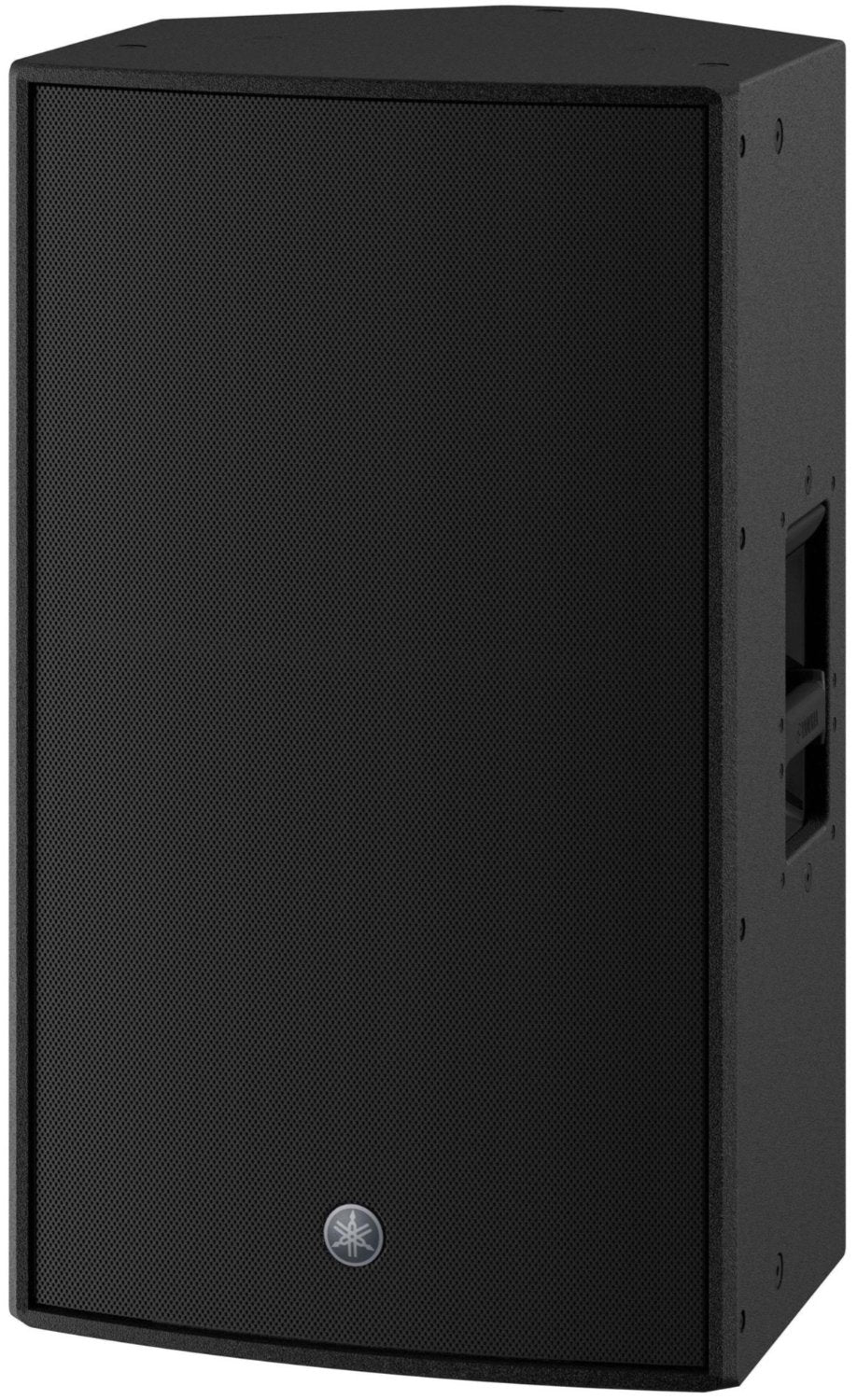

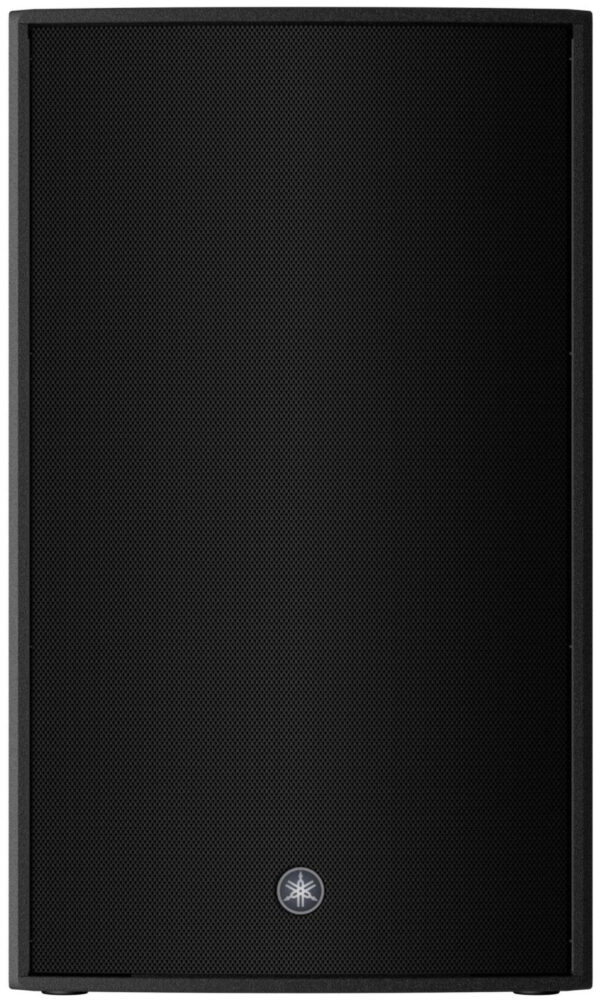

Yamaha DZR15 15 Inch LF / 2 Inch HF 2000 Watt Powered Speaker

The DZR15 is a 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR15 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

Features:

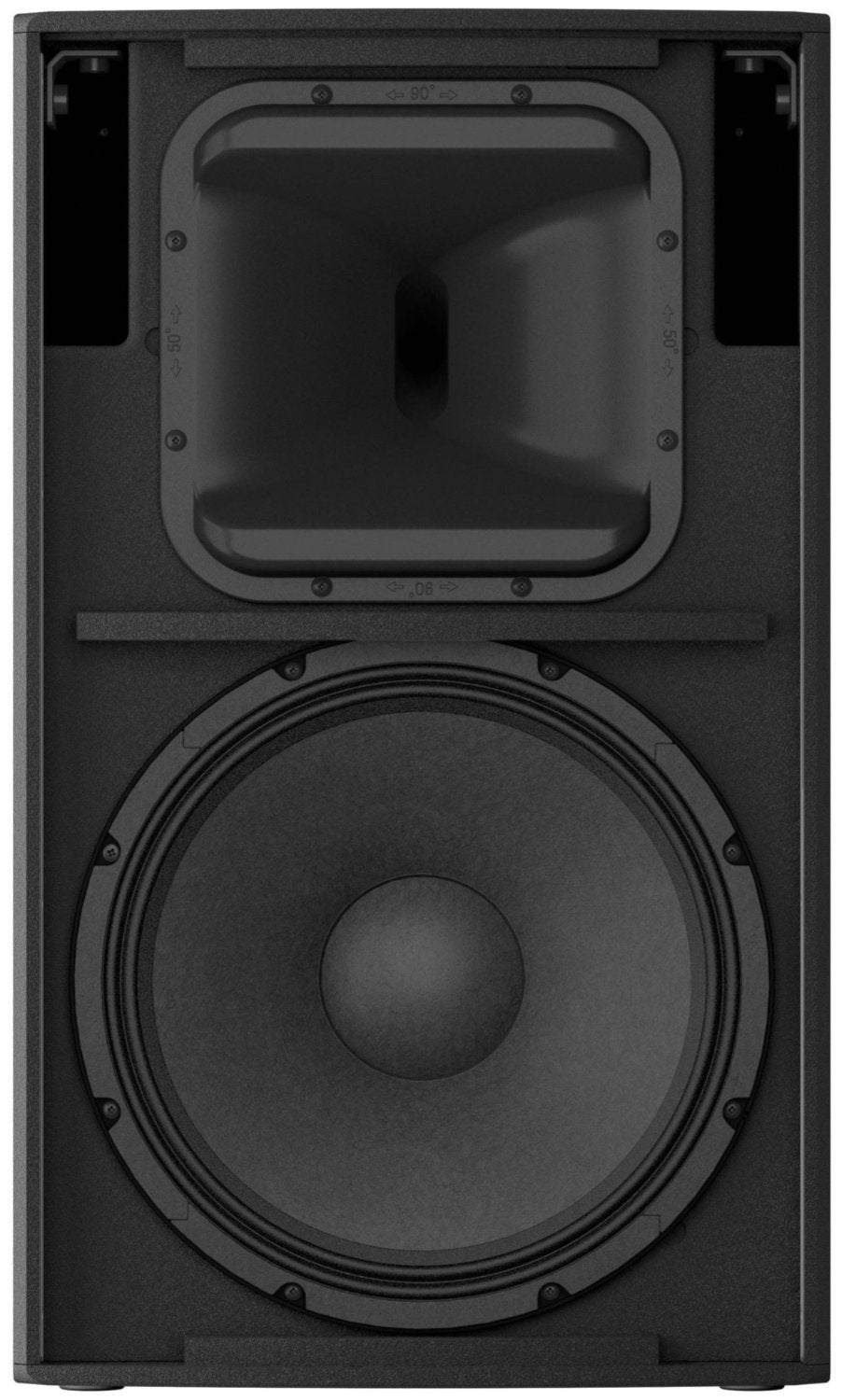

• 2-way powered loudspeaker with 2″ HF and 15″ LF drivers
• Boasts a high-power 2,000-watt Class D amplifier and 34Hz–20kHz frequency range
• Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion
• D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
• FOH/MAIN and MONITOR modes allow you to fine-tune your sound based on your application
• DSP protection safeguards your power supply, power amplifiers, and transducers against damage
• Optimized factory presets and intuitive LCD screen make operation easy
• Great-sounding, custom-designed transducers
• Rotatable horn allows vertical or horizontal mounting
• 90×50° dispersion from a vertical position
• Constant directivity horn supplies smooth, level coverage without roll-off
• Universal switching mode power supply offers maximum power, along with stable, worry-free operation
• Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating

Specifications:

• Powered by: Yes
• Power Configuration: Bi-amped Class D
• Channels: 2
• LF Driver Size: 15″ Cone, 3″ Voice Coil with Neodymium Magnet
• HF Driver Size: 2″ HF Compression Driver, 1″ Throat
• LF Driver Power Amp: 850W Continuous
• HF Driver Power Amp: 100W Continuous
• Total Power: 2000W Dynamic Peak

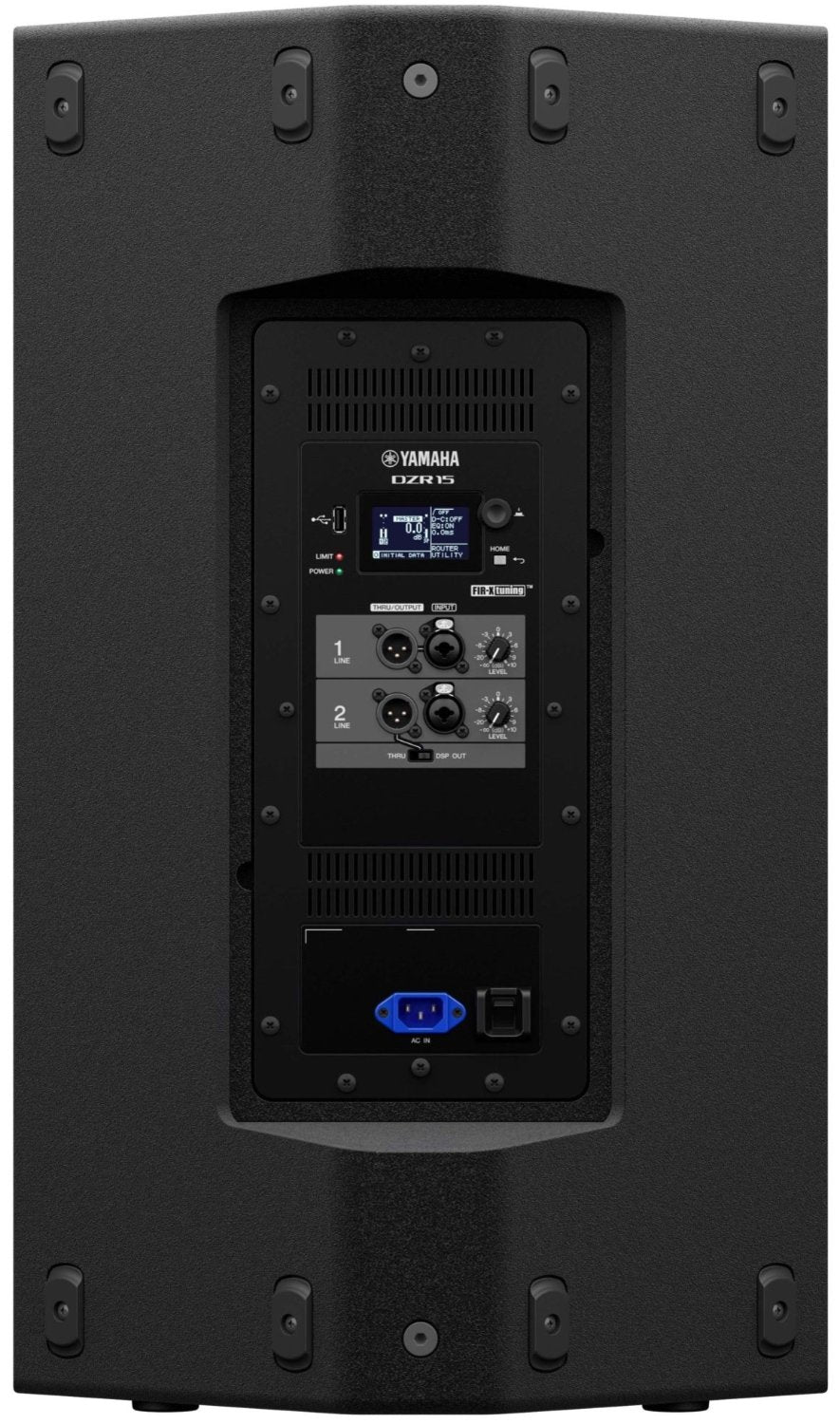

• Inputs: 2 x XLR-1/4″ combo (line in)
• Outputs: 2 x XLR (thru/output)
• USB: 1 x Type A
• Frequency Range: 34Hz-20kHz (-10 dB)
• Crossover Frequency: 1.7kHz
• Maximum Peak SPL: 139 dB SPL @ 1m
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 50 Degrees
• Signal Processing:
  • PEQ
  • Delay
  • Routing
  • 8 User Presets
• Enclosure Material: Plywood Cabinet with Polyurea Coating
• Mounting Options:
  • Pole: 2 x 1.37″ (35mm) socket
  • Fly: 12 x M10
  • Floor Wedge
• Power Source: Standard IEC AC cable
• Height: 30″
• Width: 17.7″
• Depth: 18.1″
• Weight: 55.6 lbs.
• Manufacturer Part Number: DZR15
