Description

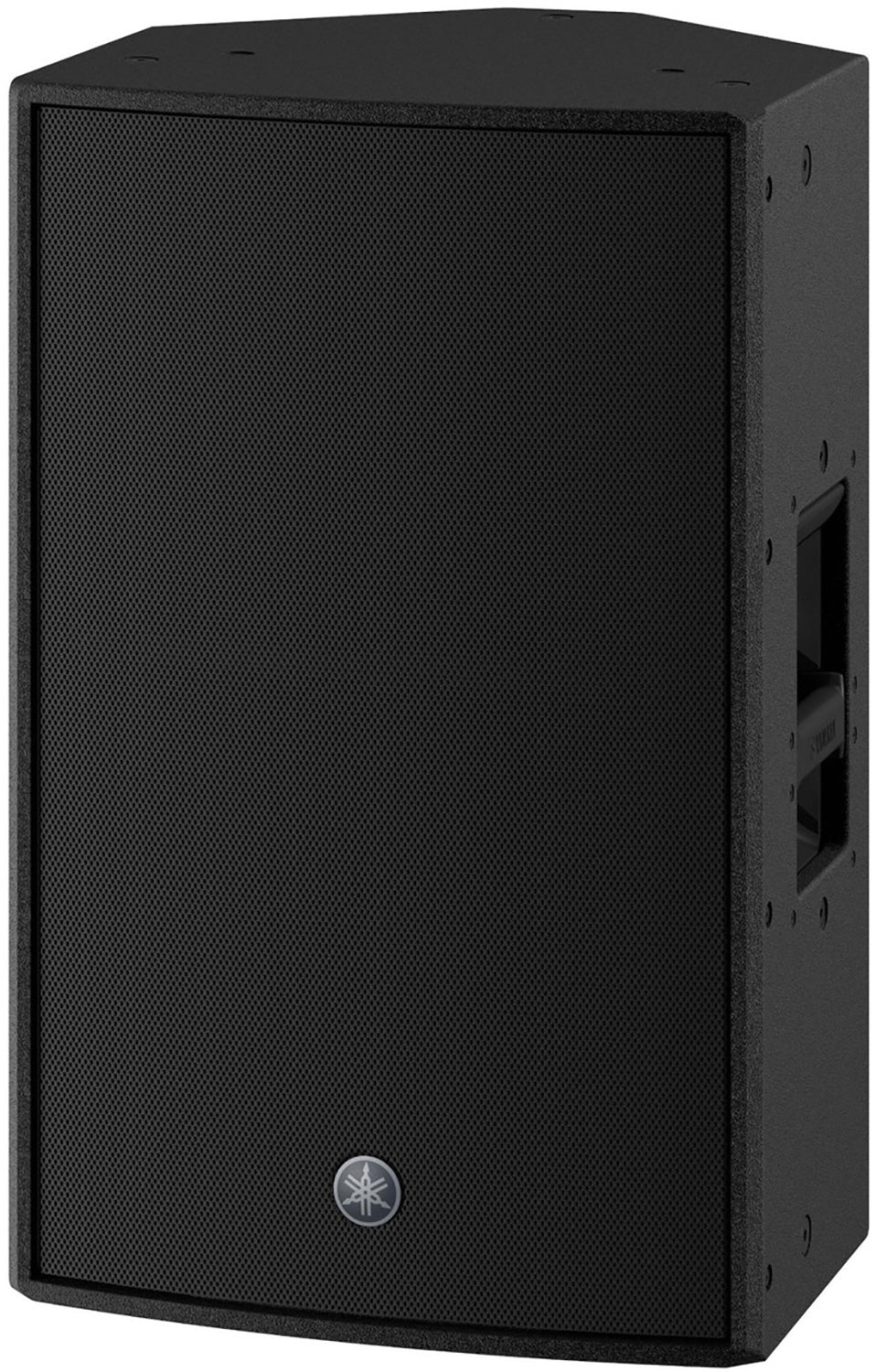

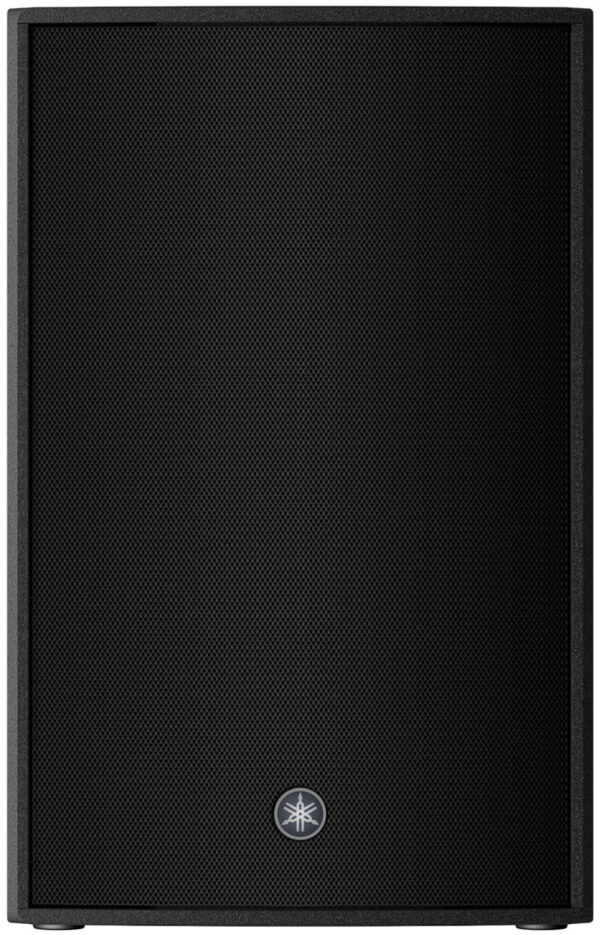

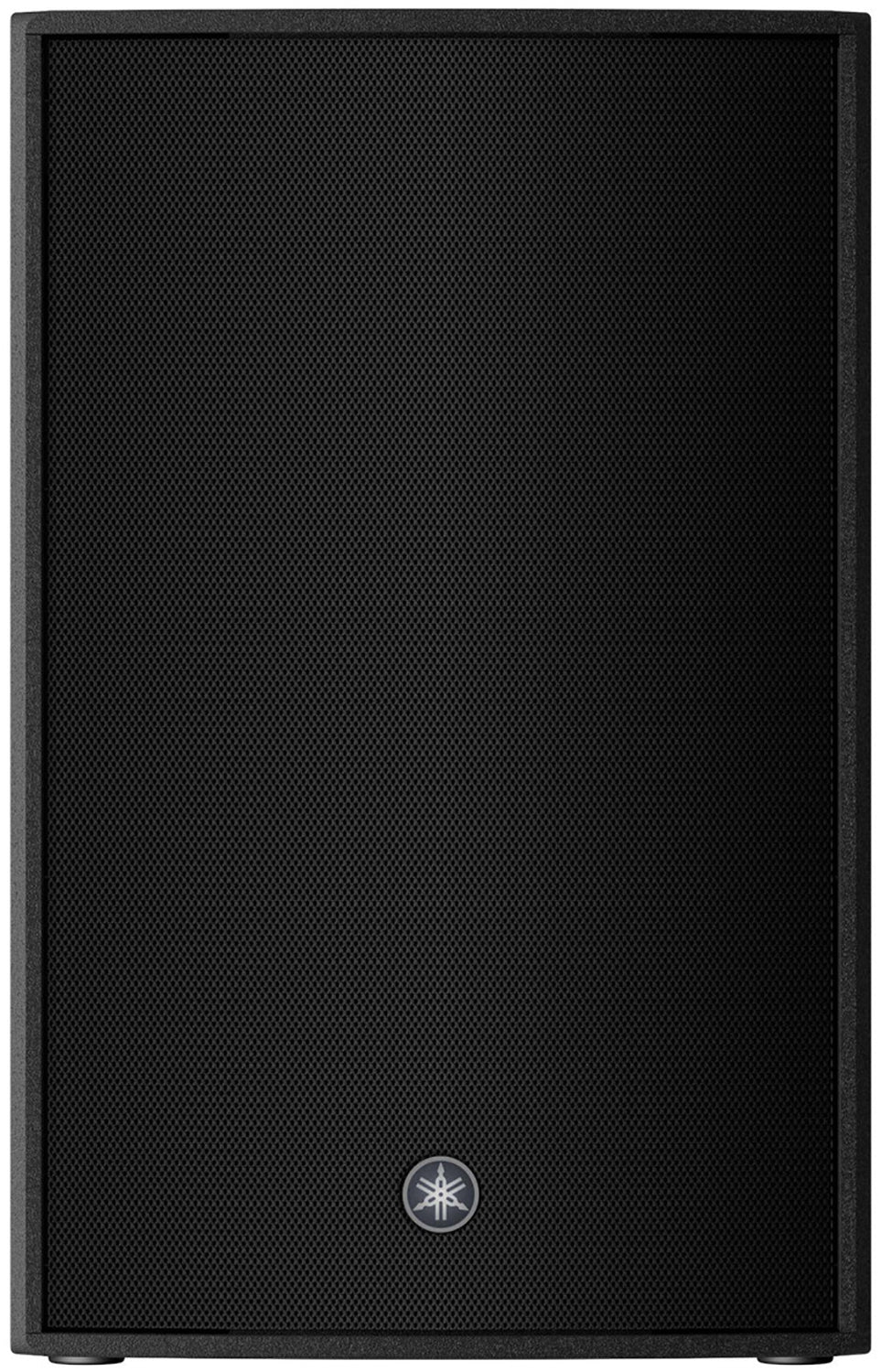

Yamaha DZR12 12 Inch LF / 2 Inch HF 2000 Watt Powered Speaker

The Yamaha DZR12 is a state-of-the-art 2-way bi-amped powered loudspeaker that provides exceptional sound quality and impressive output levels. Featuring a 12-inch low-frequency driver and a 2-inch high-frequency driver, the DZR12 is designed to deliver best-in-class SPL performance, with a maximum output of 139 dB and a frequency range extending from 39 Hz to 20 kHz. Powered by a high-performance 2000W Class-D amplifier, the DZR12 is capable of reproducing deep, powerful bass and crystal-clear highs, making it an ideal solution for both portable and fixed-installation sound reinforcement needs.

With advanced DSP processing, including 96 kHz sampling and FIR-X tuning, the DZR12 ensures high-resolution sound with minimal phase distortion. The intuitive LCD display provides easy access to DSP functions, such as PEQ, delay, and routing adjustments, allowing for fine-tuning in any environment. The robust plywood cabinet with Polyurea coating offers durability, while the speaker’s versatility is enhanced by its rotatable horn and optional rigging hardware. Available in black or white finishes, the DZR12 is built for both performance and reliability.

Features

• 2-way powered loudspeaker with 12″ LF and 2″ HF drivers
• Maximum 139 dB SPL with a frequency range of 39 Hz – 20 kHz
• 2000W high power Class-D amplifier module for powerful output
• 96 kHz DSP with FIR filter for high-resolution sound and low latency
• Advanced FIR-X tuning minimizes phase distortion and ensures clear audio
• Intuitive LCD display for easy access to DSP functions such as PEQ, delay, and routing
• D-Contour and highly reliable protection circuits for enhanced performance
• Rotatable horn with a coverage area of 90° x 60°
• Durable plywood cabinet with premium Polyurea coating for long-lasting use
• Flexible setup with optional U-bracket for rigging and adjustable floor monitoring angle
• Available in black or white finishes

Specifications

• Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency Range (-10 dB): 39 Hz – 20 kHz
• Coverage Area (H x V): 90° x 60° (Rotatable)
• Components: LF: 12″ Cone, 3″ Voice Coil, Neodymium magnet; HF: 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 1.8 kHz (FIR-X)
• Sampling Frequency Rate: 96 kHz with FIR Filter
• A/D D/A Converters: 96 kHz AD/DA
• Maximum Output Level (1m, On Axis): 137 dB SPL
• Power Rating: Dynamic: 2000 W (LF: 1000 W, MF/HF: 1000 W); Burst (20ms): 1100 W (LF: 1000 W, MF/HF: 100 W); Continuous: 950 W (LF: 850 W, MF/HF: 100 W)

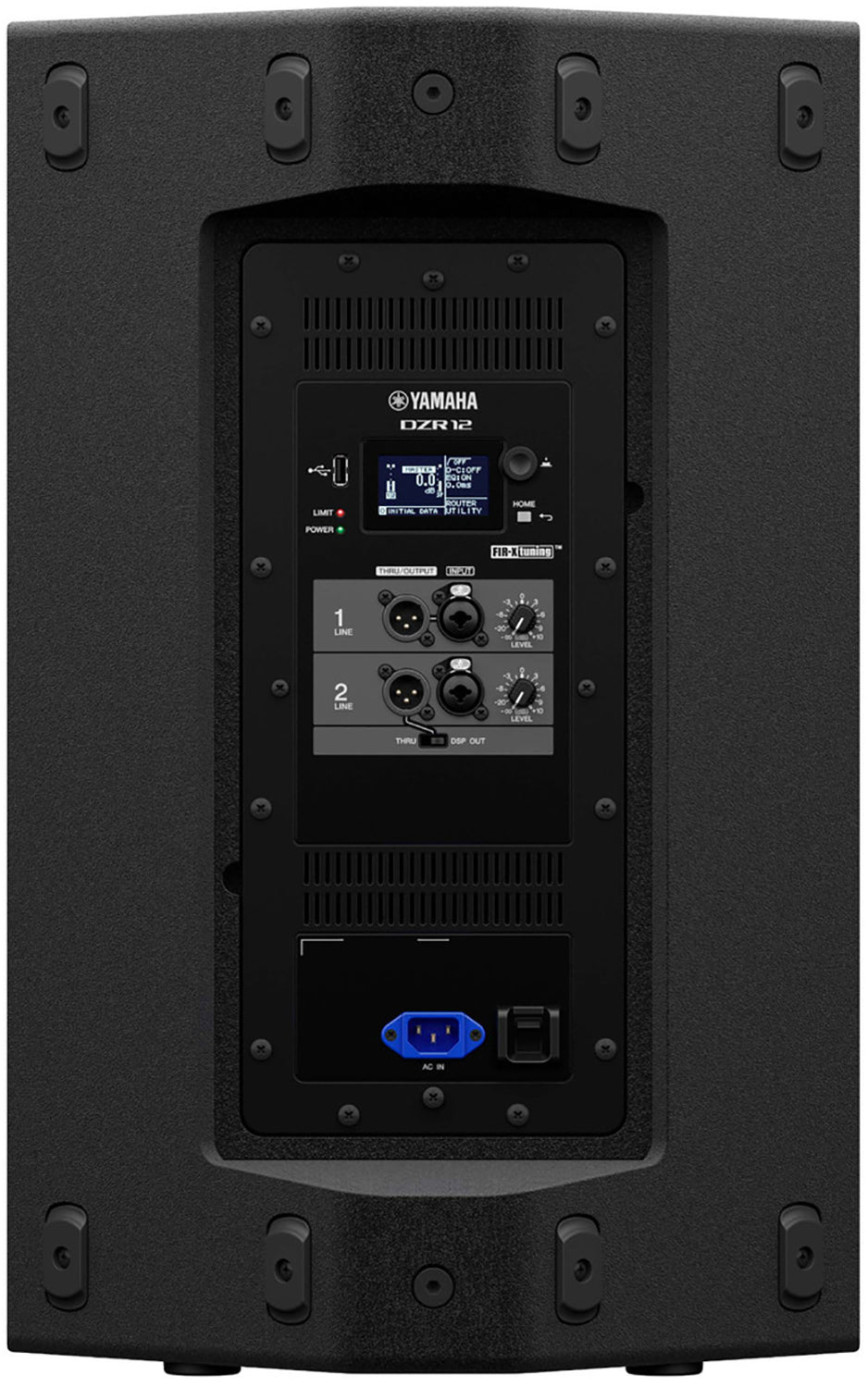

• I/O Connectors: Analog IN: Combo x2 (Line level, max +24 dBu), Analog OUT: XLR3-32 x2 (CH1: THRU, CH2: THRU or DSP OUT); USB2.0 Host for data storage/load
• Amplifier Class: Class-D
• Cooling: Fan cooling, variable speeds
• Power Consumption: 45W (Idle), 150W (1/8)
• Handles: Aluminium die-cast, side x2
• Rigging: M10 x12
• Dimensions: 16.1″ x 25.4″ (with rubber feet), 15.5″ depth
• Net Weight: 39.5 lbs (17.9 kg)
• Options: U-bracket (UB-DZR10H/V), Cover (SPCVR-DZR10)
• Enclosure Material: Plywood with durable Polyurea painting
• Floor Monitor Angle: 50°
• Pole Socket: Ø35 mm x2 (0° or -7°)
