Description

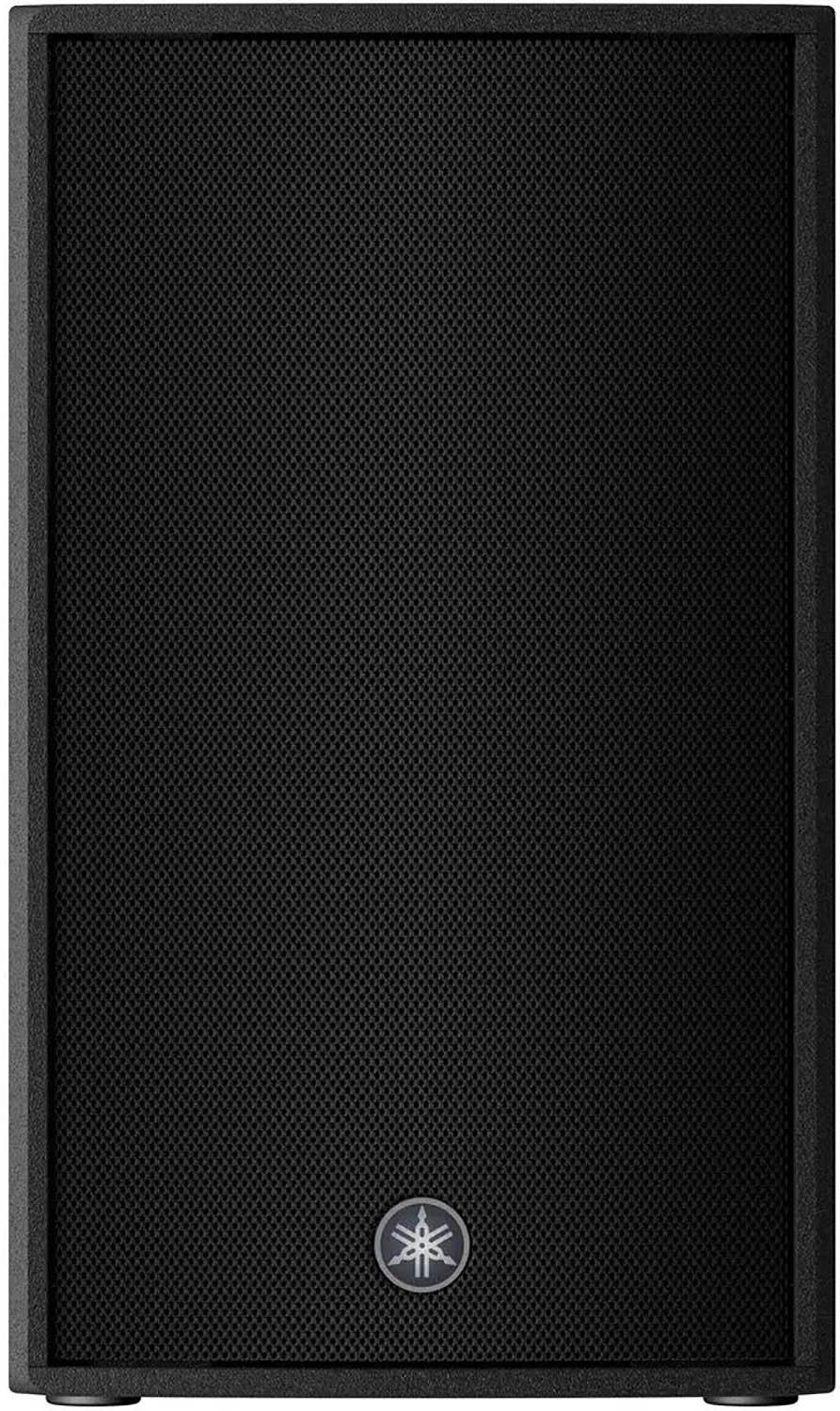

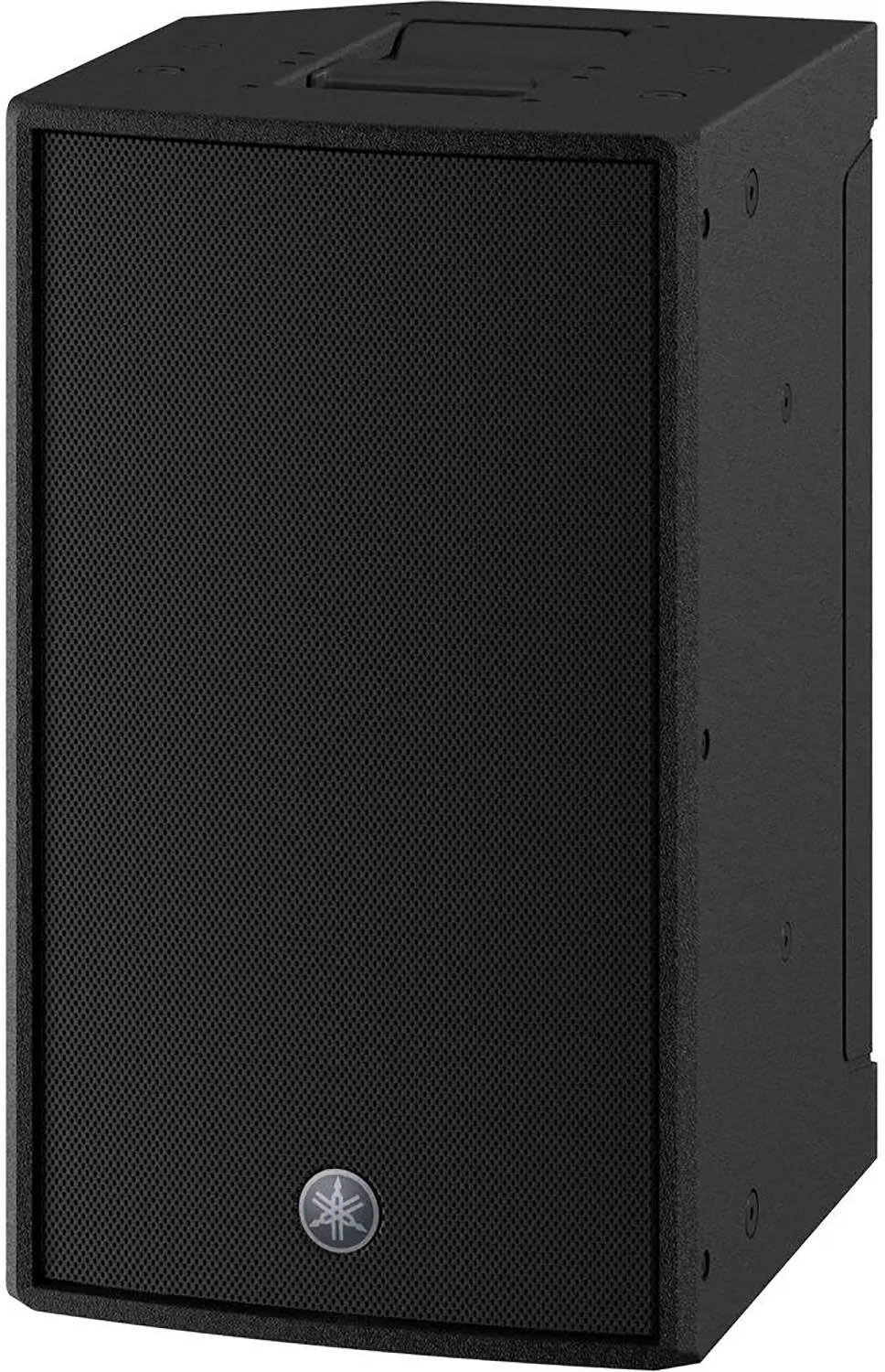

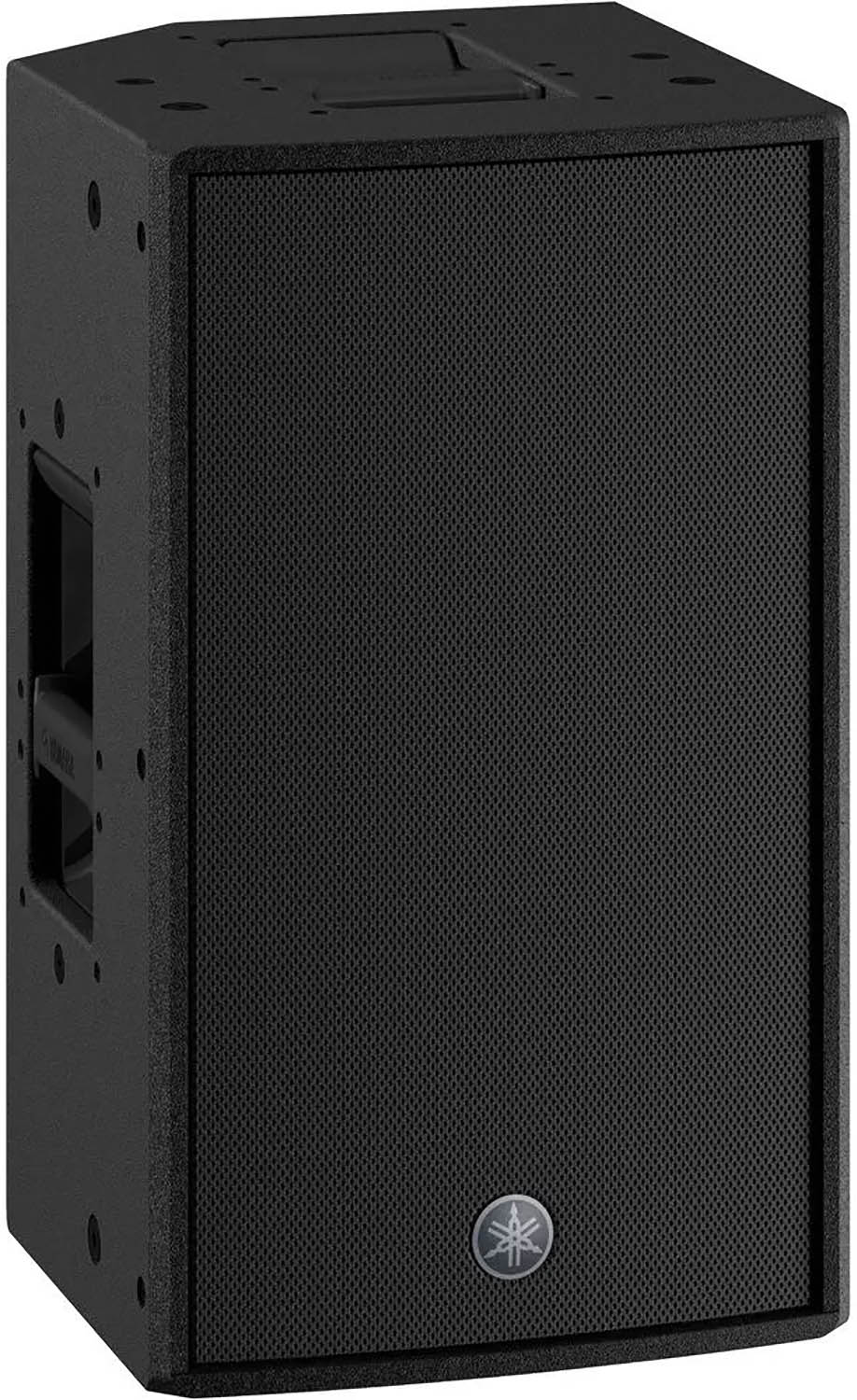

Yamaha DZR10 10 Inch LF / 2 Inch HF 2000 Watt Powered Speaker

The Yamaha DZR10 is a 2-way powered loudspeaker designed to deliver exceptional sound quality and performance. Featuring a high-frequency transducer with a 2-inch voice coil, titanium diaphragm, and neodymium magnet, and a low-frequency transducer with a 3-inch voice coil, this speaker ensures crystal-clear sound reproduction even at high volumes. With a 2,000-watt Class D amplifier, advanced FIR-X tuning, and D-Contour technology, the DZR10 offers tight low-end response, clarity in the mid-bass and vocal range, and superior sound quality for any application. Its lightweight, durable plywood cabinet with a premium-grade polyurea coating is perfect for both portable and permanent installations.

Features:

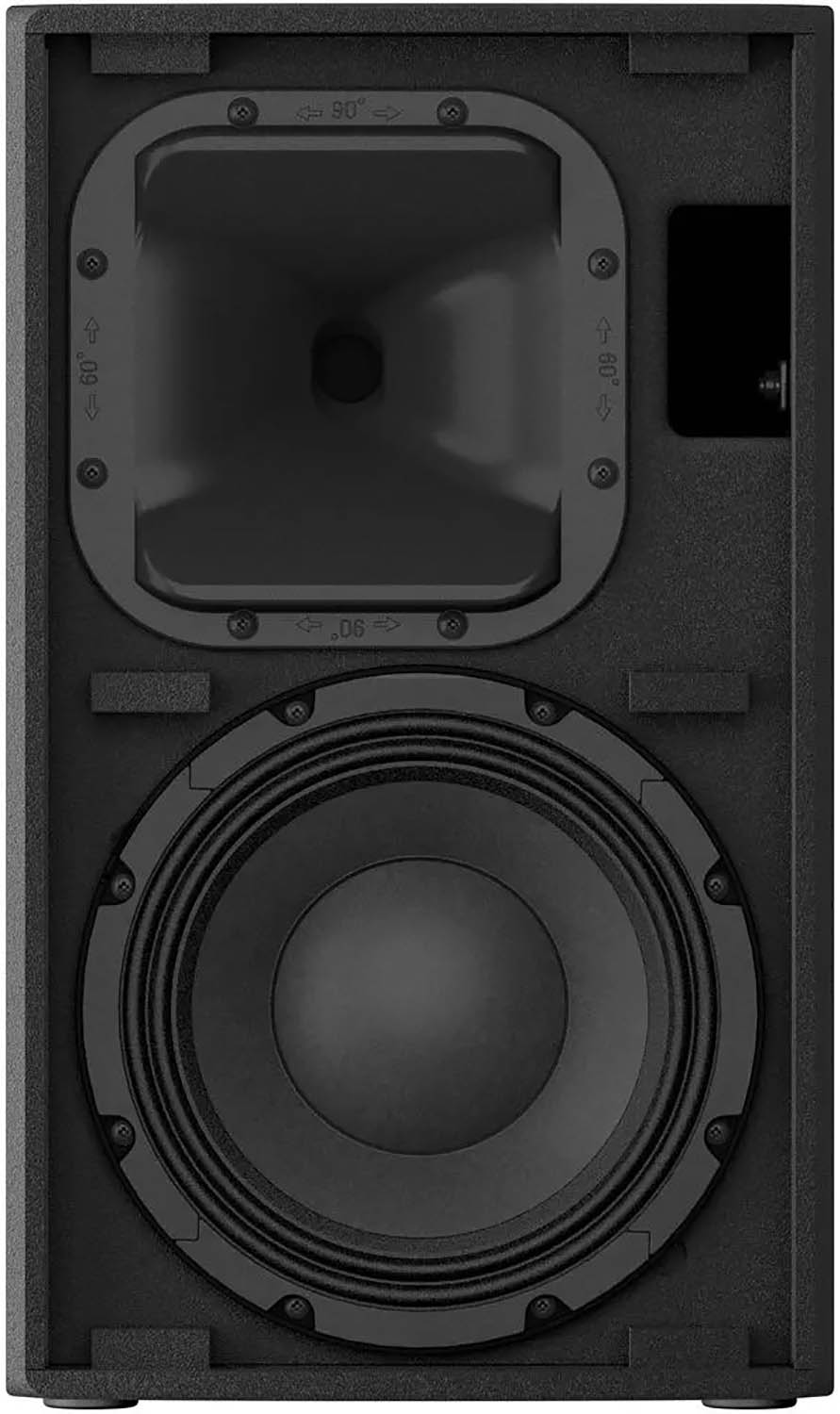

• 2-way powered loudspeaker with 2″ HF and 10″ LF drivers
• 2,000-watt Class D amplifier with a frequency range of 44Hz–20kHz
• FIR-X tuning minimizes phase distortion for crystal-clear sound
• D-Contour multiband compressor maintains clarity at high output levels
• Rotatable horn for vertical or horizontal mounting
• Universal switching mode power supply for stable operation
• Lightweight, durable plywood cabinet with polyurea coating

Specifications:

• Power Configuration: Bi-amped
• LF Driver: 10″ cone with 3″ voice coil, neodymium magnet
• HF Driver: 2″ compression driver with 1″ throat
• Power Output: 2,000W Peak (1,300W Continuous)
• Frequency Range: 44Hz–20kHz (-10 dB)
• Maximum SPL: 137 dB @ 1m
• Inputs: 2 x XLR-1/4″ combo (line in)
• Outputs: 2 x XLR (thru/output)
• Signal Processing: PEQ, Delay, Routing, 8 User Presets
• Enclosure Material: Plywood with polyurea coating
• Mounting Options: Pole socket (2 x 35mm), Fly points (8 x M10, 2 x M8), Floor wedge
• Dimensions: 21.1″ H x 12.4″ W x 13.6″ D
• Weight: 39.5 lbs.
