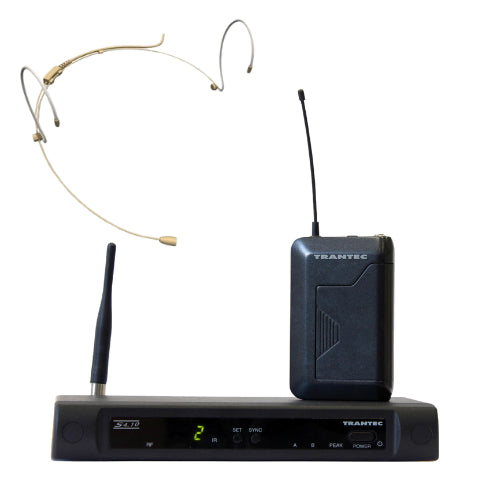

Trantec S4.10 UHF Wireless Headset System

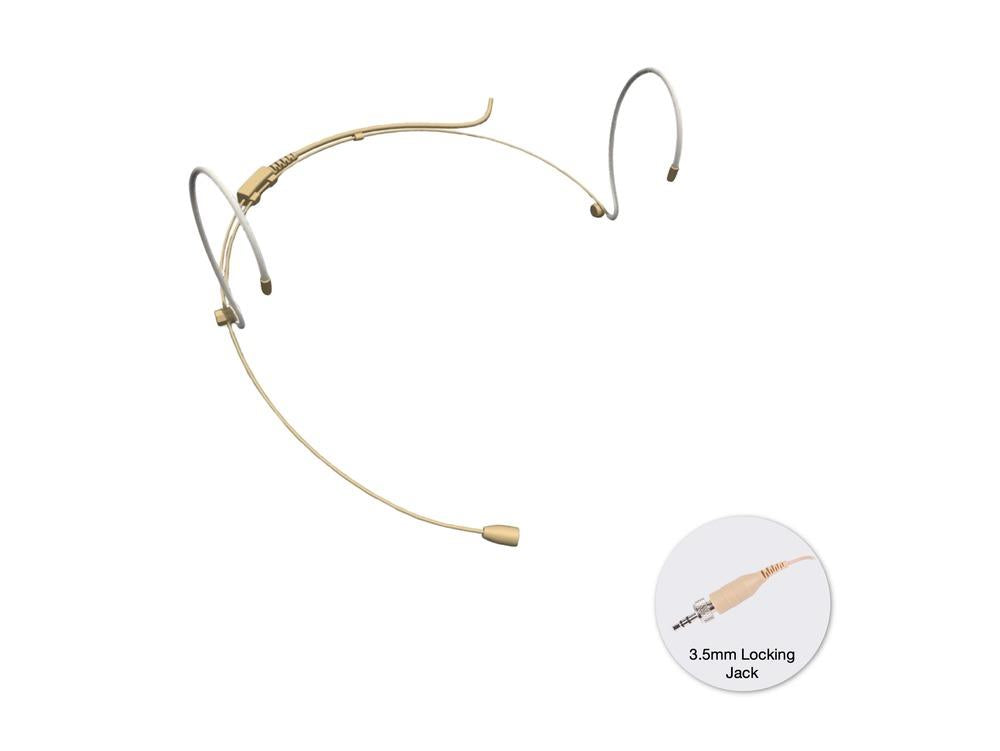

Comes with one beltpack transmitter and one beige headset microphone. It is available on channel 38 with 16 selectable frequencies.

16 selectable frequencies available
Up to 10 simultaneous channels
Fully synthesised PLL quartz tuning technology
Receiver LED’s show AF peak level, RF level & diversity channel A or B
Diversity operation with detachable antenna
Professional metal enclosure
19” rack mount option for one or two receivers

Receiver
Diversity Reception: Antenna Diversity
Sensitivity: 10uV at 45dBA, S/N
Squelch: Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response: 50Hz – 1.5kHz
Audio Output Level: Balanced (XLR socket): -20dBu Unbalanced (1/4″ jack socket): 10dBu
Power Supply: 12 V DC 500mA
Dimensions: 215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
Weight: 480g

Beltpack Transmitter
RF Carrier Power: 10mW
Audio Frequency Response: 50Hz – 1.5kHz
Audio Input Level: -6dBV max., mic gain 0dB
Battery Life: Approx. 10 hours
Power Supply: 1 AA size alkaline battery 1.5V
Finish: Resin, coating
Dimensions: 62(W) x 100(H) x 25(D)mm
Weight: 85g with battery
