Description

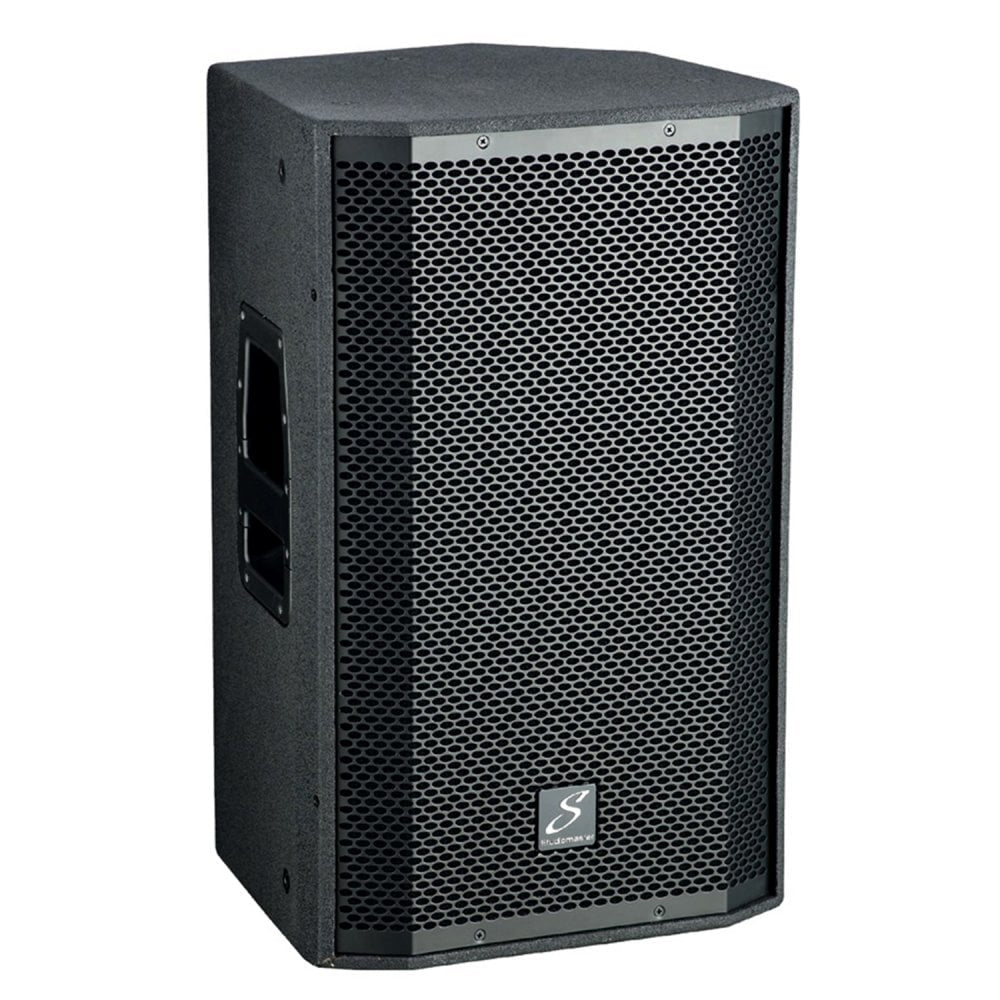

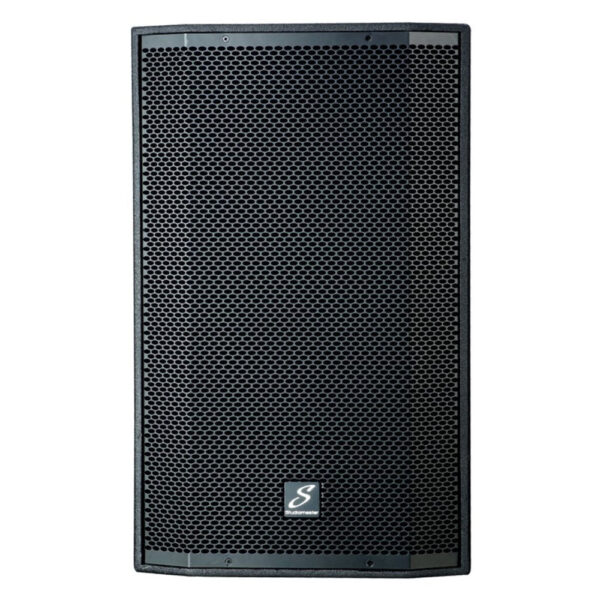

The Studiomaster Venture 15AP DSP is a high-performance 15″ active speaker cabinet, designed to deliver powerful, crystal-clear sound in a robust, portable enclosure. With an 800W peak power output and an integrated 24-bit/48kHz DSP, this speaker provides total control over your audio with adjustable EQ, tone presets, delay, limiter, and volume settings. Built with industrial-grade 15mm 9-ply plywood and finished in a wear-resistant black textured coating, it is ideal for both front-of-house PA and stage monitor use thanks to its 60° rear bevel. Whether you’re performing live, DJing, or managing corporate events, the Venture 15AP delivers professional-level output with flexible connectivity and mounting options.

Features
15″ two-way active speaker system
800W peak power with 350W LF and 50W HF RMS output
24-bit/48kHz DSP with adjustable EQ, tone, delay, limiter, and volume
Four cabinet tone presets
Durable 15mm 9-ply plywood construction
Rear bevel for stage monitoring
Robust steel grille
Multiple M10 fly points for rigging
Universal 100–240V power supply

Specifications
Format: 15″ two-way
Frequency Response (-3dB): 55Hz – 18kHz
Frequency Range (-10dB): 45Hz – 20kHz
Amplifier Power (RMS): LF 350W / HF 50W
Amplifier Power (Peak): 800W
Crossover Frequency: 2.2kHz
Woofer: 15″ with 63.5mm voice coil, ferrite magnet
Compression Driver: 34mm voice coil, ferrite magnet
Coverage: 80° x 60° (HxV)
Max SPL: 132dB
Cabinet Material: 15mm plywood

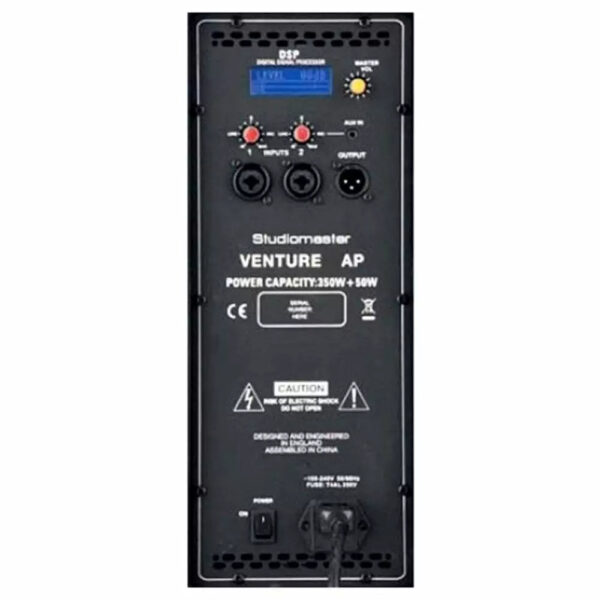

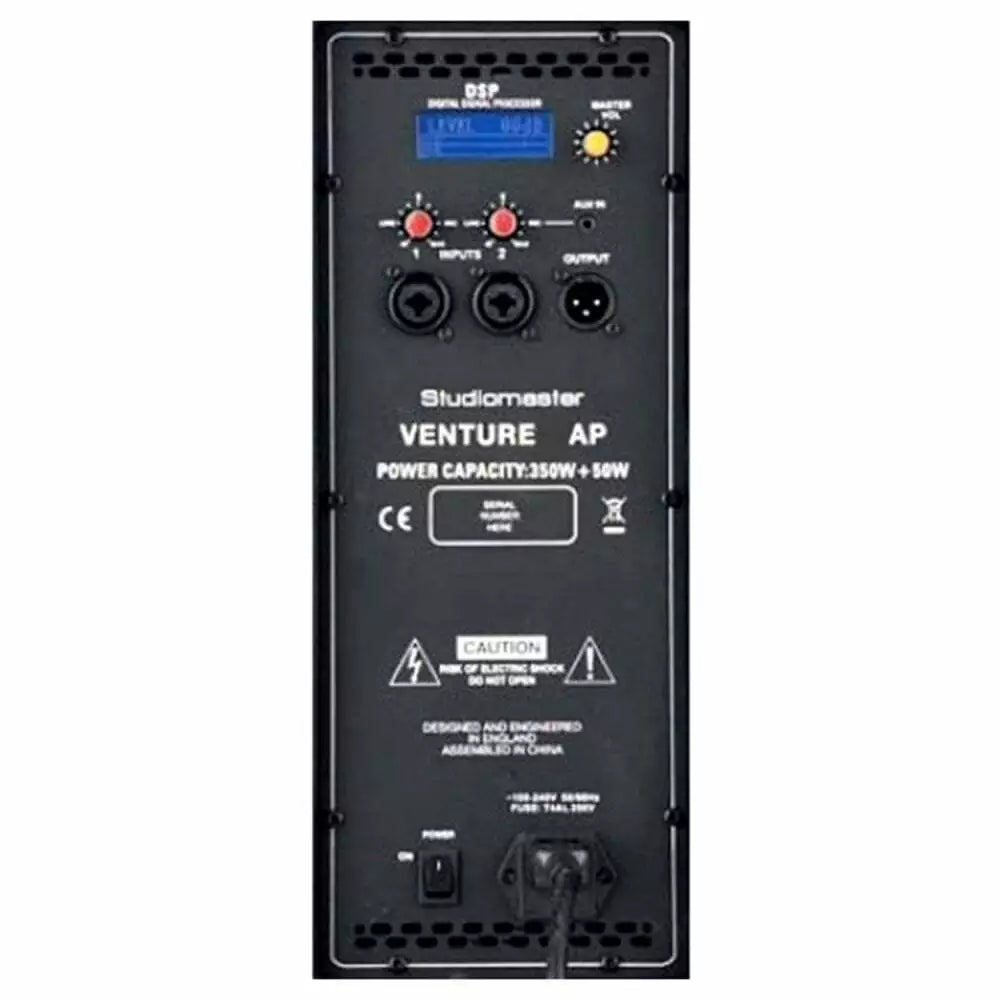

Input Connections: 2 x XLR/Jack combo, 1 x 3.5mm Jack
Fly Points: 13 x M10
Power Requirements: 100 – 240V
Dimensions (W x H x D): 430 x 704 x 400 mm
Weight: 25.6 kg
