Description

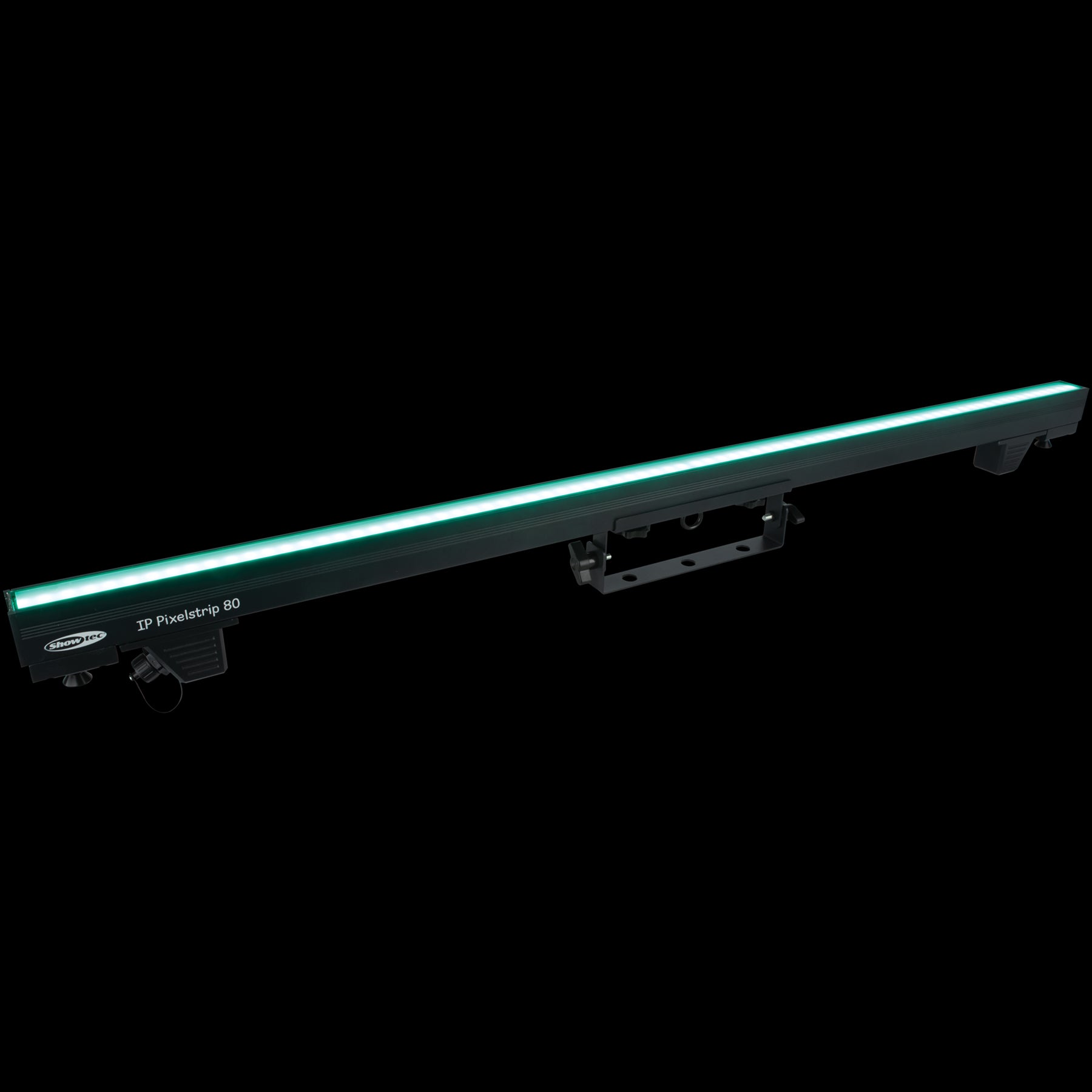

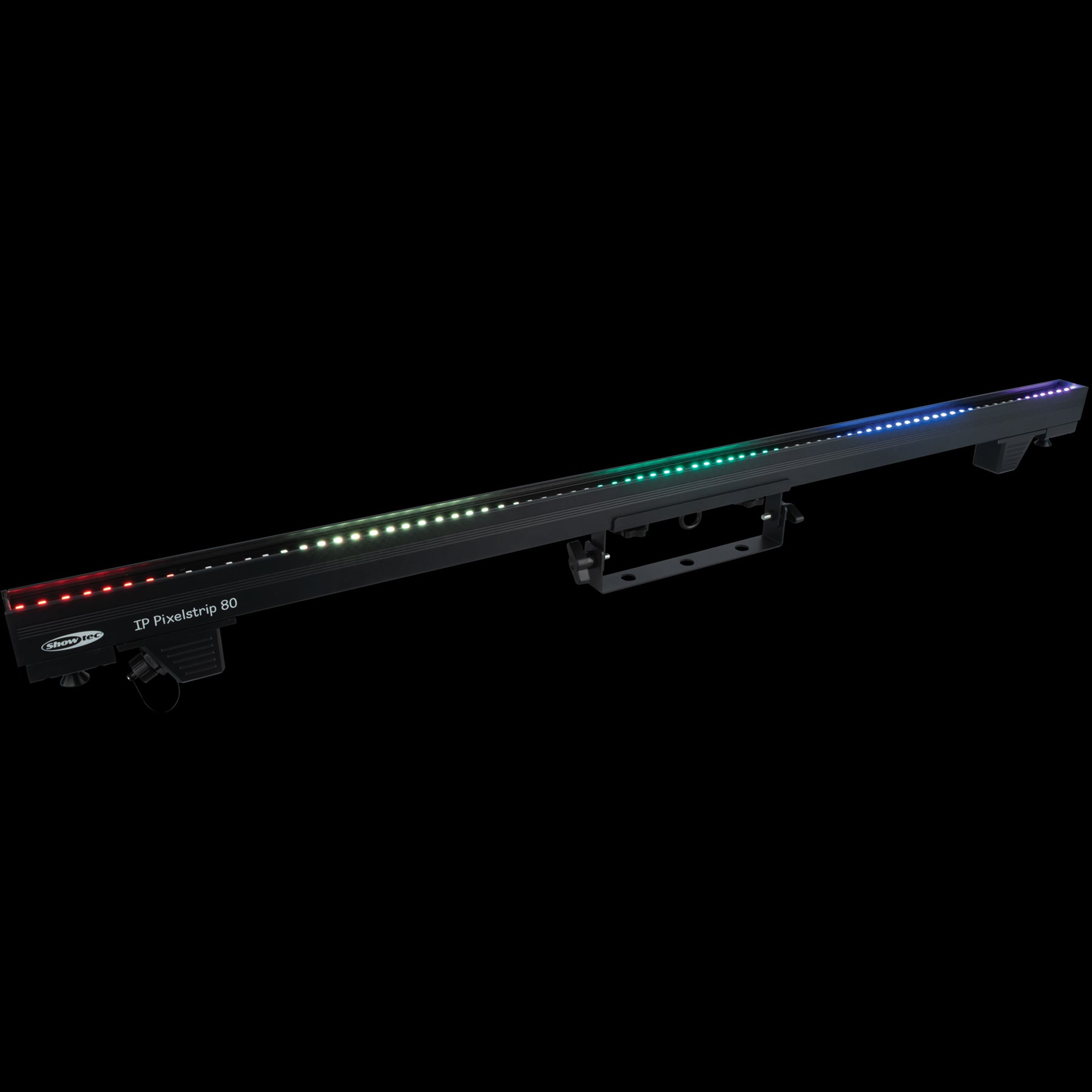

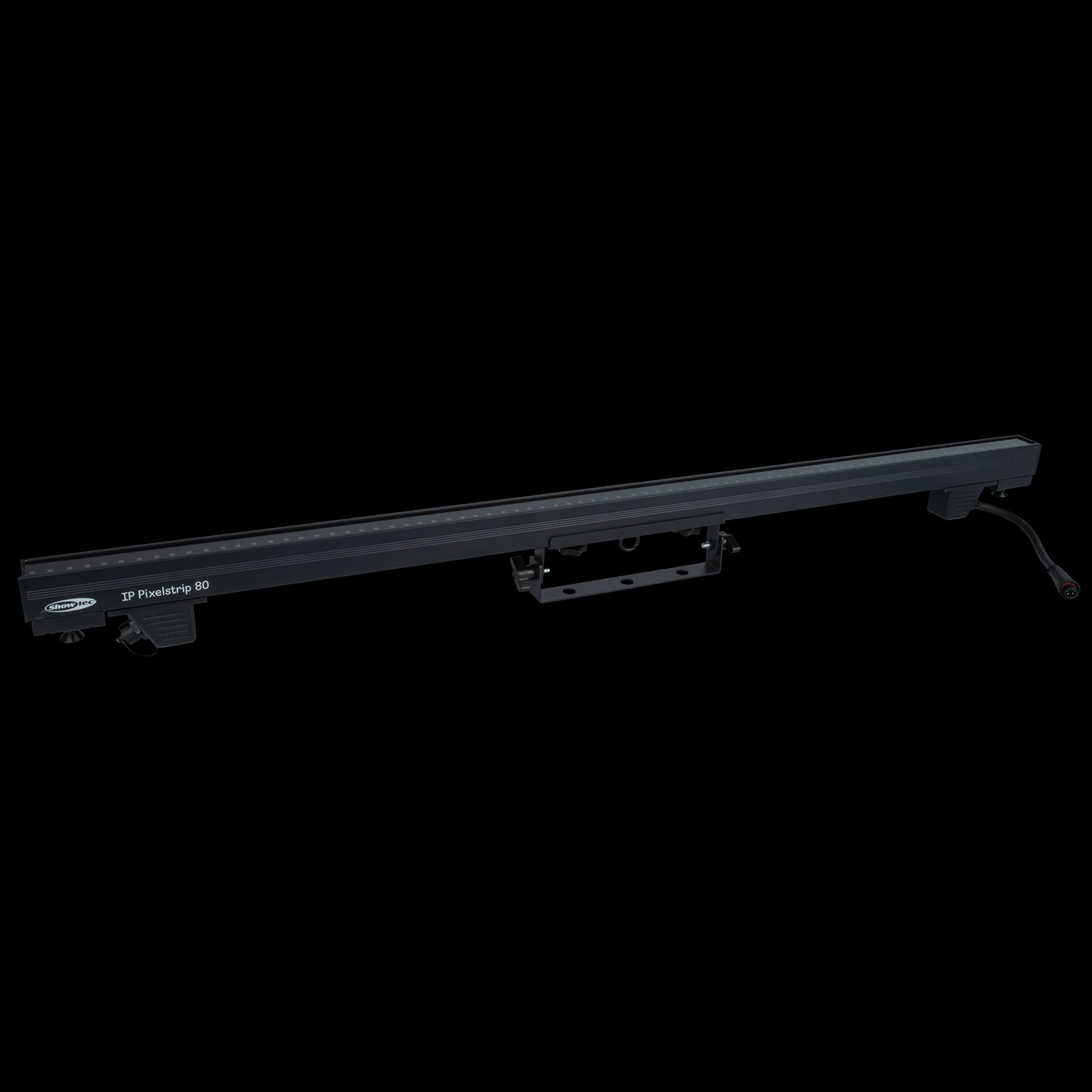

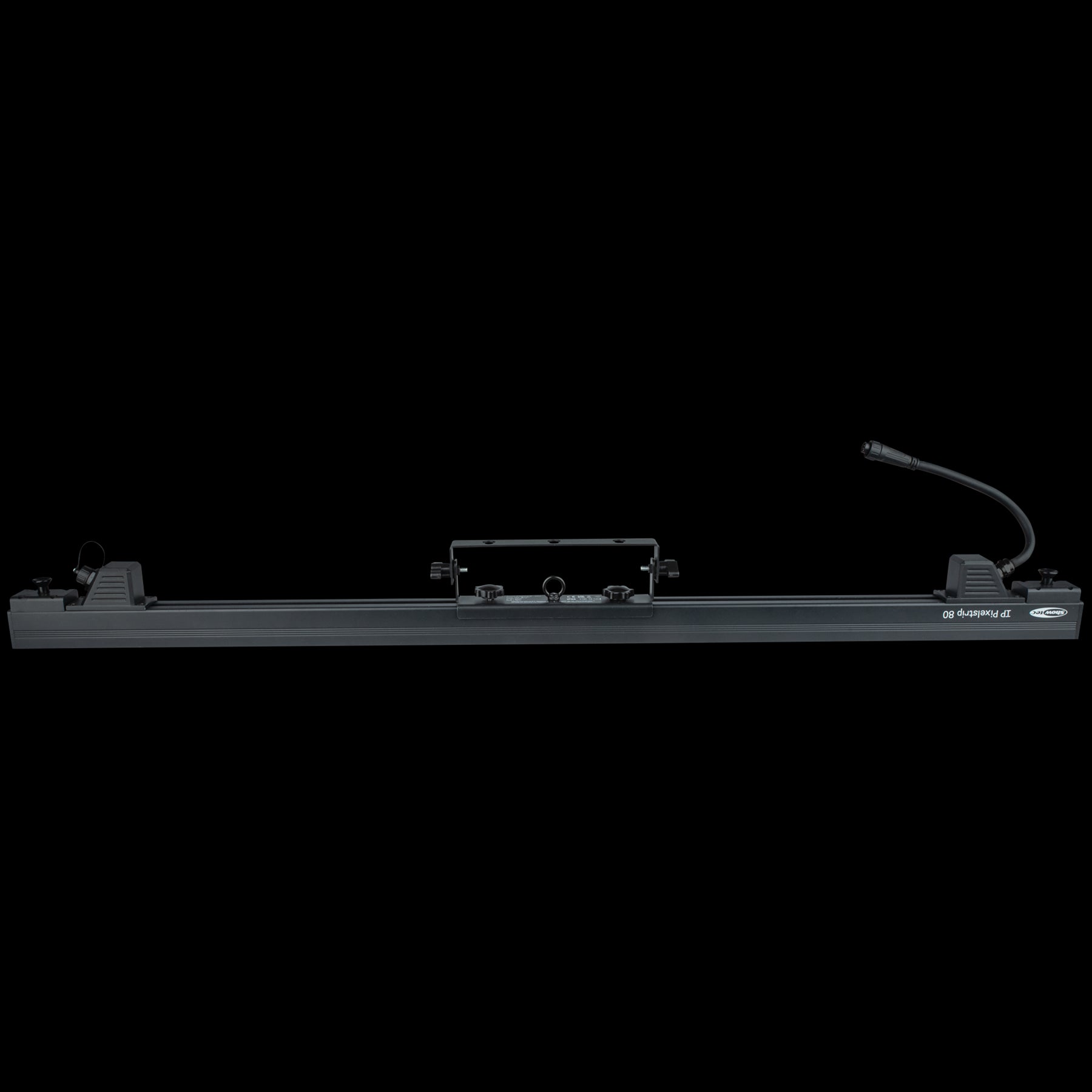

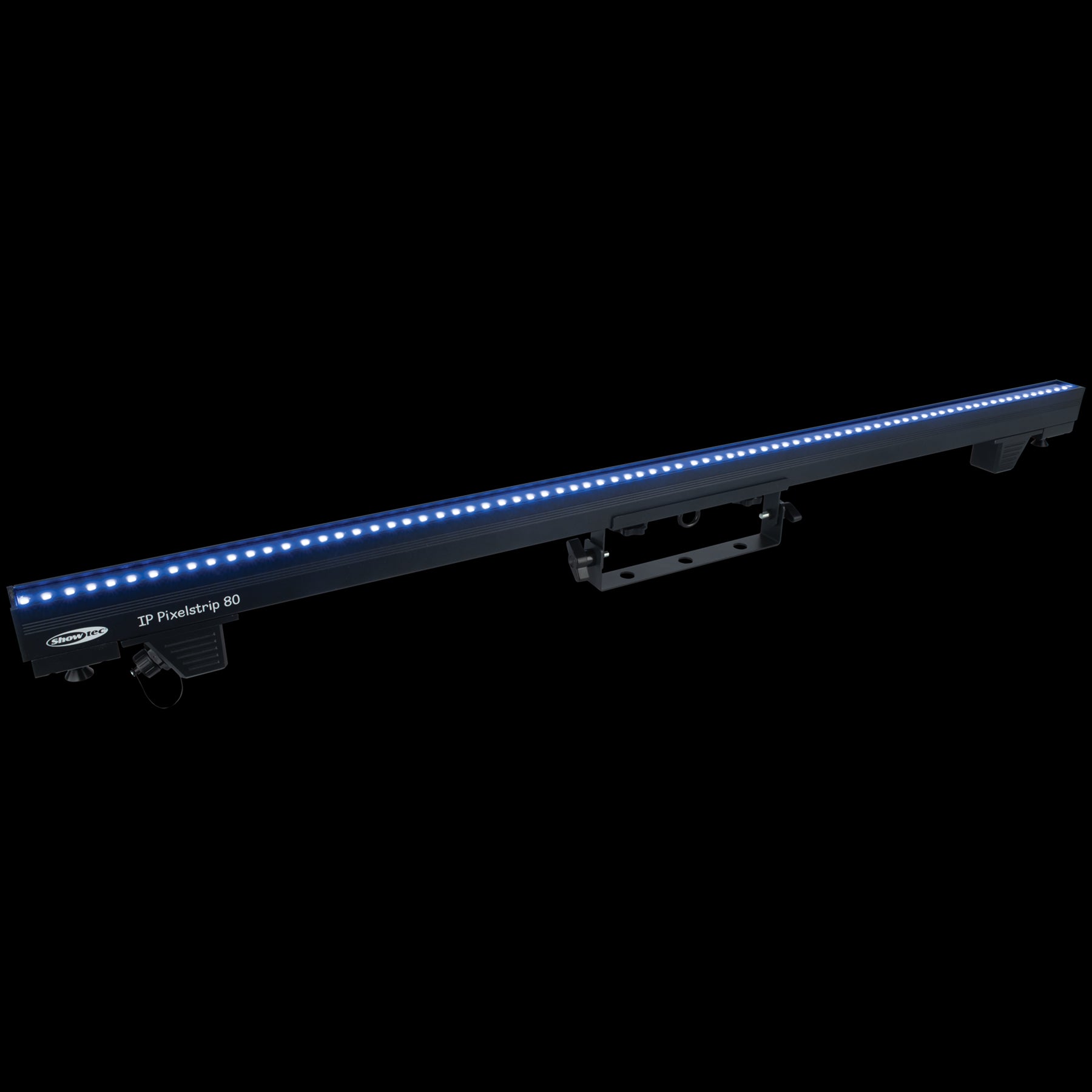

The Showtec IP Pixelstrip 80 is a professional-grade, high-brightness LED bar designed for creative lighting displays in both indoor and outdoor environments. Featuring 80 individually controllable RGB LEDs and a pixel pitch of just 12.5 mm, this fixture delivers sharp, vibrant visuals and is driven exclusively via the dedicated Showtec IP Pixel Controller (required, sold separately). With an IP65-rated aluminium housing and fanless passive cooling, it is built for temporary outdoor events and stage productions. The unit includes a straight alignment plate for quick setup and comes with a replaceable smoked black cover. Optional covers and alignment plates offer full design flexibility, including 3D configurations.

Features
80 individually addressable RGB LEDs for high-resolution pixel mapping
High brightness output of 9200 nits with 16,000 Hz refresh rate
Fanless passive cooling for silent operation
IP65-rated aluminium housing for indoor and temporary outdoor use

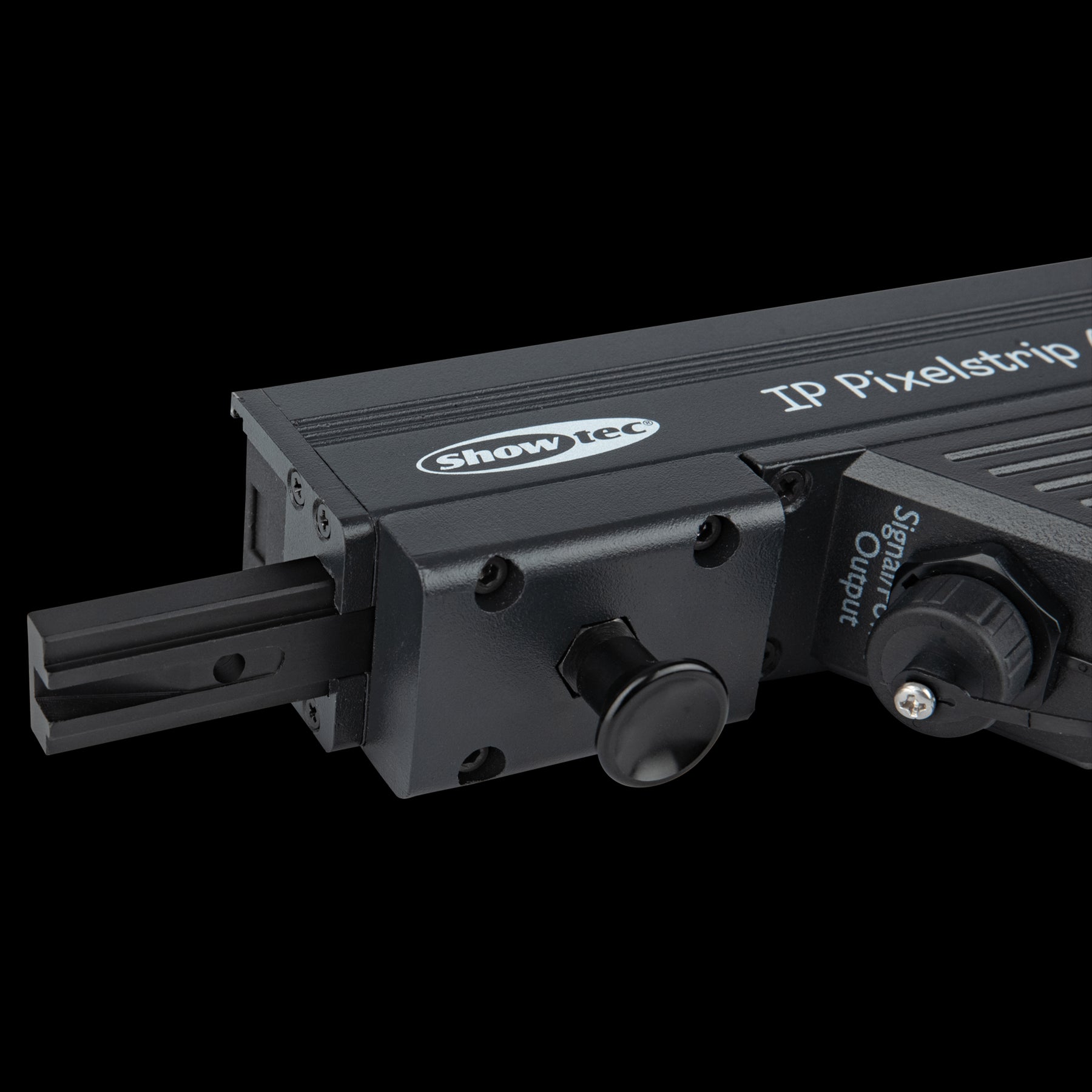

Straight alignment plate included, tool-free locking
Multiple cover options available for aesthetic versatility
Can be daisy-chained with IP Pixelstrip 40 (up to 4m per controller output)
Requires Showtec IP Pixel Controller for operation (not DMX/standalone compatible)
Ideal for stage design, events, installations, and immersive visual setups

Specifications
Light Source
Type: LED
Quantity: 80 RGB LEDs
Refresh rate: 16,000 Hz
Brightness: 9200 nits
Pixel pitch: 12.5 mm

Dynamic Effects
Dimmer: 0–100%
Strobe: 0–20 Hz

Electrical
Power supply: 48 V DC
Power consumption: 31 W

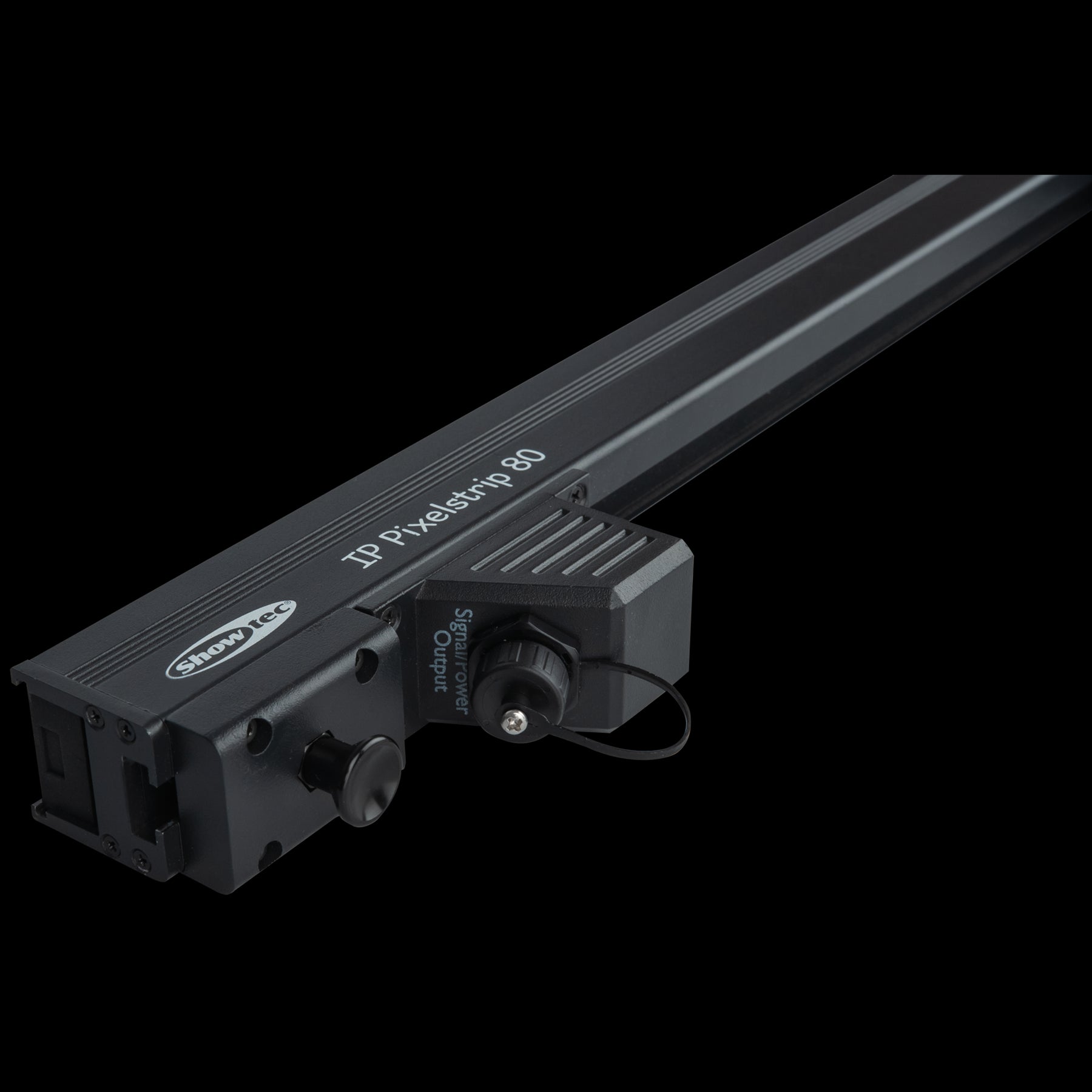

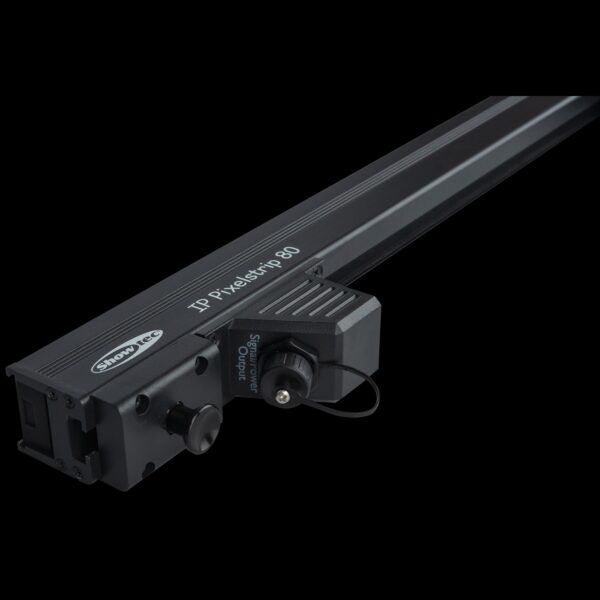

Power input: Dedicated IP65 power connection (fixed cable)
Power output: Dedicated IP65 power connection

Mechanical
Length: 1004 mm (39.528″)
Height: 95 mm (3.74″)
Width: 35 mm (1.378″)
Weight: 2.4 kg (5.291 lb)
Housing: Aluminium
Color: Black
Cooling: Passive (fanless)
Mounting: Bracket included
Safety attachment: Yes

Environmental
IP rating: IP65 (suitable for temporary outdoor use)
Maximum ambient temperature: 40 °C (104 °F)
Minimum ambient temperature: -5 °C (23 °F)

Included Items

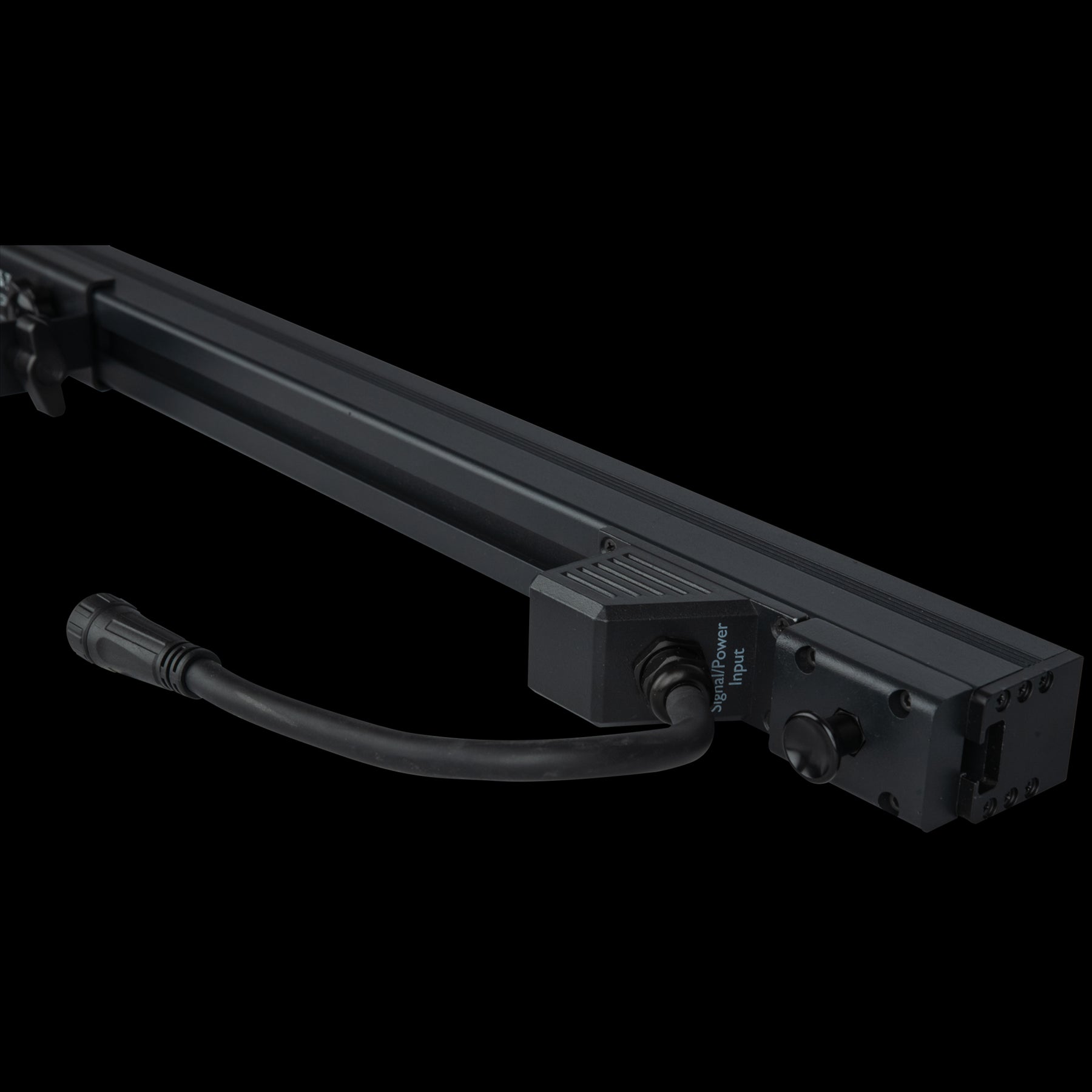

Included cable: Fixed data/power cable
Included rigging: Straight alignment plate
Included accessory: Smoked black flat cover
