Description

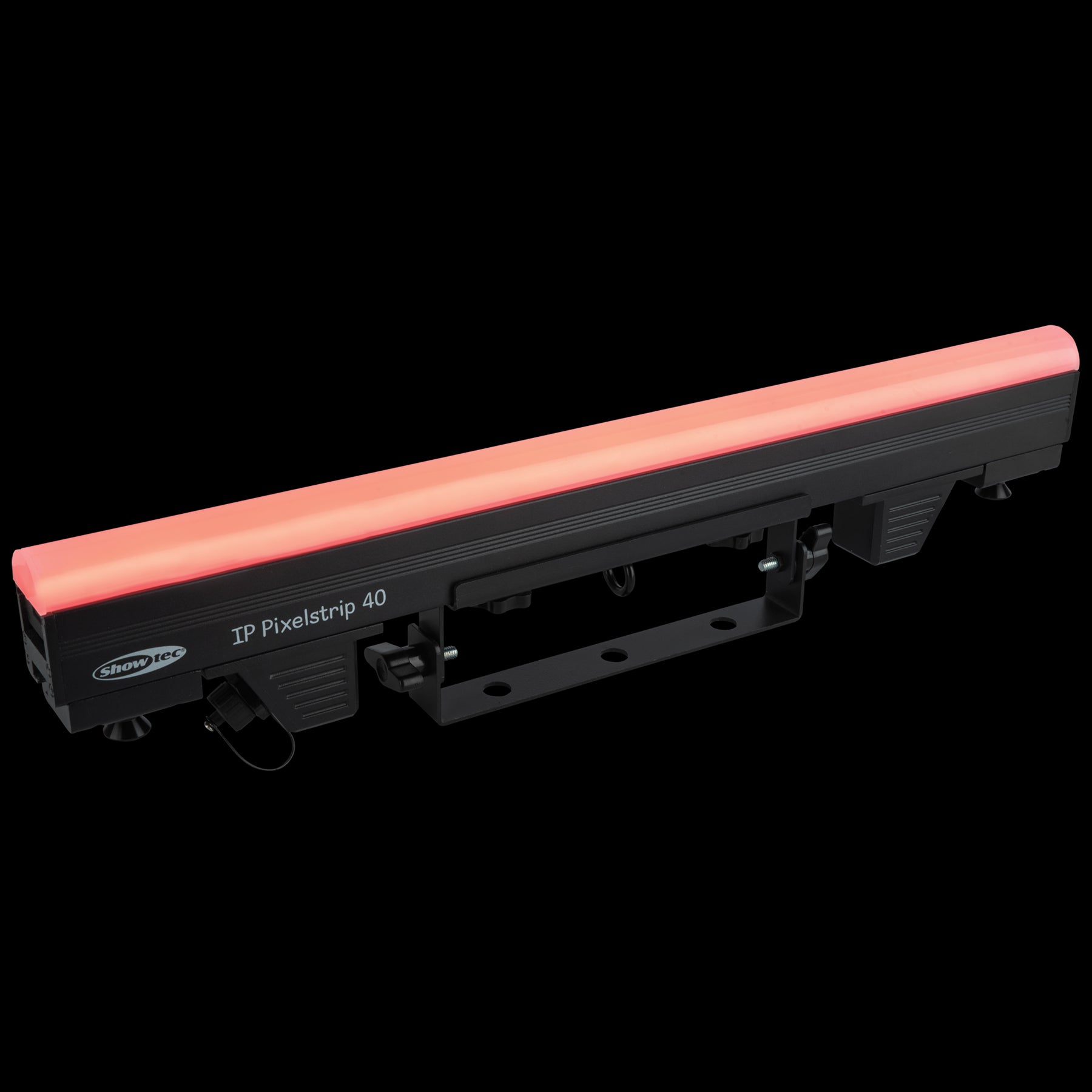

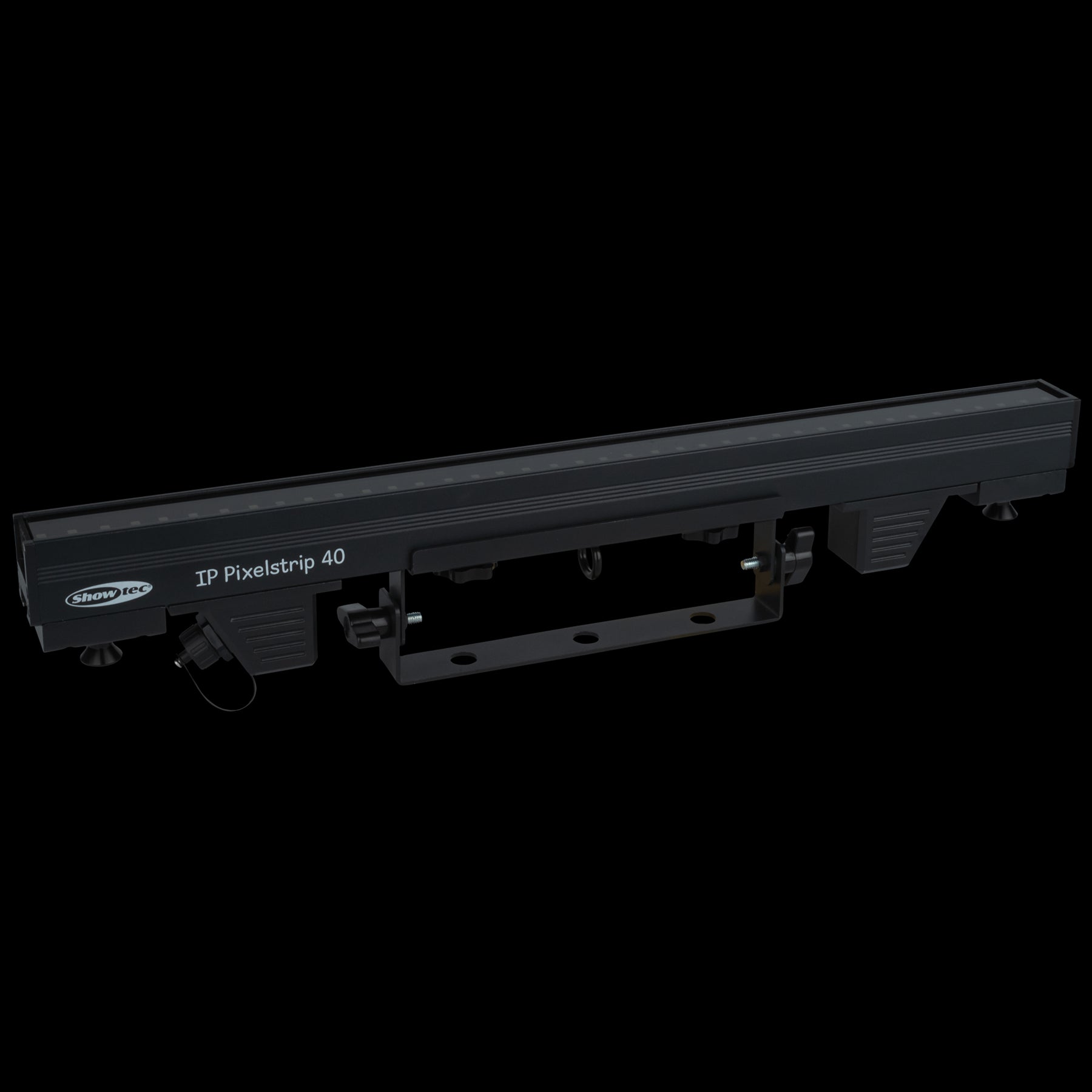

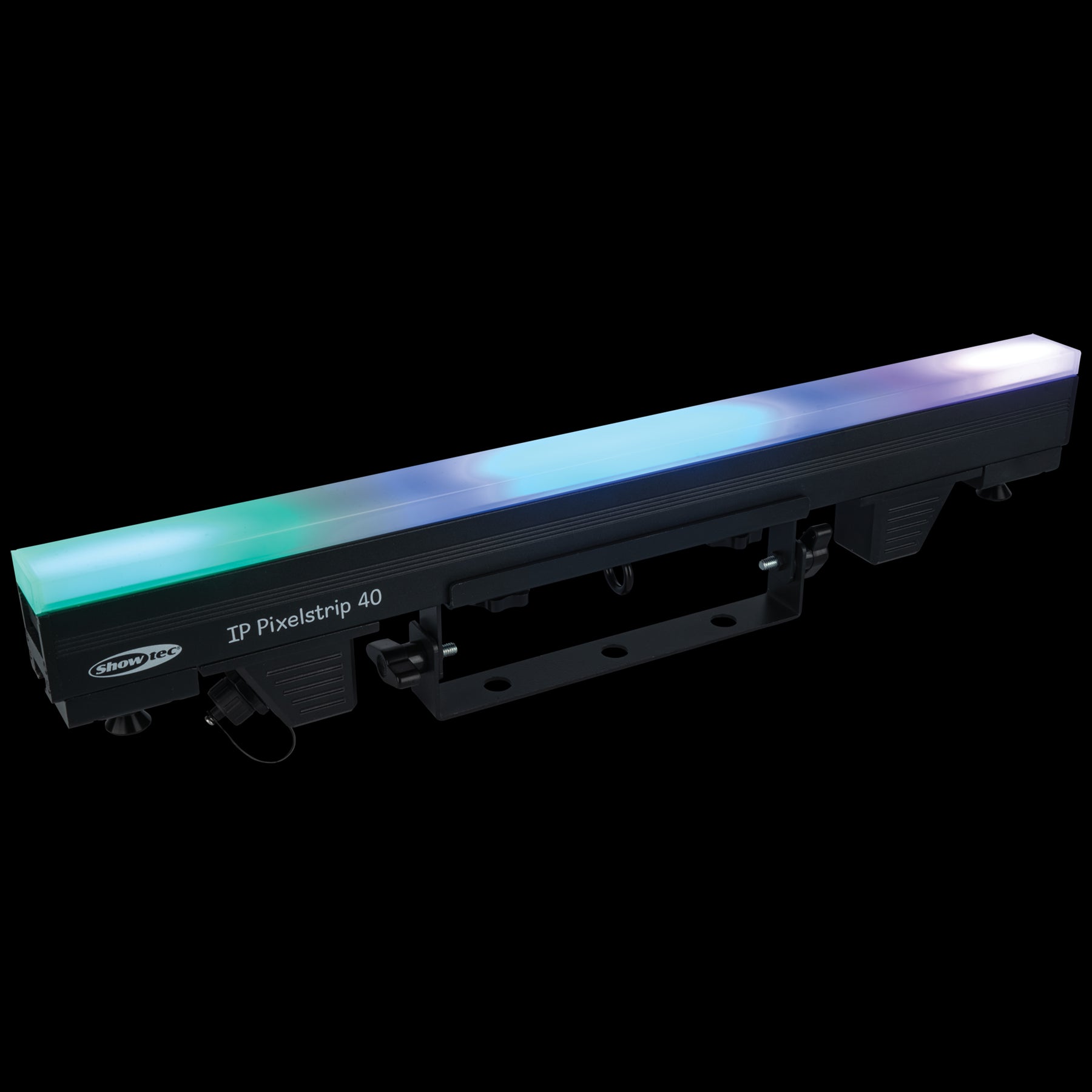

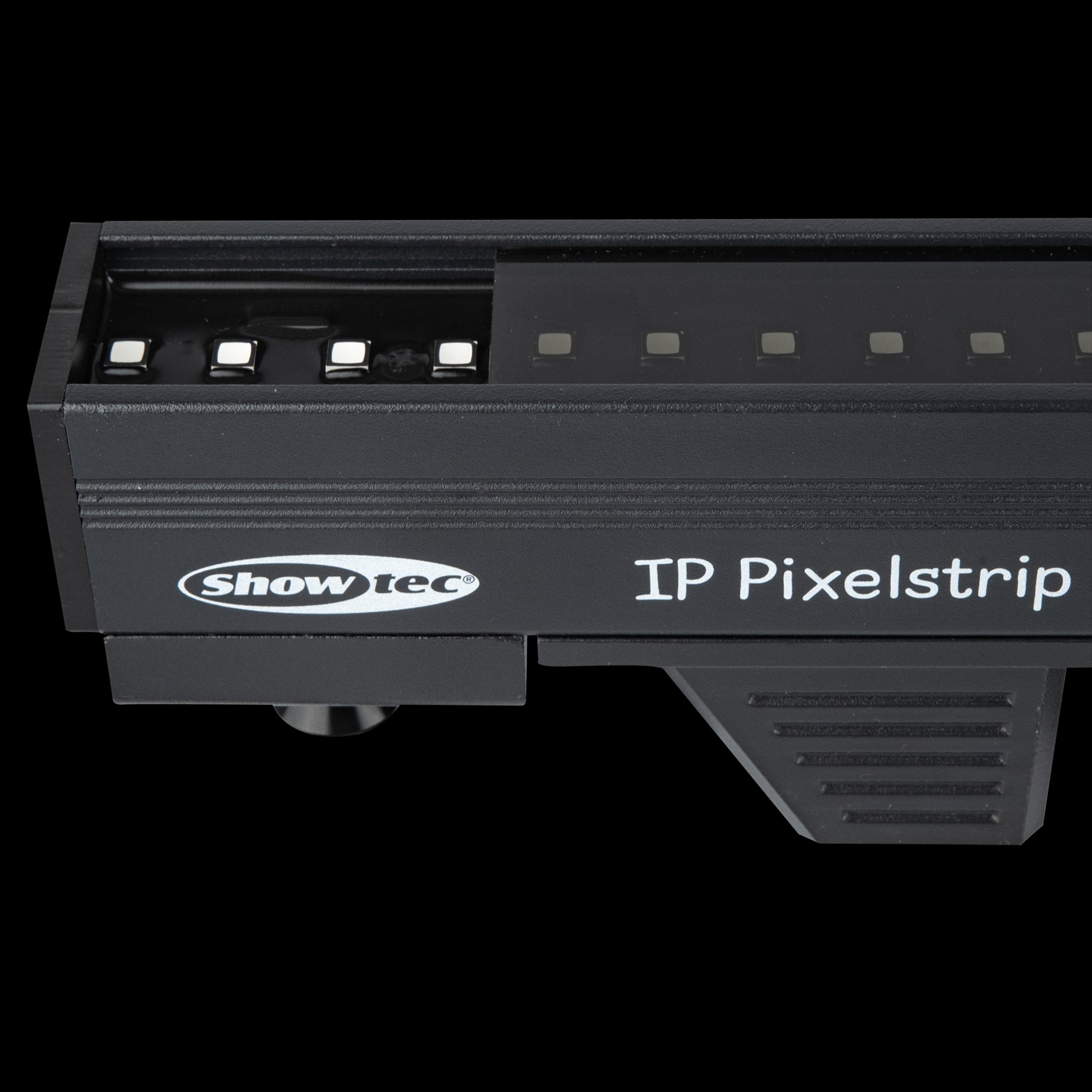

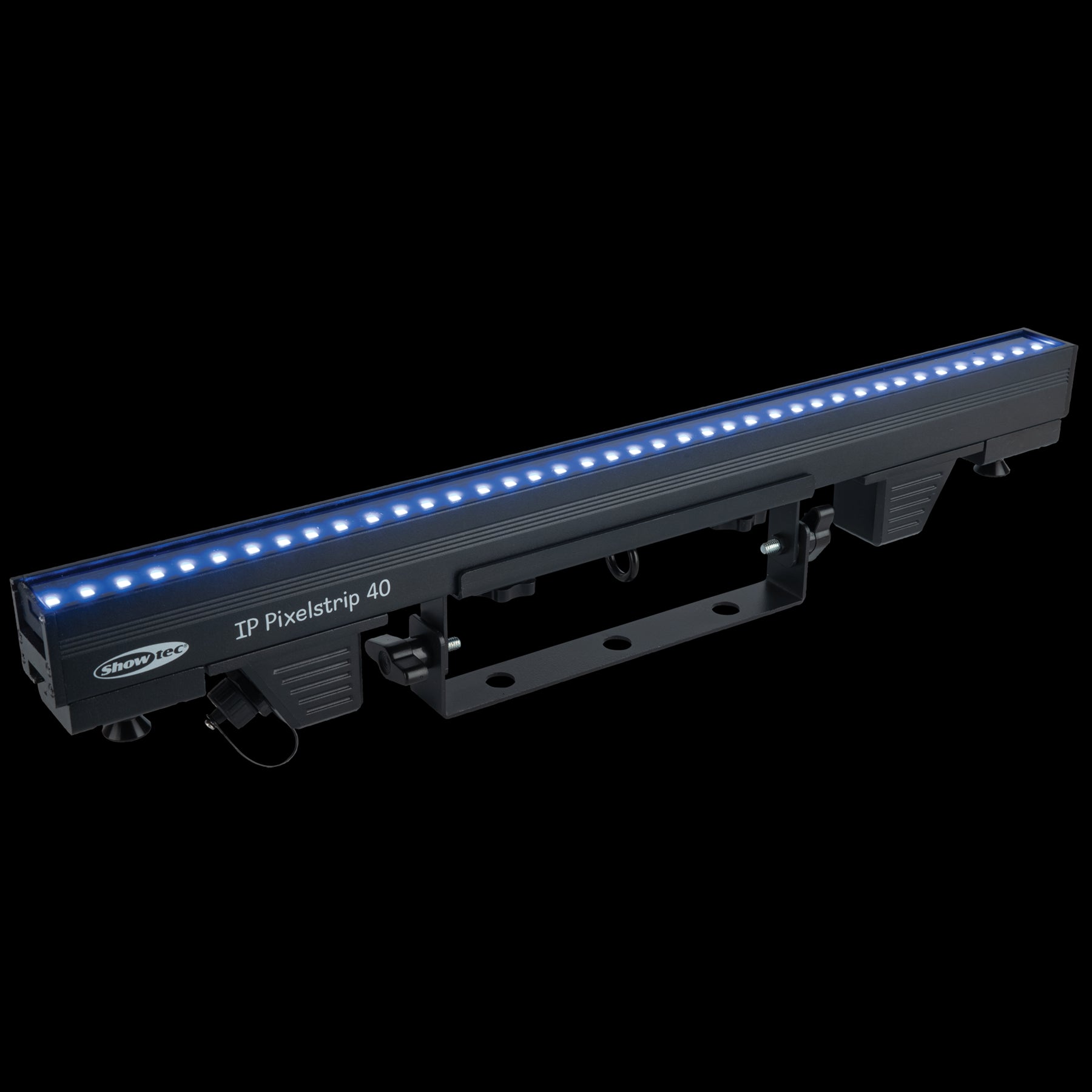

The Showtec IP Pixelstrip 40 is a high-brightness LED bar with pixel control. Each of the 40 RGB LEDs can be controlled individually by the dedicated Showtec IP Pixel Controller. It has an IP65-rated enclosure with fanless convection cooling, making it suitable for indoor as well as (temporary) outdoor stage applications.

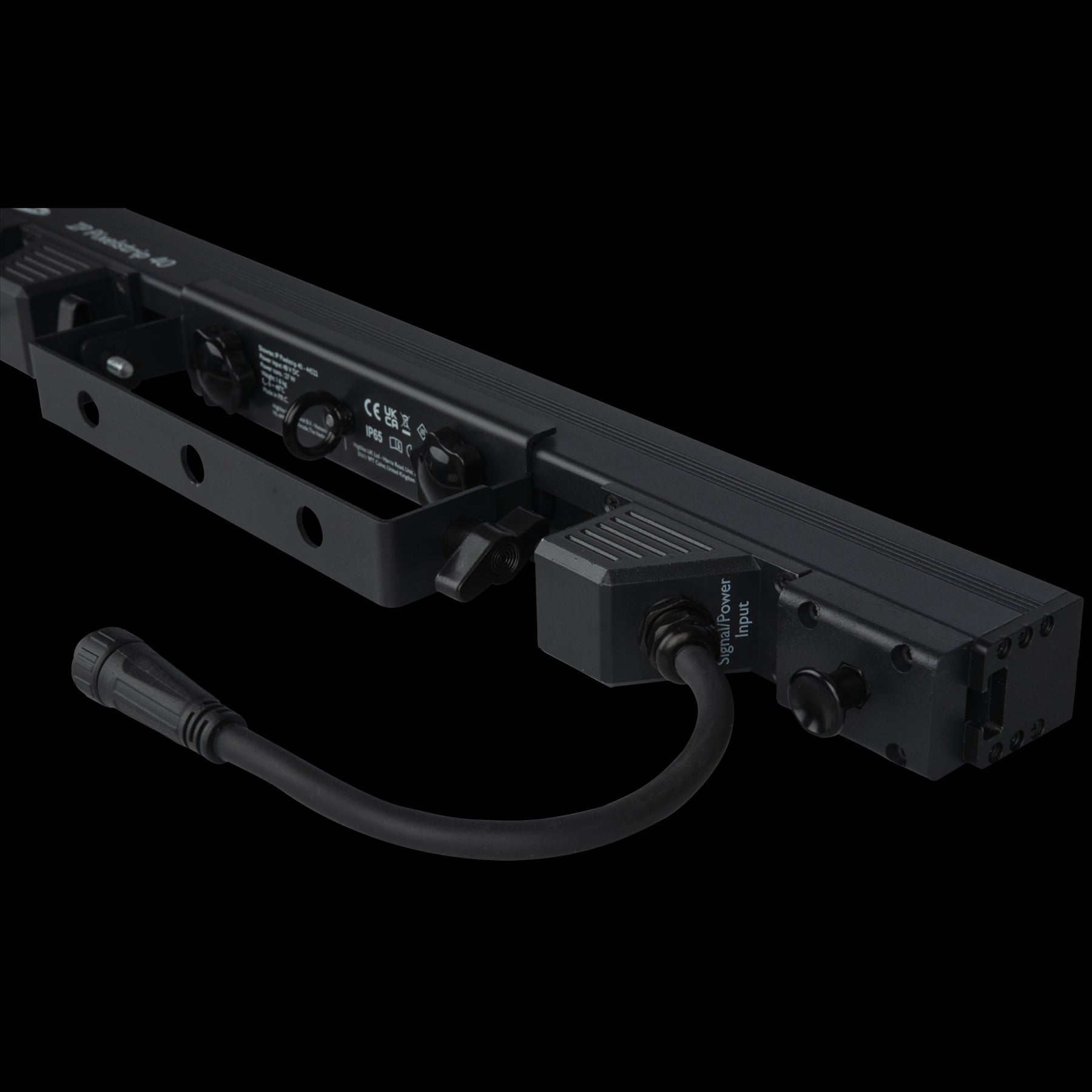

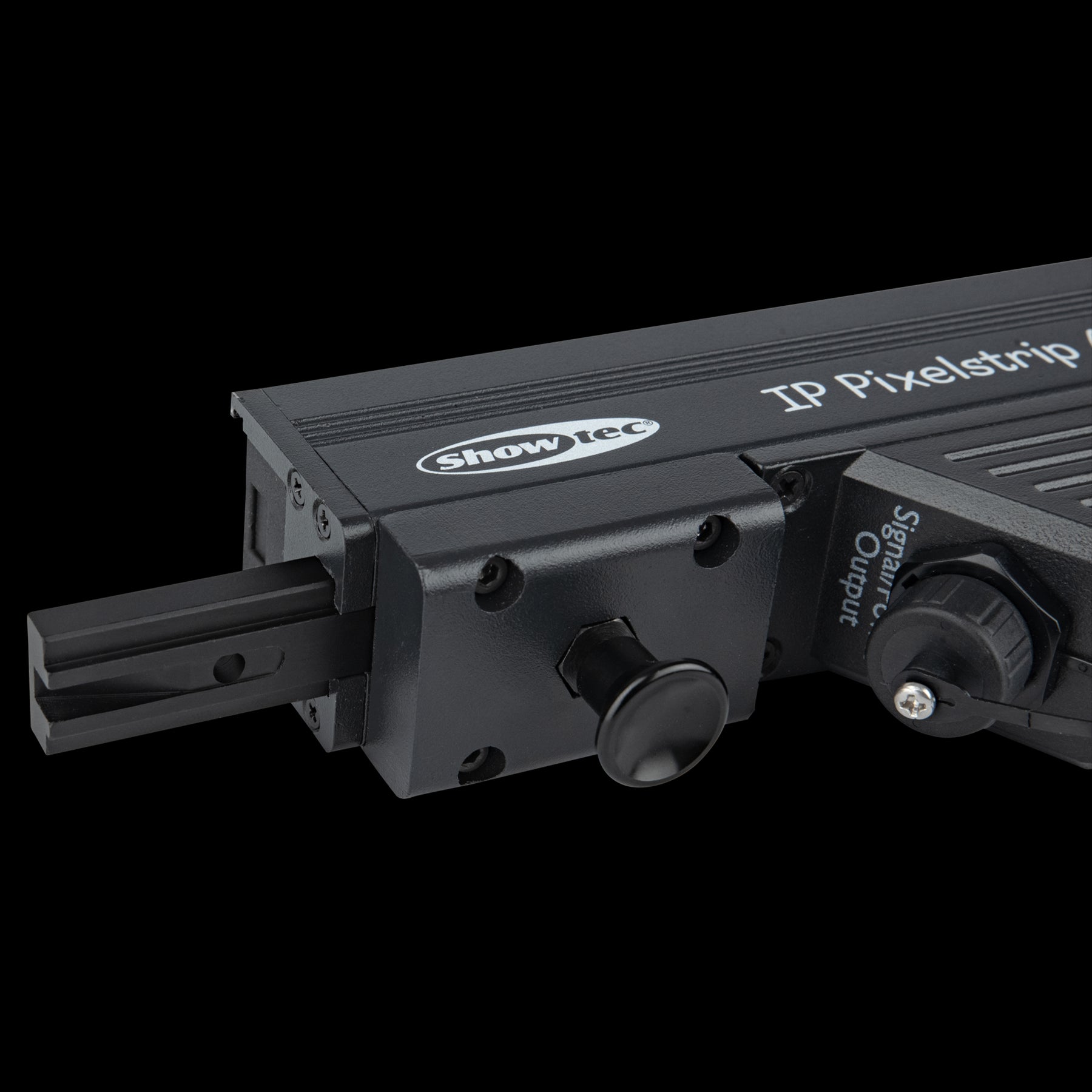

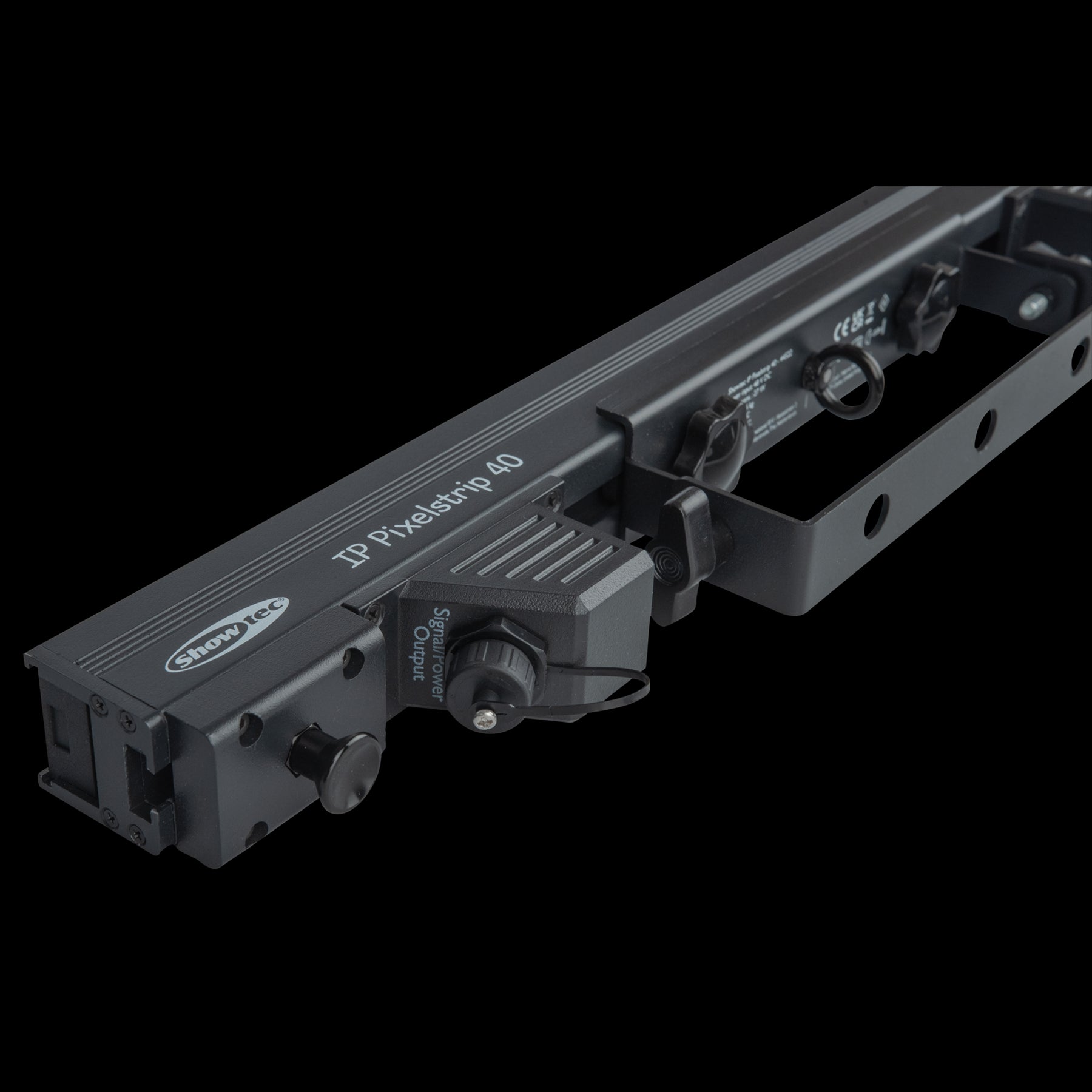

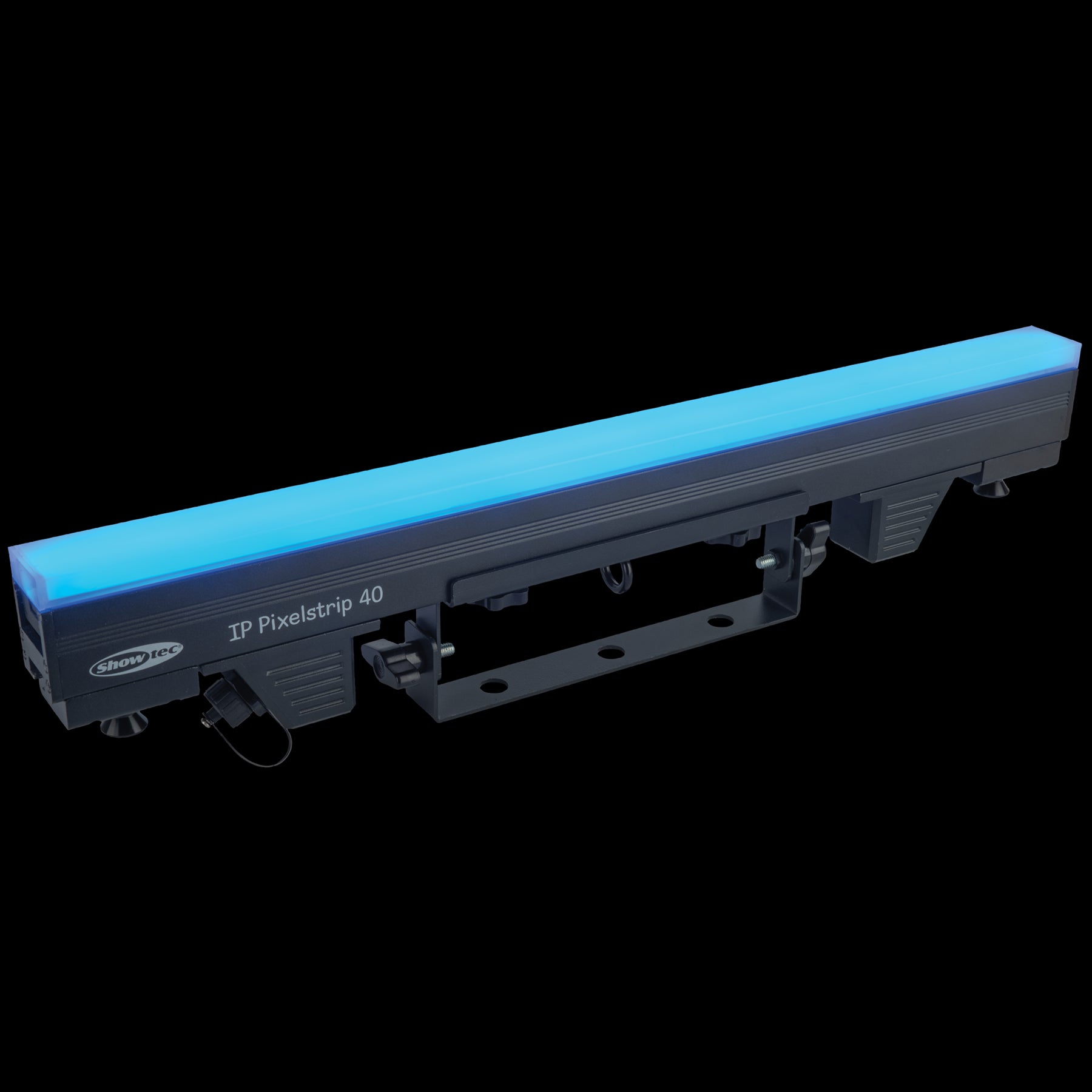

The short and fixed combined data/power input cable allows the IP Pixelstrip 40 to be daisy-chained and mixed with the IP Pixelstrip 80 up to a total length of 4 metres per controller output. Dedicated cables run from the controller to the IP Pixelstrip for power and data signals (sold separately). A straight alignment plate is included and locks into place without tools. Optional alignment plates allow for more complex configurations, even 3D setups. A standard smoked black flat cover is included and can be easily replaced by an optional white flat cover, white dome-shaped cover or white rectangular cover.

Please note that stand-alone or direct DMX operation is not possible; the Showtec IP Pixel Controller is required to drive this LED pixel bar.

Refresh Rate 16000 Hz
Brightness 9200 nits
Optical Pixel Pitch 12.5 mm (0.492″)
Dimmer 0-100 %
Strobe 0-20 Hz

Power Supply 48 V DC
Power Consumption 16 W
Power Connector In Dedicated IP65 Powerconnection
Power Connector Out Dedicated IP65 Powerconnection

Height (mm) 95 mm (3.74″)
Width (mm) 35 mm (1.378″)
Length (mm) 504 mm (19.843″)
Weight 1.6 kg (3.527 lb)

IP Rating IP65
Housing Aluminium
Colour Black
