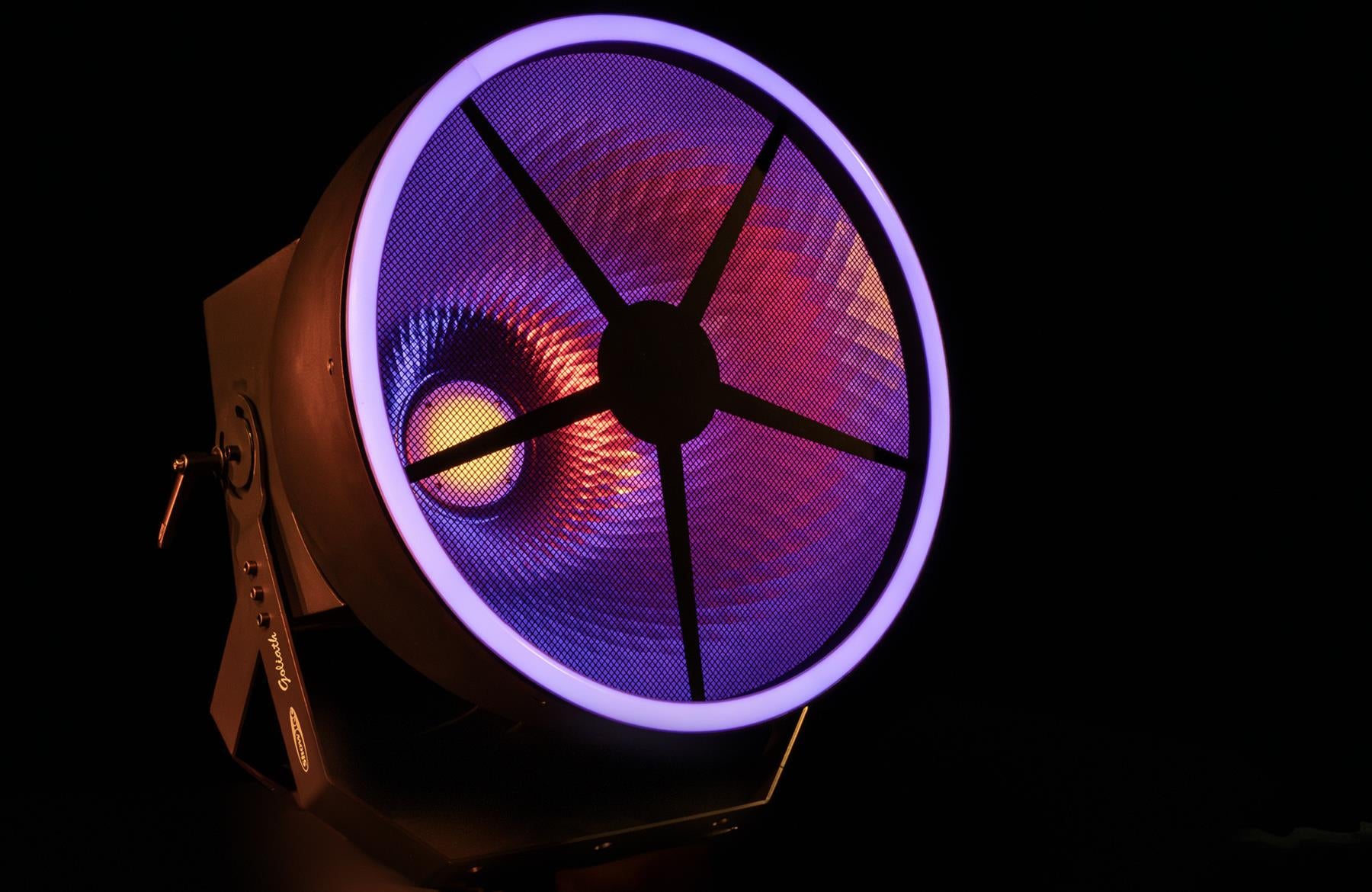

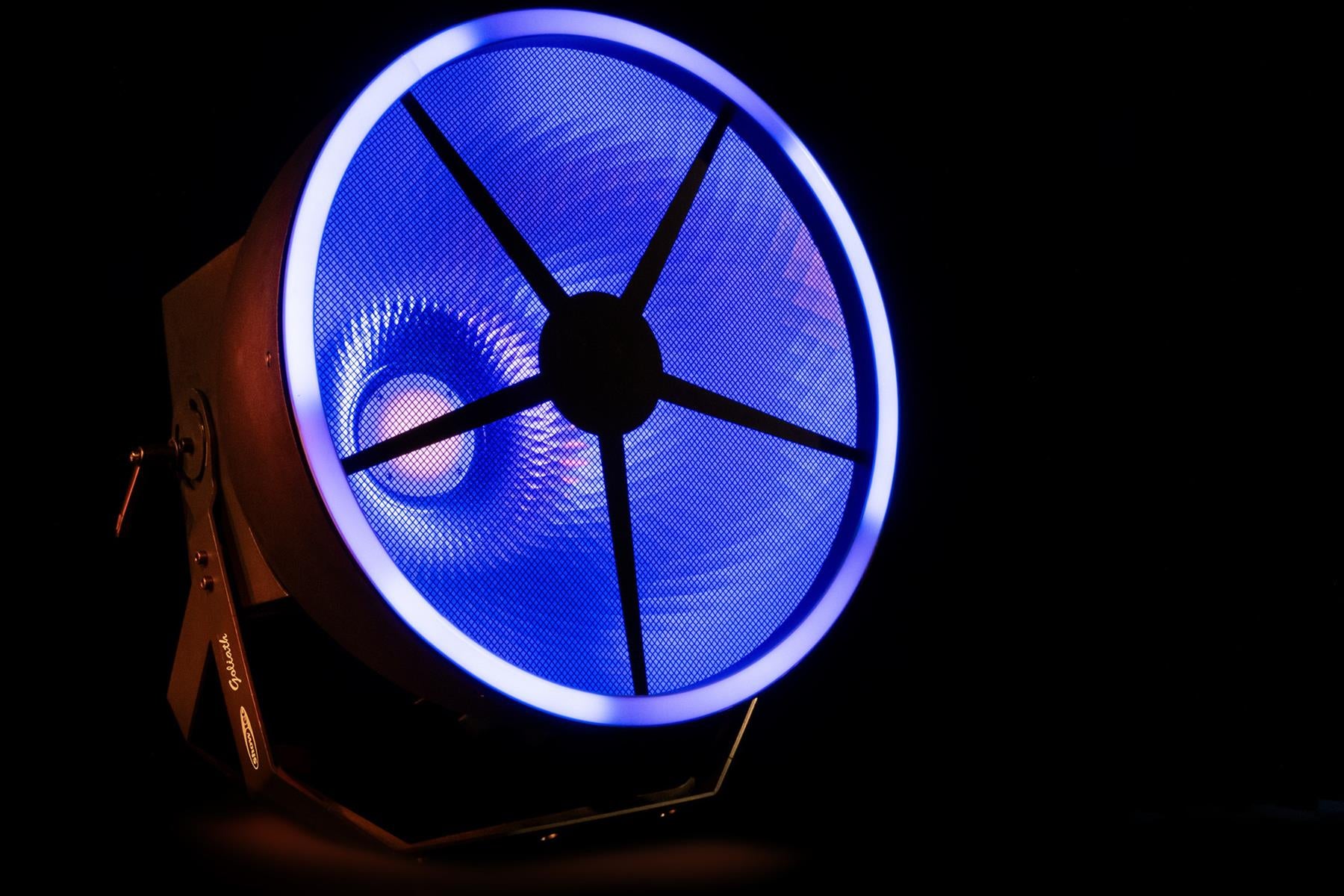

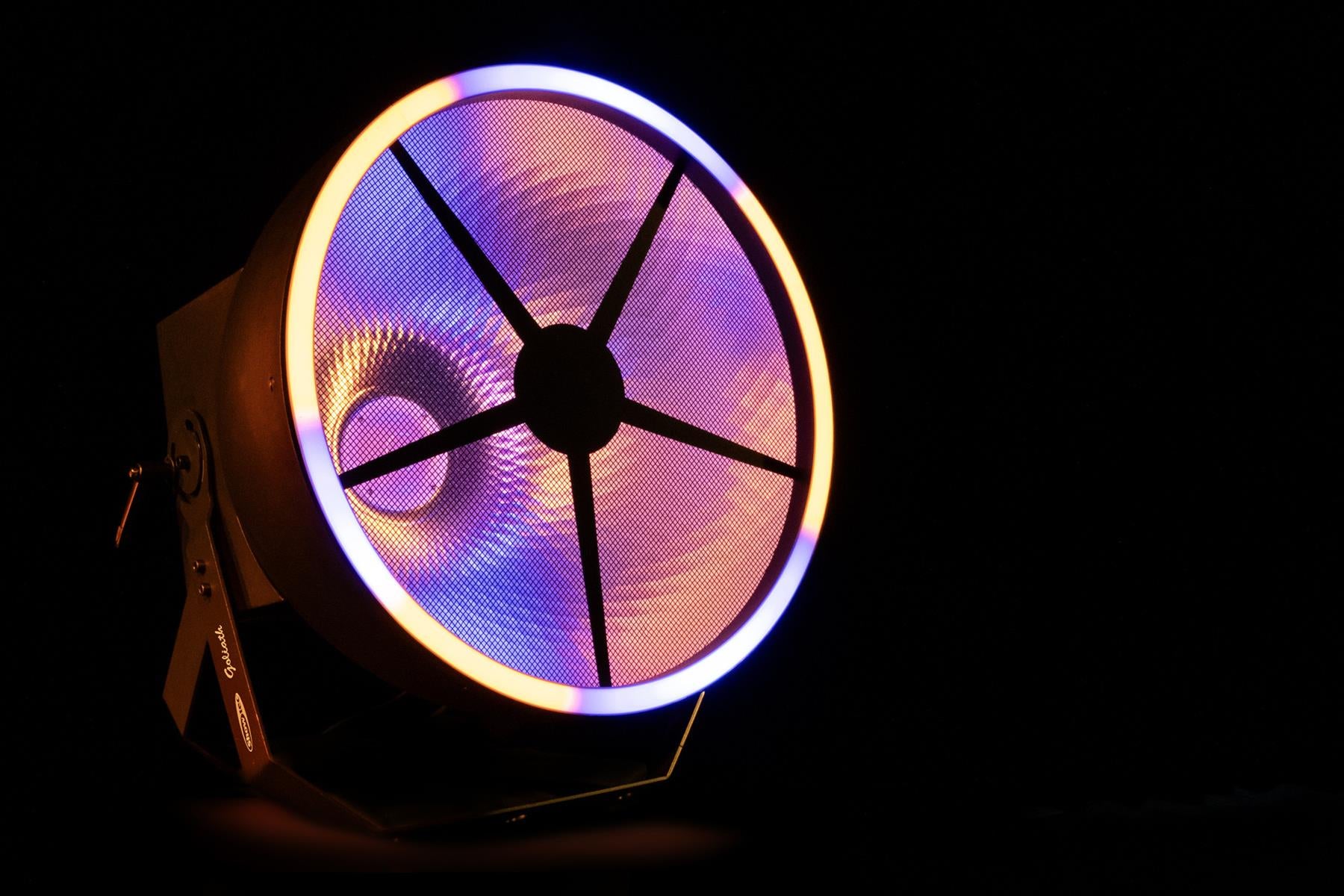

The Showtec Goliath is a retro light effect that combines a powerful 300 W warm white LED with built-in 20 W amber LED, along with a dual RGB LED ring and central RGB LEDs. The 20 W amber and 300 W warm white LED replicate the classic tungsten dimming effect, delivering a nostalgic retro feel. Depending on the selected mode, the warm white and amber LEDs can be controlled separately or as a single ‘tungsten channel’.

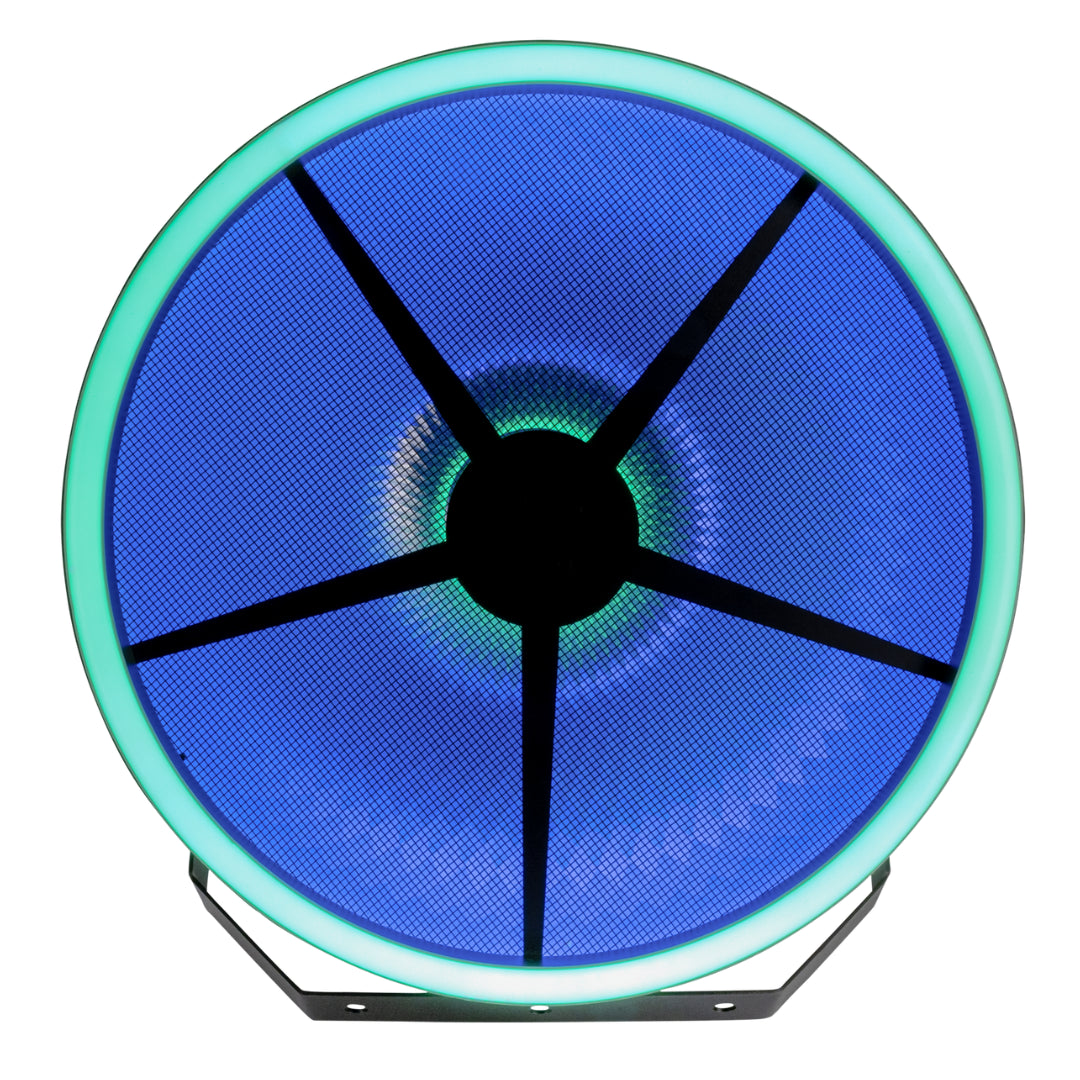

Behind the central circular plate there are 24 RGB LEDs that illuminate the centre of the reflector. Surrounding this, a large circle of 120 RGB LEDs lights up the reflector’s edges. A second ring of 120 RGB LEDs at the outer edge faces forward. Each RGB LEDs can be controlled individually, offering nearly infinite effect possibilities.

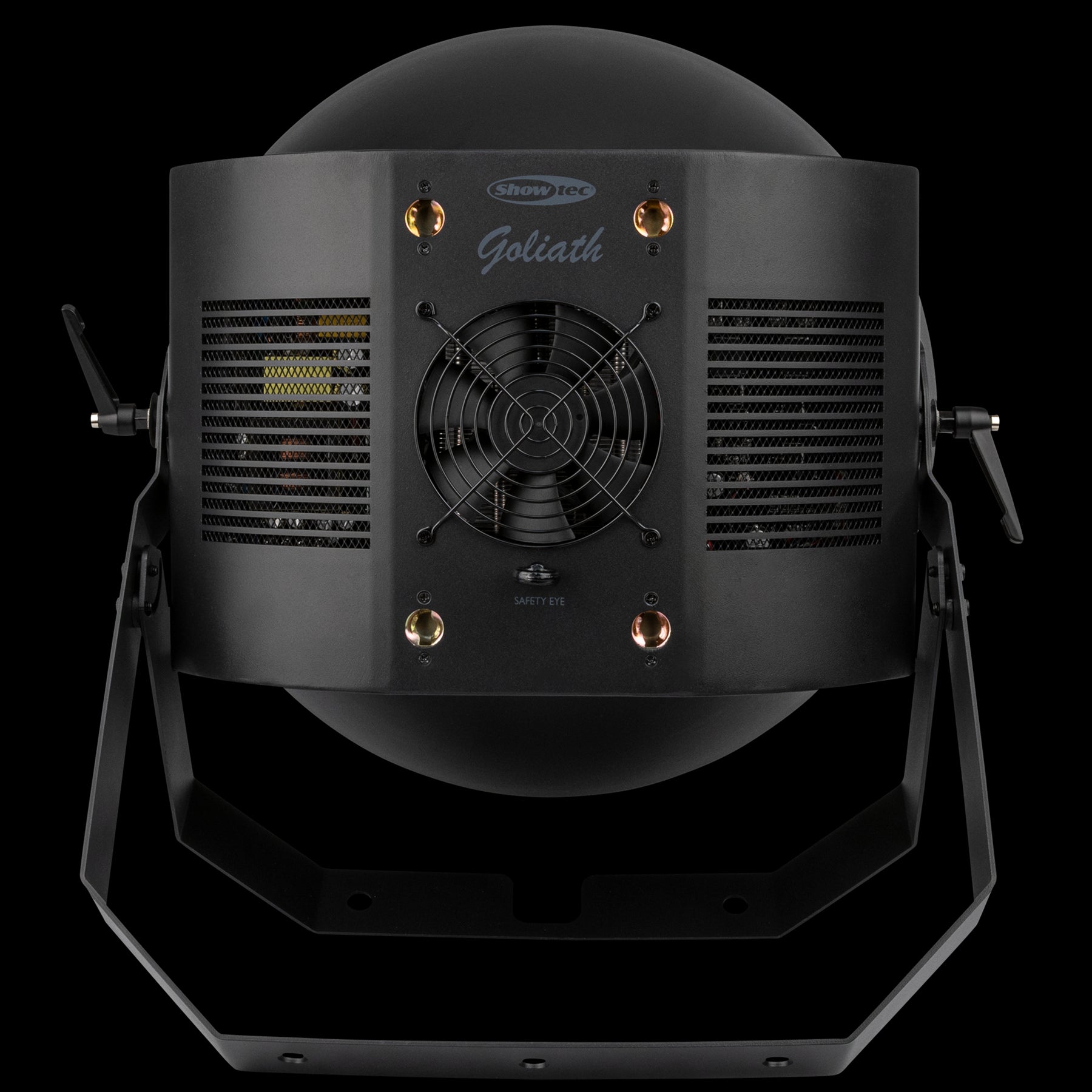

The Goliath supports multiple control modes, including DMX, Art-Net, sACN, RDM, master/slave and manual modes, with several personalities ranging from 4 to 793 channels. It features a double bracket for both hanging and standing installations. Additionally, quick-lock mounting points on the back allow for easy attachment to a truss using the included brackets. A Power Pro True cable is included.

320 W LED with retro tungsten dimming effect
264 Individually controllable RGB LEDs
Supports DMX, Art-Net, sACN, RDM, master/slave, and manual modes
Double bracket for hanging or standing installations
Channel range from 4 to 793 for versatile configurations

Light Source Type LED
Light Source 1- Quantity 1
Light Source 1- Power 320 W
Light Source 2- Quantity 264
Light Source 2- Power 0.5 W
LED Colour Type WW, RGB
Refresh Rate (Max.) 6 kHz

Control Mode Art-Net, Built-in Program, DMX, RDM, sACN, Stand Alone
DMX Channels 4, 5, 14, 21, 433, 793
Protocols Art-Net, DMX, RDM, sACN
Display OLED
Dimmer 0-100 %

Power Supply
100-240 V AC 50/60 Hz
Power Consumption
335 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector In
RJ45, XLR 3P, XLR 5P
DMX Connector Out
RJ45, XLR 3P, XLR 5P

Length (mm) 412 mm (16.22″)
Height (mm) 490 mm (19.291″)
Width (mm) 490 mm (19.291″)
Weight 12.5 kg (27.558 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black

Mounting Options Bracket, Quick-Lock

Included Cables
Power Pro Cable
Included Rigging
2x Quick-Lock Bracket
