Description:

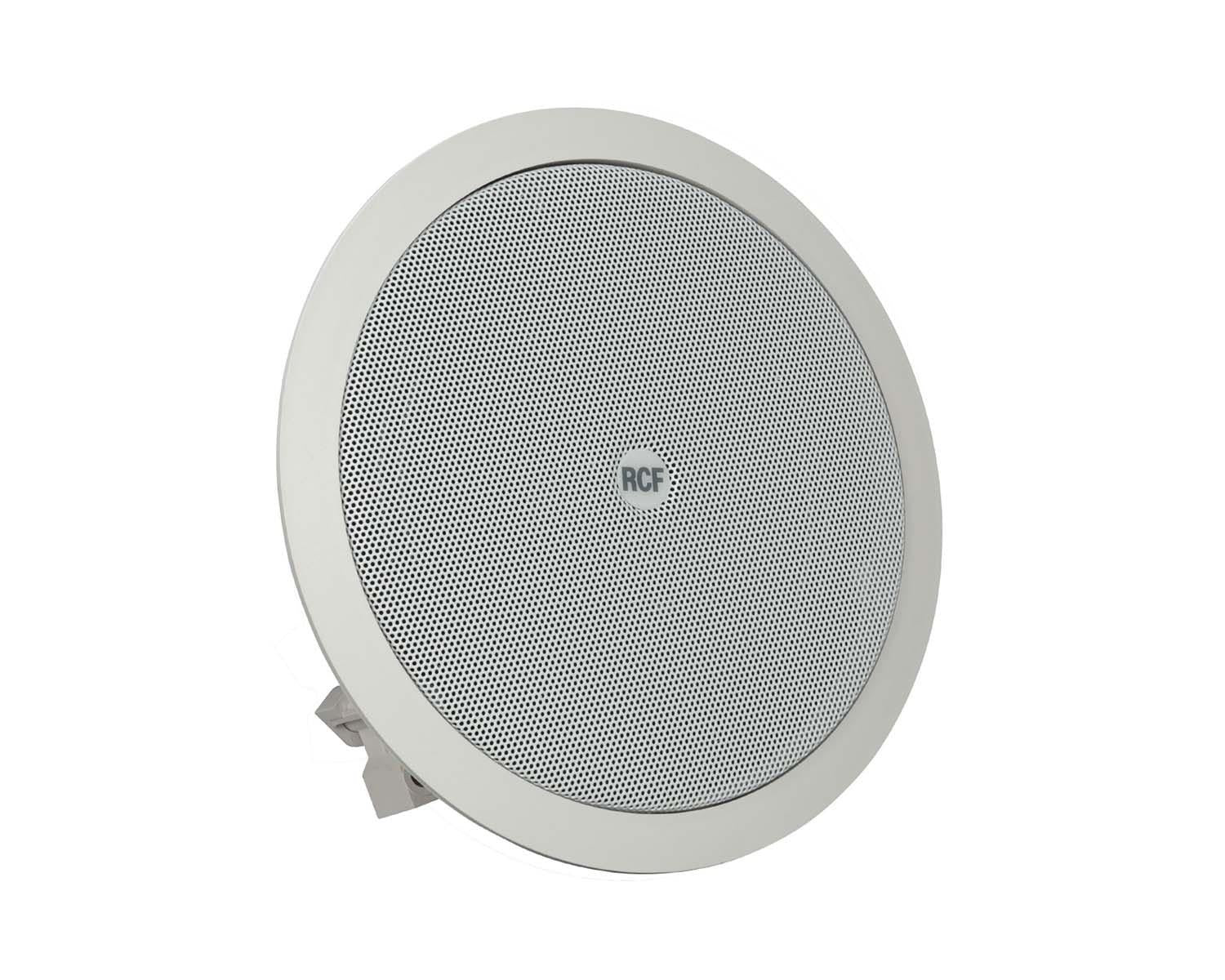

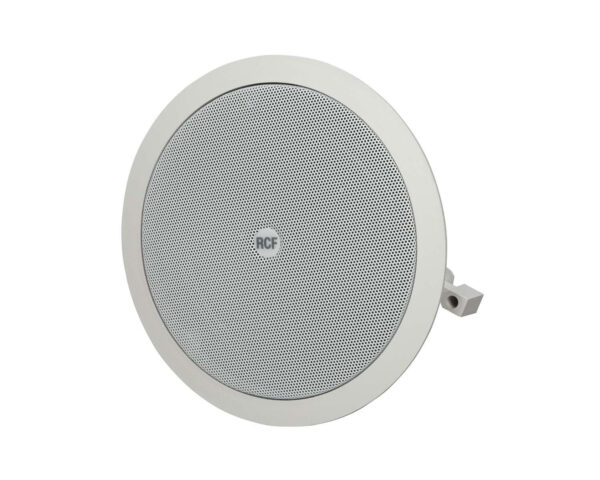

PL 60 High-Efficiency Ceiling Loudspeaker 8ohm / 100V

The PL60 is a ceiling speaker with an elegant design, intended for recess installation in false ceilings or panels. It is ideal for the reproduction of announcements and background music and features a multiplesocket line transformer for use with constant voltage systems.

Features:

For paging and background music
RMS Power 6W

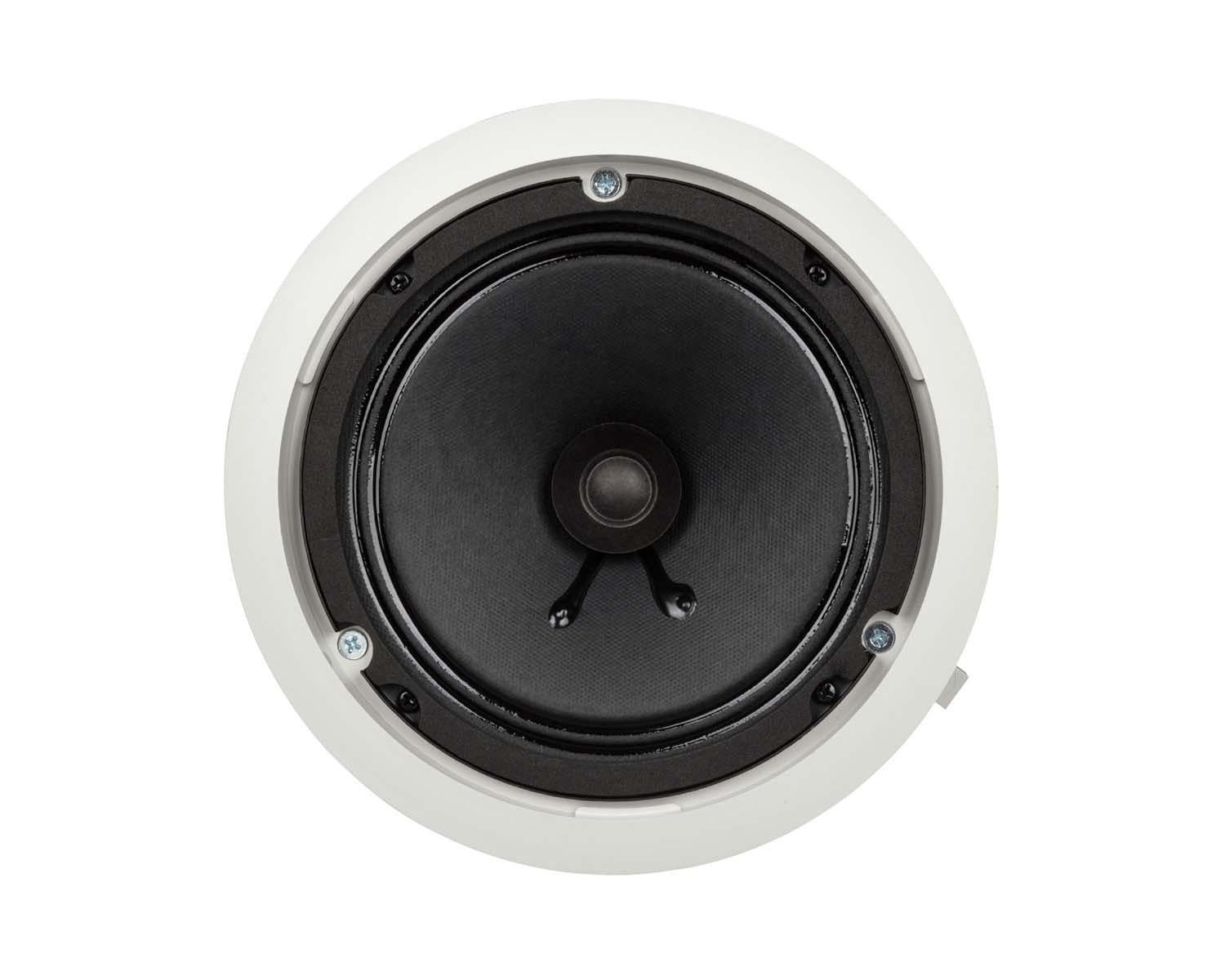

6″ dual cone wide band loudspeaker
Sound pressure level at music power: 102 dB/1 m
Low impedance (8ohm) or 100V

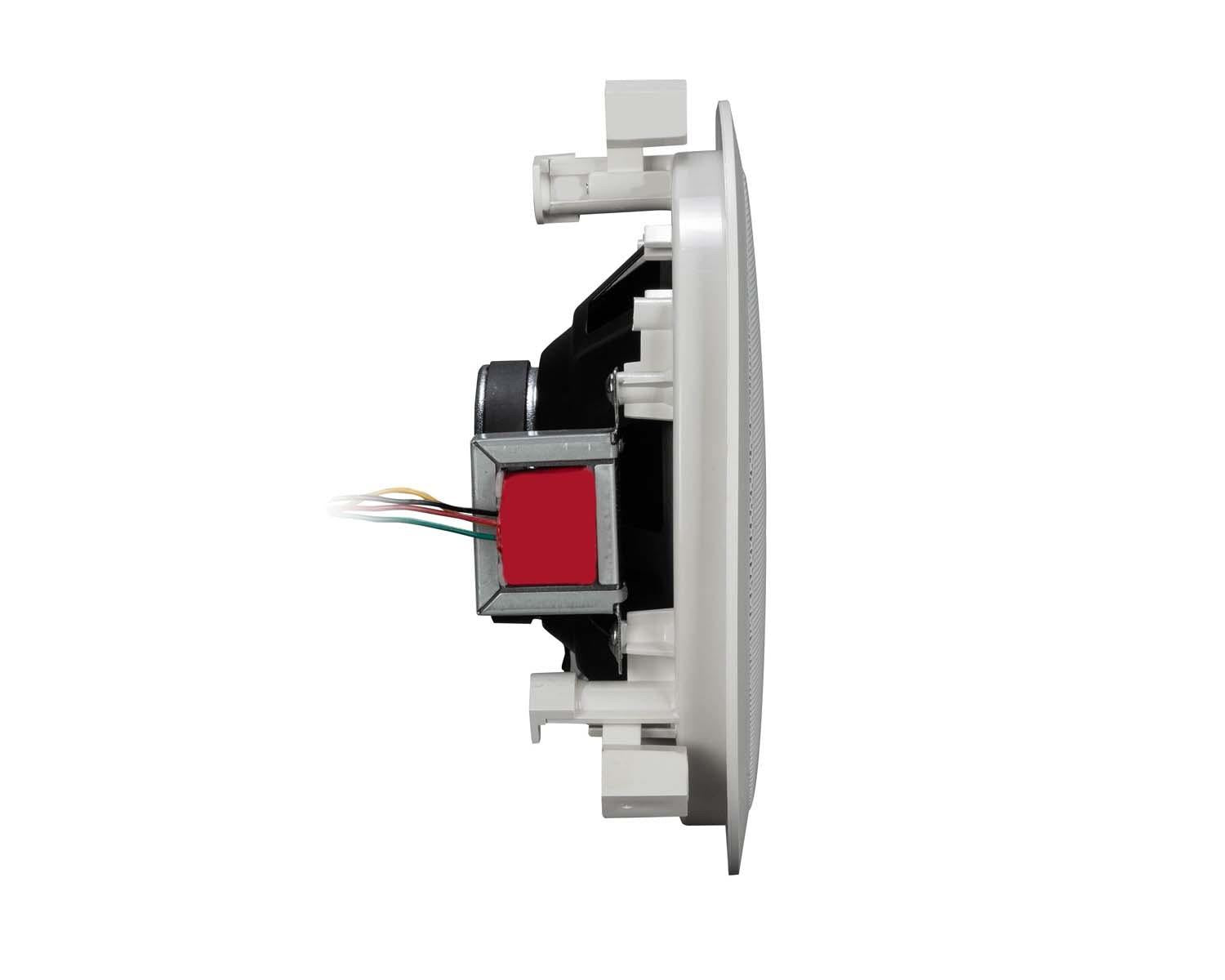

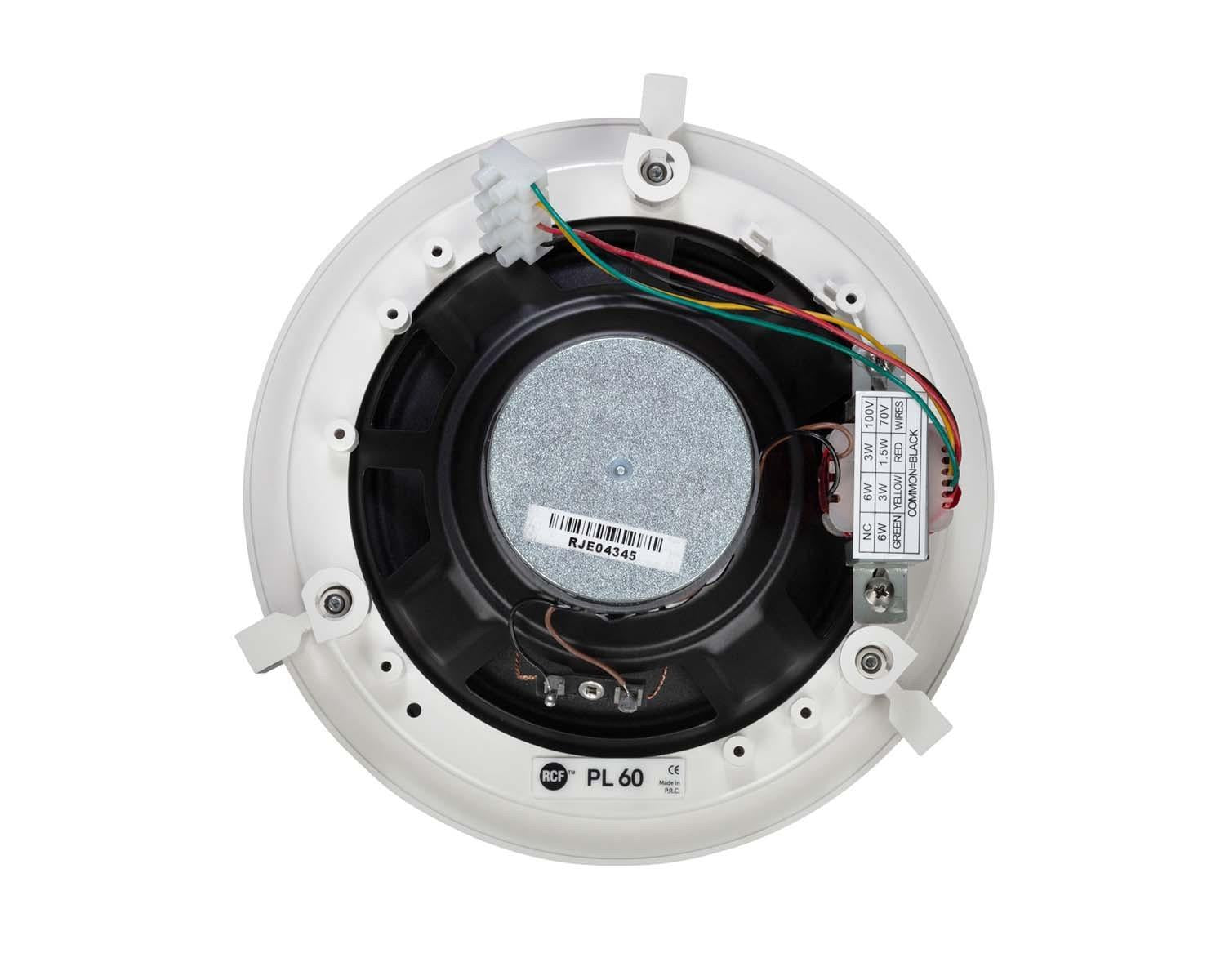

Built-in multi-tapped transformer for 100/70V constant voltage connection
Body in self-extinguishing plastic UL-94-V0

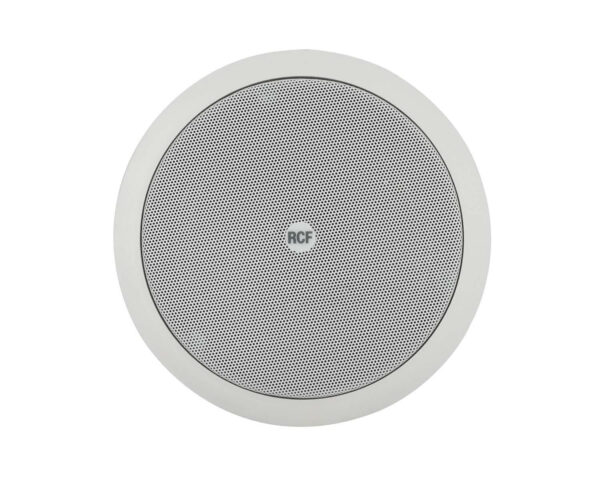

Front metal grille RAL 9003 White

Specifications:

Acoustical Specifications
FREQUENCY RESPONSE (-10DB):  90 Hz ÷ 20000 Hz
MAX SPL @ 1M:  107 dB
COVERAGE ANGLE:  90°
SYSTEM SENSITIVITY:  91 dB
Power Section
NOMINAL IMPEDANCE (OHM):  8 ohm
POWER HANDLING:  6 W RMS
PEAK POWER HANDLING:  24 W PEAK
RECOMMENDED AMPLIFIER:  12 W
Transducers
FULLRANGE:  6.0”
Input/Output Section
INPUT CONNECTORS:  Screw Terminals
OUTPUT CONNECTORS:  Screw Terminals
CONSTANT VOLTAGE TRANSFORMER:  100 V
POWER SELECTION 1 (100 V):  6 W – 1667 ohm
POWER SELECTION 2 (100 V):  3 W – 3333 ohm
Standard Compliance
CE MARKING:  Yes
Physical Specifications
COLOUR:  White – RAL 9003
HARDWARE:  Plastic Material
GRILLE:  Steel
CABINET/CASE MATERIAL:  Plastic
Size
DEPTH:  75 mm / 2.95 inches
RECESSED DEPTH:  69 mm / 2.72 inches
DIAMETER:  204 mm / 8.03 inches
WEIGHT:  0.34 kg / 0.75 lbs
Shipping Information
PACKAGE WEIGHT:  1.07 kg / 2.36 lbs
PACKAGE DEPTH:  235 mm / 9.25 inches
PACKAGE WIDTH:  240 mm / 9.45 inches
PACKAGE HEIGHT:  105 mm / 4.13 inches
