Description

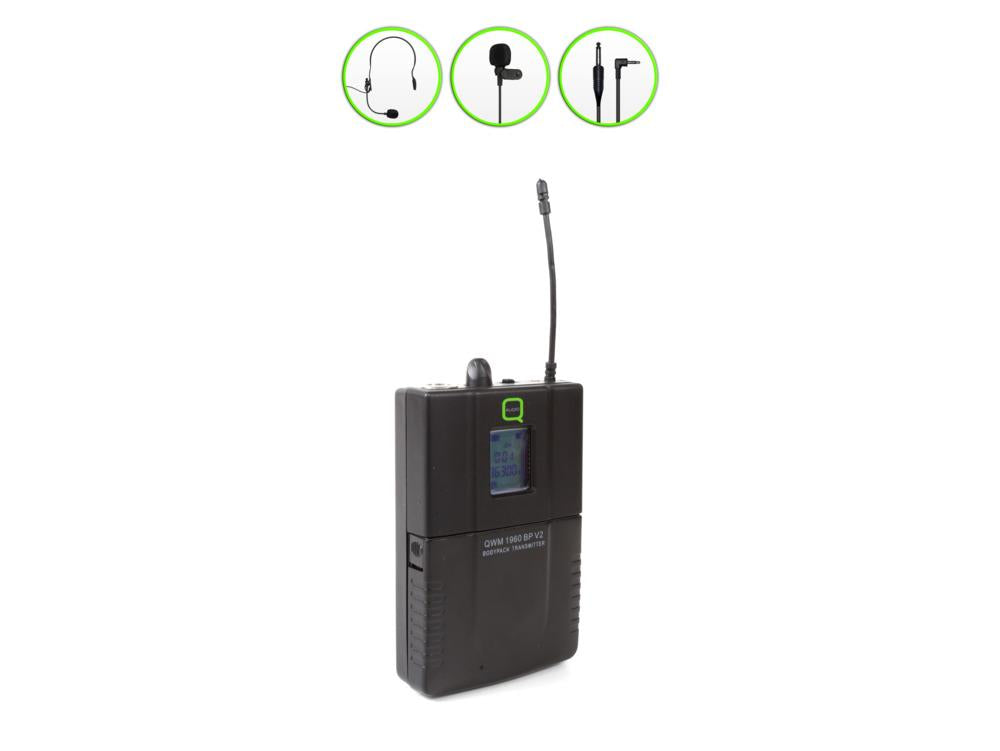

The QWM 1960 BP KIT V2 is a versatile UHF wireless bodypack transmitter system designed for performers, presenters, and musicians who require flexibility and reliable wireless performance. The kit includes a bodypack transmitter, lavalier microphone, headset microphone, and instrument cable—making it suitable for vocals, speech, and instrument use. Operating in UHF Channel 38 (606–614 MHz) or Channel 70 (863–865 MHz), it offers clear transmission with a working distance of up to 50 meters. The unit features a backlit display, ACT infrared pairing, and a 3.5mm screw jack connection for secure mic attachment.

Features
Multi-channel UHF bodypack transmitter for professional wireless audio applications
Includes lavalier mic, headset mic, and instrument cable
Operates in Channel 38 (606–614 MHz) or Channel 70 (863–865 MHz)
Large backlit display with real-time status indicators
ACT infrared pairing for fast and reliable connection to receiver
3.5mm screw jack connection ensures secure mic fit
High-efficiency design for extended battery life
Suitable for live performance, speech, and instrument use
Up to 5 hours continuous operation
Operating range up to 50 meters

Specifications
Frequency Range: UHF 863.0 – 865.0 MHz
Frequency Response: 40 Hz – 15 kHz (±3 dB)
Deviation: ±26 kHz
Dynamic Range: >90 dB
Signal-to-Noise Ratio: >95 dB
Total Harmonic Distortion (THD): <0.4%
Battery Requirement: 2 x 1.5V AA batteries (3V total)
Power Supply: DC 17V, 300 mA
Connection Type: 3.5mm Screw Jack
Wireless Channel Options:
– Channel 38: 606–614 MHz
– Channel 70: 863–865 MHz
Working Distance: Up to 50 meters
Battery Life: Approx. 5 hours continuous use

Included in the Box
1 x UHF Bodypack Transmitter
1 x Lavalier Microphone
1 x Headset Microphone
1 x Instrument Cable
