Boxed, some light marks. Tested and fully working

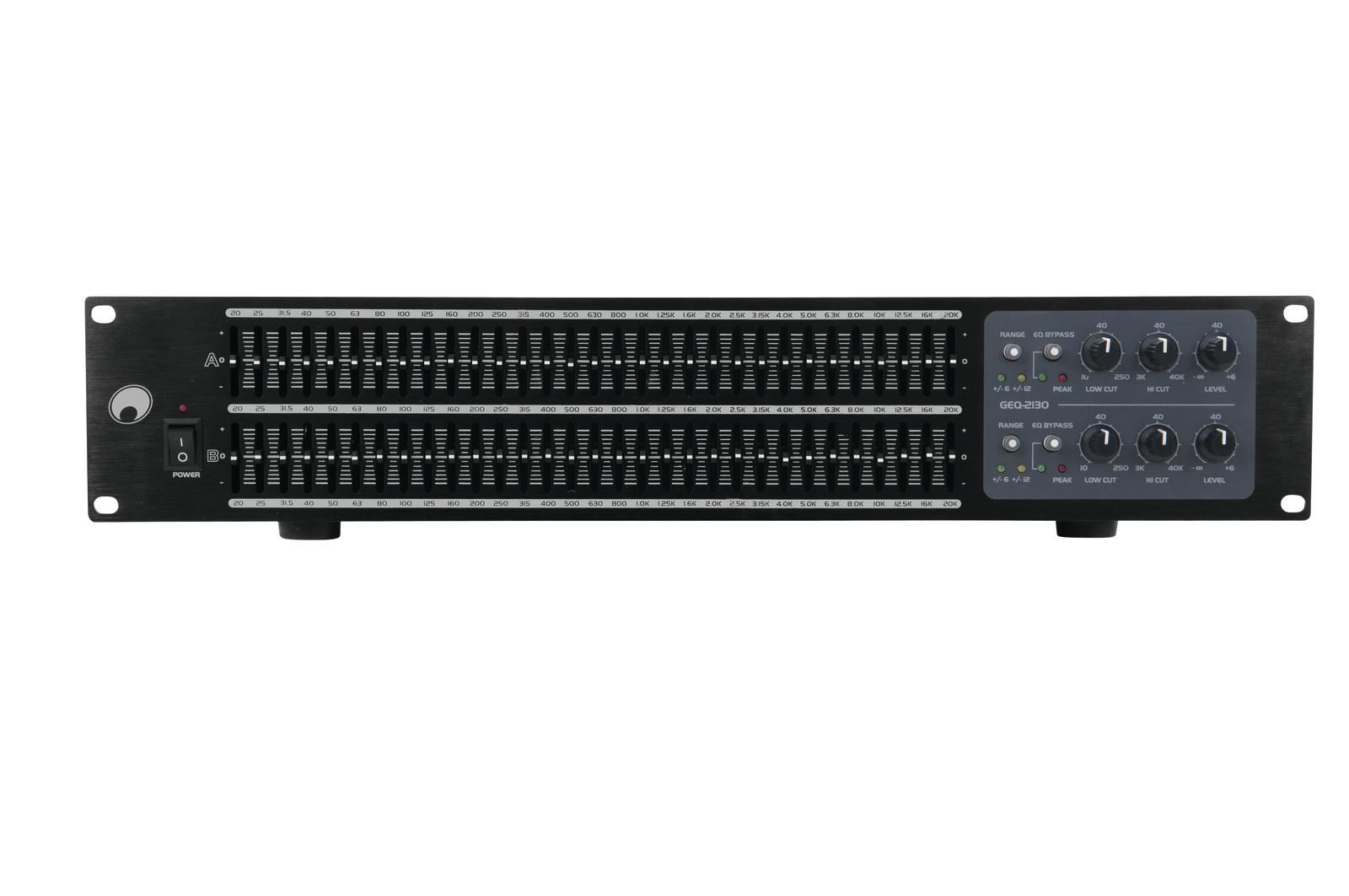

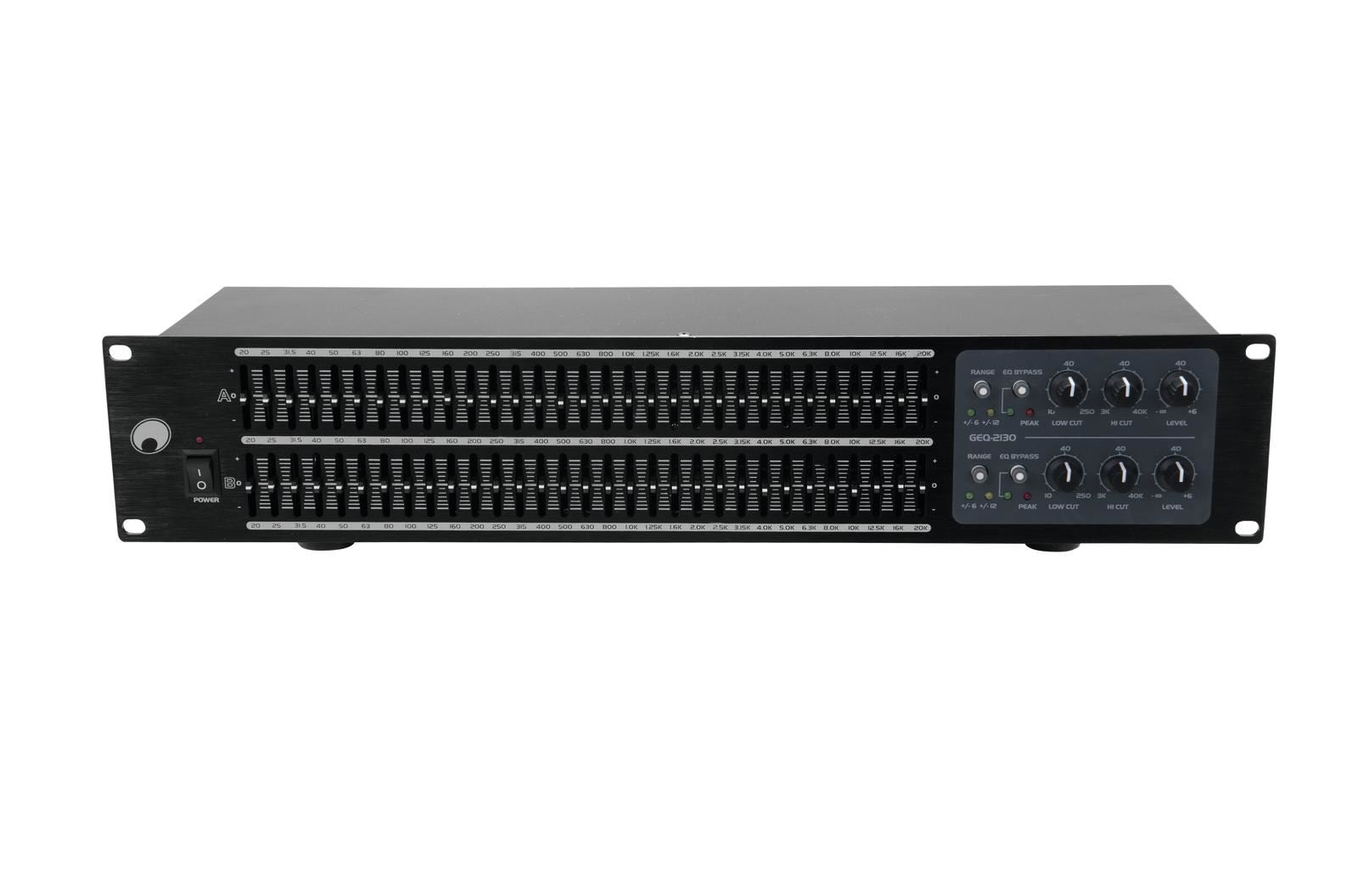

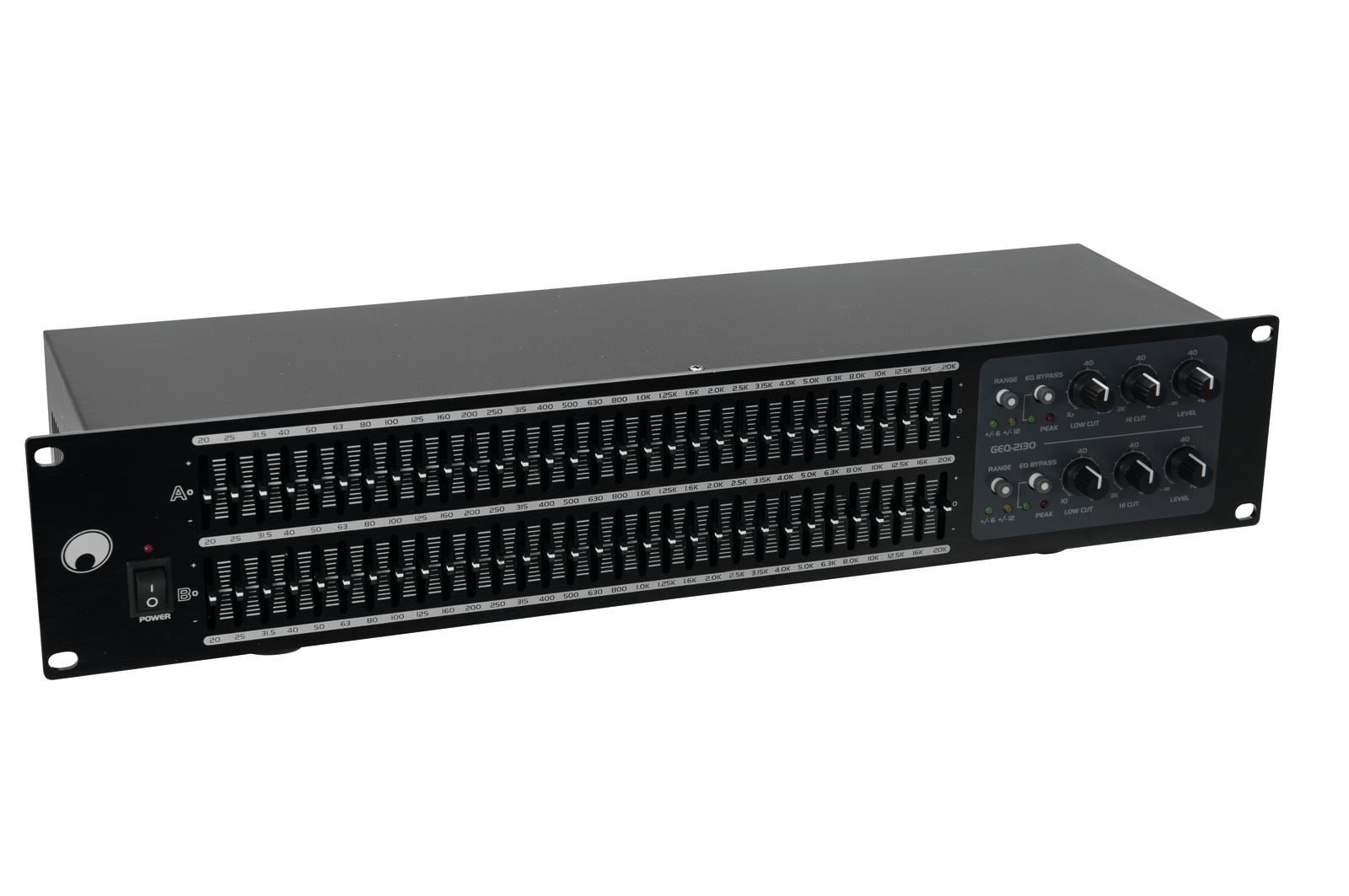

2 x 31-band equalizer

• 2-channel version, 2 x 31 frequency controls with 1/3 octave steps
• Long sliding frequency controls with center click
• EQ gain switchable ?6 dB to ?12 dB
• Hi Cut (3-40kHz) and Low Cut (10250Hz), adjustable
• Separate level control per channel
• Bypass switch allows instant comparison of the original sound with the equalized sound
• Clip indicator
• Inputs and outputs via 6.3 mm jack sockets and XLR sockets
• Groundlift switch
• Rack installation, 2 U
• (19″) 48.3 cm rack installation 2 U
• Power supply:230V AC, 50Hz
• Power consumption:17 W
• Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
• Frequency range:20- 200 Hz
• S/N ratio:>96 dB
• THD:<00 % at 1 kHz
• Impedance:Input 20kOhm , bal.Input 15 kOhm , unbal.Output 30 kOhm , bal.Output 150kOhm , unbal.
• Gain:Output: – ? to + 6 dB
• Filter:Hi cut: 300Hz – 400 Hz; low cut: 250Hz – 10Hz
• Control range:?6dB, ?12dB, switchable
• Equalizer:Master: 2 x Graphic equalizer 31-bandCentre frequency: ISO standard, 1/3 octave (terzband), 2025/31,5/405063/8010/125/16020/250315/40/50/ 63080 Hz, 1/1,25/1,6/2/2,5/3,15/4/5/6,3/8/1012,5/16/20kHz

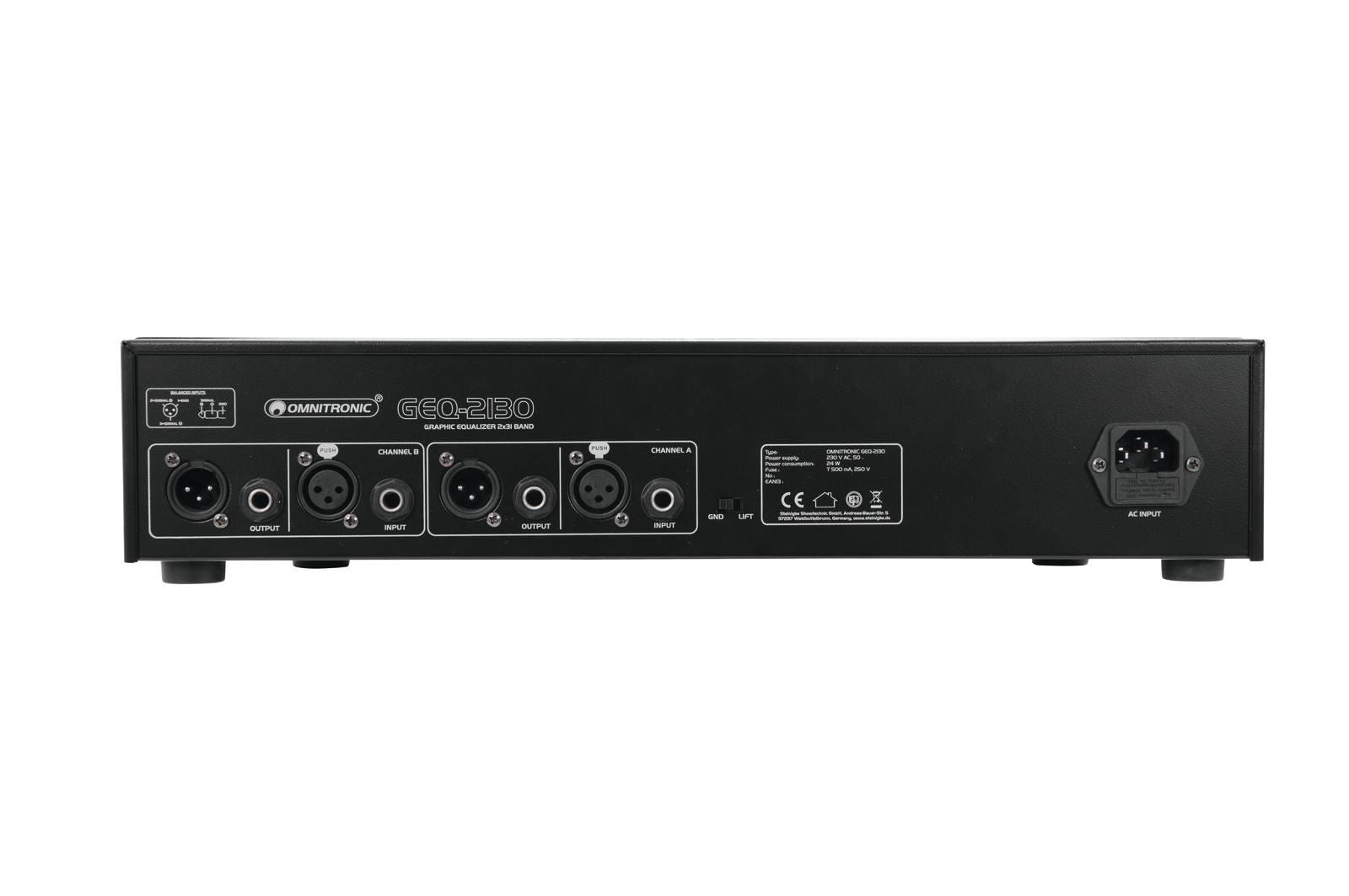

• Connections:Input: 2 x line via 3-pin XLRInput: 2 x line via 6.3 mm plug (unbal.)Output: 2 x line via 3-pin XLROutput: 2 x line via 6.3 mm plug (unbal.)
• Max. level:Input: +24 dBu, bal.Input: +18 dBu, unbal.Output: +24 dBu, bal.Output: +18 dBu, unbal.
• Material:Metal
• Color:Black
• Housing design:(19″) 48.3 cm rack installation 2 U
• Dimension:Width: 48.3 cmDepth: 15 cmHeight: 8.9 cm
• Weight:2.92 kg
