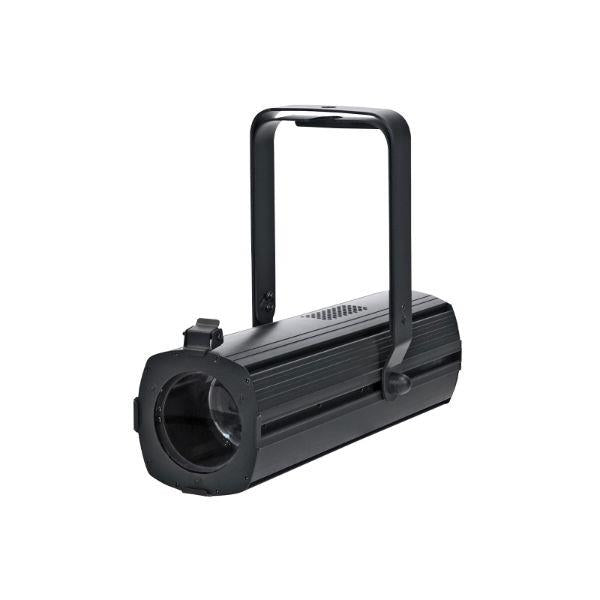

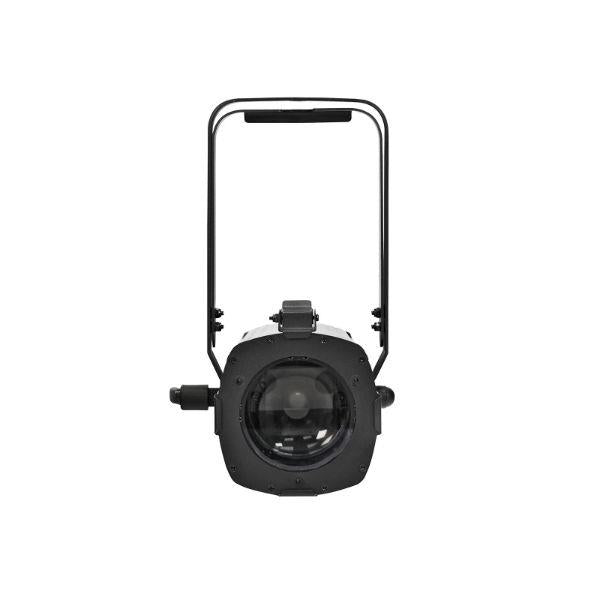

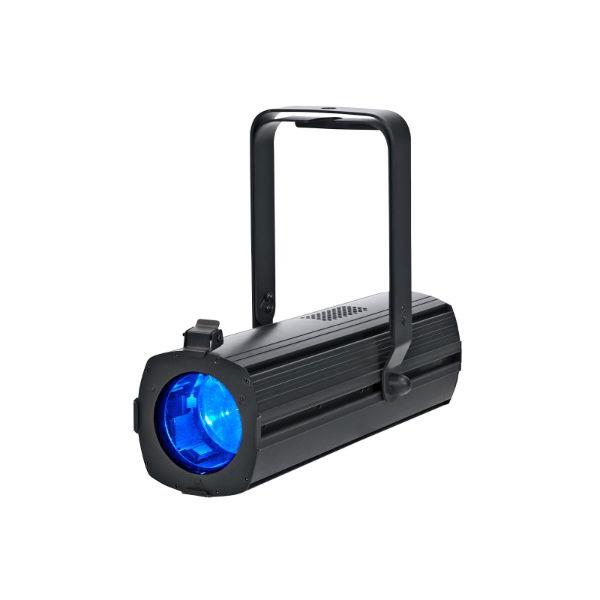

The Libretto Mini Zoom is a compact versatile zoom fixture loaded with a 60W quad-colour RGBW LED and a variable beam angle from 4° to 25°. Smooth colour mixing coupled with a flexible beam size creates focused spots or large area washes from one compact housing. Control is via either DMX or the on-board menu, which allows access to the manual dimming modes along with dimming curves.

Power consumption: 66W
Power supply: 100~240V, 50/60Hz
Fuse: T1A 250V
Dimensions (H x W x D): 267 x 164 x 372mm
Weight: 2.6kg

1 x 60W quad-colour COB LED (RGBW)
Adjustable beam angle: 4° – 25°
4° – 27,643 Lux @ 2m (full on), 25° – 925 Lux @ 2m (full on)
CRI: 68
Refresh rate: 1.5kHz
Zoom adjustment
DMX channels: 5/7 or 11 selectable
Auto, static colour and manual modes
0-100% dimming
Variable strobe
4 dimming curves: Linear, square law, inverse square law and S-curve
Bracket allows for multiple rigging or floor standing applications
4 button menu with OLED display
PowerTwist TR1 input/output
5-Pin XLR input/output
Fan cooled
Rear positioning handle
