JoeCo BBR1D 24ch BlackBox Recorder – AES/EBU and Unbalanced I/O

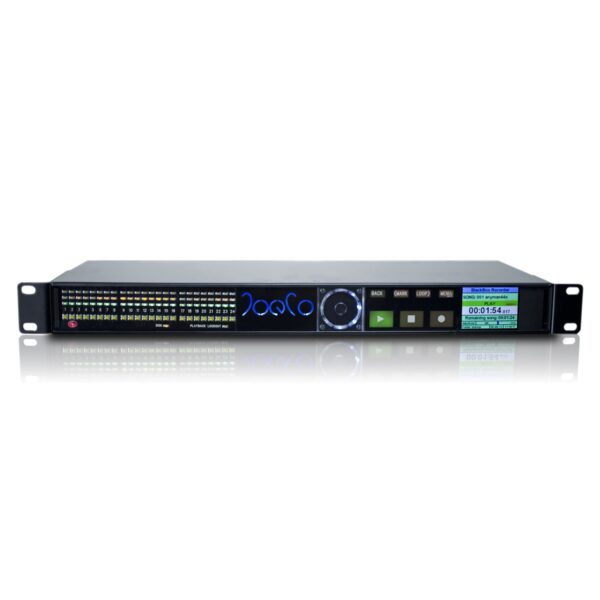

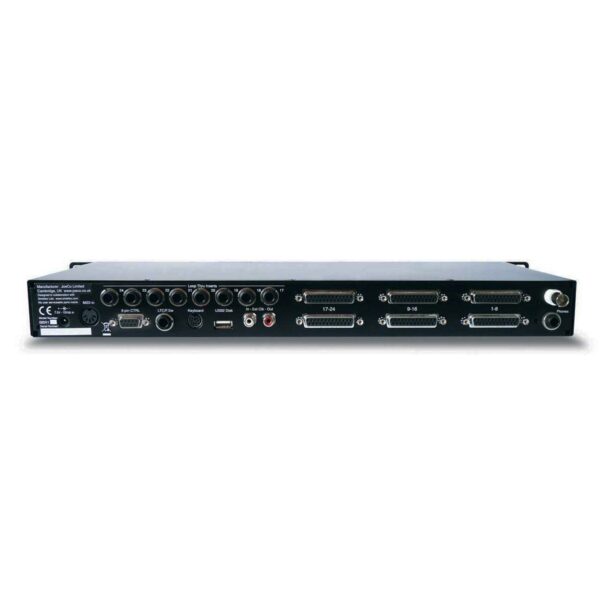

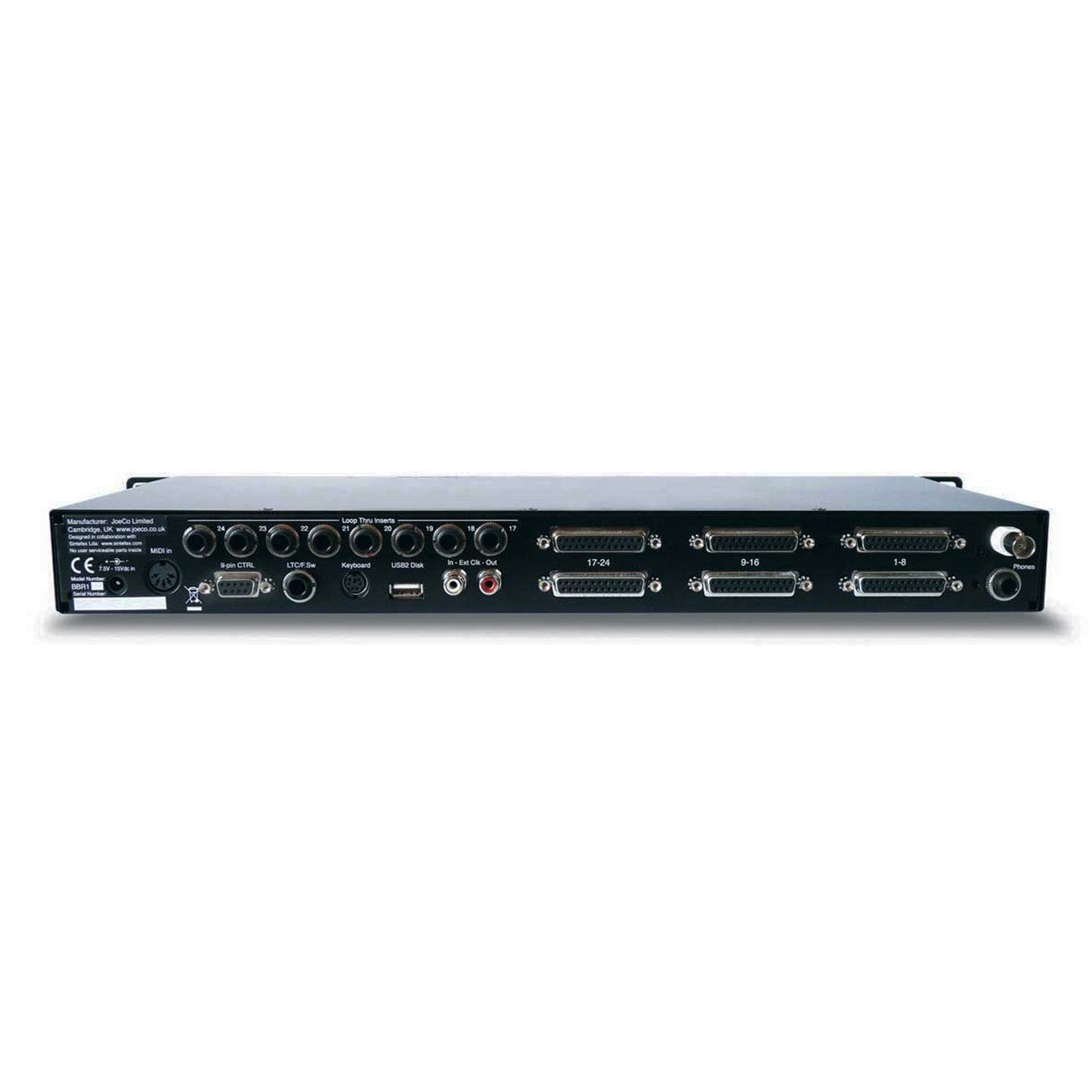

The 24 channel JoeCo BLACKBOX BBR1D multi-track digital recorder is the trusted choice of professionals using a digital mixing console with AES/EBU I/O. Three 25-way female D-type connectors, each carrying 8 channels of inputs and outputs, can be connected directly into the digital mixer to capture and return the signals without any additional A-D conversion, giving 12 stereo channels of AES/EBU inputs and 12 stereo channels of AES/EBU outputs. Analogue inputs are also still available (switchable). All other BLACKBOX Recorder features remain unchanged.

The AES/EBU interfaces can operate at up to 96kHz and conform to the AES standard (AES-3:2003). It is also possible to daisy-chain multiple BBR1D units together to create a larger system.

All BLACKBOX Recorders are designed and built to exacting standards with rugged construction and a suite of unique multi-track audio capture features. The choice of professional users, the BBR1D multi-track digital recorder is the solution the professional audio industry chooses and trusts.

JoeCo BBR1D Specifications:

BBR1D Specific

• AES3 (2003) i/o via 3 x 25way D-sub connectors – upper row. (Yamaha format pin out standard).
• Word clock input on BNC. Unbalanced analogue as BBR1U (cable looms not supplied)
• Loop through outputs as BBR1U available on analogue i/o only. Power: 30W PSU supplied. Other connectors as BBR1U

General Specifications

• Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• Bit depths: 16bit; 24bit
• Disk interface: USB2
• Format: FAT32
• File type: Broadcast WAV (BWAV)
• Media:
  • USB2 hard disk (7200rpm recommended)
  • USB2 flash drive – 200x minimum (except for MADI and DANTE systems which have more demanding data rates)
  • SHDC (Class 10 with suitable adapter except MADI and DANTE)
• Monitoring:
  • 1 x 1/4” TRS jack socket
  • headphone mix/solo
• Physical: 19” rack mounted 1U
• Dimensions: (425mm x 150mm x 44mm)
• Weight: < 2.4kg

Control and Synchronisation

• MIDI: 1 x 5-pin DIN (open loop) – MIDI time code (MTC) and MIDI machine control (MMC) protocol
• LTC: 1 x 1/4” TRS jack socket:
  • Frame rates supported: 30fps, 29.97drop fps, 29.97non-drop fps, 25fps, 24fps, 23.98fps
• Machine control: 1 x 9-pin D, SONY PII protocol
• Audio clock synchronisation:
  • 2 x RCA sockets
  • AES3 / SPDIF Format, also used for communications to slave units
• Footswitch: momentary switch on ring of LTC TRS socket
• Keyboard: 1 x mini DIN PS2 connector,  Standard 102 key
• Power: 9v – 16V dc (< 25W). 2.1mm dc inlet.  PSU supplied

Analogue Inputs

• Levels: -10dBu / +4dBu switchable
• Max input level: +22dBu = 0dBFS
• A-D conversion: 24bit, 96kHz
• 106dB S/N, 96dB THD+N (typical A-weighted)

Analogue Outputs

• Levels: -10dBu / +4dBu switchable
• Max output level: +22dBu = 0dBFS
• D-A conversion: 24bit, 96kHz
• 106dB S/N, 94dB THD+N (typical A-weighted)
