Description

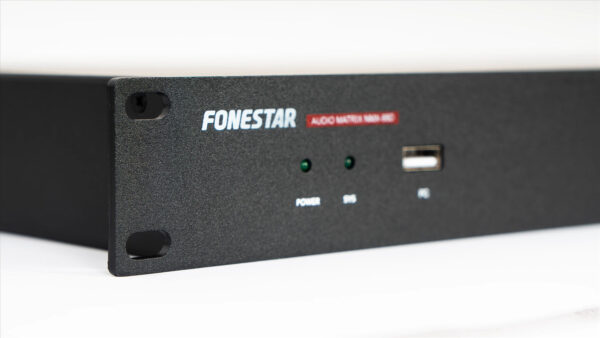

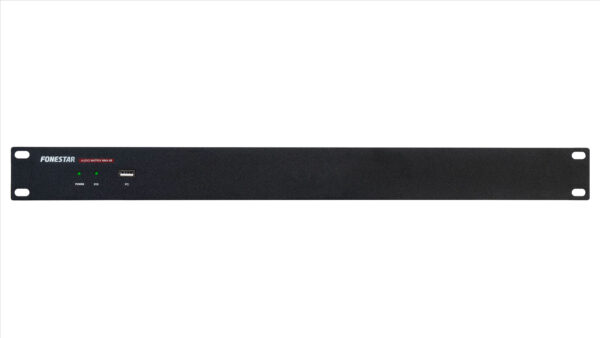

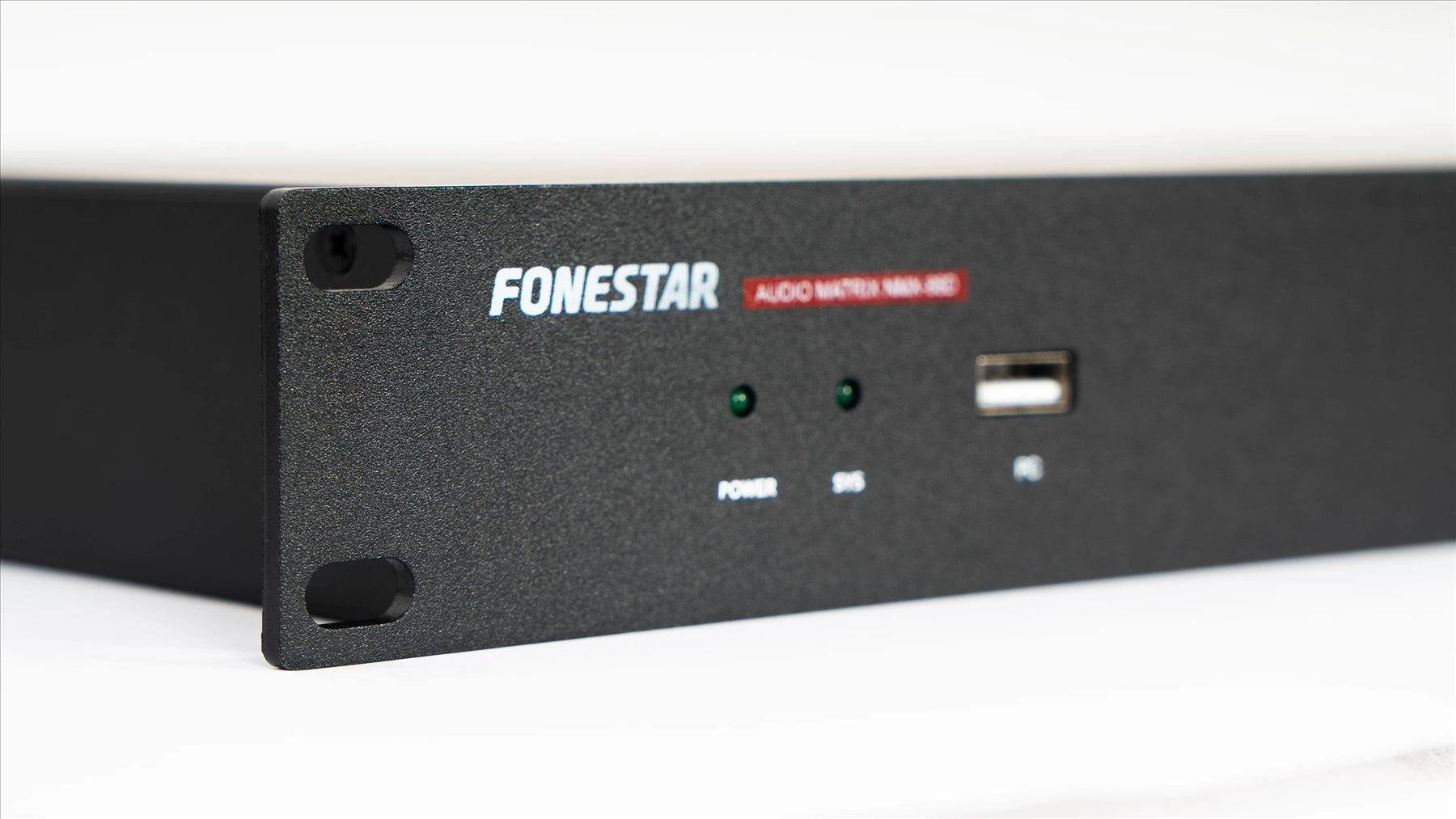

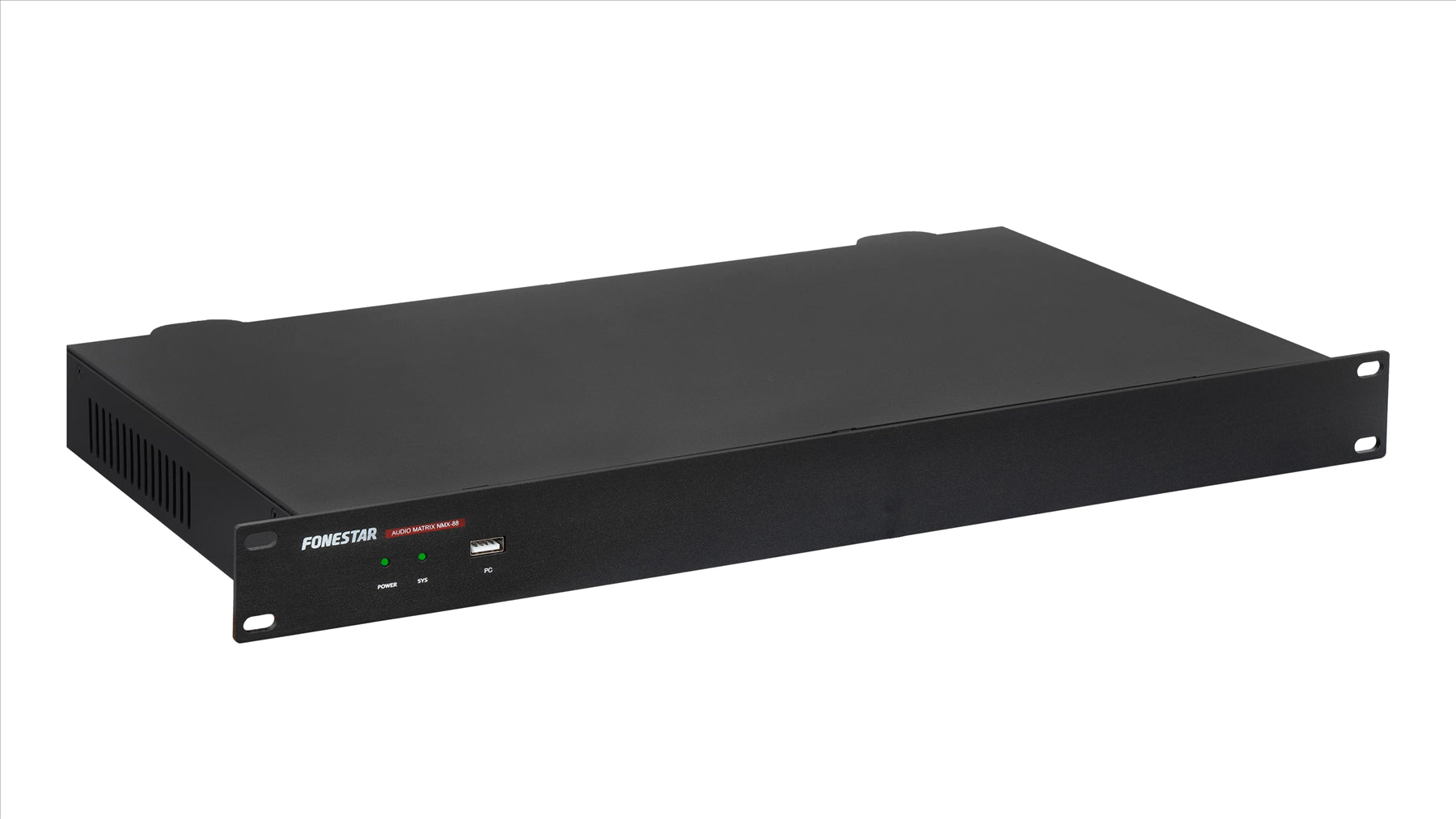

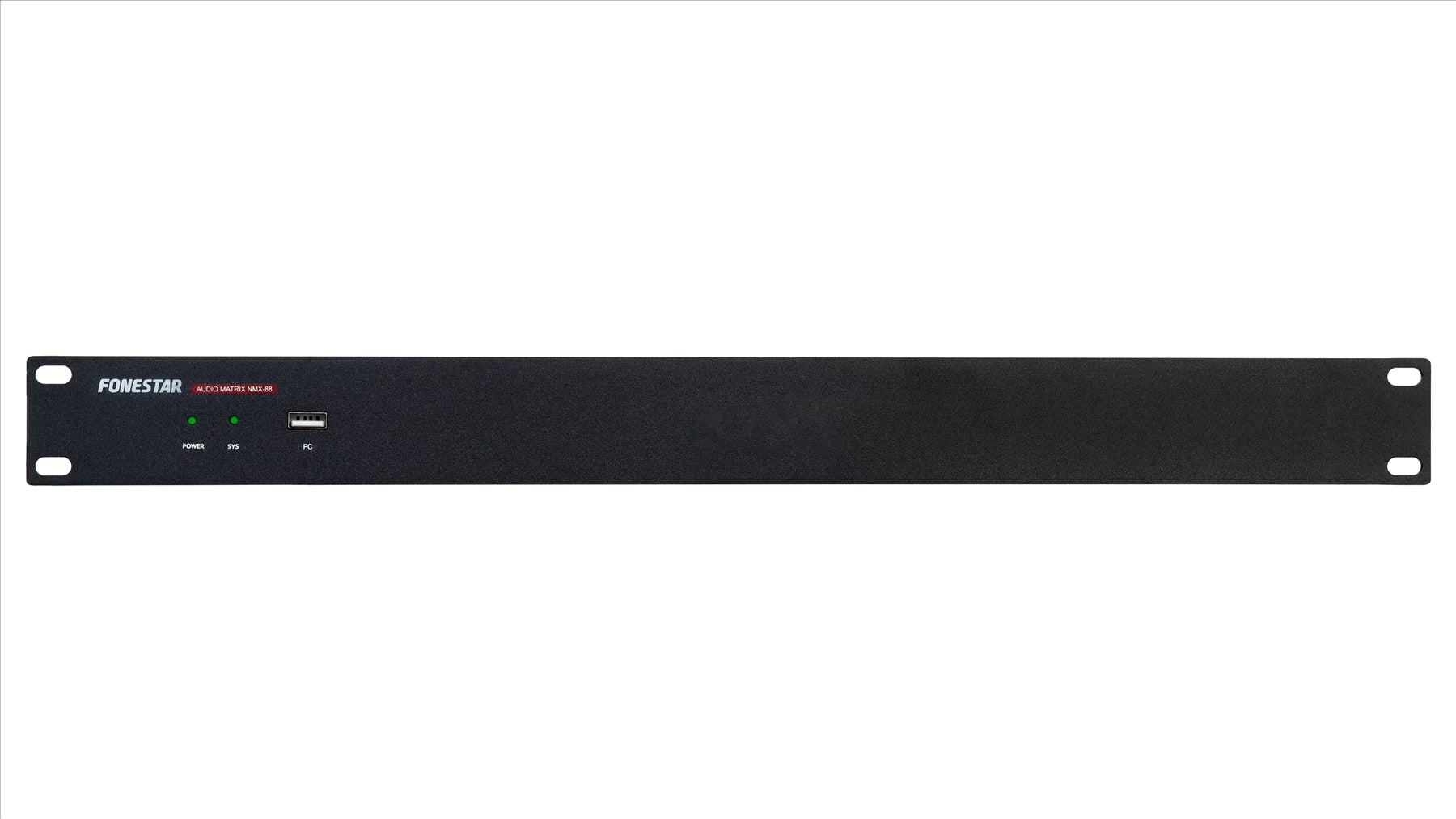

The Fonestar NMX-88 is a professional-grade 8 x 8 audio matrix designed for advanced signal processing and flexible audio distribution across diverse installation environments. With integrated DSP powered by ADI SHARC 21489 architecture, the NMX-88 is tailored for distributed audio, conference systems, and venue-wide AV installations. It supports extensive input/output control with advanced algorithms including echo cancellation (AEC), feedback cancellation (AFC), noise suppression (ANS), and automatic gain control (AGC), providing optimal audio quality and speech intelligibility. This matrix features modular configuration software with a customisable user interface and app control for Android and iOS touchscreens. With RS-232, RS-485, UDP, and Ethernet connectivity, along with support for PTZ camera tracking and 16 scene memory presets, the NMX-88 offers unmatched flexibility and control for audio professionals.

Features
8 x 8 analogue audio matrix with integrated DSP
ADI SHARC 21489 40-bit floating point processor (400 MIPS, 1600 MFLOPS)
Echo Cancellation (AEC), Feedback Cancellation (AFC), Noise Suppression (ANS), and Automatic Gain Control (AGC)
8 balanced analogue inputs with selectable 48V phantom power
8 balanced analogue outputs
USB sound card input/output for recording or video conferencing
5 signal processing modules per input channel and 4 per output channel
Includes EQ, compressor, expander, gate, crossover, delay, limiter, auto mixing, and priority
Stereo linking, matrix volume assignment, and 16 user scenes
Supports PTZ camera tracking
8 configurable GPIO ports
Control via Ethernet, RS-232, RS-485, UDP protocols
Modular PC software with customisable GUI
Touchscreen control via Android/iOS app
High-resolution 48 kHz, 24-bit digital audio
Under 3 ms latency and 112 dB S/N ratio
1U 19″ rackmount enclosure

Specifications

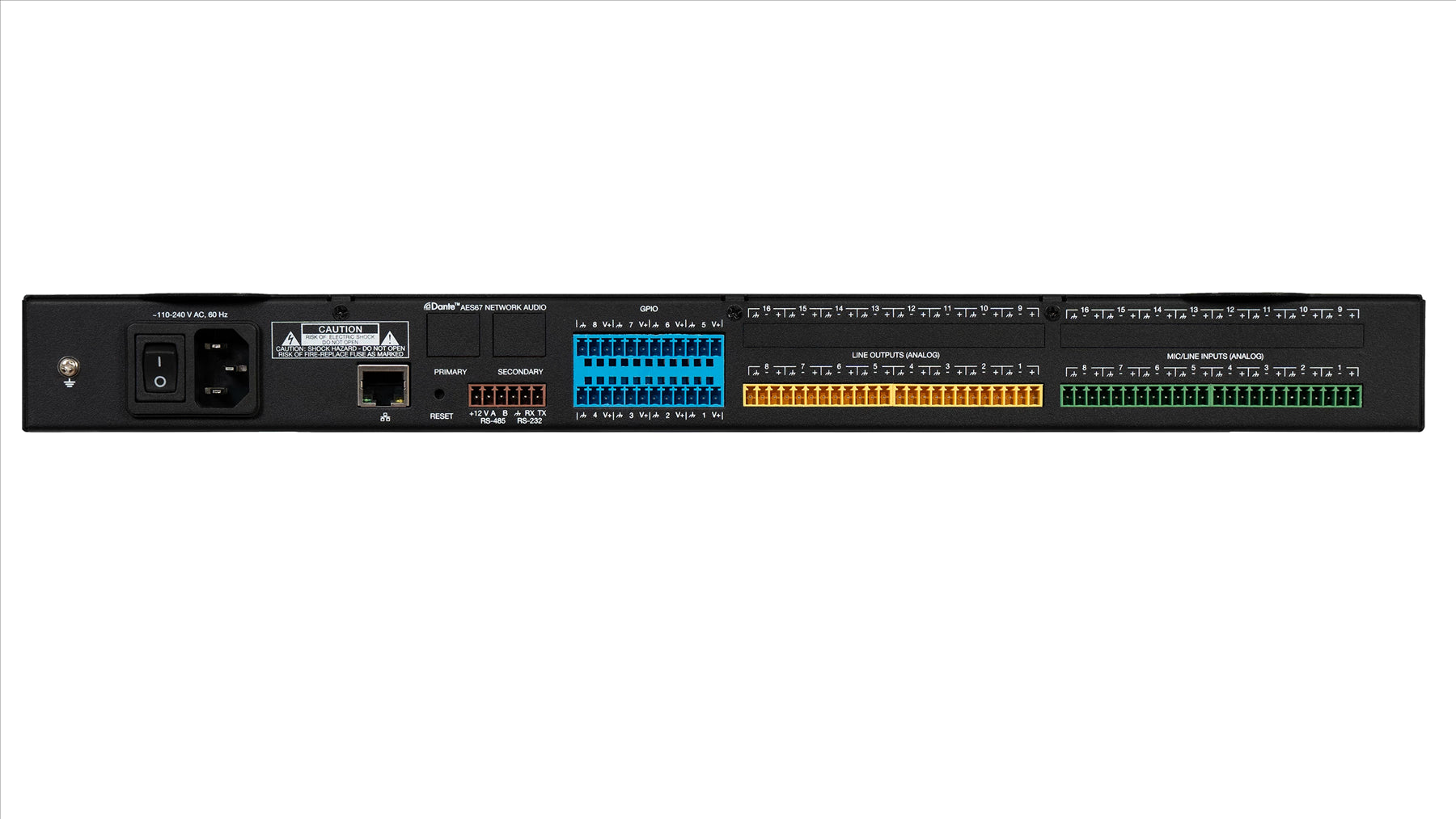

Inputs: 8 balanced mic/line (Euroblock), selectable 48V phantom power
Input gain: 0 dB to -48 dB in 3 dB steps
Input signal level: 24 mV RMS (-30 dBu) to 6.15 V RMS (+18 dBu)
Input impedance: 5.4k ohms
Input dynamic range: 110 dB
Outputs: 8 balanced (Euroblock)
Output level: Max 6.15 V RMS (+18 dBu)
Output impedance: 600 ohms
Output dynamic range: 112 dB
Control inputs: 1 x RJ-45 LAN, 1 x RS-232 (Euroblock), 1 x RS-485 (Euroblock)
Digital audio: 48 kHz, 24-bit
Latency: <3 ms
Frequency response: 20 Hz – 20,000 Hz ±0.3 dB
THD+N: <0.002% @ 4 dBu
S/N ratio: 112 dB
Power supply: 100-240 V AC, 50-60 Hz, 28 W
Dimensions: 482 x 44 x 268 mm
Weight: 2.9 kg
Mounting: 1U 19″ rack

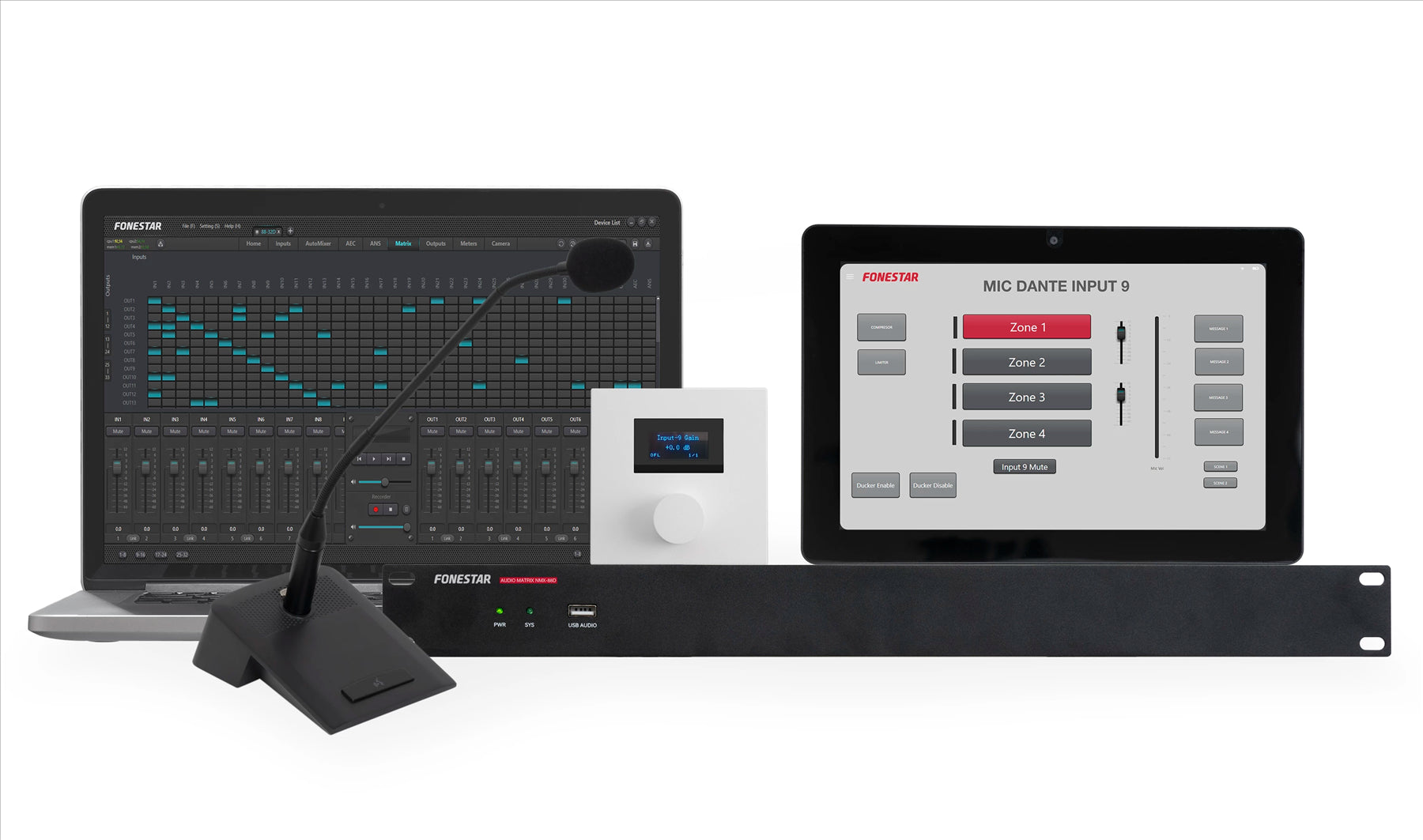

Optional accessories: NMX-WP wall controller, TAB-10-16 Android touchscreen
