Description

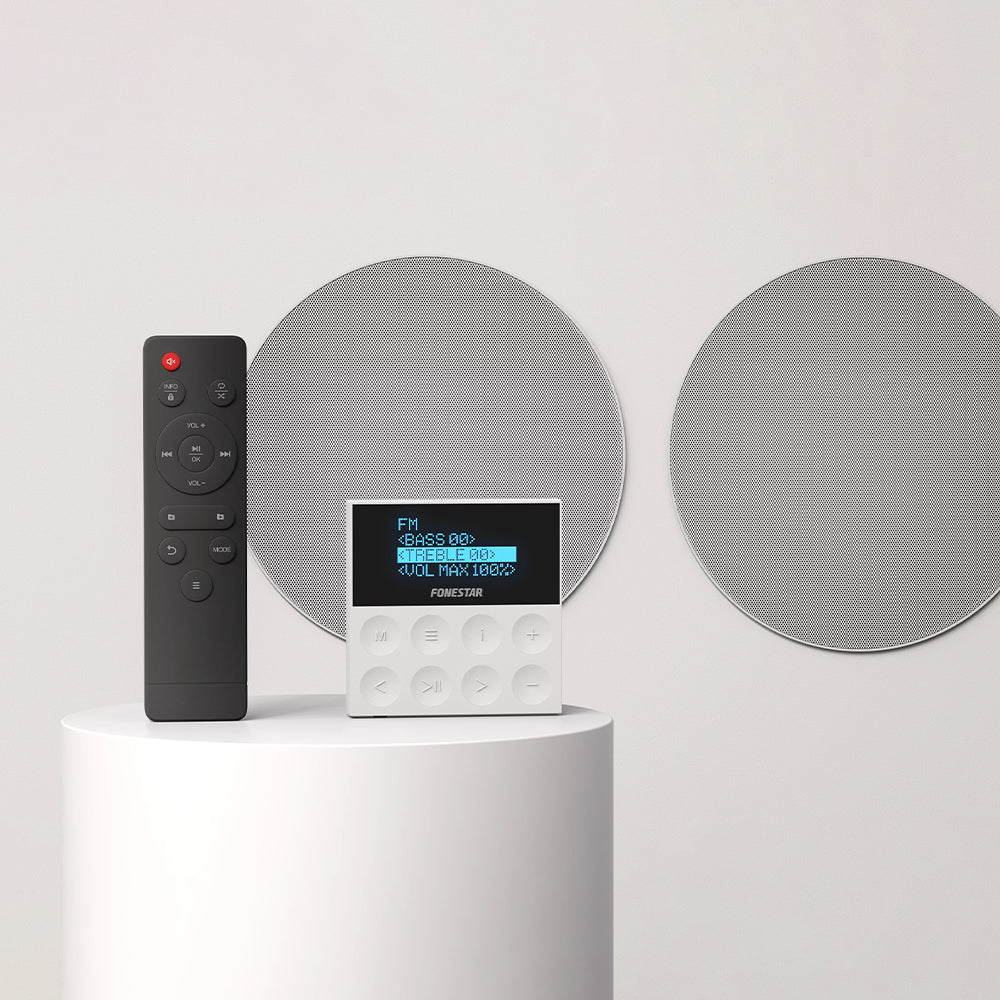

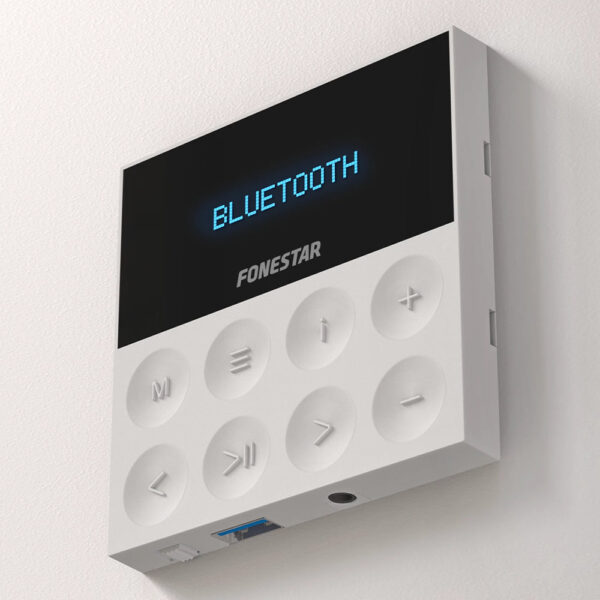

The Fonestar KS-WALL is a compact all-in-one stereo audio system featuring a 15 + 15W in-wall Bluetooth amplifier and two 6″ ceiling speakers. Designed for seamless integration, it offers multiple playback options including Bluetooth streaming, USB playback, and FM radio with 50 presets, making it perfect for small shops, homes, and waiting areas. The unit features a sleek 2.15″ LCD display for mode and playback information, and supports bass and treble equalisation for enhanced sound tailoring. With a touch control panel and an included remote control, operation is intuitive and flexible. Installation is simple in a standard universal square box, ensuring clean and professional results. The system also offers useful features like maximum volume setting, playback memory, a sleep timer, and the ability to rename the Bluetooth ID with PC software for complete customization.

Specifications
Power Output 15 + 15W RMS @ 8 ohms
Speaker Size 2 x 6” @ 8 ohms
Speaker Material ABS housing with frameless round aluminium grille
Media Playback Bluetooth, USB (Type A), FM Radio
Playback Features Autoplay, Playback Mode Memory (random, repeat), Sleep Timer
Bluetooth Customisation ID and password change via PC software
Auxiliary Inputs 1 x 3.5mm Jack (200 mV RMS), 1 x Euroblock (200 mV RMS)
FM Tuner 50 presets with auto search (external FM aerial recommended)

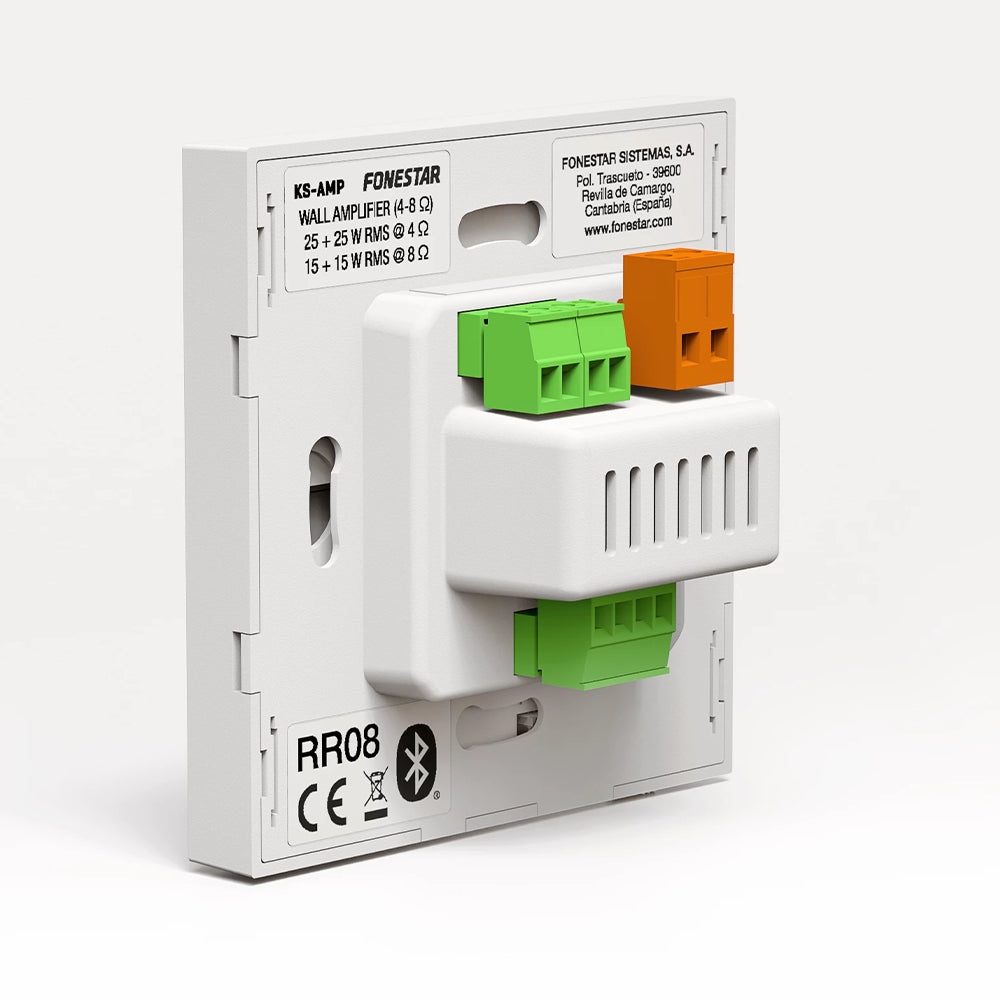

Outputs Loudspeakers: 4-8 ohms via Euroblock
Display 2.15″ LCD for mode and playback status

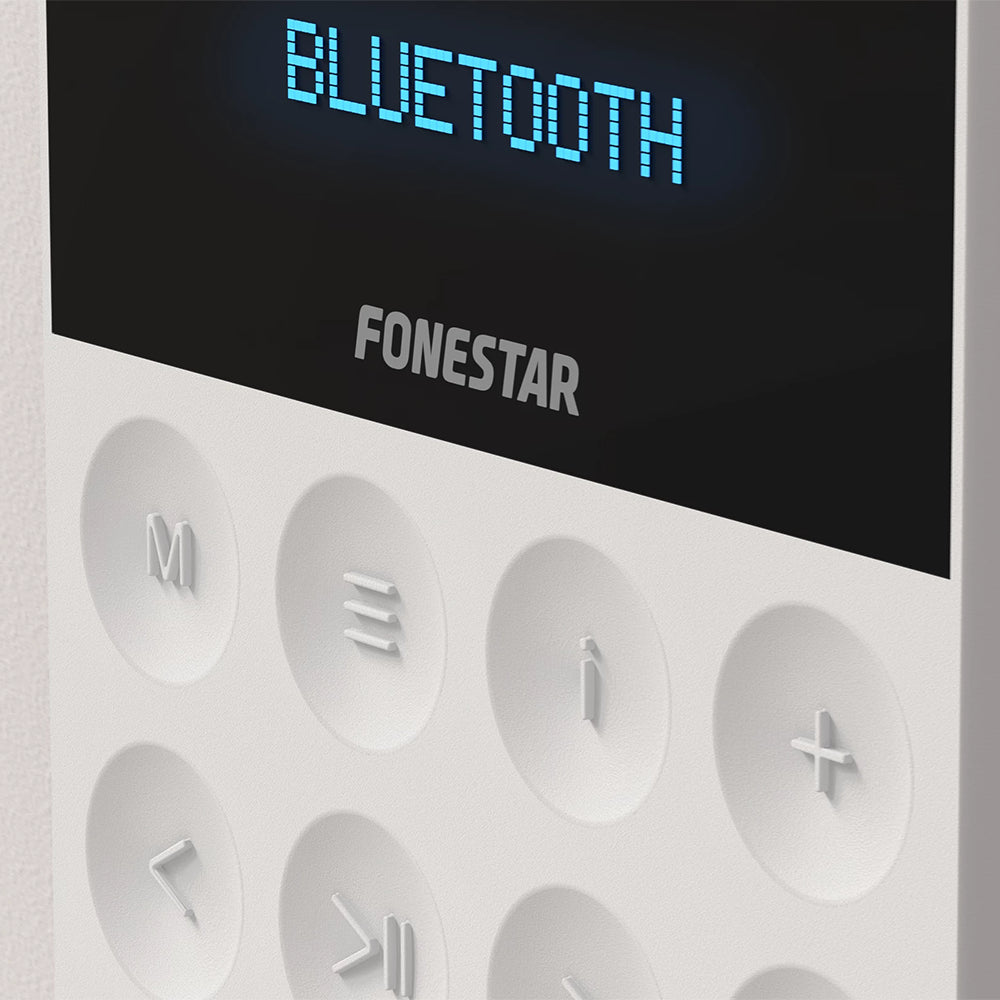

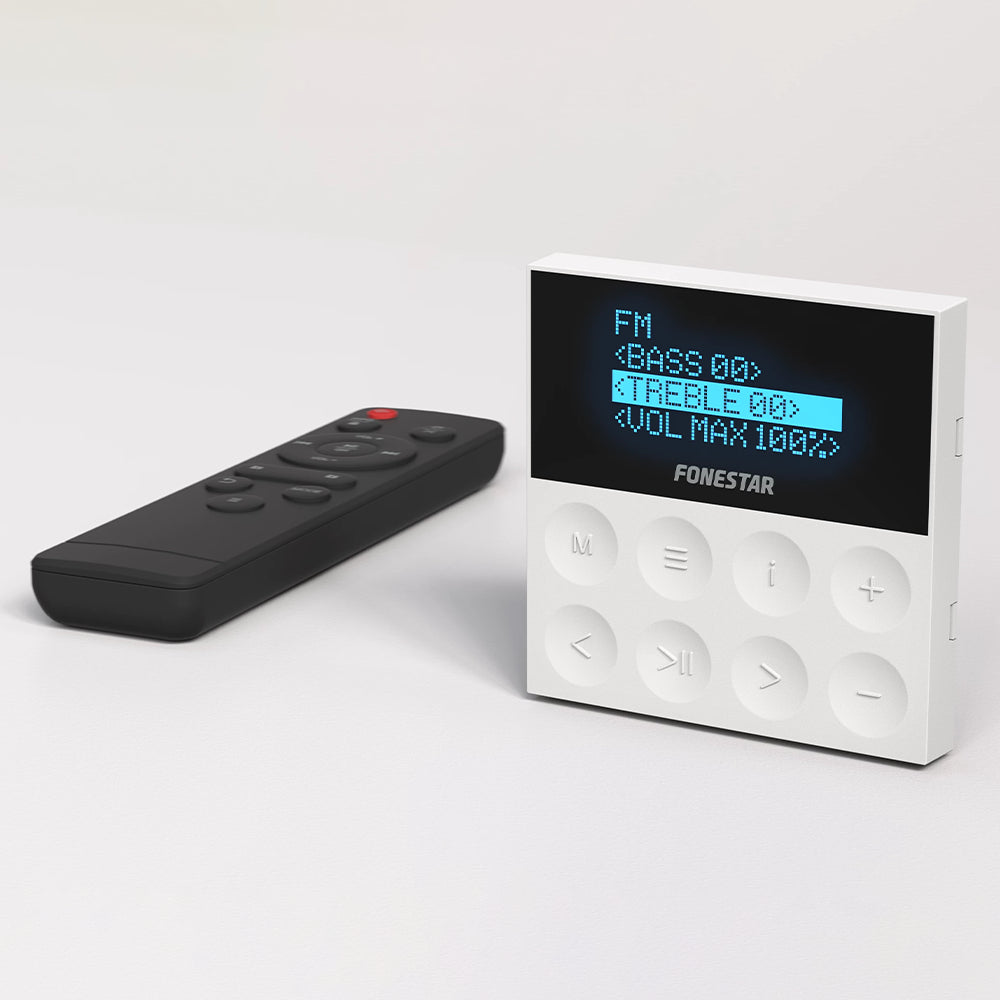

Control Methods Touch buttons on panel, remote control (included)
Maximum Volume Limit Configurable
Equalisation Bass and Treble
Mono/Stereo Mode Selectable
Amplifier Dimensions (Exterior) 83 x 83 x 39 mm
Amplifier Dimensions (Assembly) 47 x 47 x 27 mm
Speaker Dimensions 186 mm Ø x 70 mm depth
Speaker Cut-out Size 170 mm Ø
Distance Between Screw Holes 60 mm
Power Supply 100-240V AC
Total Weight 1.2kg
Colour White (RAL 9003)
Accessories Included 2 x 5m speaker wires, FM antenna cable, remote control, batteries
