Description

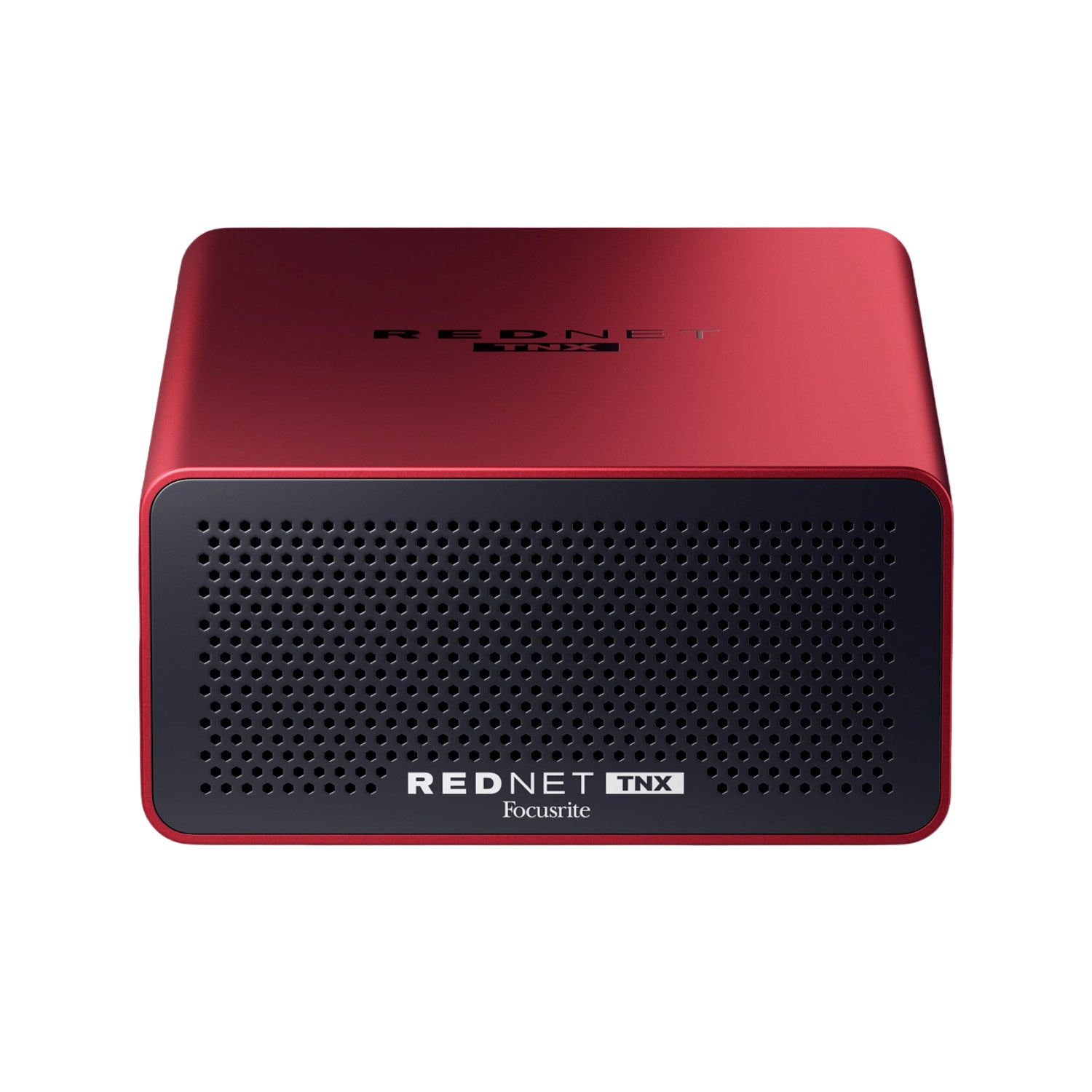

Focusrite RedNet TNX – Portable Dante interface

Introducing RedNet TNX
A portable Dante® interface that delivers high channel counts, ultra-low latency, and powerful audio workflows via a single Thunderbolt™ connection.

• Powerful, portable audio workflows: 128×128 channels at 24-bit/192kHz with ultra-low latency — perfect for large sessions and immersive formats like Dolby Atmos.
• Seamless Thunderbolt™ connectivity: Connect to any compatible computer
  with one cable; quick swaps between users make it ideal for shared
  workspaces.
• Upgradable with Dante Ready™: Expand to 256×256 channels at 24-
  bit/96kHz with an optional Dante Ready™ upgrade.

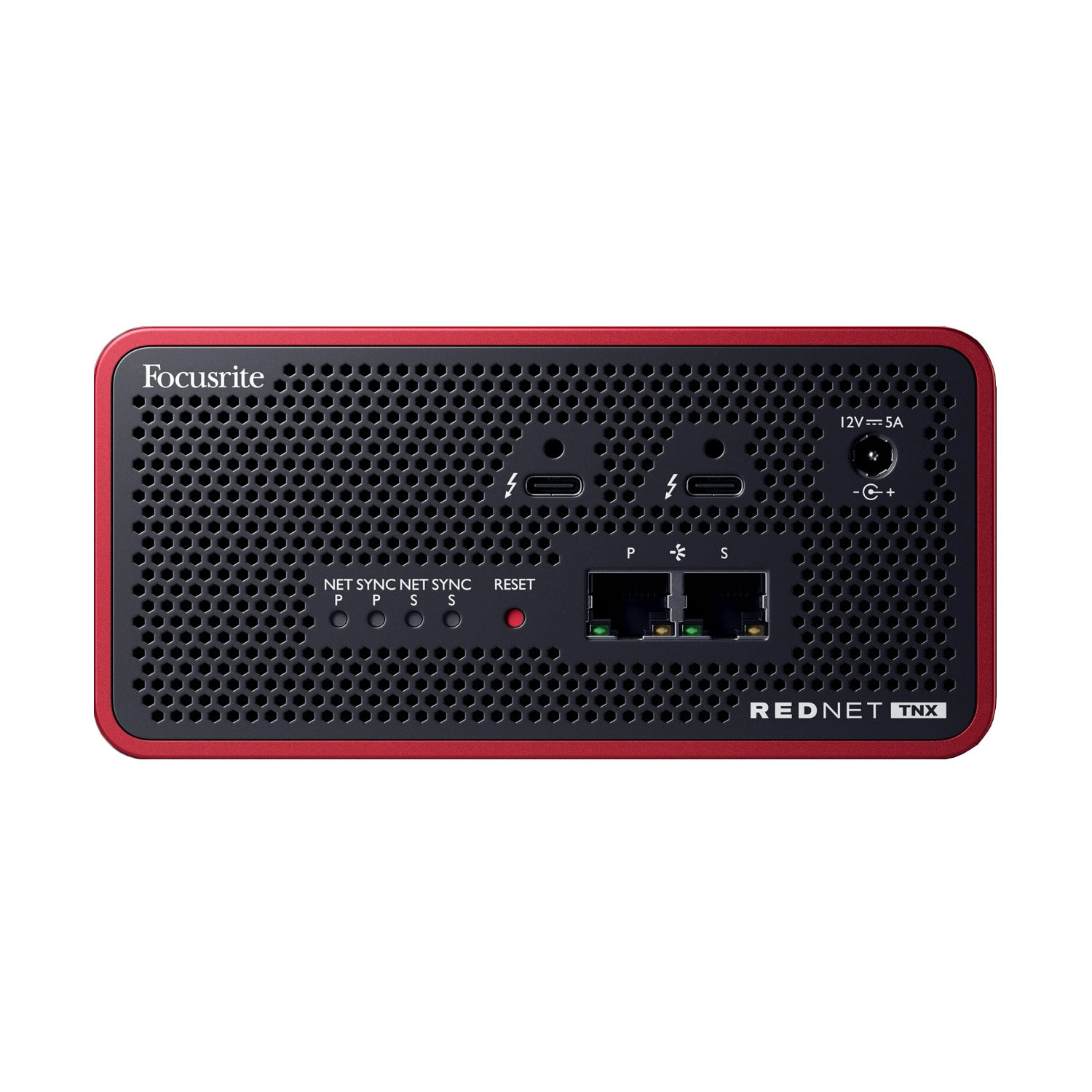

• Dual Ethernet RJ-45 connections: Supports switched or redundant mode
  for flexible, reliable network connectivity in critical situations.
• Broadcast-Ready AoIP support: Compliant with AES67 and SMPTE ST 2110
  (DDM required) for broadcast and pro audio standards.
• Windows and macOS compatible: Works with Thunderbolt™-equippedWindows (Intel) and macOS (Intel & Apple Silicon) systems.
• Simple integrated network control: Manage everything via a single-cable connection with the built-in network interface.
• Easy integration: Dual Thunderbolt™ ports (15W each) support daisychaining multiple devices, securable with Sonnet ThunderLok™ retainer clips.
• Rack shelf-mountable: Secure with M5 x 12mm screw threads underneath.
• Award-winning support: Backed by Focusrite’s three-year warranty and 24/7/365 technical support

Upgradable with Dante Ready™

Meet the demands of high channel count sessions

For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256×256 channels of uncompressed, highresolution audio at ultra-low latency.

Out of the box

• Inputs and outputs: 128×128 channels
• Sample rate: 192kHz
• Bit depth: 24-bit
• Meet the demands of high channel count sessions

Dante Ready™ upgrade

• Inputs and outputs: 256×256 channels
• Sample rate: 96kHz
• Bit depth: 24-bit
• One-time license upgrade via Audinate’s
• Dante Activator platform for ~ £200

Drivers

Dedicated drivers are vital to ensure your RedNet TNX device works seamlessly with your computer. They enable high-channel audio over Dante, ultra-low latency, and full compatibility with your DAW, unlocking the true power of RedNet TNX.

Windows Driver

• Latency performance on-par with RedNet PCIeNX
• Compatible with Intel systems with a Thunderbolt 3, 4 or 5 port
• ASIO multi-client support
• WDM support (up to 8 stereo pairs)

macOS Driver

• Compatible with Intel and Apple Silicon (Mx) systems
• Latency performance on-par with RedNet PCIeNX

Included software

RedNet Control

RedNet Control is a software utility for managing all
RedNet devices on a Dante network. It allows full control over device settings like sample rate and network configuration, and features a tabbed interface for easy organisation. With support for up to 600 devices, it enables real-time monitoring, customisable layouts, and logical grouping, making it ideal for multi-location setups.

With RedNet Control and RedNet TNX, you can meter up to 128×128 channels in a 1×1 tab, or 64×64 channels in a 2×3 or 3×4 tab, offering flexible monitoring options for your RedNet system.
