Description

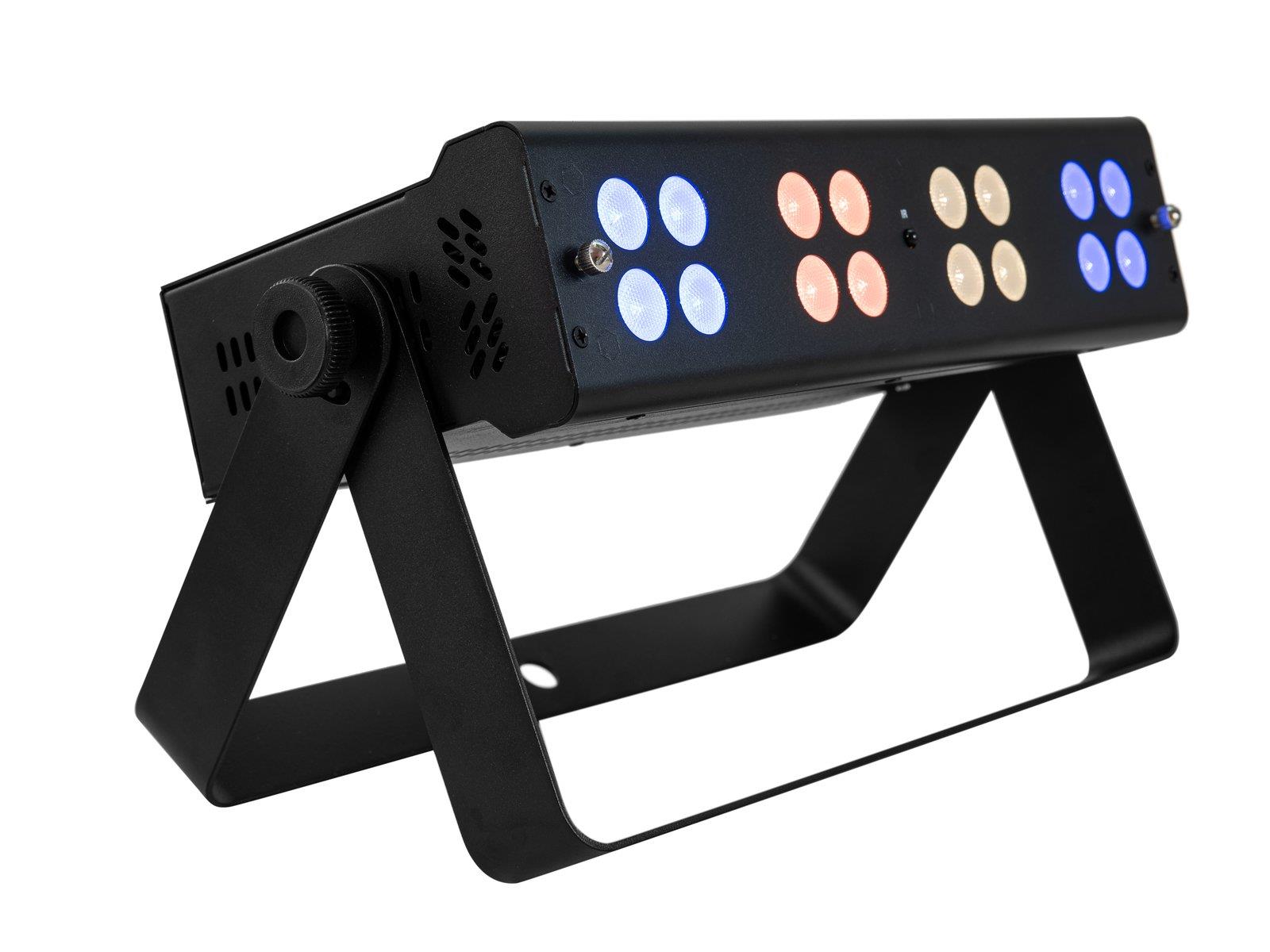

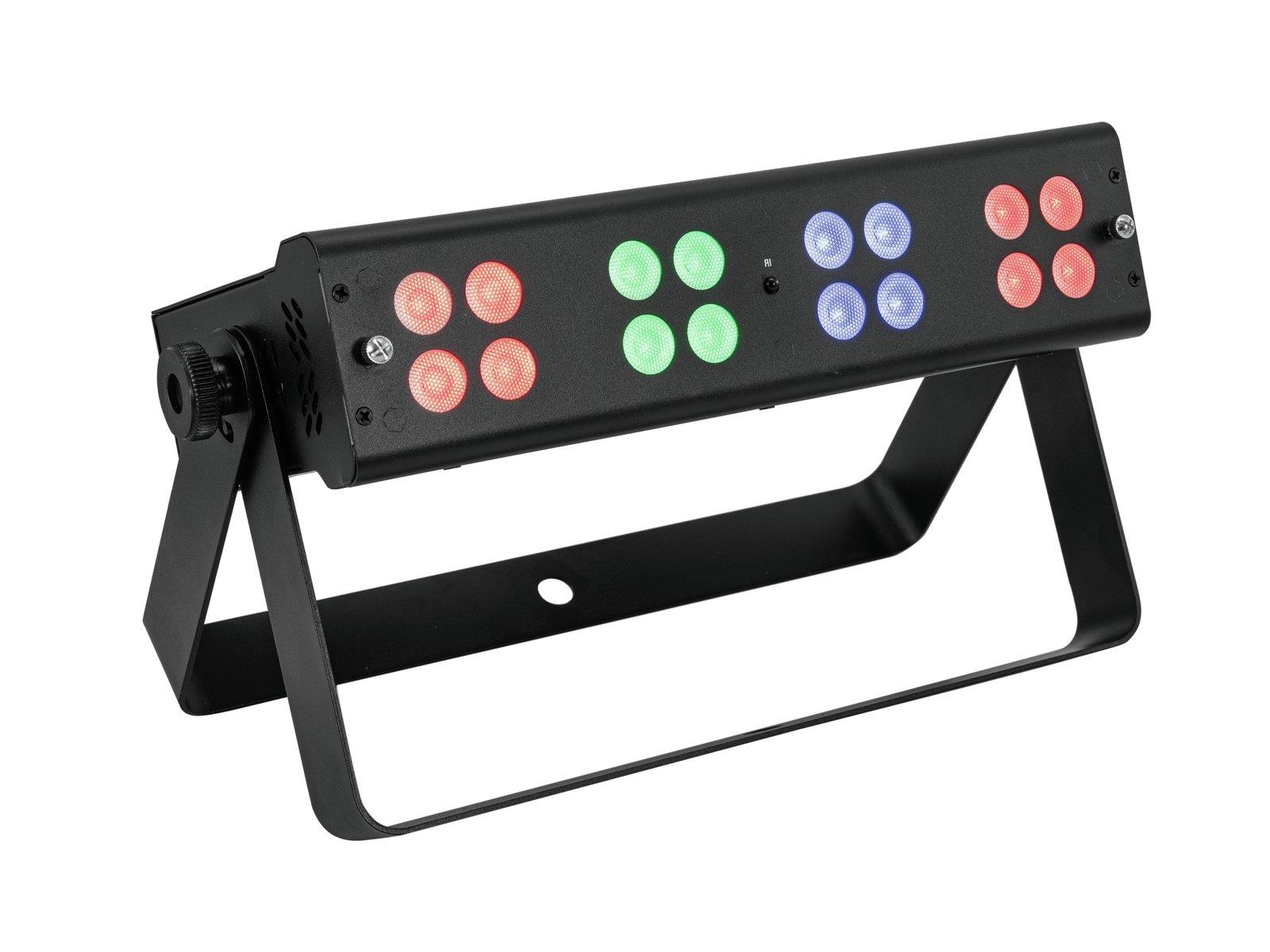

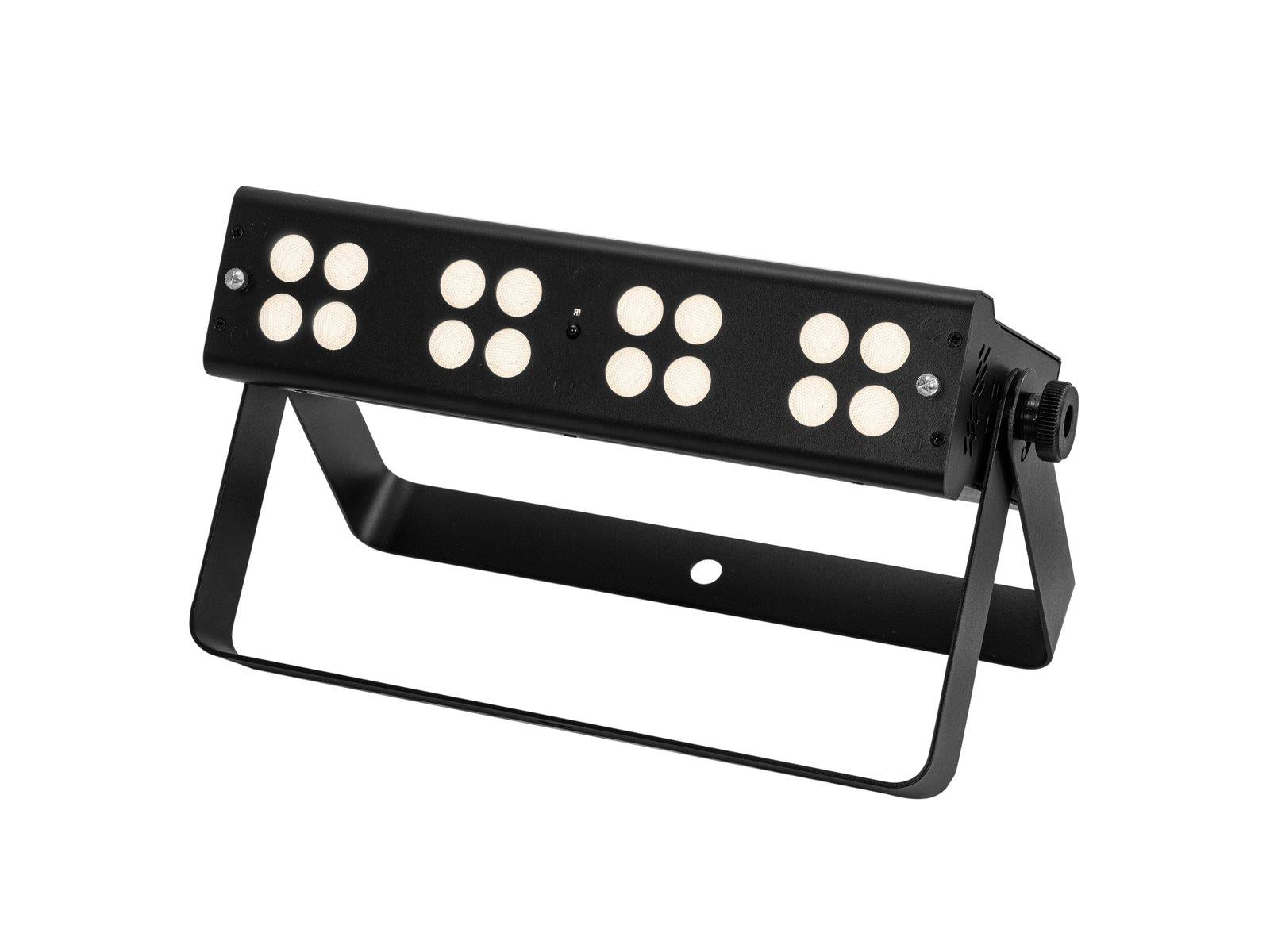

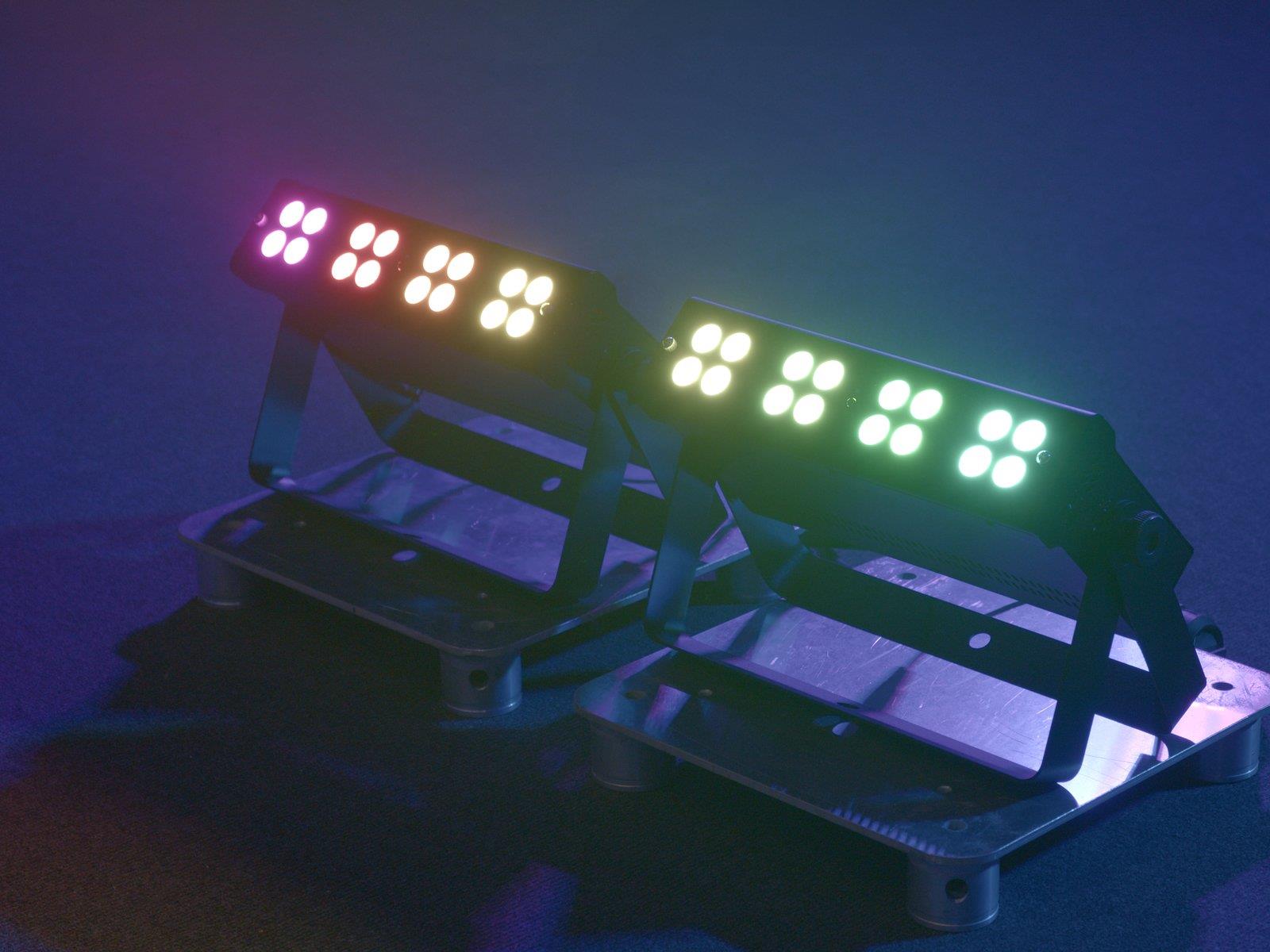

Compact and whisper-quiet spotlight for colored and white light

16 powerful LEDs 4 W SMD 3535 4in1 QCL RGB/WW
segments controlled separately

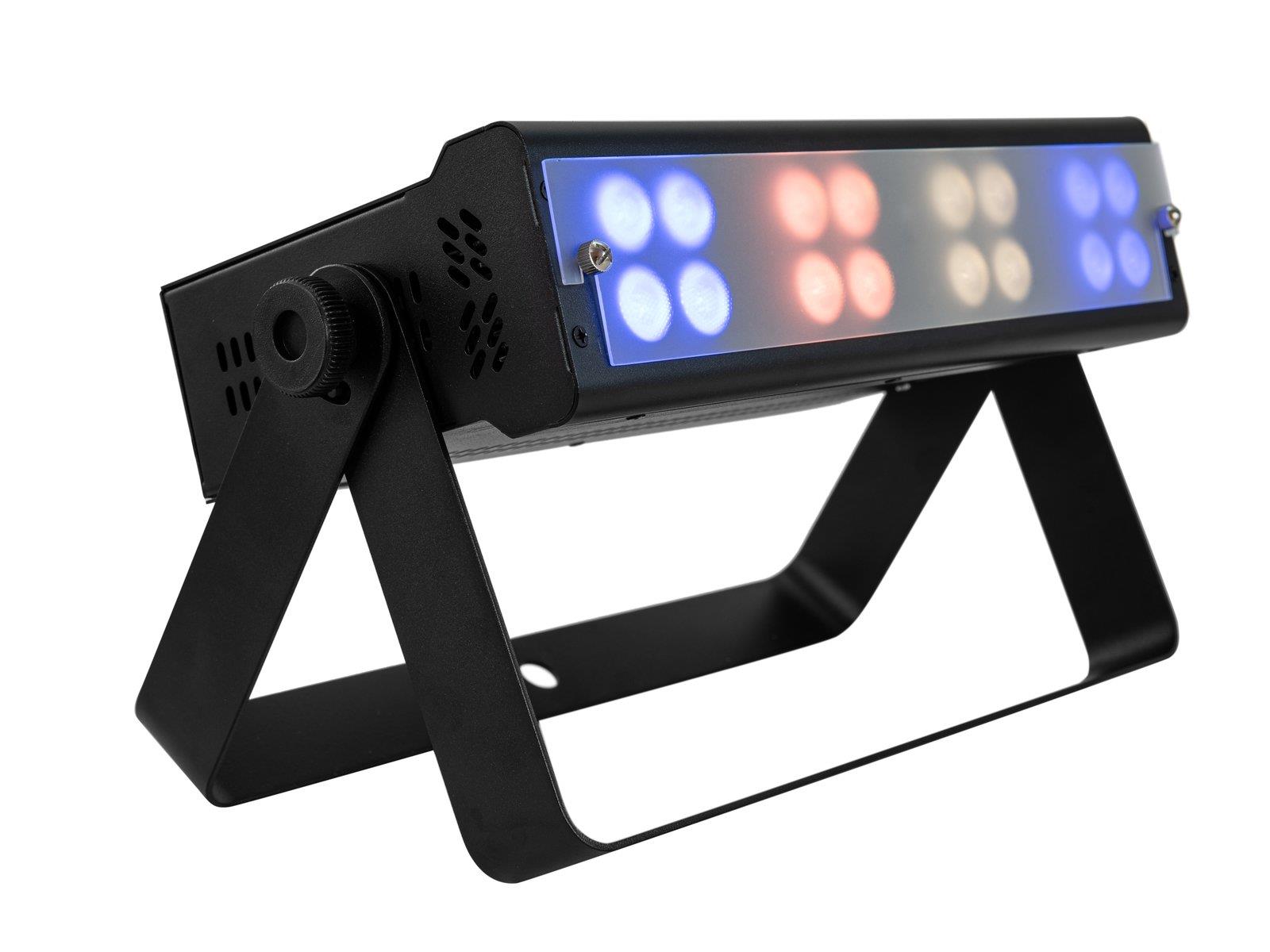

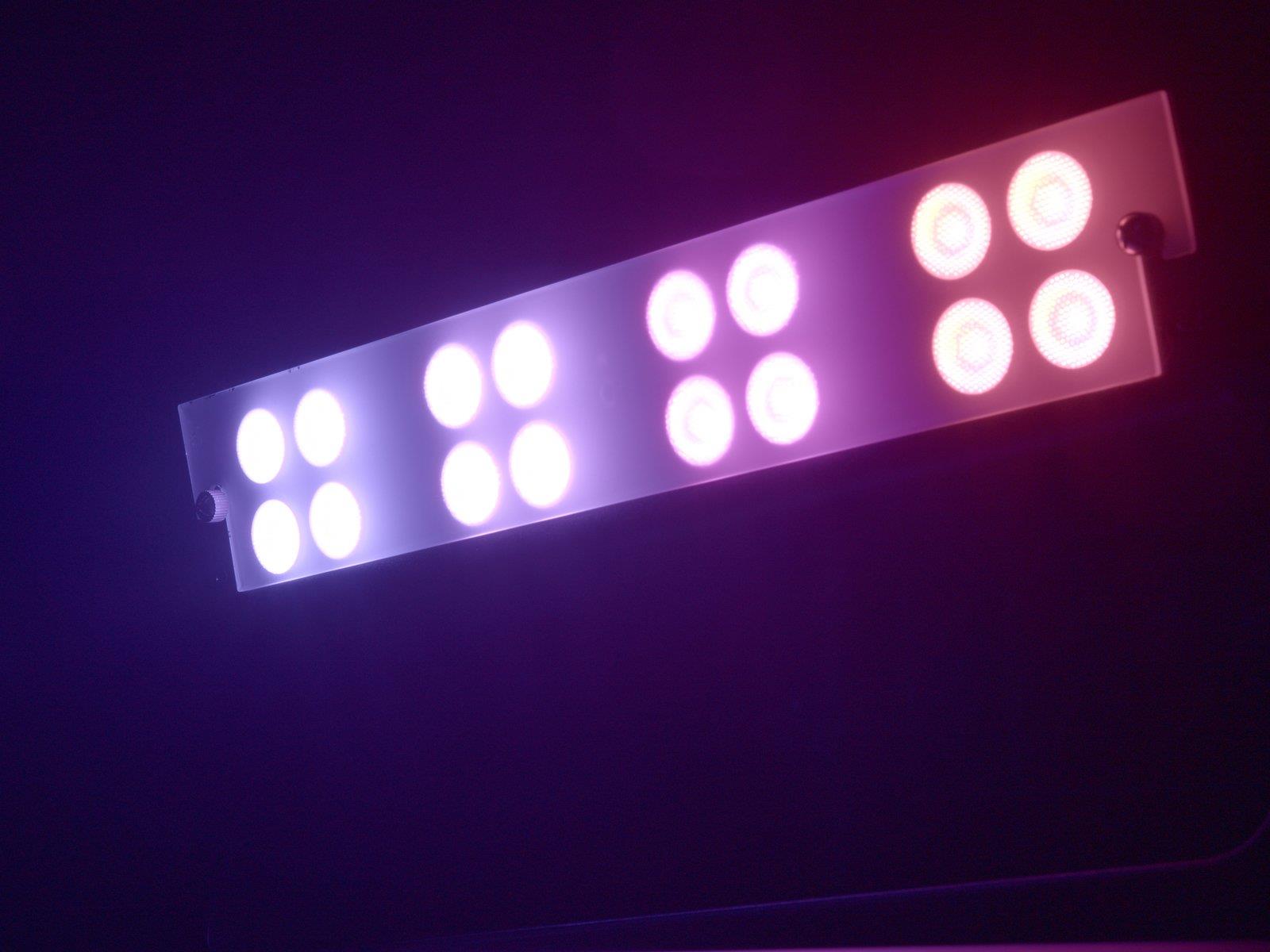

Additional frost filter provides a wide, soft and homogeneous light
Color blend stepless; color change automatic; color fade automatic; Dimmer electronic; program speed adjustable
Wash effect; strobe effect
41 integrated show programs
Direct color selection for 15 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; sound to light via microphone; master/slave function; IR remote control (not included); DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 20°
With double bracket
Monochrome 4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; theater; mobile djs / entertainer
Silent operation
Application possibility: Standing; suspended; on stand
Preprogrammed in Colorchief; Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Good color rendering index (CRI)

1 x device, 1 x user manual, 1 x power cord, 1 x frost filter

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 70 W
IP classification: IP20
Protection class: Protection class I

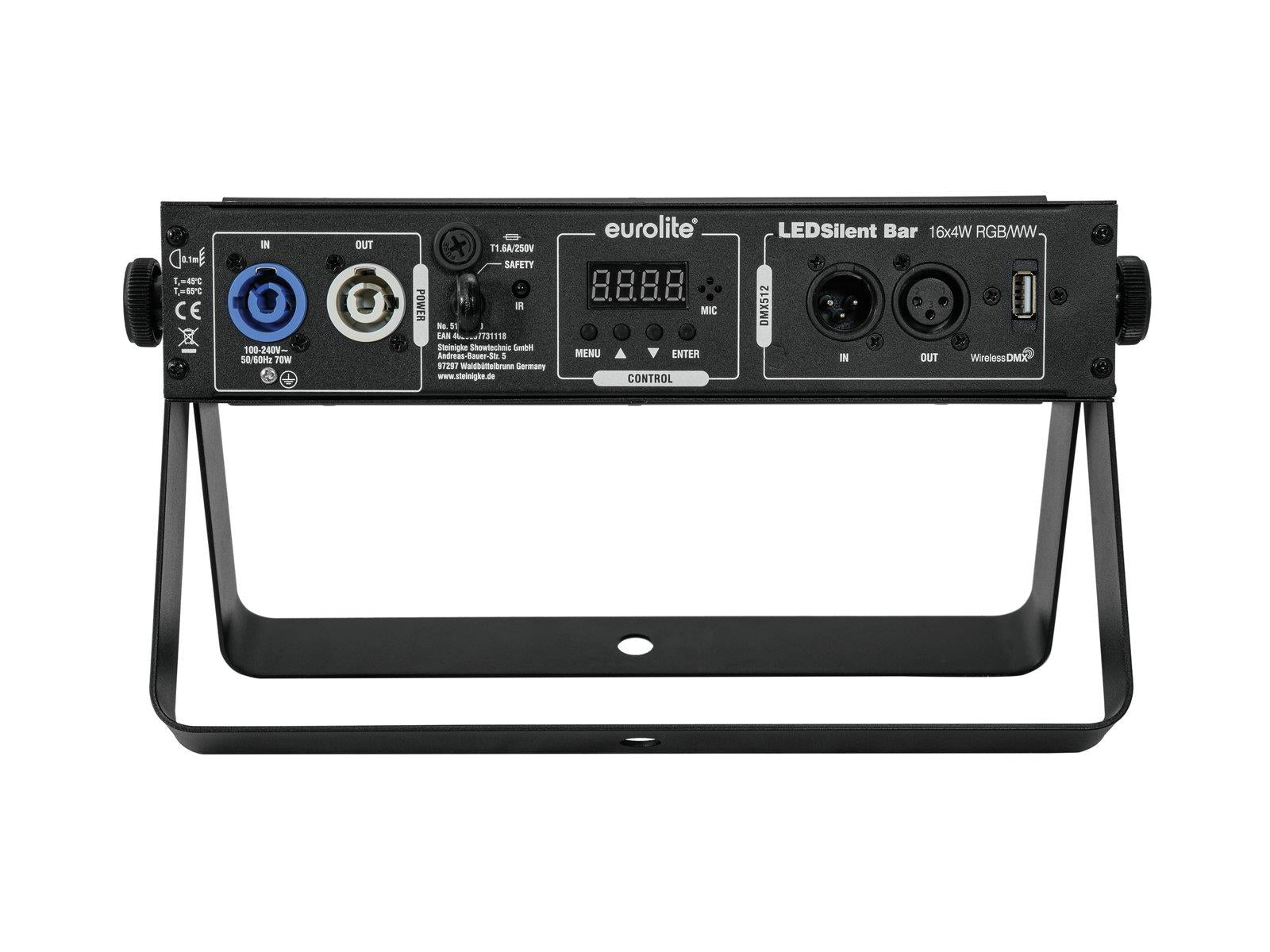

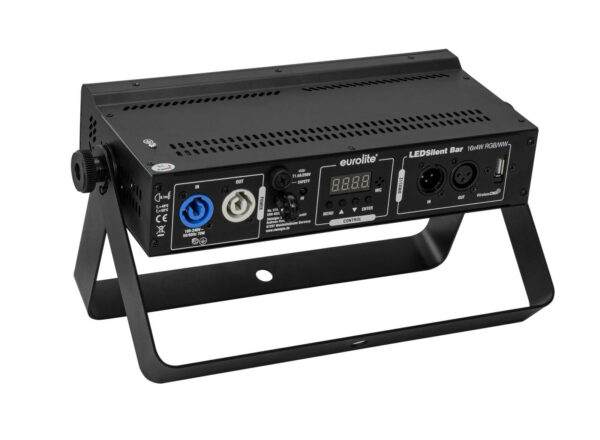

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 1,6 A fuse replaceable
Battery: 1 x button cell 3.0 V CR2032 lithium manganese built-in
Lamp type: LED lamp
LED type: 16 x 4 W SMD 3535 4in1 QCL RGB/WW
Flash rate: 1 – 25 Hz
DMX channels: 4; 6; 8; 16; 18; 20
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; sound to light via microphone; master/slave function; IR remote control (not included); DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in: Colorchief; Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection: Flicker-free
Beam angle: 20°
Beam angle (1/2 peak): 20°
Frost filter 30°
Beam angle (1/10 peak): 50°
Frost filter 80°
Color rendering index (CRI): 83 Ra
Housing color: Black
Attachment system: Double bracket
Display type: Monochrome 4 digit 7-segment LED display
Dimensions: Length: 33 cm
Width: 17 cm
Depth: 17 cm
Weight: 2,73 kg
Noise classification: Class 0 (no noise at all)
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
