Description

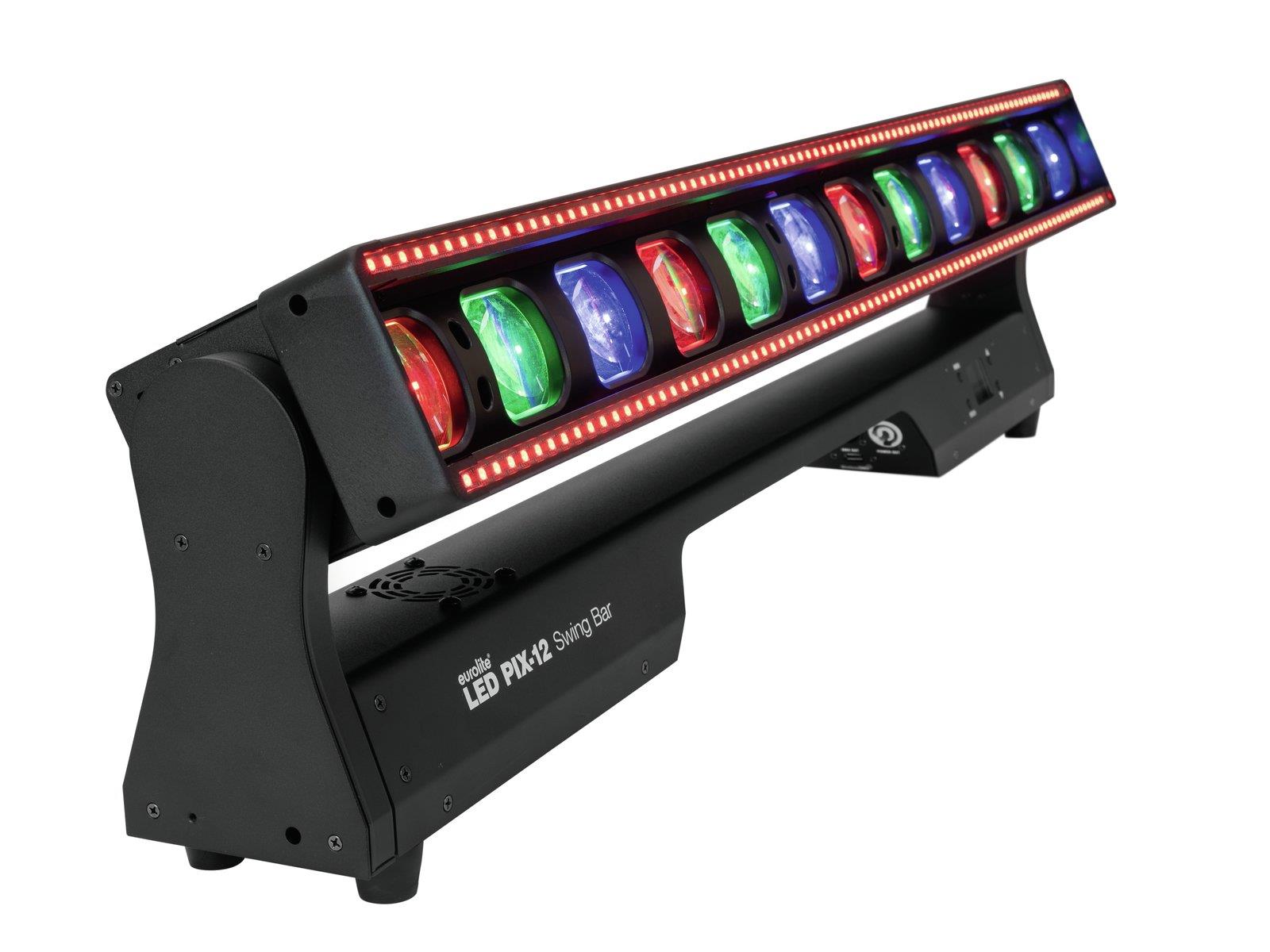

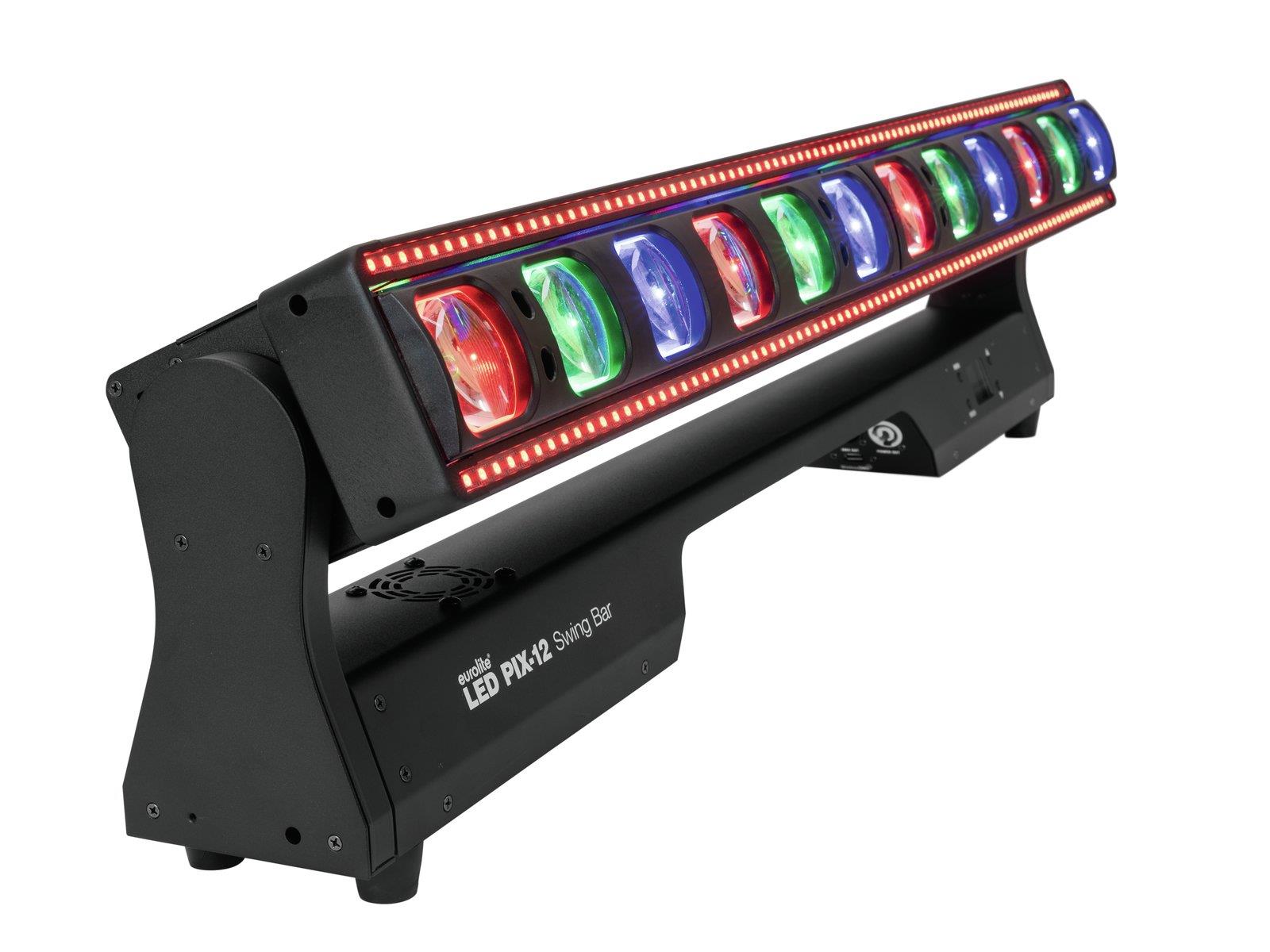

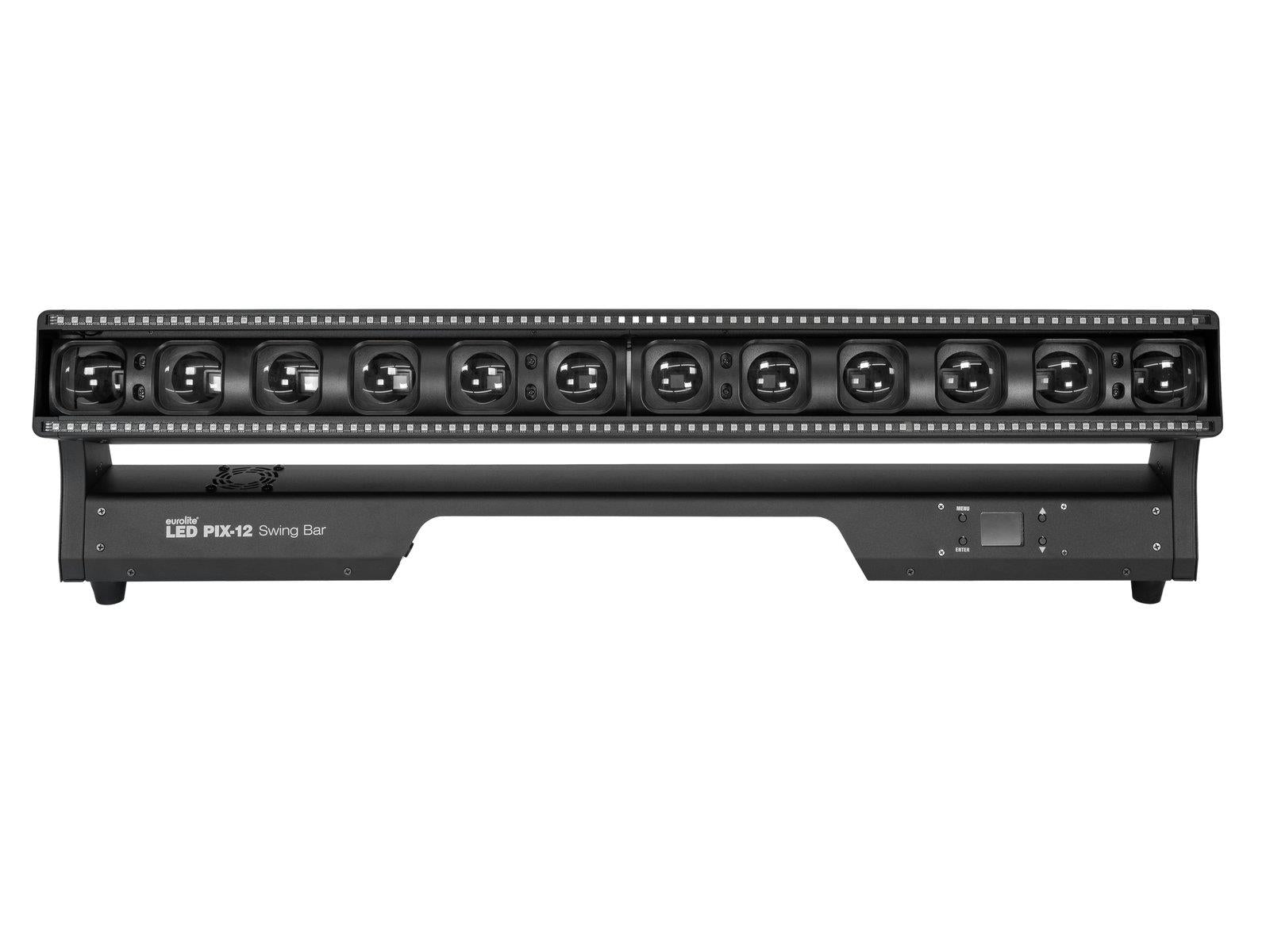

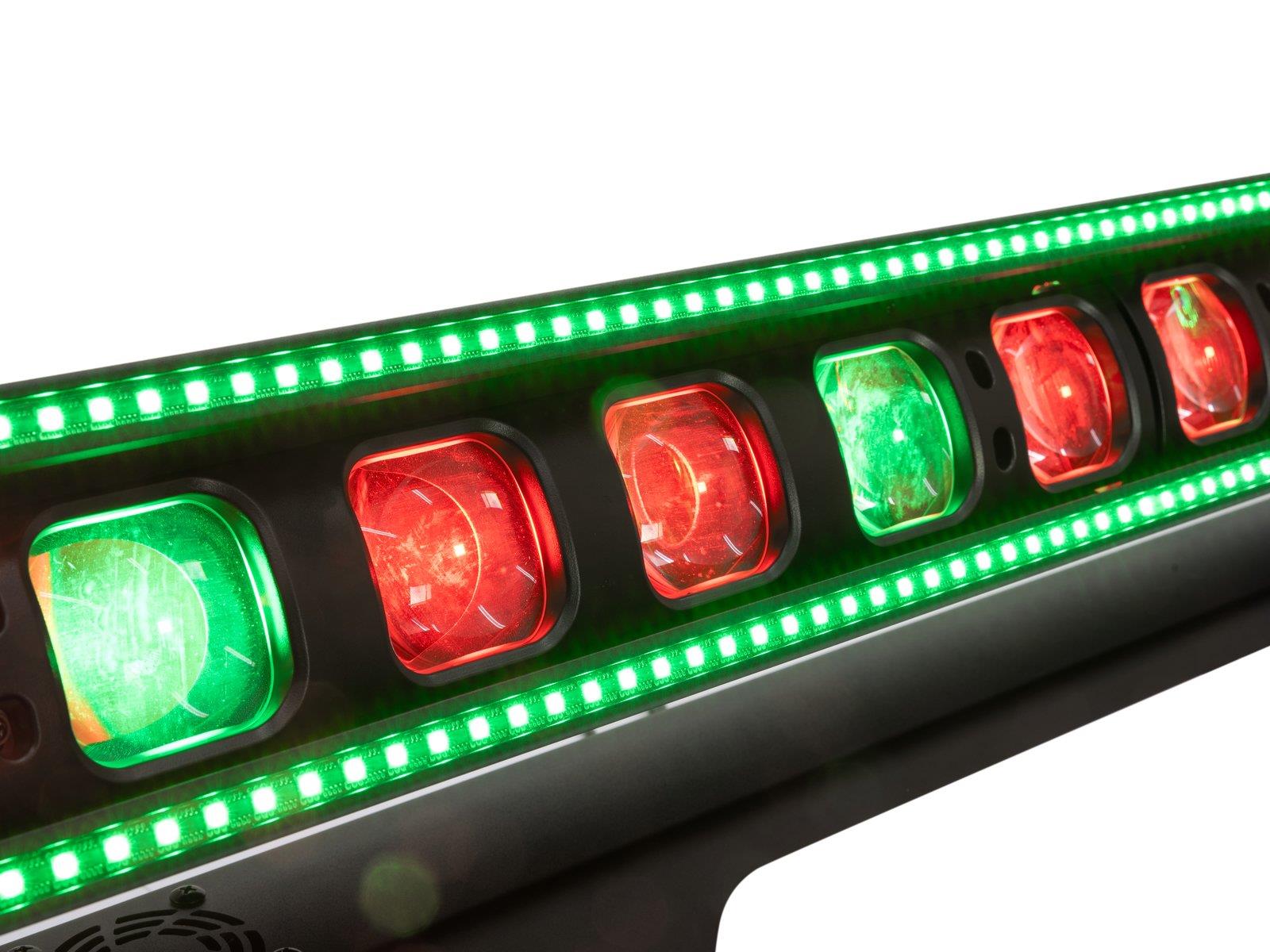

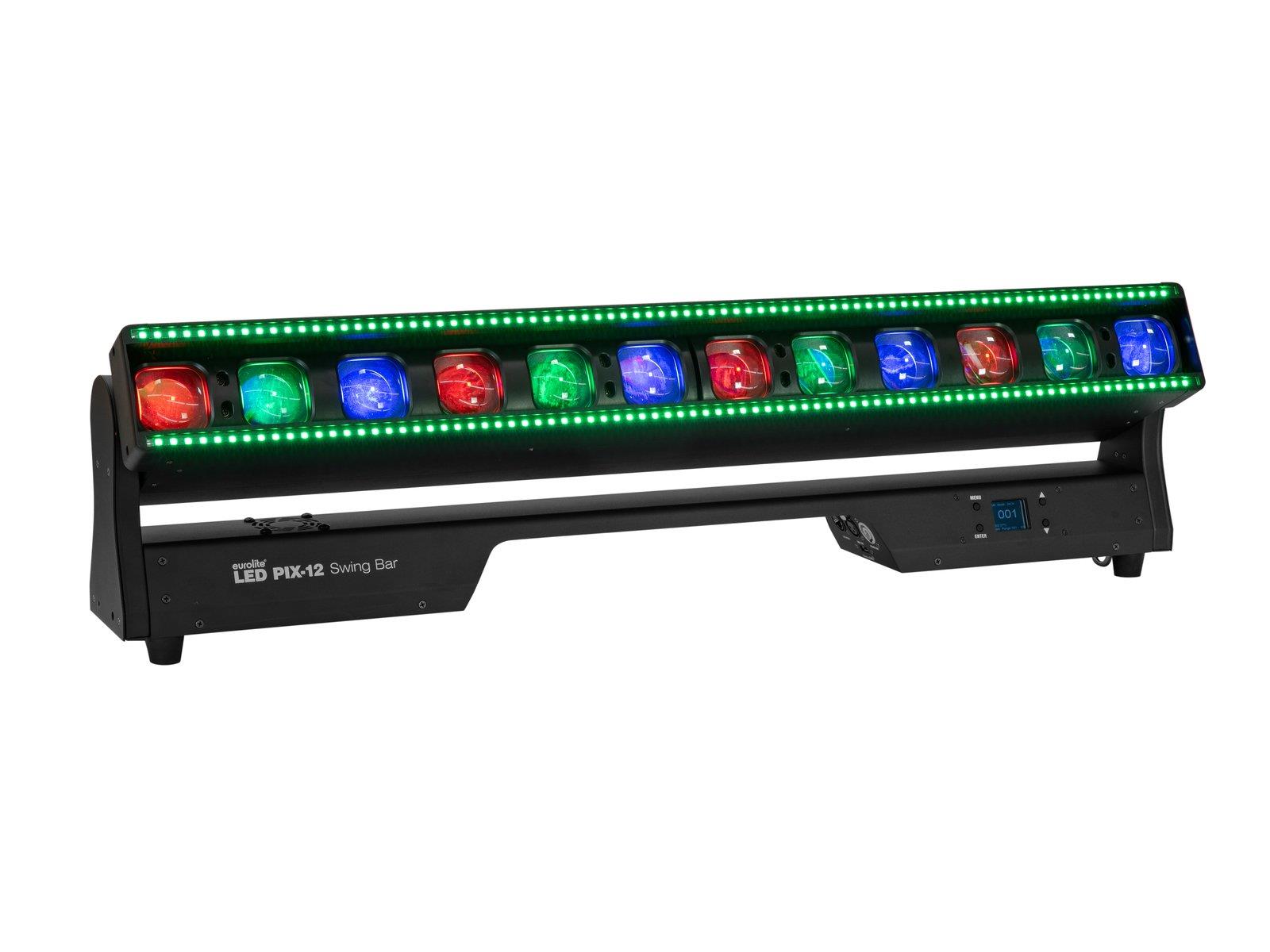

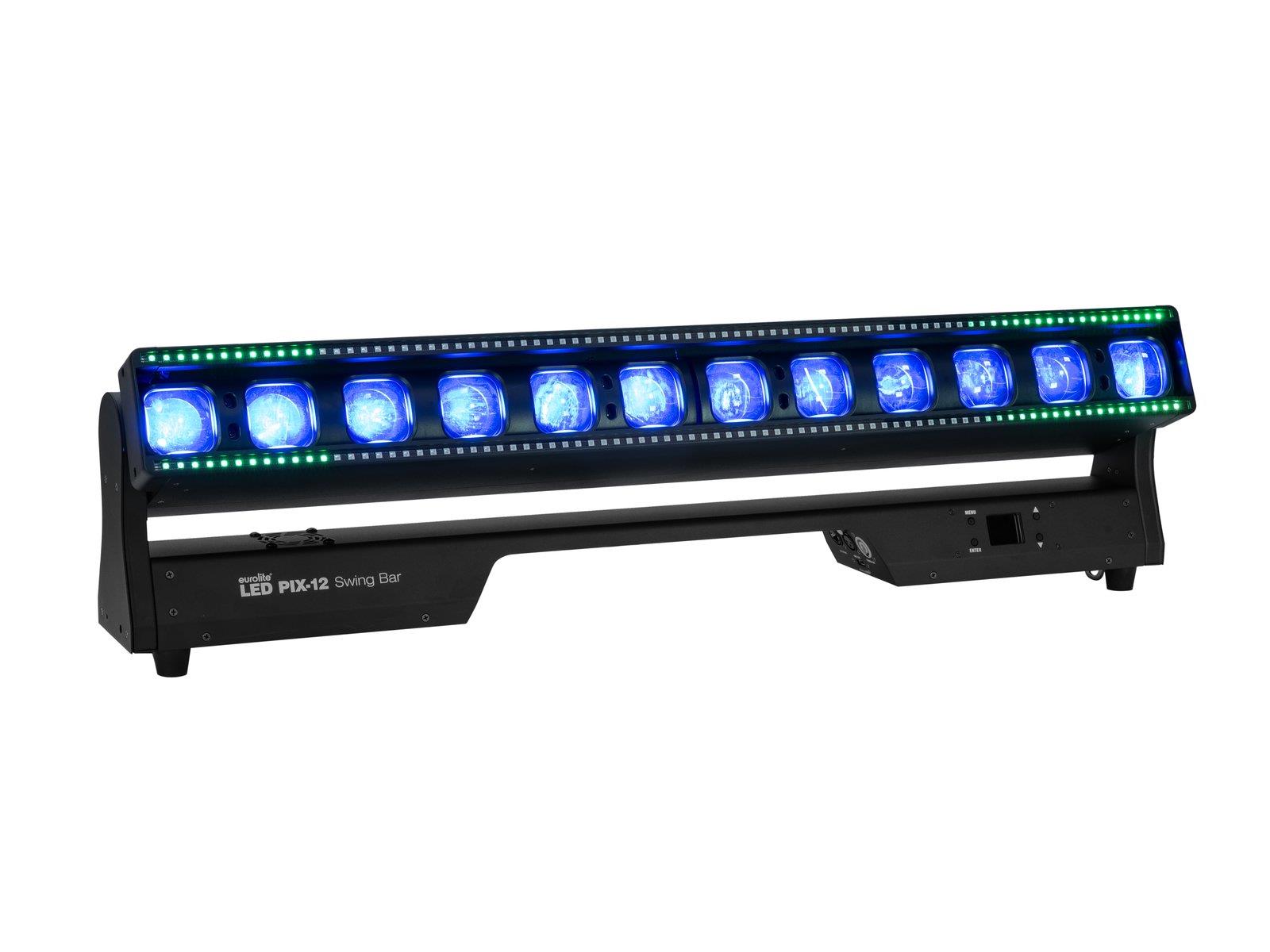

The Eurolite LED PIX-12 Swing QCL Zoom Bar is a high-performance motorized LED light effect strip, designed for professional stage, event, and club lighting. Equipped with 12 powerful 40W 4-in-1 QCL RGBW LEDs for brilliant, homogeneous color mixing and individual pixel control, it also features 164 background SMD LEDs for vibrant uplight and strobe effects. With motorized tilt (180°) and zoom (2°–28°), adjustable dimmer curves, and six integrated show programs, the PIX-12 delivers stunning visual effects. Full DMX, Art-Net, and RDM compatibility ensures flexible integration into any lighting setup, while robust construction, a flicker-free display, and easy interconnection make it ideal for demanding environments.

Features
Motorised tilting LED light effect strip with 180° TILT
12 x 40W RGBW LEDs with individual pixel control
Homogeneous color mixing with adjustable running and chaser lights
Background 164 x 0.2W SMD 5050 RGB LEDs for uplighting and strobe effects
Motorized zoom with 2° to 28° beam adjustment
Adjustable dimmer curves, pulse width modulation, and step response
Controllable via stand-alone, DMX, QuickDMX (optional), Art-Net, master/slave, and RDM
Six integrated show programs
Flicker-free operation

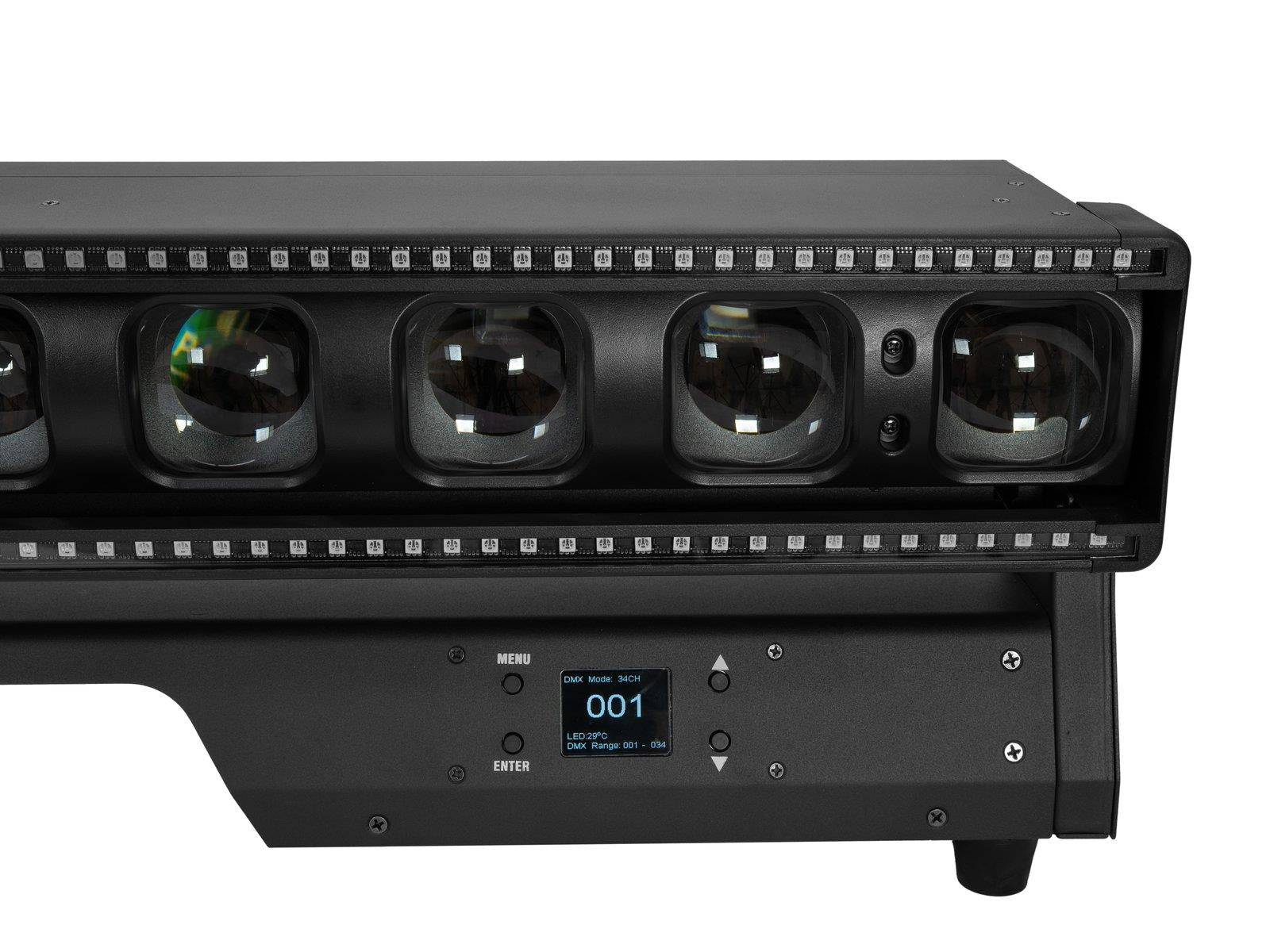

Single-color LC display for settings
Device cooling via internal fan

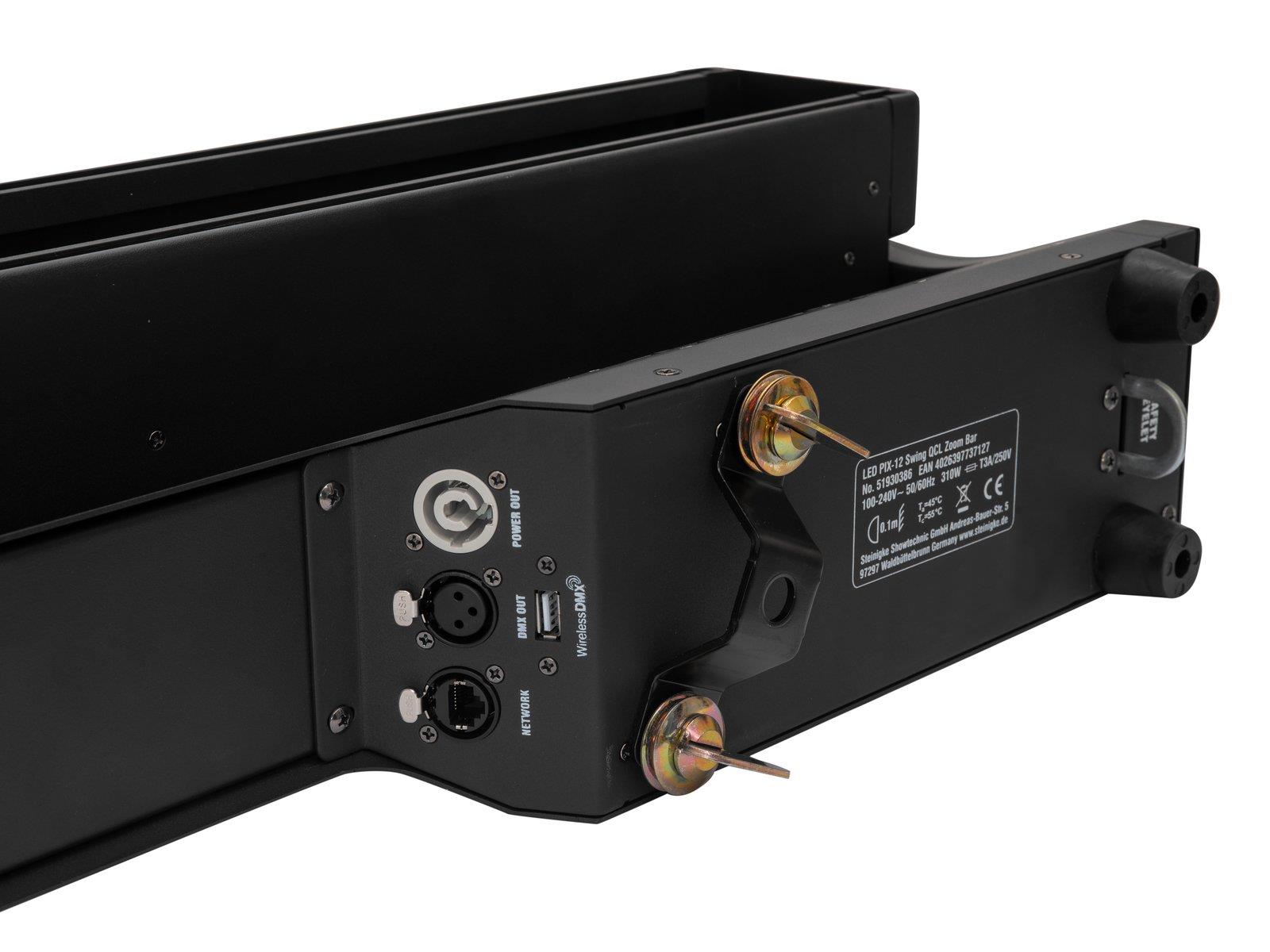

Power Twist input and output for daisy-chaining
Omega brackets included for easy mounting

Specifications
LEDs: 12 x 40W 4-in-1 QCL RGBW, 164 x 0.2W 3-in-1 TCL RGB SMD 5050
LED Control: Individual pixel control
Beam Angle: 2°–28° (Motorized Zoom)
TILT Movement: 180°
DMX Channels: 28, 34, 67 channels selectable
Control Protocols: DMX, Art-Net 3, QuickDMX (optional), RDM

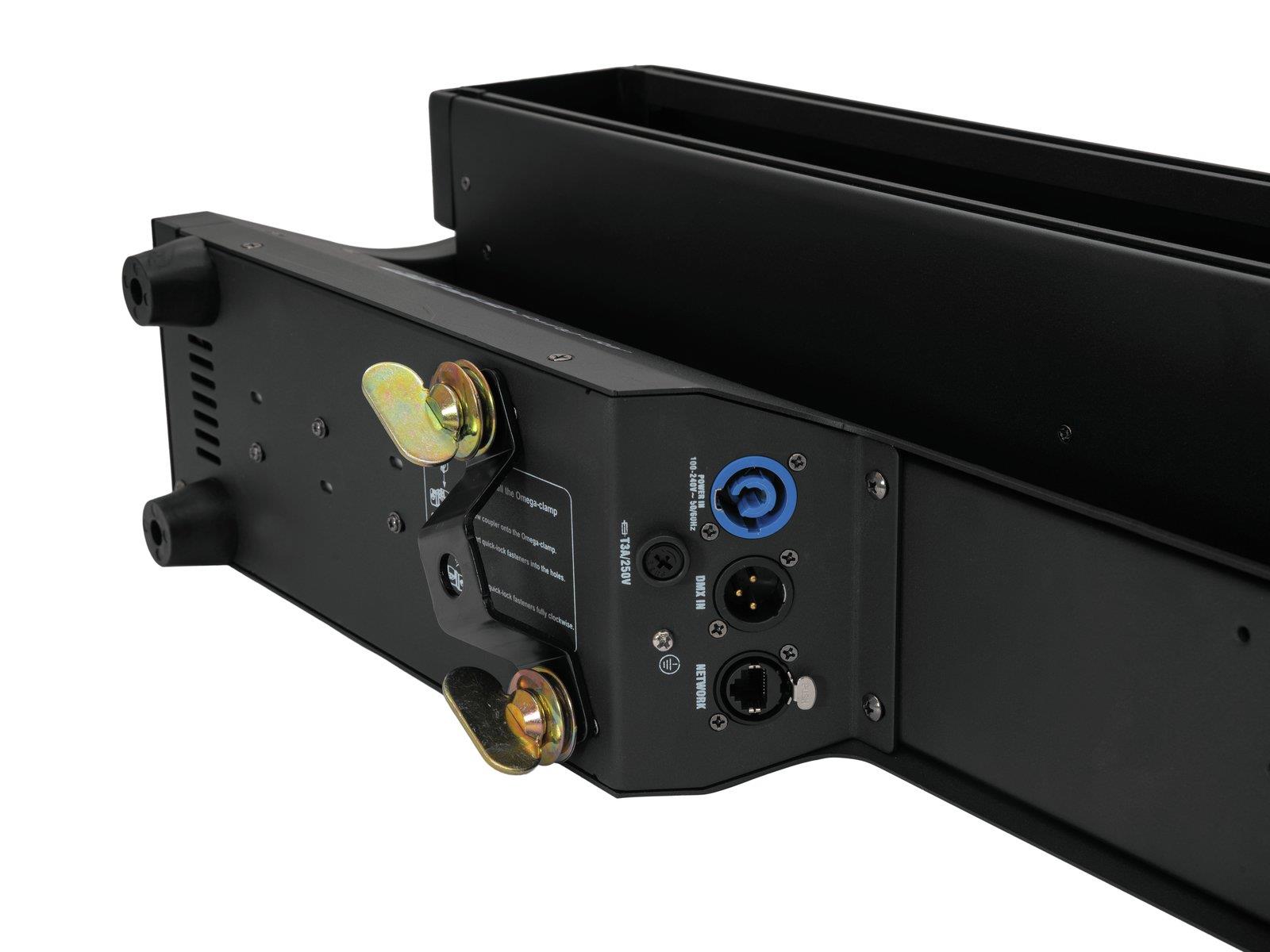

DMX Connectors: XLR 3-pin In/Out
Network Connection: 2 x RJ-45 E-con (female)
Power Supply: 100–240V AC, 50/60 Hz
Power Consumption: 310W
Power Connectors: Power Twist In/Out
Cooling: Fan in base
Protection Rating: IP20 (Indoor use)
Display: Single-color LC
Dimensions (W x D x H): 100 x 12 x 28.5 cm
Weight: 15.7 kg
Included Accessories: Omega brackets
