Description

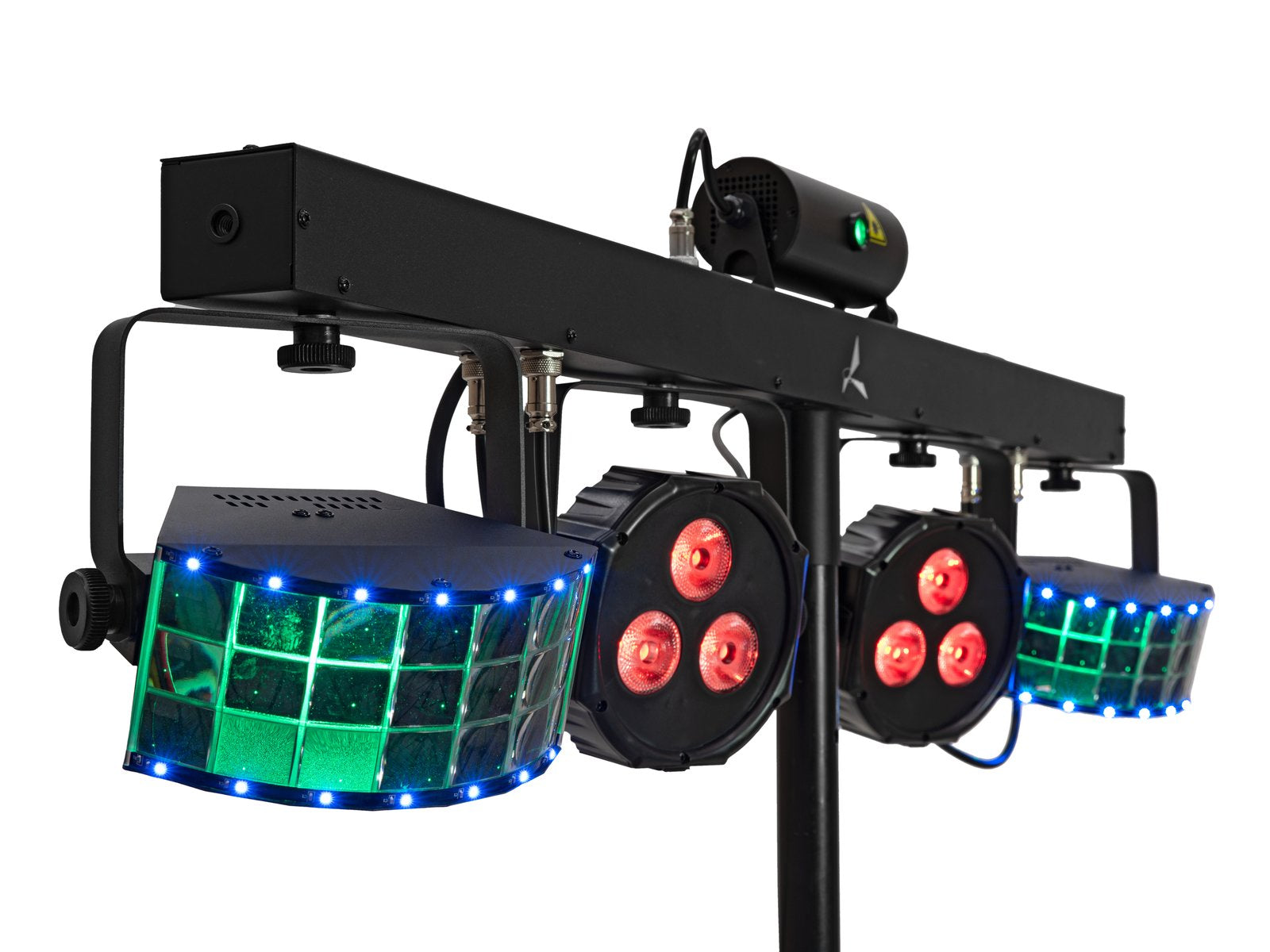

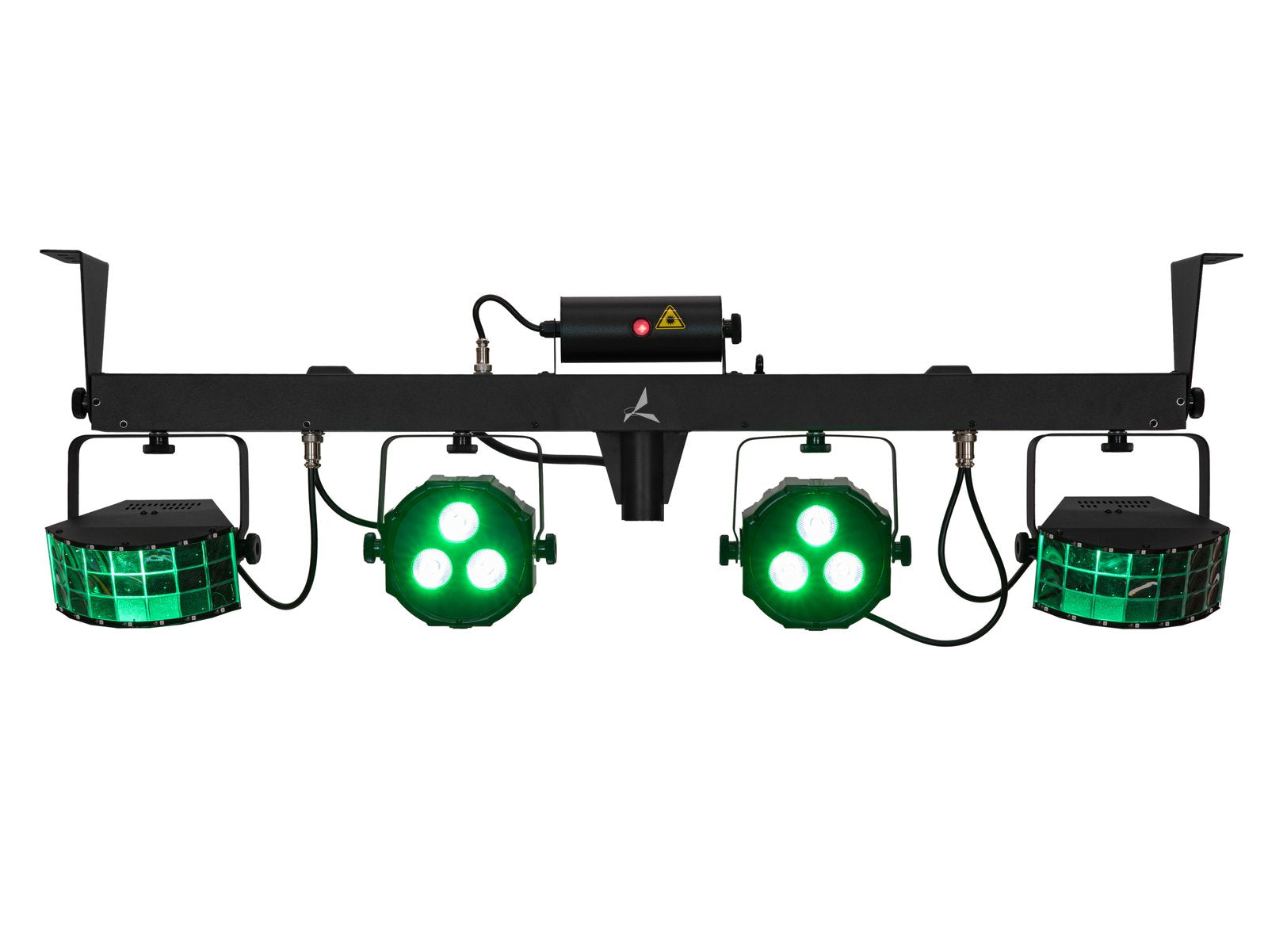

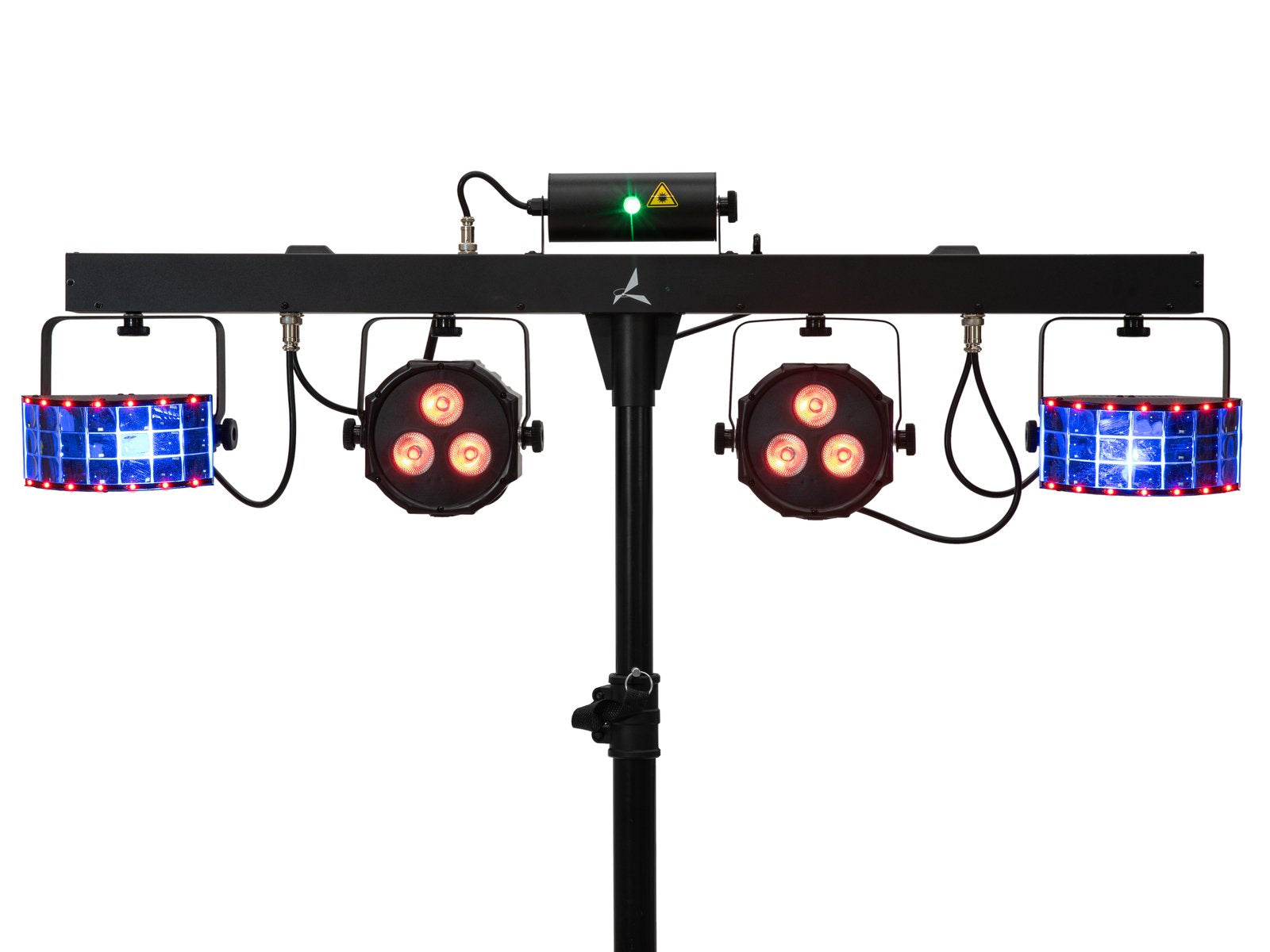

The EUROLITE LED KLS Laser Bar FX AIR is an all-in-one lighting solution combining powerful spotlights, dynamic derby effects, a built-in show laser, and twinkle effects—enhanced by wireless AirW technology and an RF remote control. Designed for mobile DJs, entertainers, and event professionals, this versatile fixture delivers a wide range of effects through DMX, stand-alone, and sound-active modes. It’s preprogrammed for Light Captain and Colorchief, includes onboard auto shows, and supports wireless master/slave syncing. Ideal for weddings, galas, and parties, this system offers portability, ease of use, and impactful visuals in a single, compact unit.

Features
4-in-1 FX system with spots, derbies, laser, and twinkle effects
2 RGB/WW spots with 8 W LEDs and a focused 12° beam angle

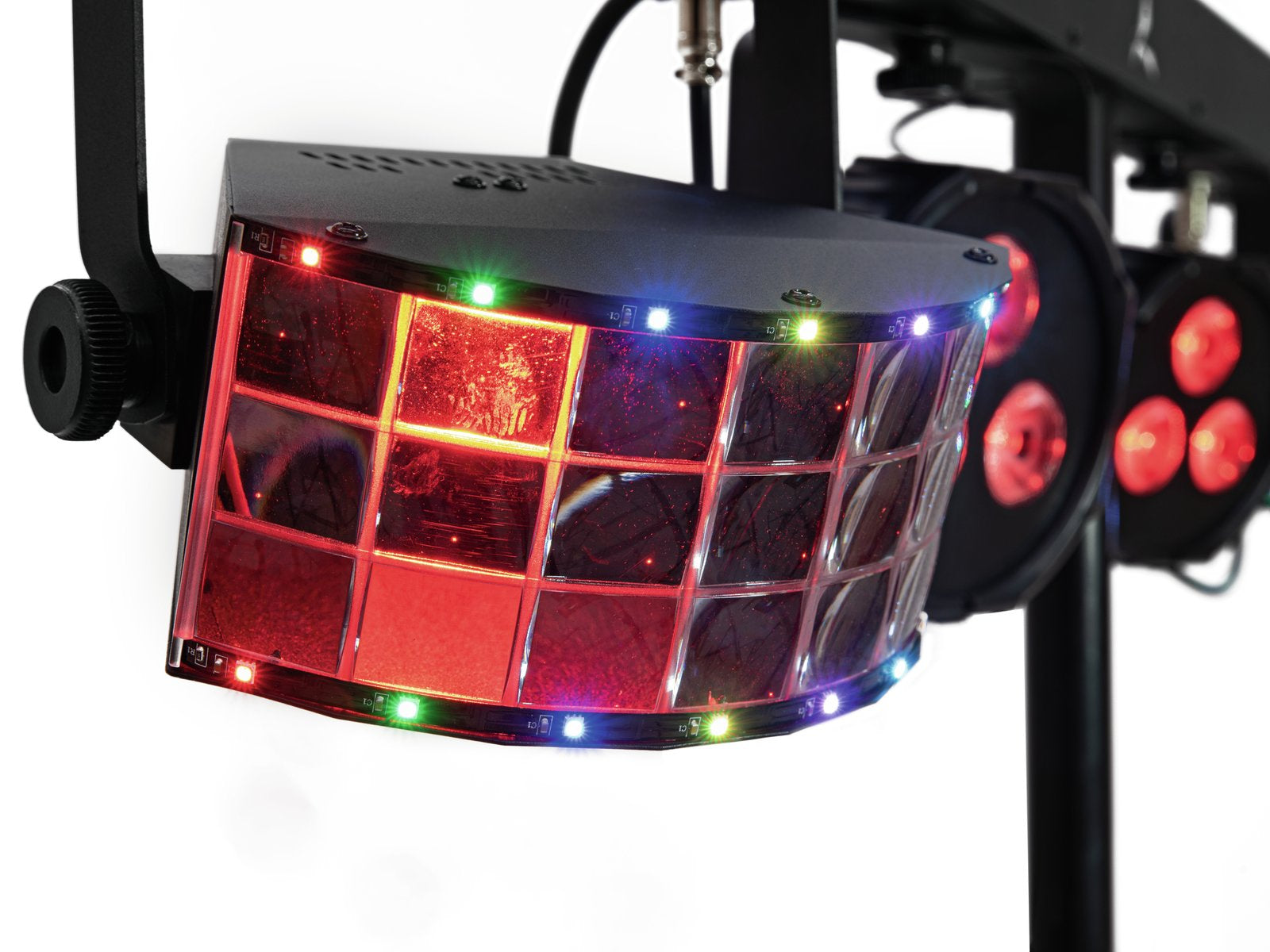

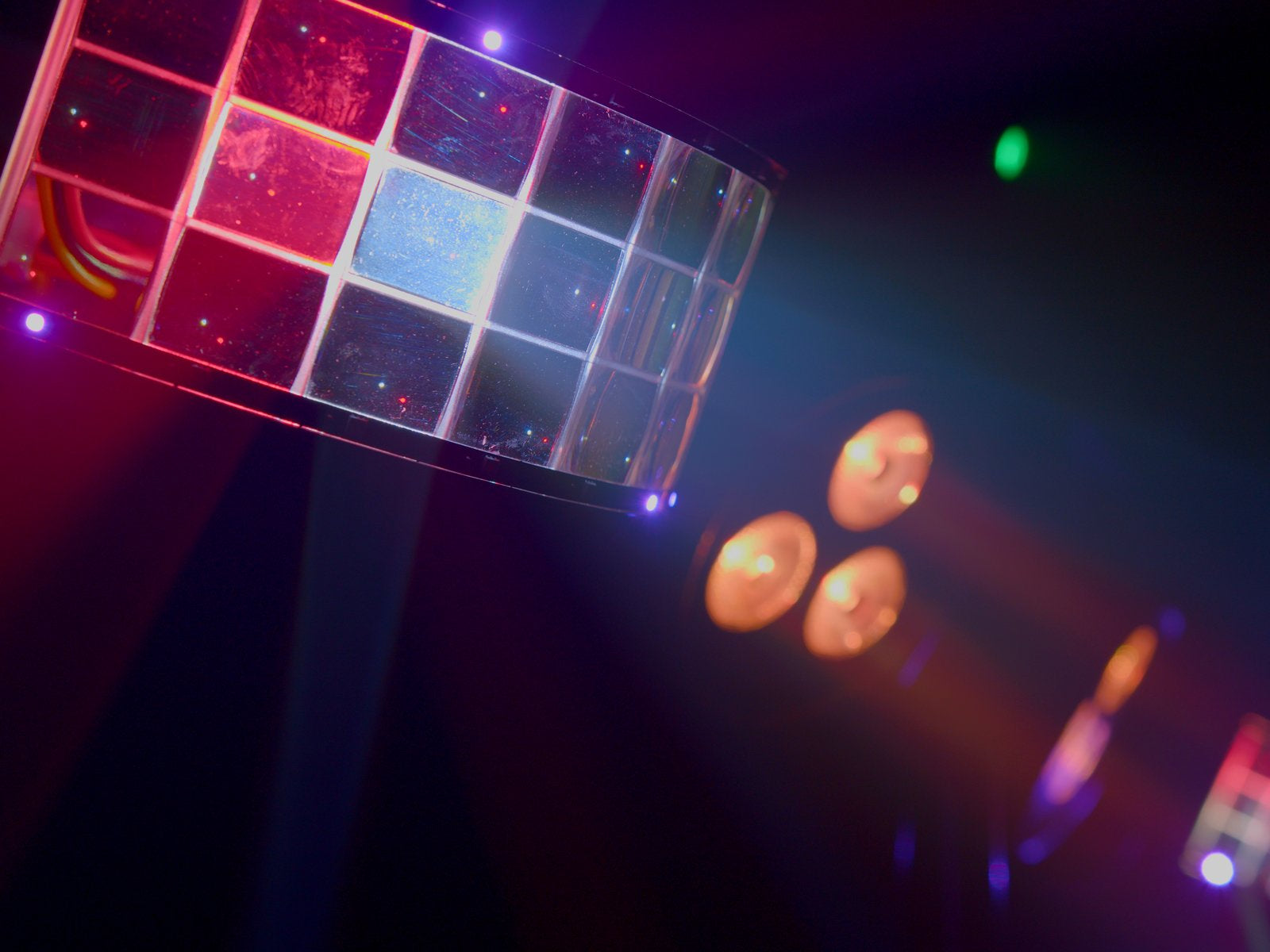

2 rotating derby effects with vibrant RGBW output
Built-in red and green laser for sharp, high-impact beam projections
Twinkle effect via 14 RGB TCL LEDs for ambient fill
AirW 2.4 GHz wireless master/slave linking with 70 m range

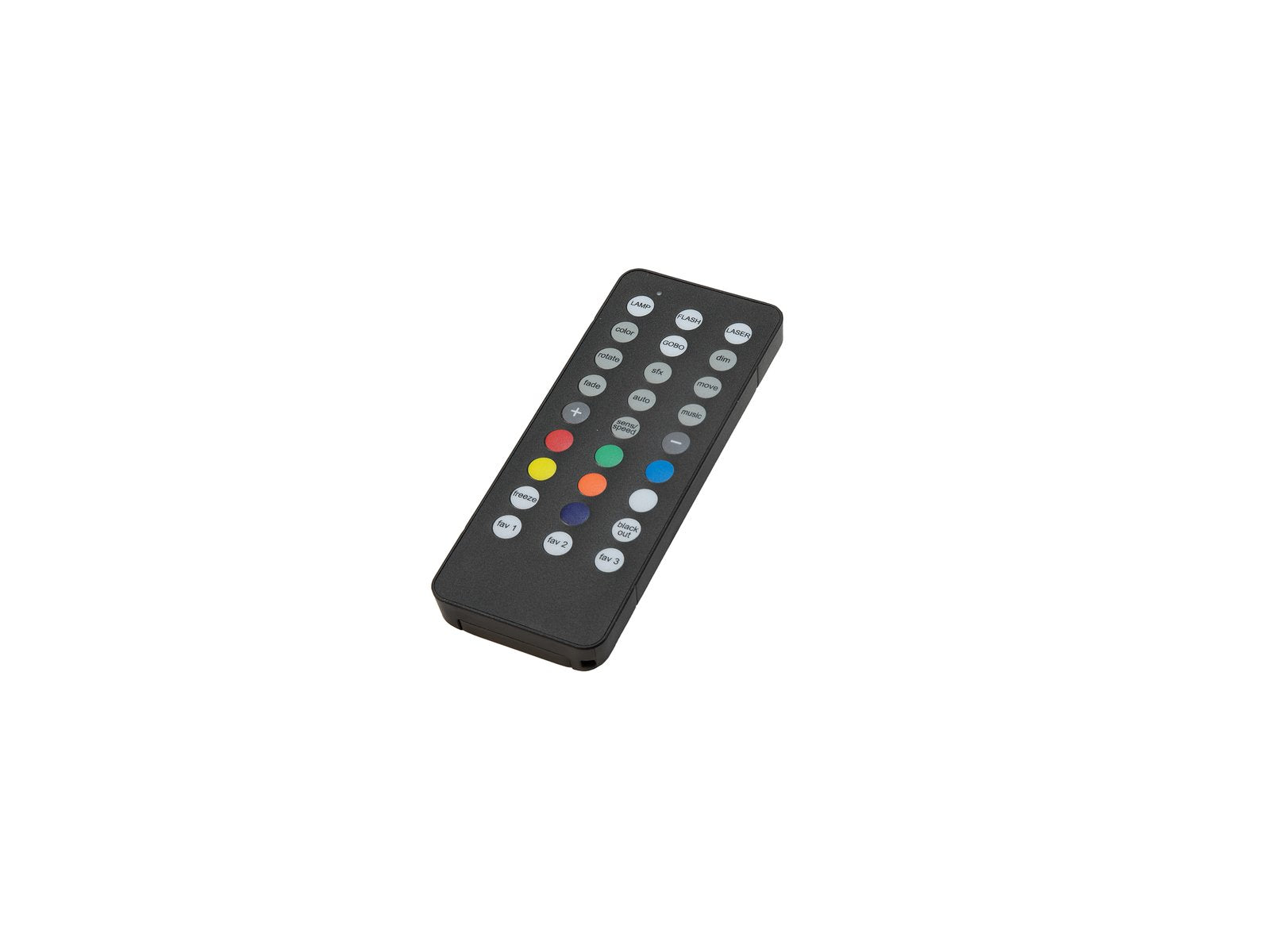

Includes RF remote control with 30 m range
Flicker-free projection for camera-friendly applications
Integrated DMX control with multiple channel modes
Preprogrammed in Light Captain and Colorchief
Power linking for up to 8 units via P-Con connectors
Includes transport bag and mounting accessories

Specifications
Power Supply: 100–240 V AC, 50/60 Hz
Power Consumption: 65 W
Protection Class: I
IP Classification: IP20
Cooling: 3 x Cooling Fan
Control Modes: Stand-alone, DMX (3, 8, 11, 24, 27 channels), AirW, Sound to Light, Master/Slave, Remote Control, QuickDMX (optional), W-DMX (optional), CRMX (optional), Wireless Footswitch (optional)
Preprogrammed In: Light Captain, Colorchief
Display: Monochrome 4-digit 7-segment LED
DMX I/O: 3-pin XLR (M/F), USB Type A

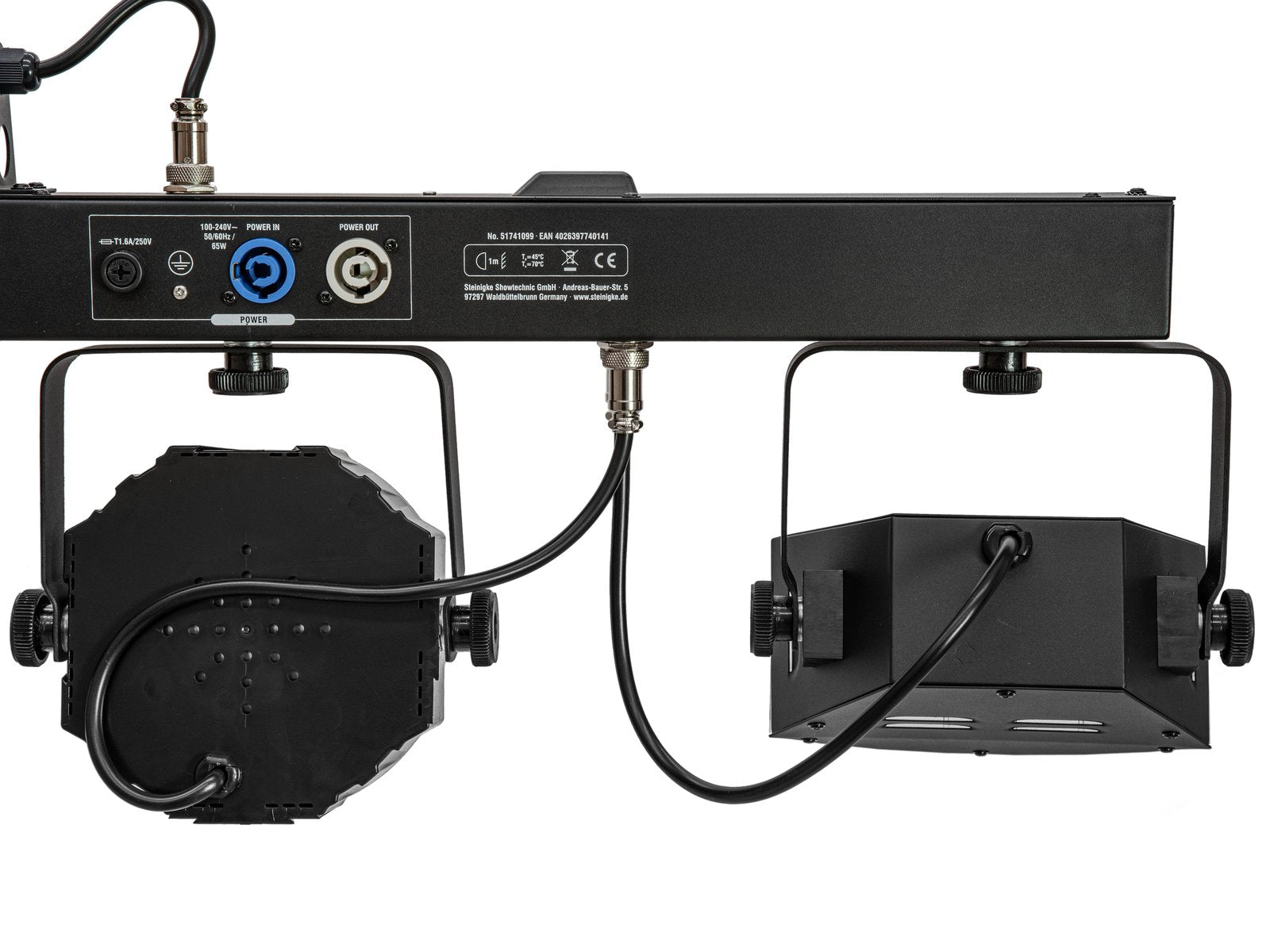

Power Connection: P-Con (blue input, gray output), 3 m cable included
Housing: Black Matte, Metal Construction
Mounting: Ø35 mm Stand Mount, 2 x Mounting Brackets
Dimensions: 103 cm (L) x 8.2 cm (D) x 33.6 cm (H)
Weight: 8.10 kg
Noise Level: Class 2 (Slight Noise)

Spotlights
LED Type: 3 x 8 W 4-in-1 QCL RGB/WW
Beam Angle (1/2 Peak): 12°
Beam Angle (1/10 Peak): 30°

Derby & Light Effects
Derby LEDs: 4 x 3 W RGBW
Twinkle LEDs: 14 x 0.2 W RGB TCL SMD 3535

Laser
Laser Class: 2M (No safety officer required)
Laser Colors: Red (100 mW, 650 nm), Green (30 mW, 532 nm)

Wireless Control
AirW Range: Up to 70 m
RF Remote Range: Up to 30 m
Remote Frequency: 433.92 MHz
Remote Battery: 1 x 12 V 23AE alkaline (included)

Package Contents
1 x LED KLS Laser Bar FX AIR
1 x Power Cord
1 x Remote Control

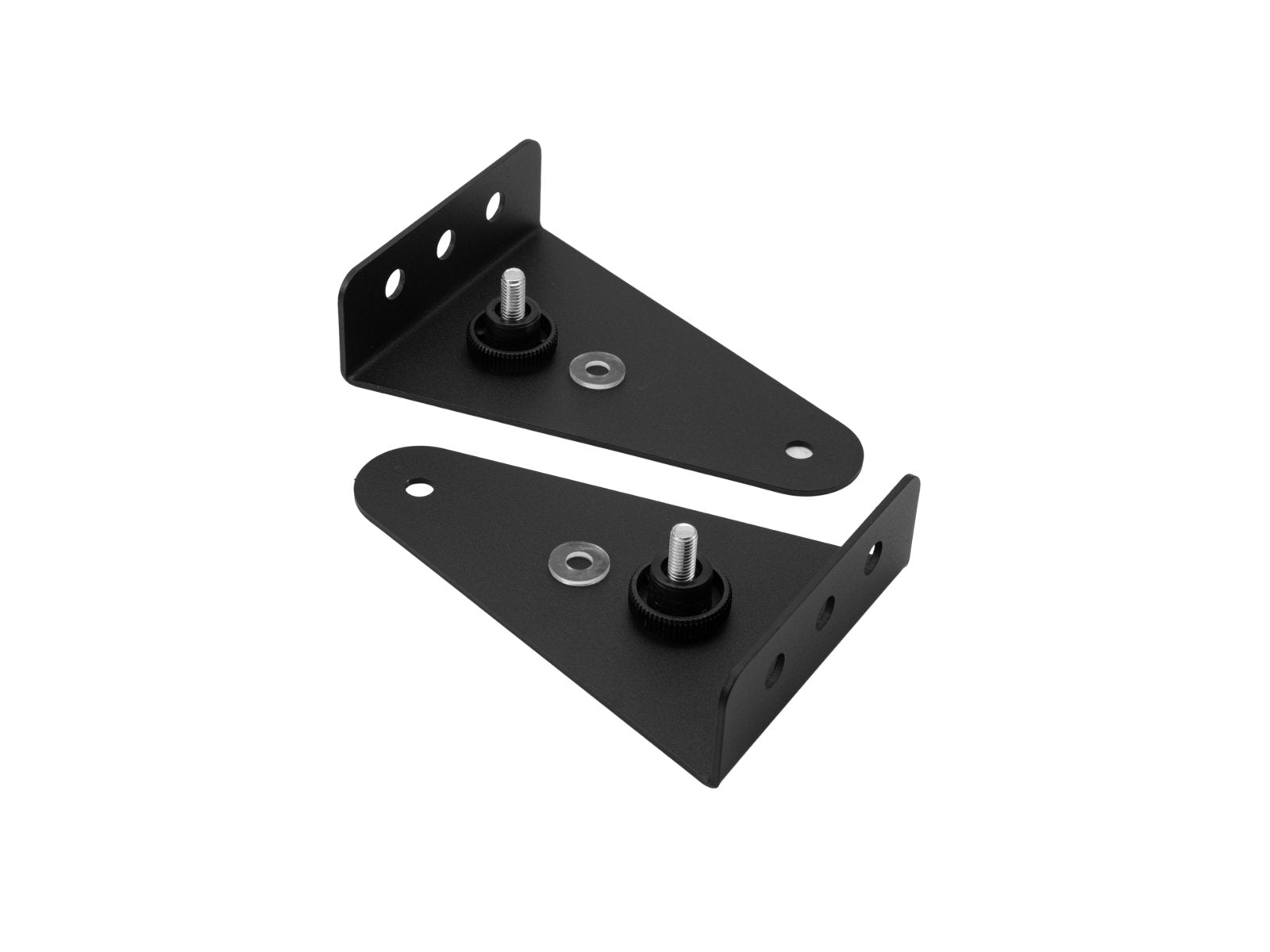

2 x Mounting Brackets
2 x Knurled Screws
2 x Washers

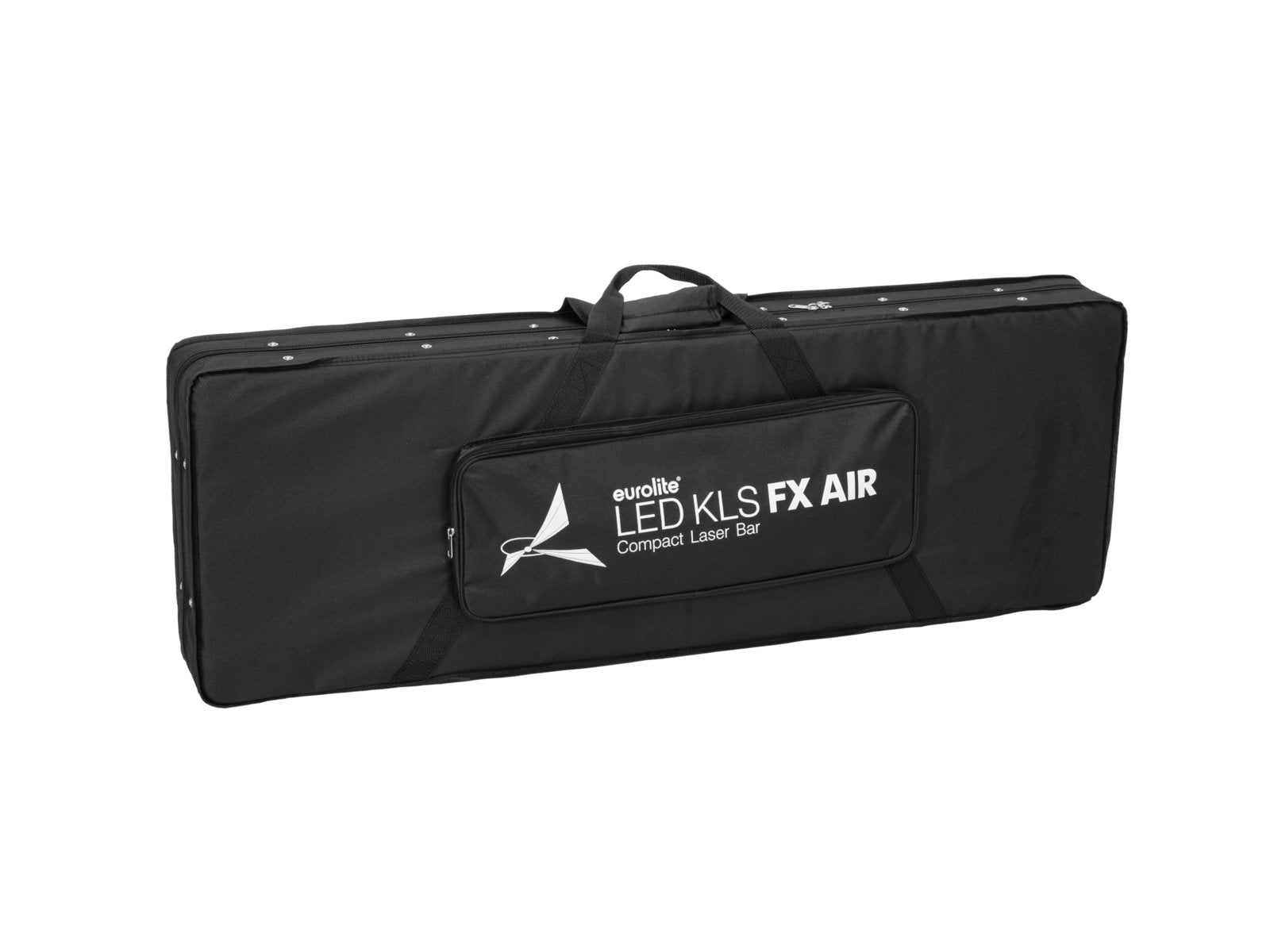

1 x Transport Bag
1 x User Manual
1 x Declaration of Conformity
1 x Remote Battery
