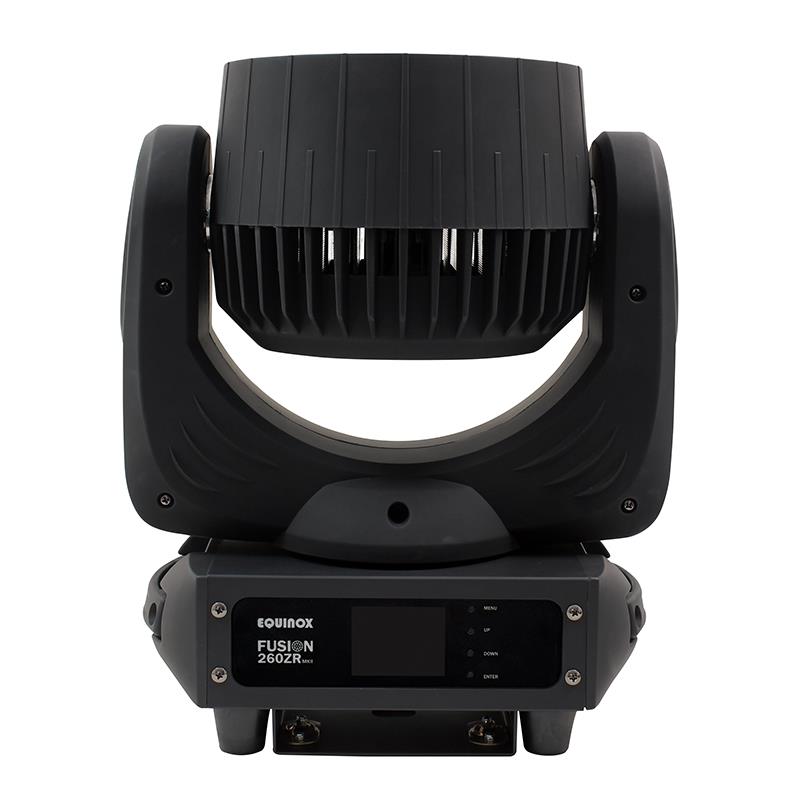

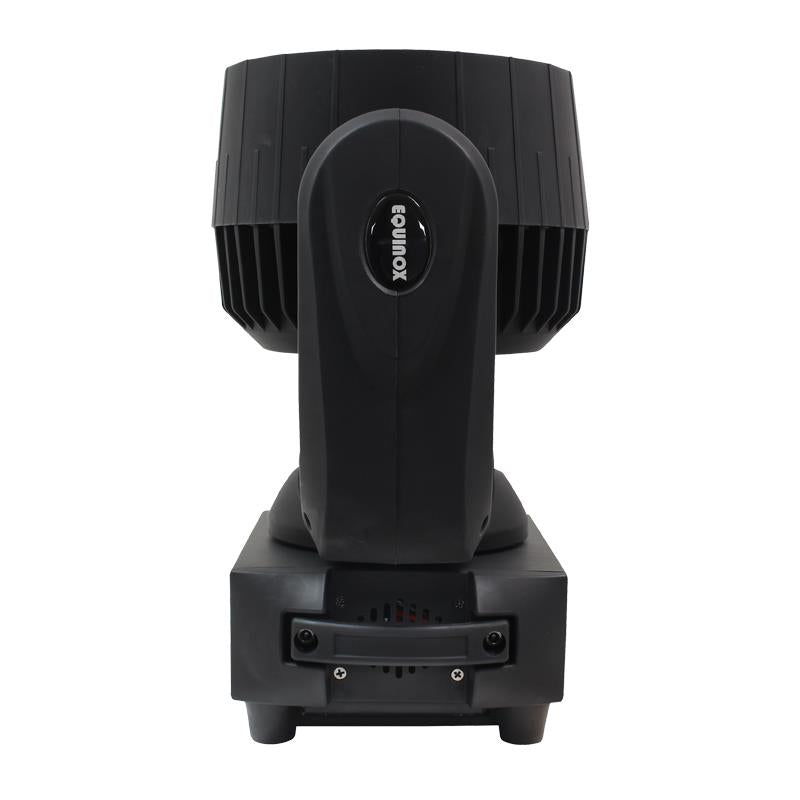

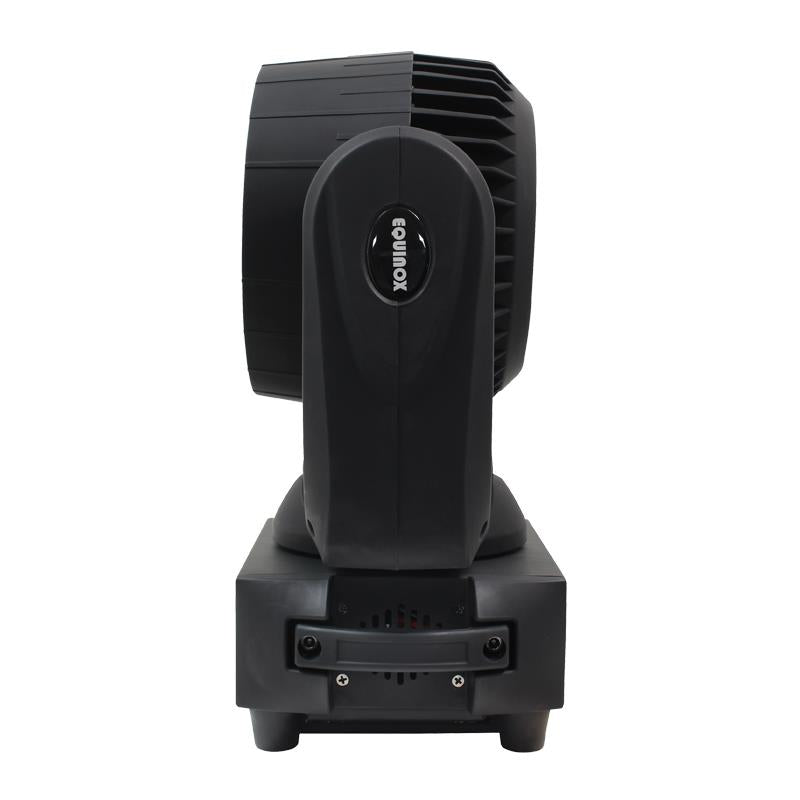

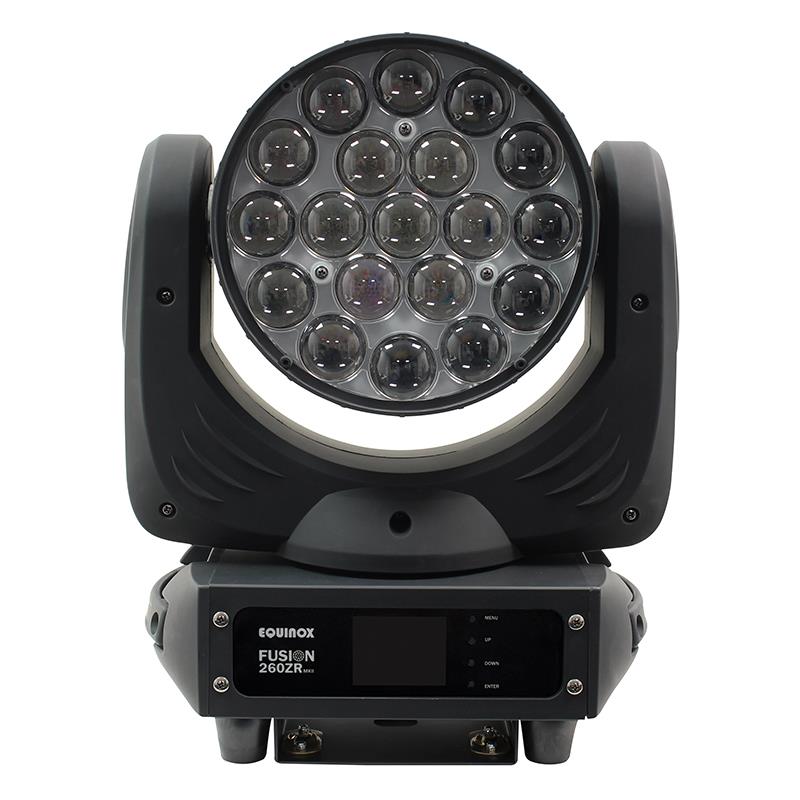

The Equinox Fusion 260ZR MKII is a next-generation LED moving head wash light that builds upon the success of its predecessor with upgraded dimming performance, smoother movement, and quieter operation thanks to temperature-controlled fans. Designed for stage, theatre, and event lighting, this unit features 19 x 12W RGBW quad-colour LEDs arranged in three concentric rings for dynamic pixel zone mapping and powerful full-field wash effects. The motorised zoom enables adjustable beam angles from a tight 6° spot to a wide 50° wash, giving lighting designers ultimate versatility in coverage and mood creation. With selectable dimming curves, refresh rates up to 25kHz, and multiple DMX channel modes, the Fusion 260ZR MKII delivers refined performance for both live and recorded environments.

Features

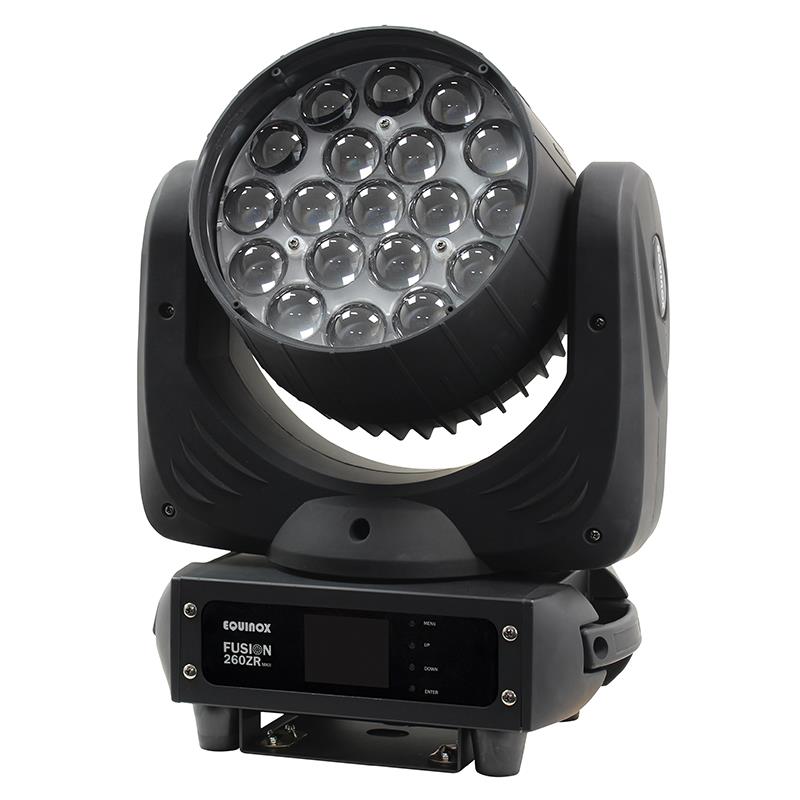

19 x 12W quad-colour (RGBW) LEDs for rich, saturated colours and soft pastels

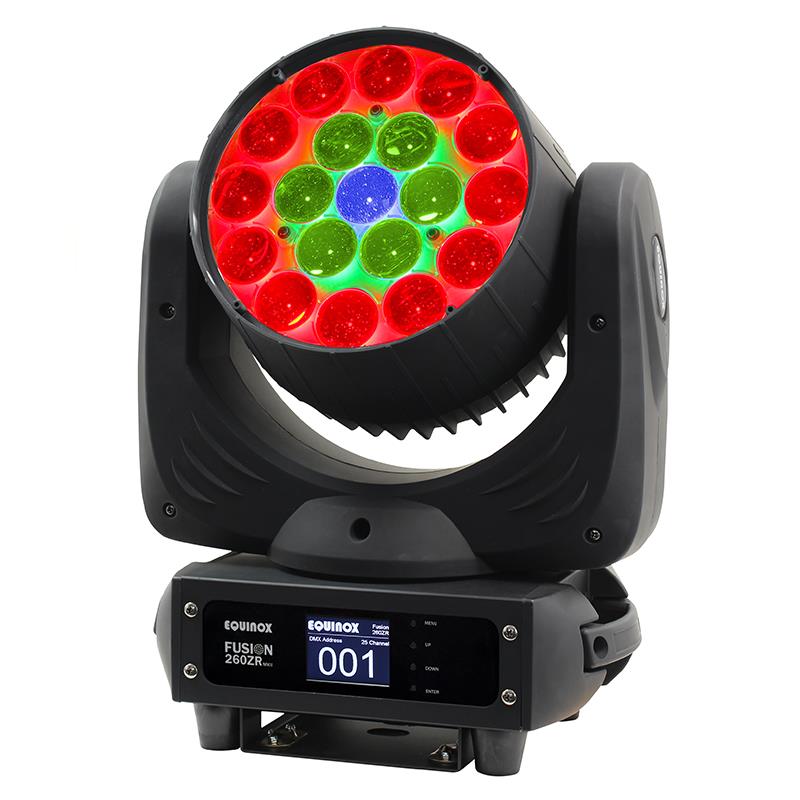

Concentric LED ring layout for advanced pixel effects
Motorised zoom with adjustable beam angle: 6°–50°
Improved dimming and smoother pan/tilt movement
Quiet, temperature-controlled fan cooling system
Ultra-high output: 6° beam – 40,098 Lux @ 2m | 50° beam – 6,316 Lux @ 2m
16-bit pan/tilt with auto-correction | Pan: 540° | Tilt: 270°
Pixel zone mapping for ring and effect control
Forward-facing show modes for dynamic visual impact
0–100% smooth dimming with 4 selectable dimming curves
Variable strobe with speed adjustment
Selectable refresh rates: 650Hz, 1.5kHz, 3.6kHz, 12kHz, 25kHz
DMX channel modes: 2 / 8 / 17 / 25
Control modes: DMX, Auto, Sound Active, Master/Slave
4-button menu with backlit LCD display
Supplied with quick release omega clamps

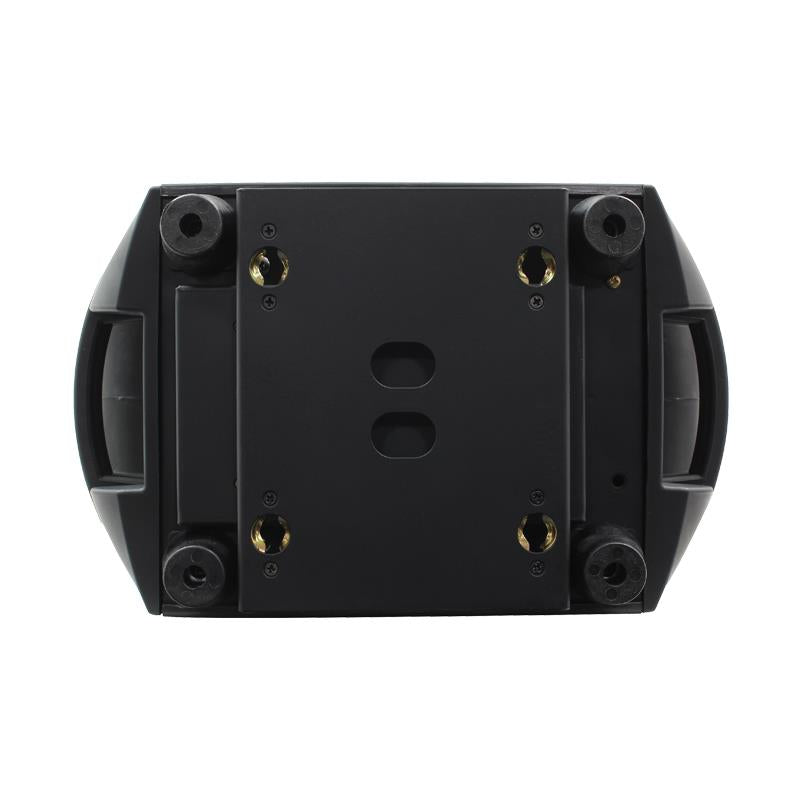

Clamp receiver with square hole spacing for flexible mounting orientations

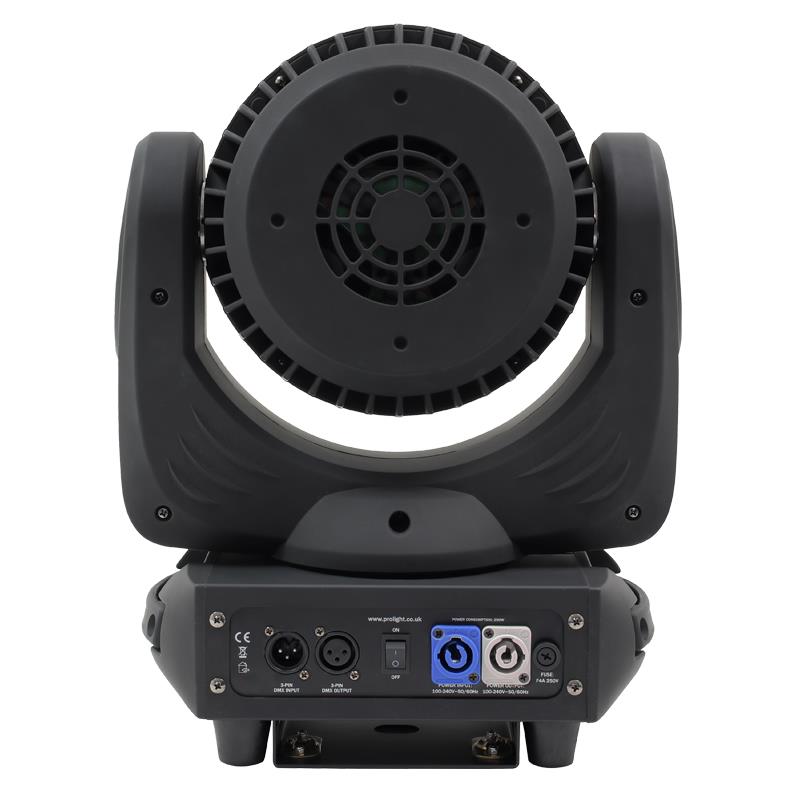

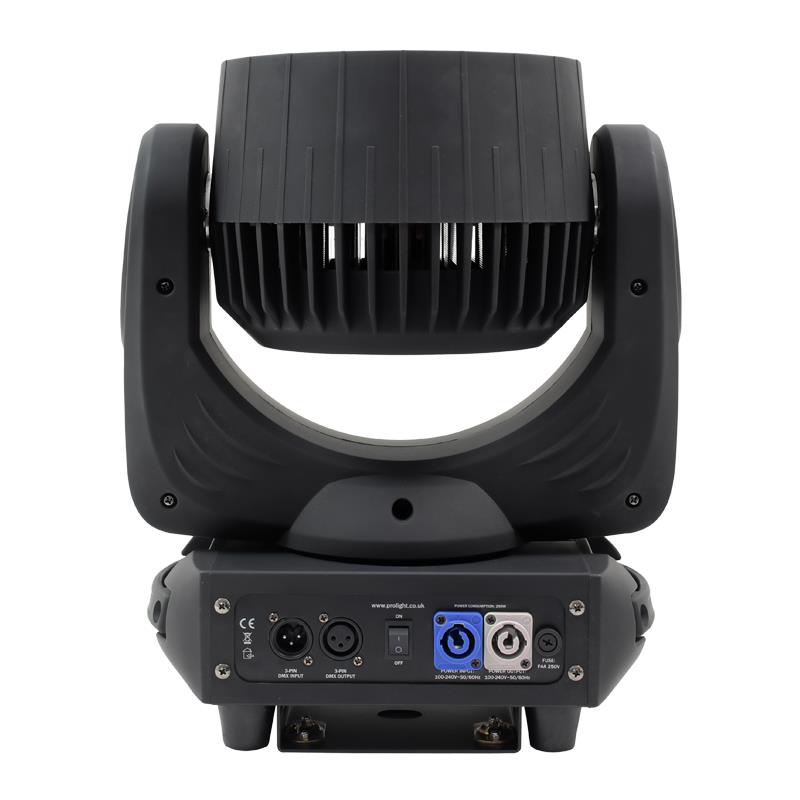

Power linking via PowerTwist In/Out
3-pin XLR DMX In/Out
Specifications
Light Source: 19 x 12W RGBW quad-colour LEDs
Beam Angle: 6°–50° motorised zoom
Pixel Control: Yes (zone mapping per LED ring)
Lux @ 2m: 6° beam: 40,098 Lux | 50° beam: 6,316 Lux
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16-bit with auto-correction
Dimming: 0–100%
Strobe: Variable
Dimming Curves: Linear, Square Law, Inverse Square Law, S-Curve
Refresh Rates: 650Hz / 1.5kHz / 3.6kHz / 12kHz / 25kHz
Control Modes: DMX, Auto, Sound Active, Master/Slave
DMX Channels: 2 / 8 / 17 / 25
Display: LCD with 4-button interface
Cooling: Temperature-controlled fans

Power & Electrical
Power Supply: 100–240V AC, 50/60Hz
Power Consumption: 290W
Fuse: F4A 250V
Power Connection: PowerTwist In/Out
DMX Connection: 3-Pin XLR In/Out

Physical Specifications
Dimensions (H x W x D): 414 x 324 x 221 mm
Weight: 9.7 kg
Mounting: Quick-release omega clamps included
Housing: Rugged with fan cooling and ergonomic design
