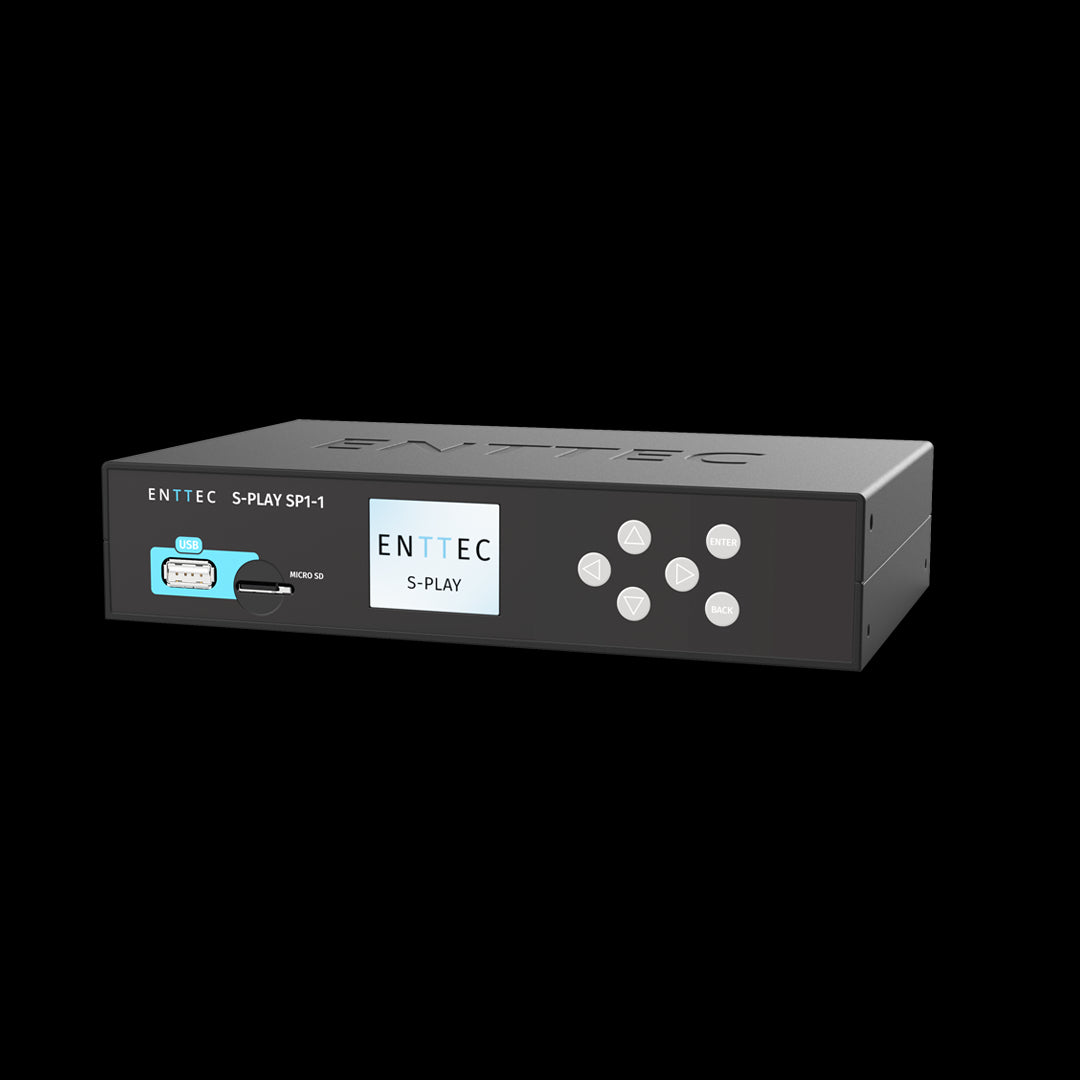

The ENTTEC S-PLAY SP1-1 is a compact and powerful lighting show controller designed for advanced playback and automation of lighting systems. Ideal for installations and live events, the S-PLAY allows users to record, edit, and play back DMX and Art-Net lighting cues with precision. Its web-based interface provides intuitive configuration and programming, while built-in scheduling and triggering capabilities allow for seamless integration into any environment. Whether used in architectural displays, theme parks, or stage productions, the S-PLAY SP1-1 offers reliable and scalable lighting control.

Features
Standalone lighting show controller
Multi-protocol playback engine (DMX, Art-Net, sACN, and KiNet)
Record and edit shows via web interface
Internal storage for up to 1000 cues
Supports triggers via GPIO, OSC, HTTP, time/date, and more
Web-based user interface
DIN rail, rack, and surface mount options
Compatible with ENTTEC’s I/O Extender for expanded control

Specifications
Network Protocols: Art-Net, sACN, DMX512, KiNet
Inputs/Outputs: 1 x 5-pin DMX out, 1 x 3-pin DMX out, 1 x RJ45 (Ethernet), 4 x GPIO
Power Input: 9-24V DC
Storage Capacity: Up to 1000 cues
Max Universes: 16
Connectivity: Ethernet, GPIO, USB (for firmware updates)
Trigger Support: GPIO, HTTP, OSC, time-based, manual
Control Interface: Web browser (via IP)
Cooling Method: Passive
Construction: ABS plastic and anodized aluminum
Mounting Options: DIN rail, surface, rack
Dimensions: 170mm x 110mm x 44mm
Weight: 0.4kg
Operating Temperature: 0°C to 50°C
Compliance: CE, RCM, FCC, UKCA
Warranty: 3-year return-to-base manufacturer warranty
