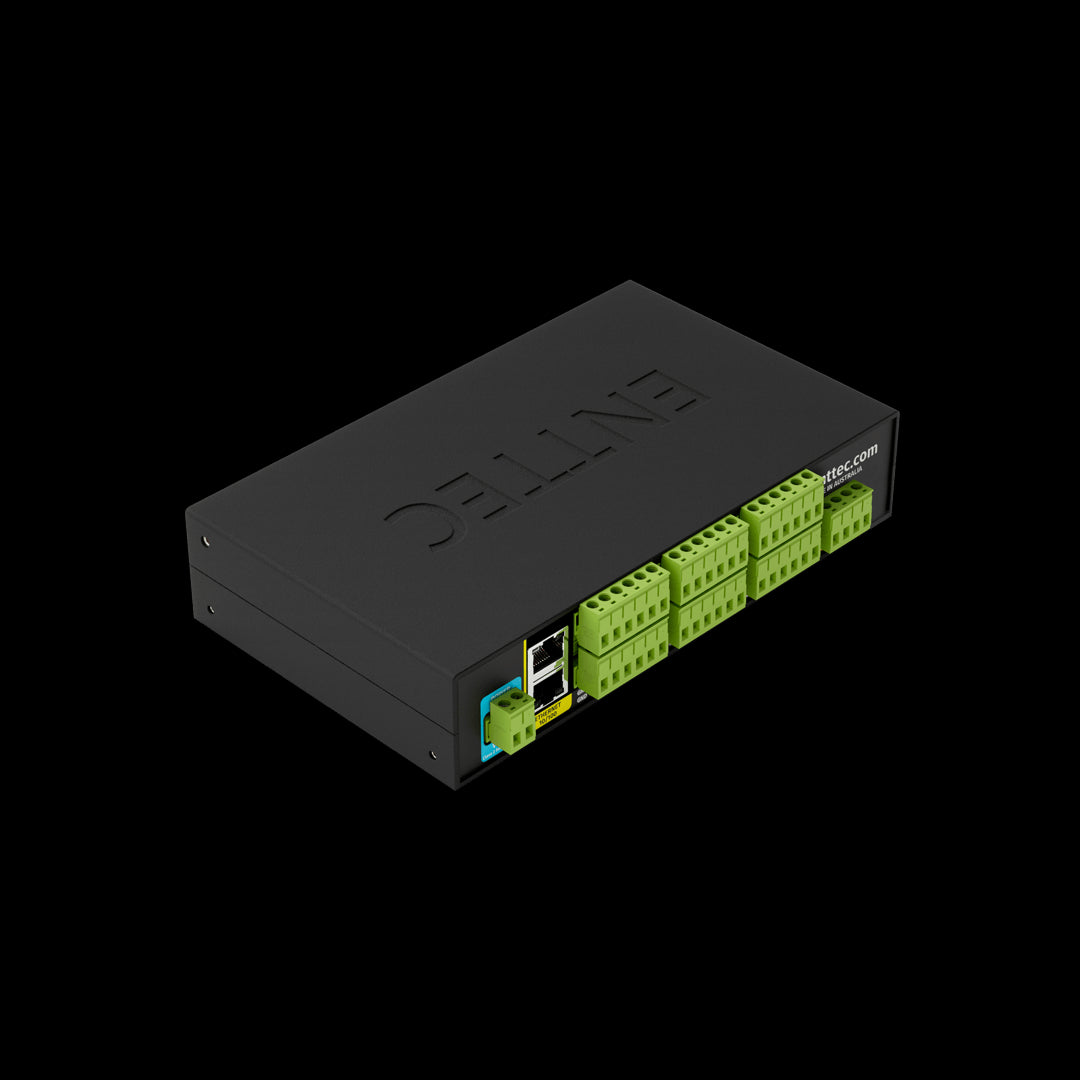

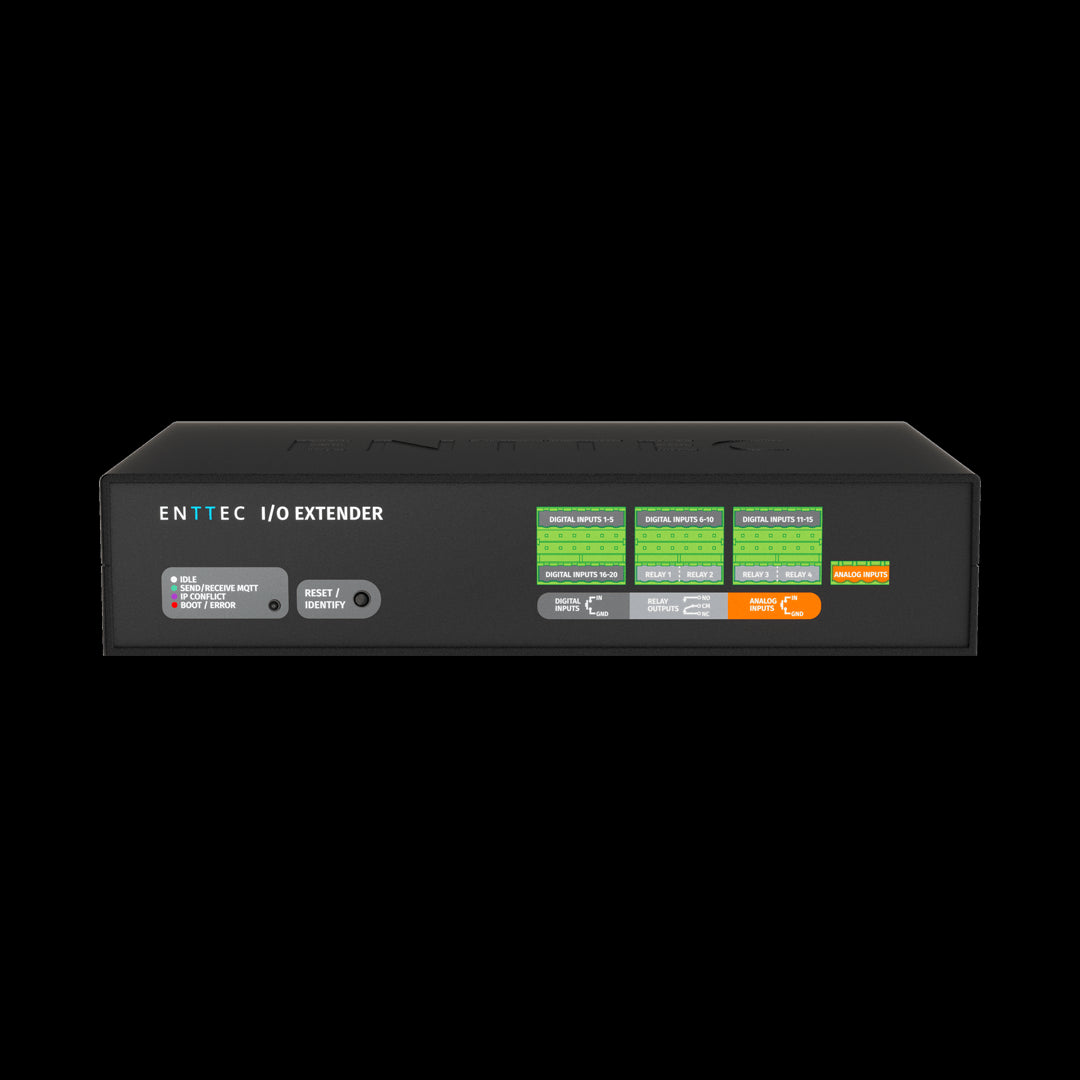

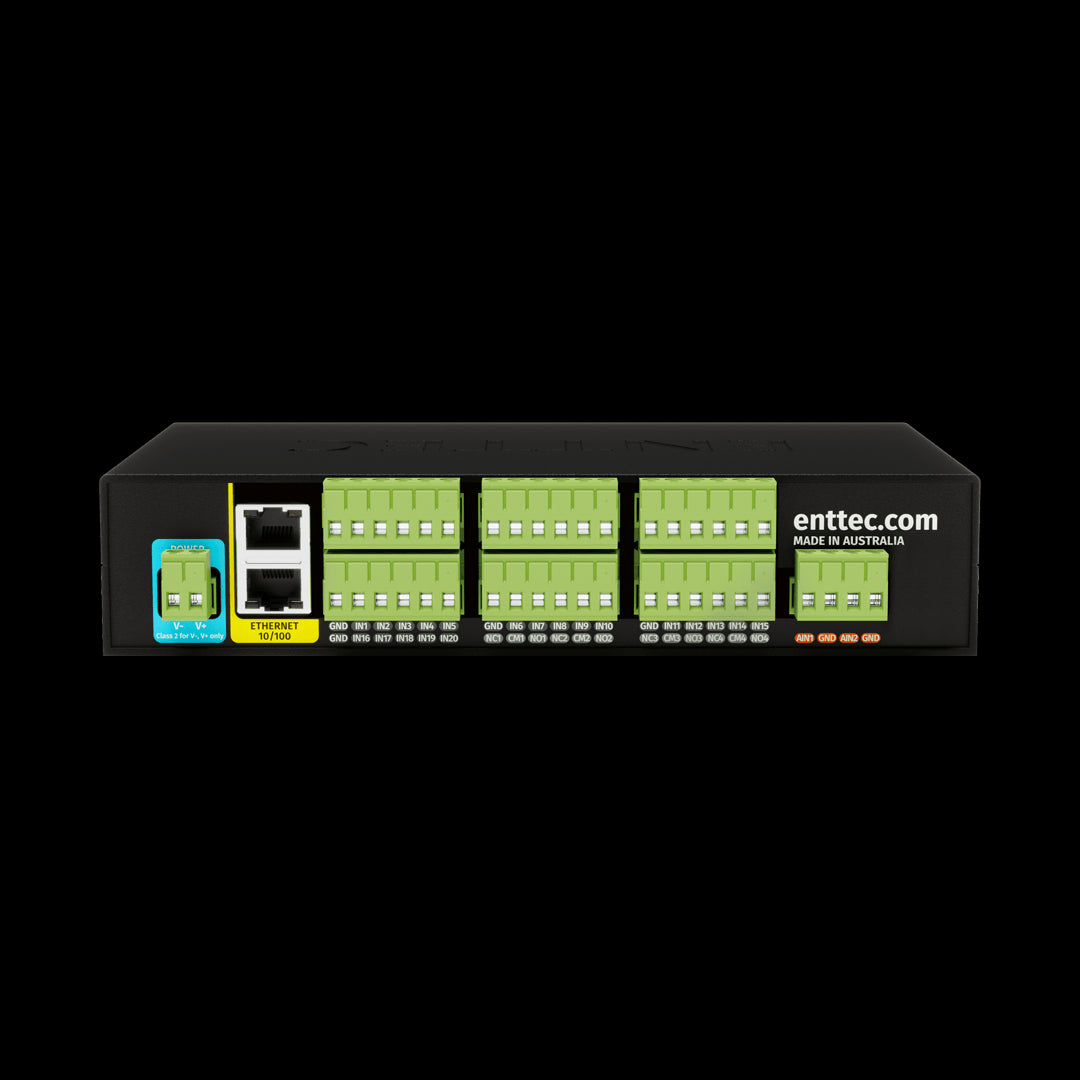

The ENTTEC I/O Extender is designed to expand the input/output capabilities of the S-PLAY SP1 and S-PLAY LITE, offering powerful control integration for advanced smart lighting setups. With a robust feature set including 20 digital inputs, 4 relays, and 2 analog inputs, this unit enables the addition of multiple sensors, switches, and other devices to complex installations. The device seamlessly integrates into existing S-PLAY interfaces and is easily configured through the web UI. Its compact and flexible form factor offers mounting versatility for a wide range of installation scenarios. Built for real-time, synchronized data exchange, the I/O Extender ensures efficient control and automation across your system.

Features
Enhances S-PLAY systems with additional input/output control. Offers seamless integration with web-based configuration via S-PLAY. Supports 20 digital inputs, 4 relay outputs, and 2 analog inputs. Enables control of mechanical and analog devices like sensors, motors, and joysticks. Equipped with dual Ethernet ports for stable network connectivity. Supports multiple mounting options including half rack, full rack, and surface mount. Real-time data synchronization ensures precise triggering and control. Powered via 12–24V DC terminal input for flexible installation.

Specifications
Digital Inputs: 20 GPIO
Relay Outputs: 4
Analog Inputs: 2
Ethernet Ports: 2 (Ethernet In and Through)
Power Supply: 12–24V DC via screw terminal
Mounting Options: Half rack, full rack, surface mount
Configuration: Via S-PLAY web interface
Compatible Devices: ENTTEC S-PLAY SP1 and S-PLAY LITE
Control Functions: Trigger expansion, sensor integration, mechanical device control
Housing: Compact enclosure for installation versatility

Unit Dimensions: 200mm x 120mm x 42mm
Unit Weight: 0.50kg / 1.10lbs
