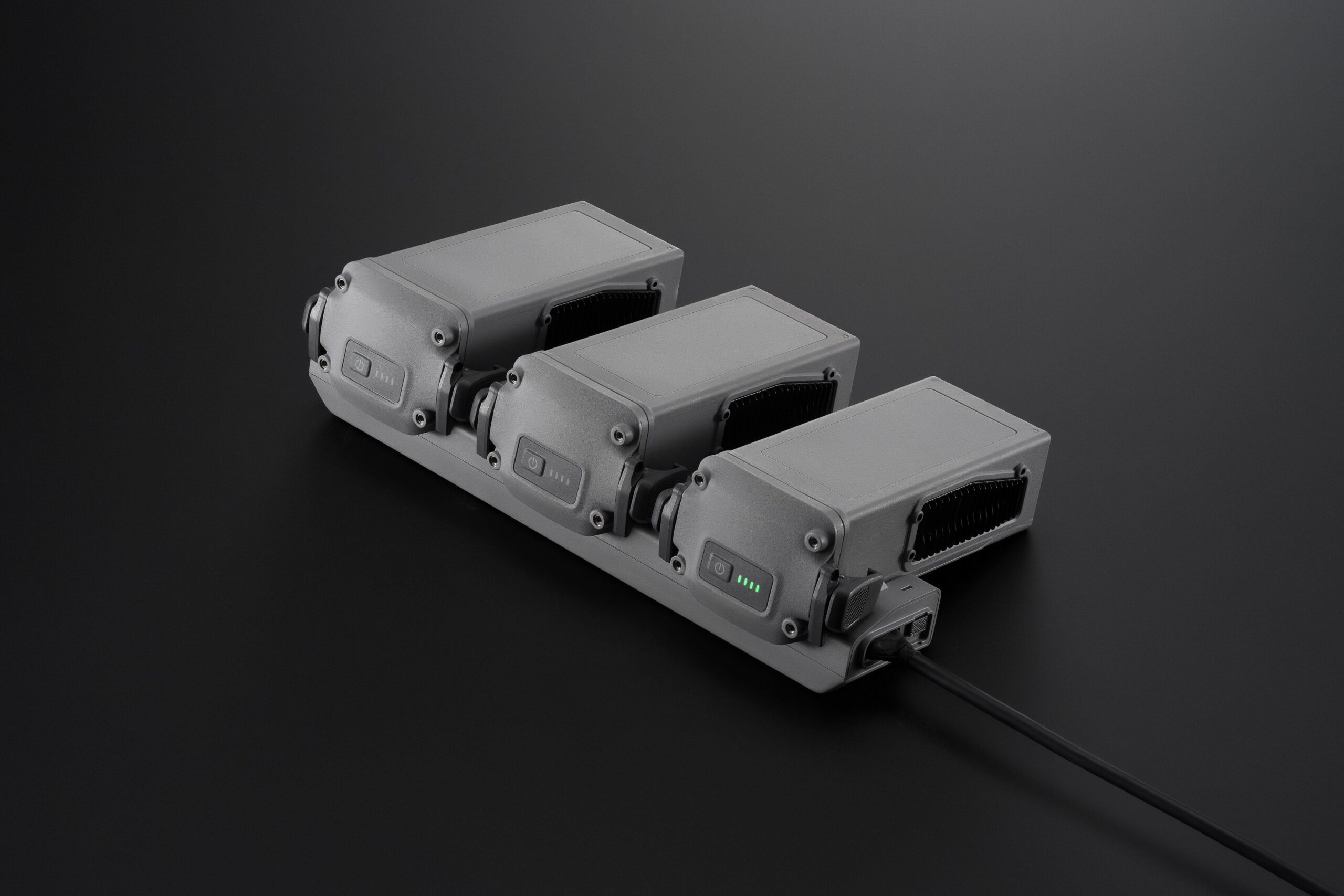

The DJI Matrice 4D Series 240W Charging Hub can be used with the DJI 240W Power Adapter or DJI Power 1000 portable power stations and can connect to three Matrice 4D Series Batteries simultaneously and charge them in sequence from high to low battery level. The battery charging hub supports both Standard Mode and Ready-to-Fly Mode. Standard Mode charges each battery to 100% sequentially. Ready-to-Fly Mode charges each battery to 90% sequentially and maintains that level for quick use.

1. The DJI 240W Power Adapter is required when using the charging hub to charge the batteries.

2. The charging hub is only compatible with the Matrice 4D Series Batteries. DO NOT use the charging hub with other battery models.

3. Place the charging hub on a flat and stable surface when in use. Make sure the device is properly insulated to prevent fire hazards.

4. DO NOT attempt to touch the metal terminals on the battery ports. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.

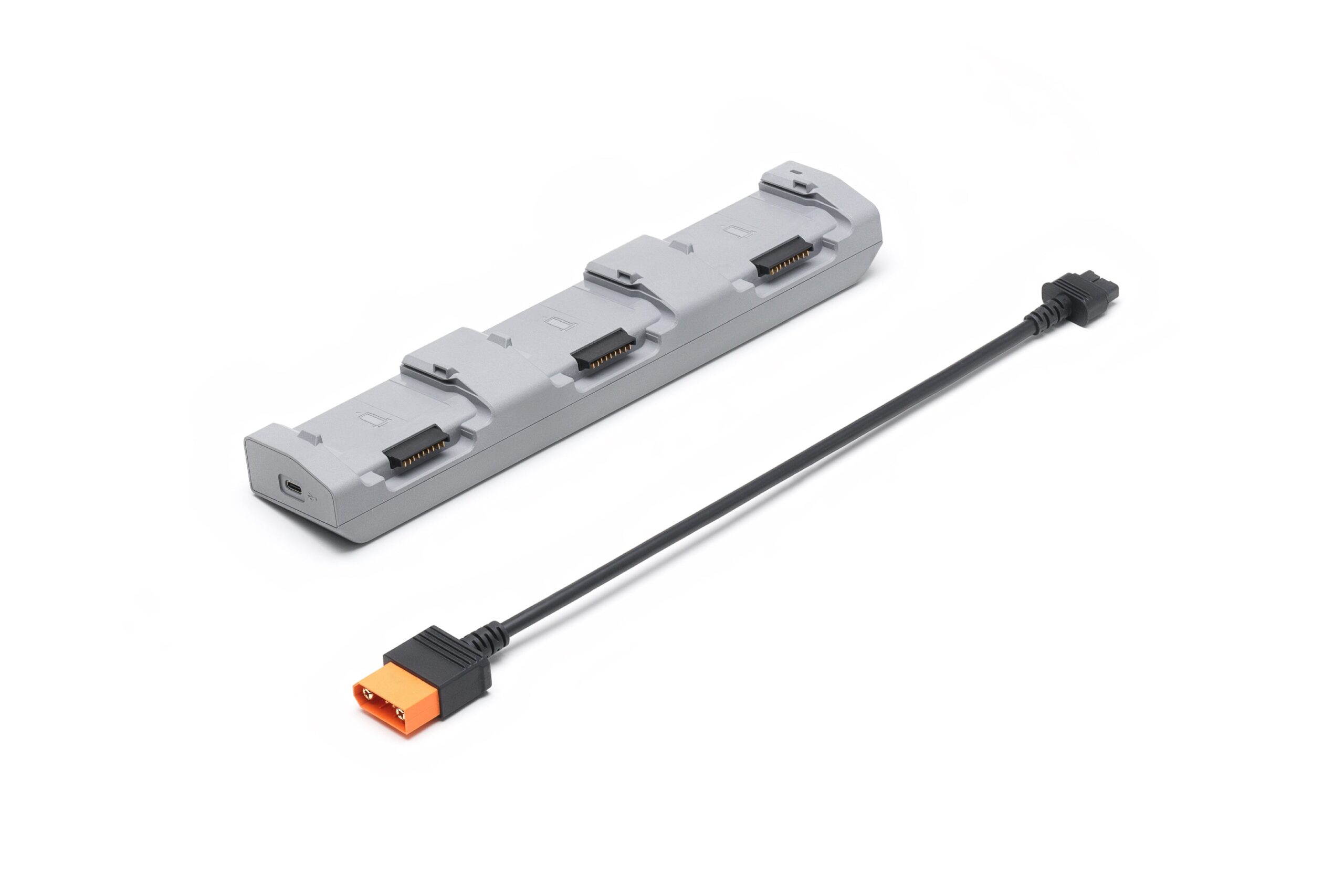

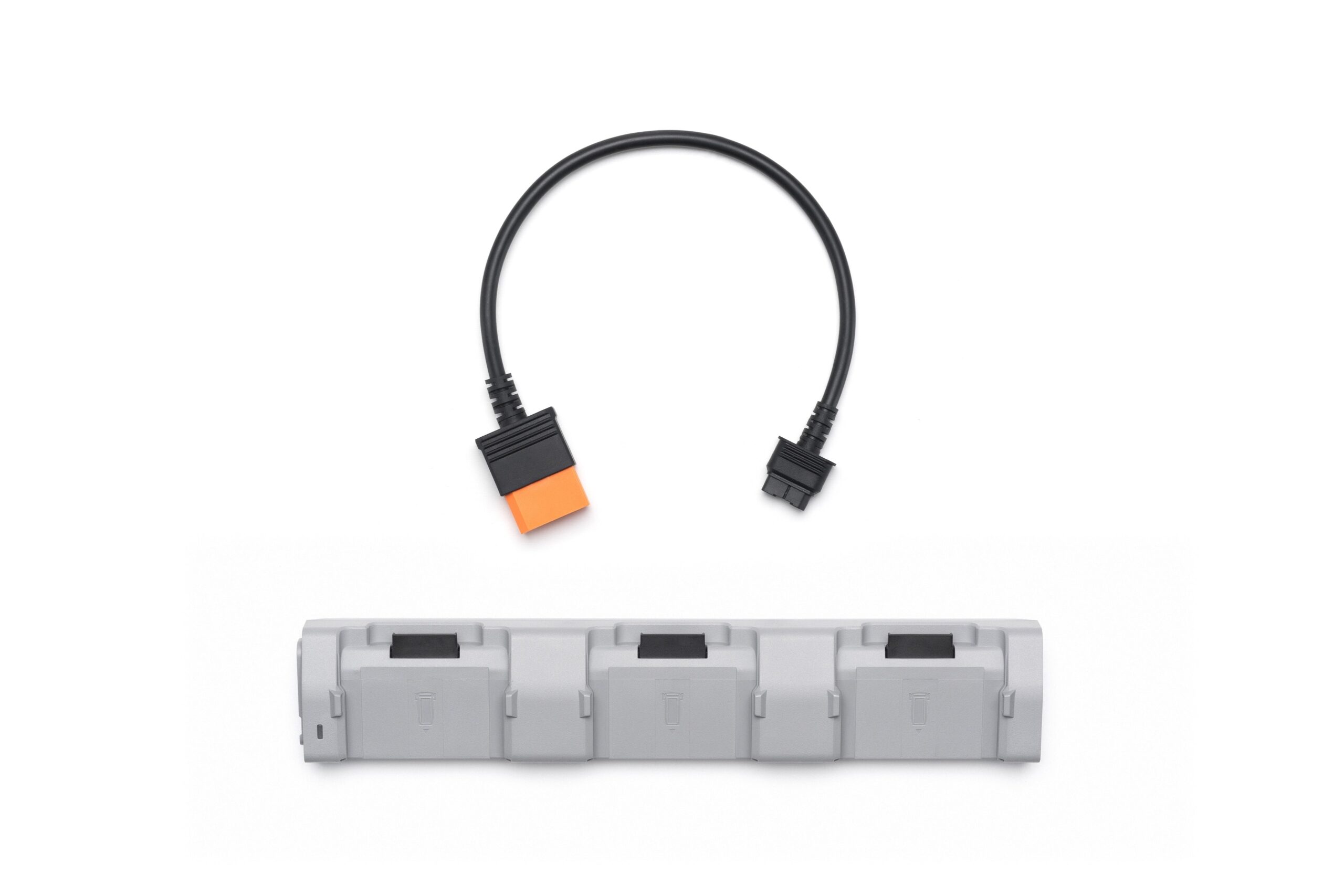

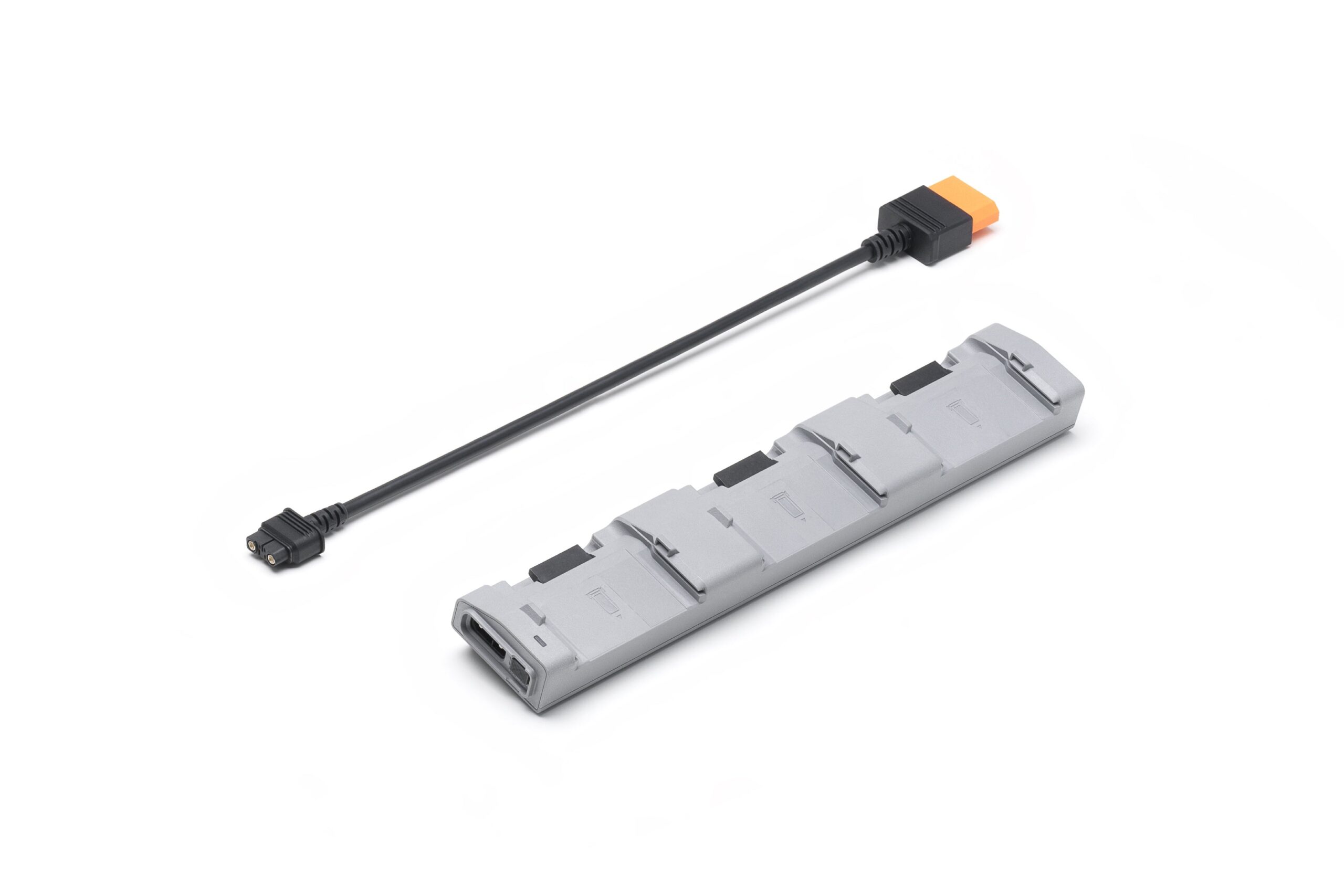

Charging Hub × 1

SDC Cable × 1

Product Model: CHX230-240

Compatible Power Adapter: DJI 240W Power Adapter

Compatible Battery Model: BPX230-6768-22.14

Operating Temperature: 5° to 40° C (41° to 104° F)

Input: 16.8-25.5 V, max 12.1 A
