Description

Description:

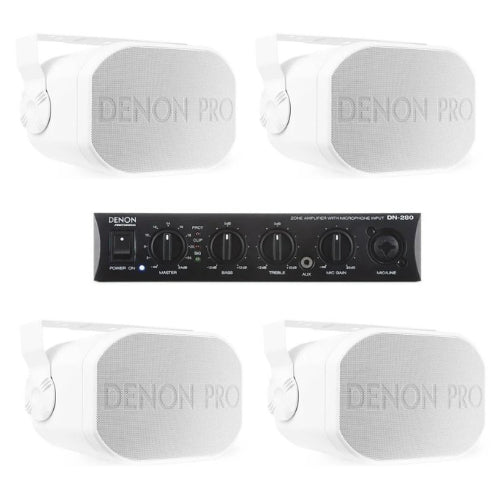

Bundle includes 4 x Denon DN-205IO speaker & DN-280 amplifier

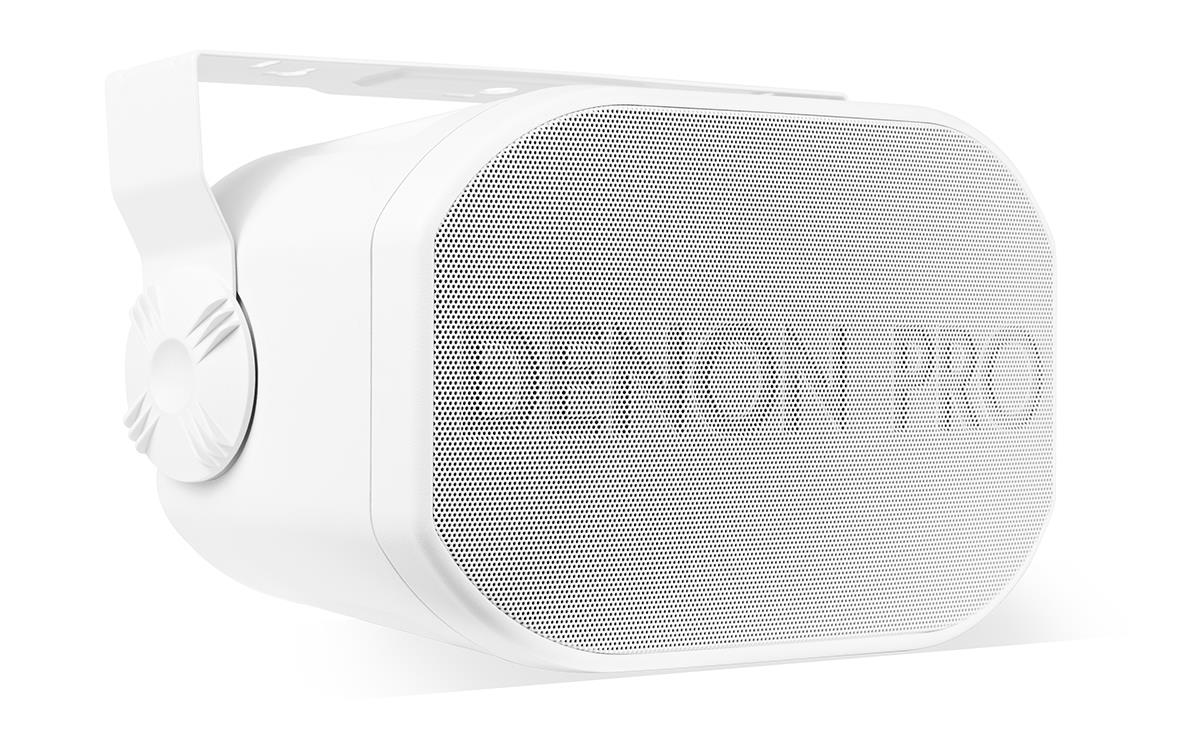

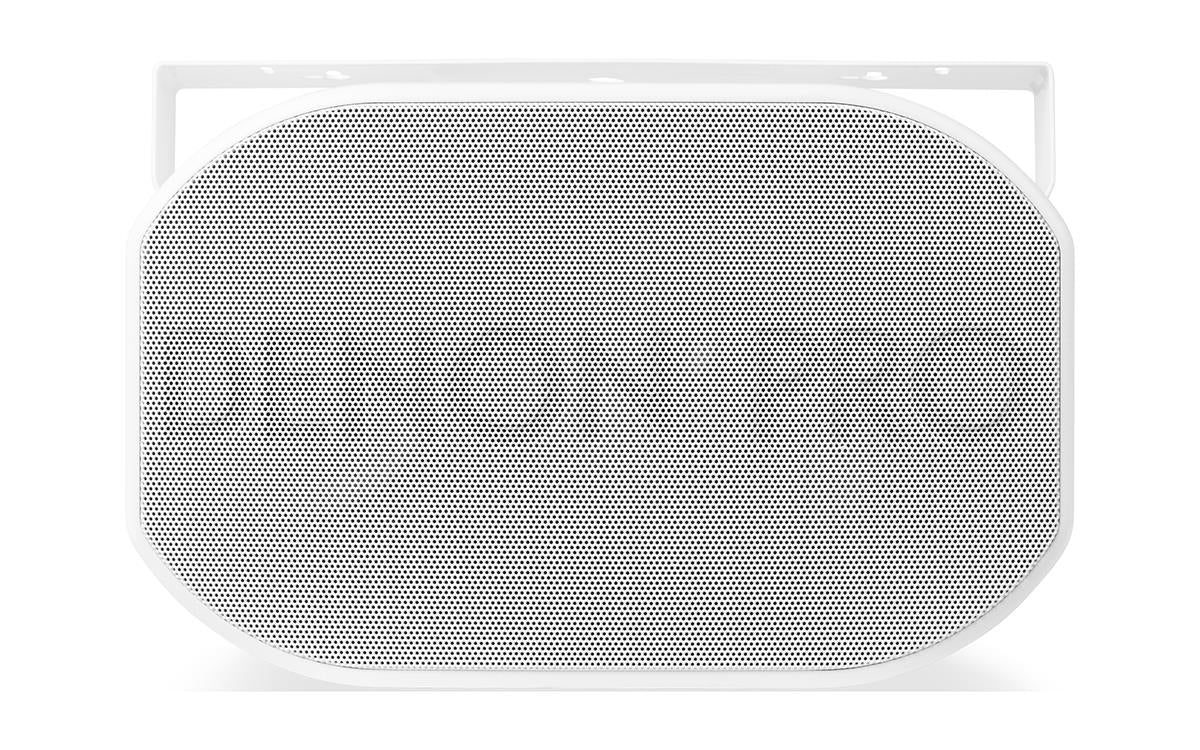

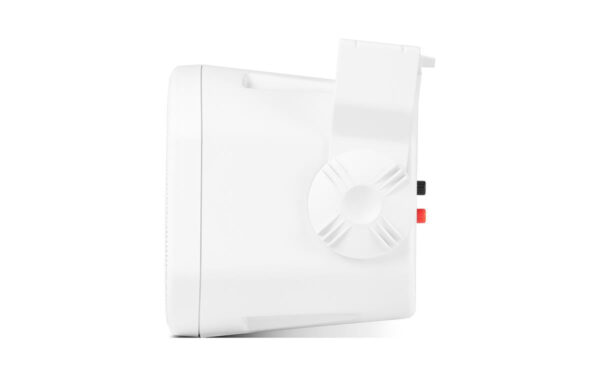

Denon DN-205IO Speaker

The DN-205IO is a 6.5”, 2-way passive indoor-outdoor speaker for installations in restaurant patio areas, outdoor bar vignettes, health clubs, outdoor pool areas, and other applications where outdoor music and paging is required.  The DN-205IO is weather-resistant and includes a bracket for mounting.  For maximum flexibility, each speaker is compatible with 70V/100V/8Ω systems by having an adjustable tap. The speaker binding post screw terminal wire connection accepts larger diameter wire for 8Ω use – along with smaller diameter 70V/100V wire. The adjustable horizontal/vertical mounting bracket attaches to the top and bottom of the speaker and to the mounting surface.

Features:

2-way design – 6.5” woofer and 1” tweeter
70V/100V/8Ω operation
Power handling: 50W (RMS), 100W (PMPO)

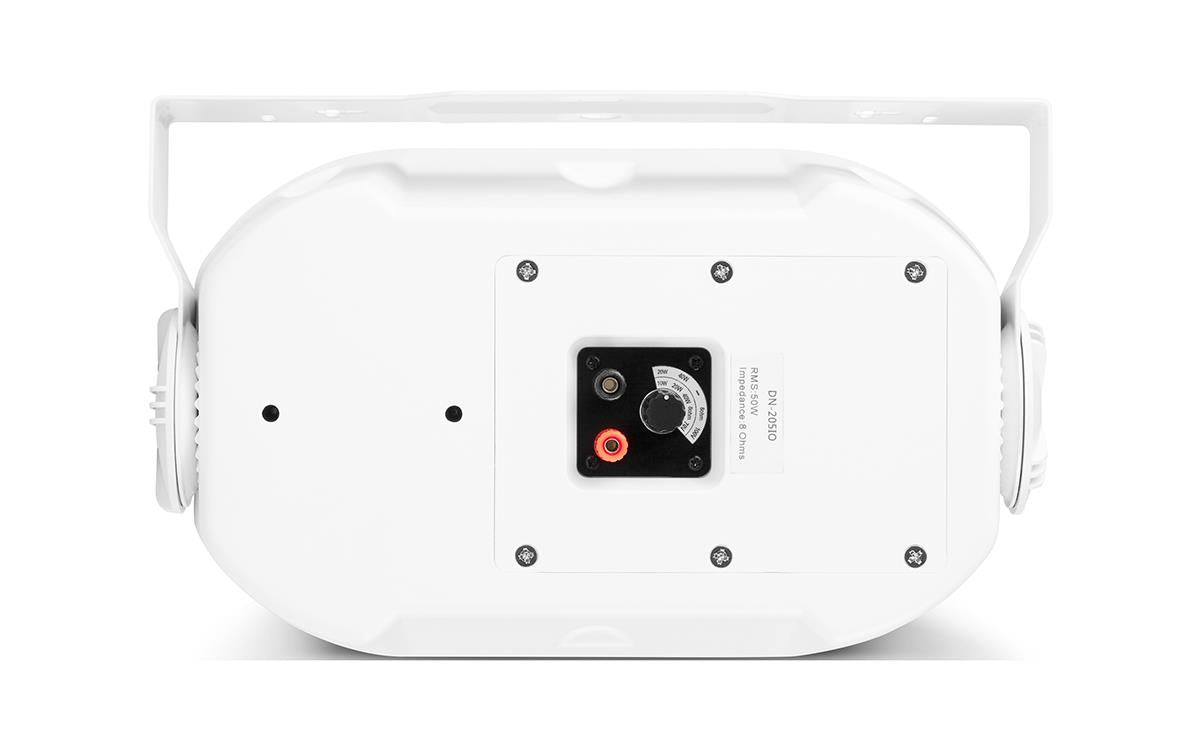

Transformer taps at 100V (20W, 40W, 8Ω) and 70V (10W, 20W, 40W, 8Ω)
Weather-resistant design for exterior use
Paintable white cabinet and grille

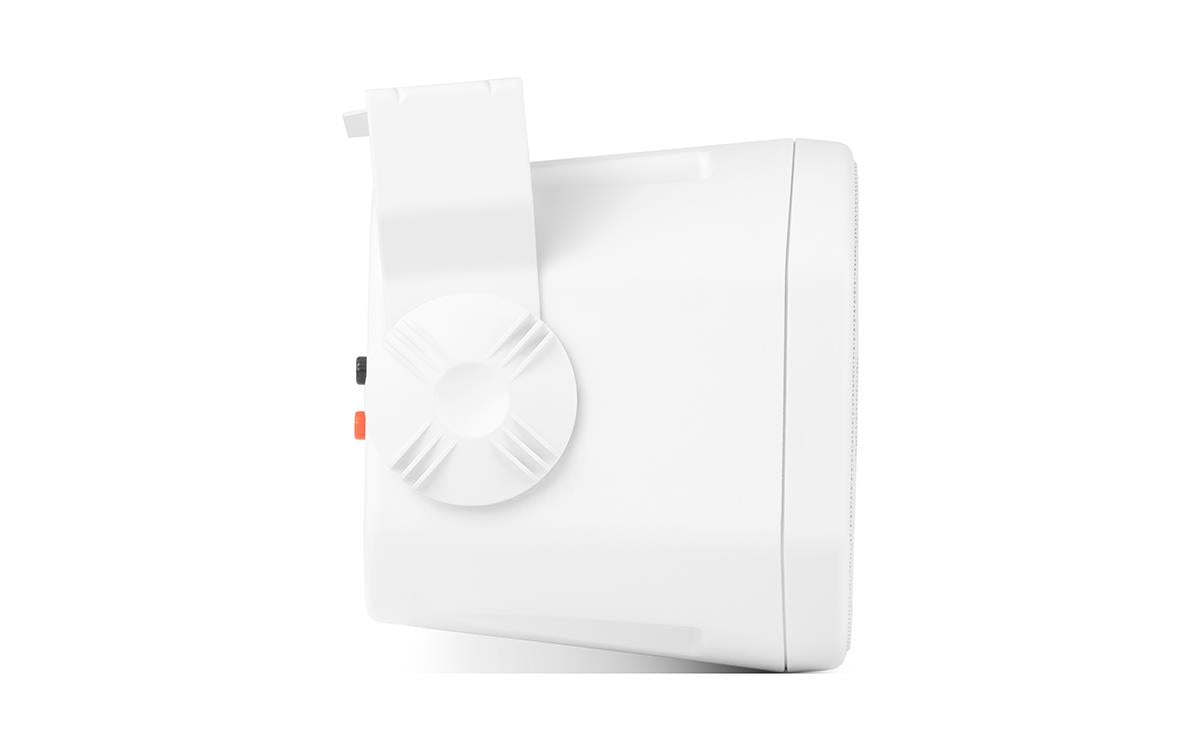

Adjustable angle wall-mount bracket included

Specifications:

Drivers:
Low-Frequency Driver: 6.50″ (165.5mm)

High-Frequency Driver: 1″ (25mm)

Power: 50W RMS

Impedance: 8Ω

Transformer Taps: 70V, 100V

Frequency Response: 60 Hz – 20 kHz

Sensitivity: 86 dB ± 2 dB (1W/1m)

Dimensions: (W x H x D): 5.43″ x 11.65″ x 7.12″ (138 x 296 x 181mm)

Weight: 9.17 lbs (4.16 kg)

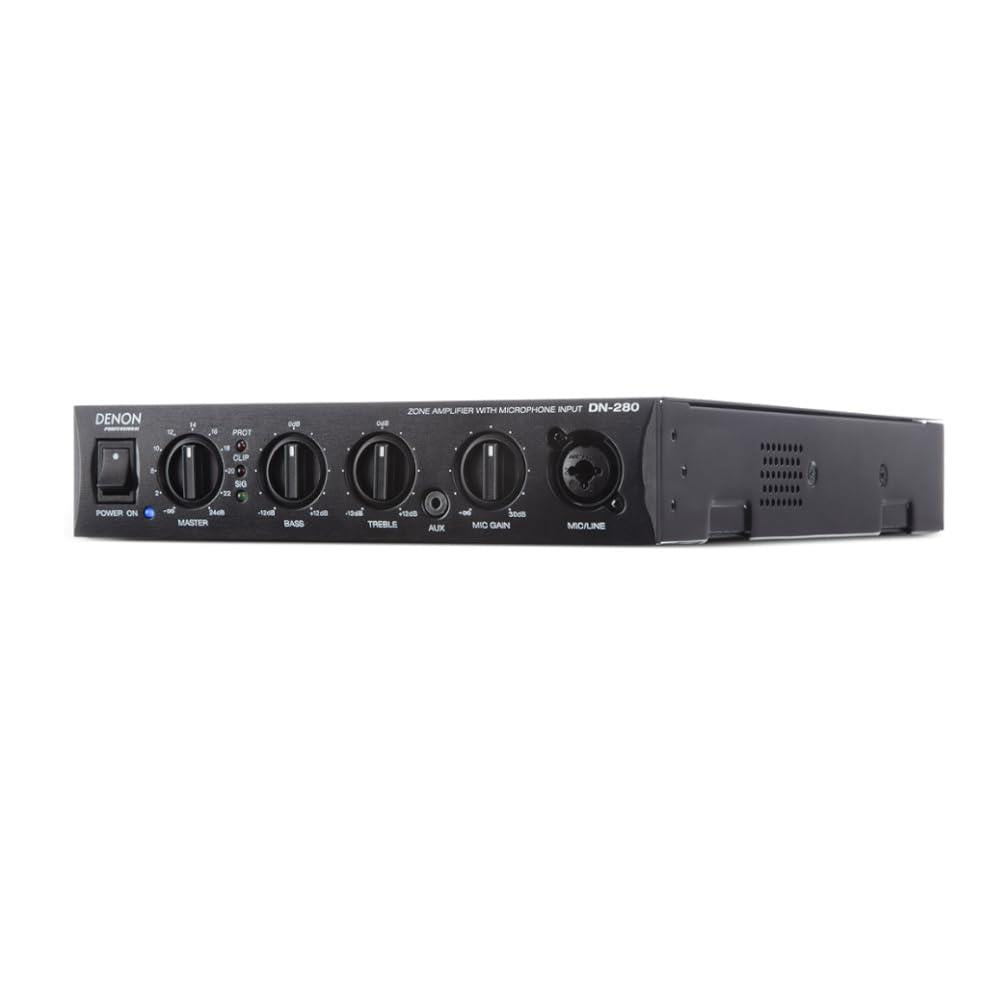

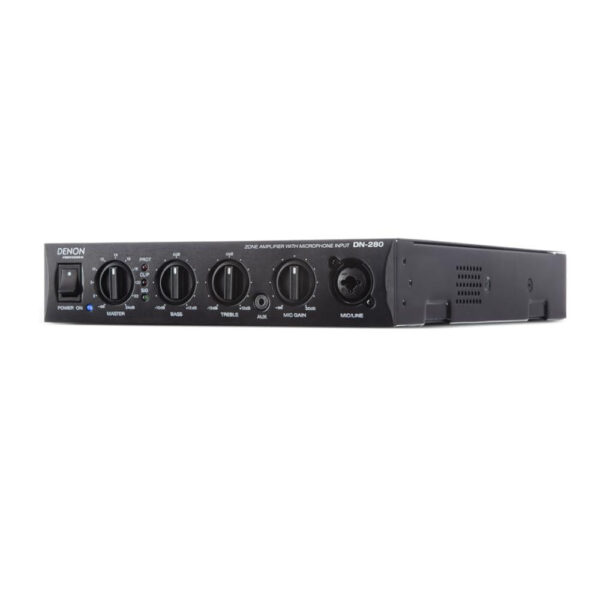

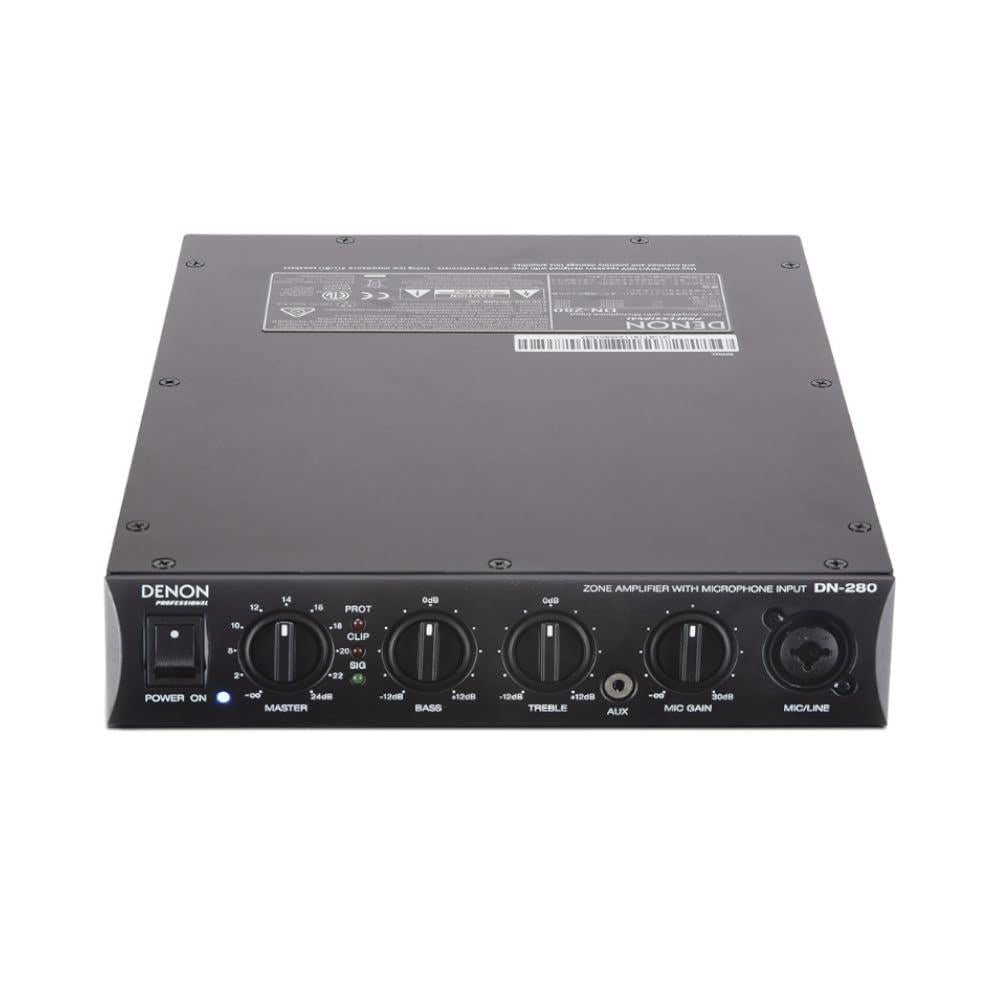

Denon DN-280 Amplifier

If you need a compact, high-powered amplifier that sums stereo signals into a mono output for paging, P.A. announcements and background music applications, the Denon Professional DN-280 is the ideal solution. With a space-saving, one-half rack space profile, the DN-280 features a microphone input for paging, a front panel 3.5mm (1⁄8-inch) AUX input and stereo analog inputs (summed to MONO) for signals from external playback devices such as an iPhone or stereo tuner.

The amplifier handles a 4Ω load or 70V/100V speaker runs, perfect for multiple speaker setups in small retail stores or doctor’s offices. A cool-running, powerful Class D amplifier delivers 100 watts with <0.1% THD and an outstanding Signal-to-Noise Ratio of >95dB, ensuring extremely clean performance under all conditions. The DN-280 has built-in short circuit protection and front-panel LED indicators for signal present, clipping status and thermal interruption.

Features:

Class D 100W mono amplifier
Trim one-half rackspace height – rackmountable or stand-alone
Removable feet and option to mount two units together in a 1RU space
Paging microphone input with gain control
Tone and master volume controls
RCA inputs (L/R stereo inputs summed to MONO)
3.5mm (1/8”) AUX input
70V/100V/4Ω Euroblock output

Specifications:Total Harmonic Distortion: <0.1% (A-weighted)

Frequency Response: 100Hz – 15kHz (+0/-3dBv)

Signal-to-Noise Ratio: >95dB (A-weighted)

Damping Factor: >200 (1k 8Ω)

Output Power: 60W

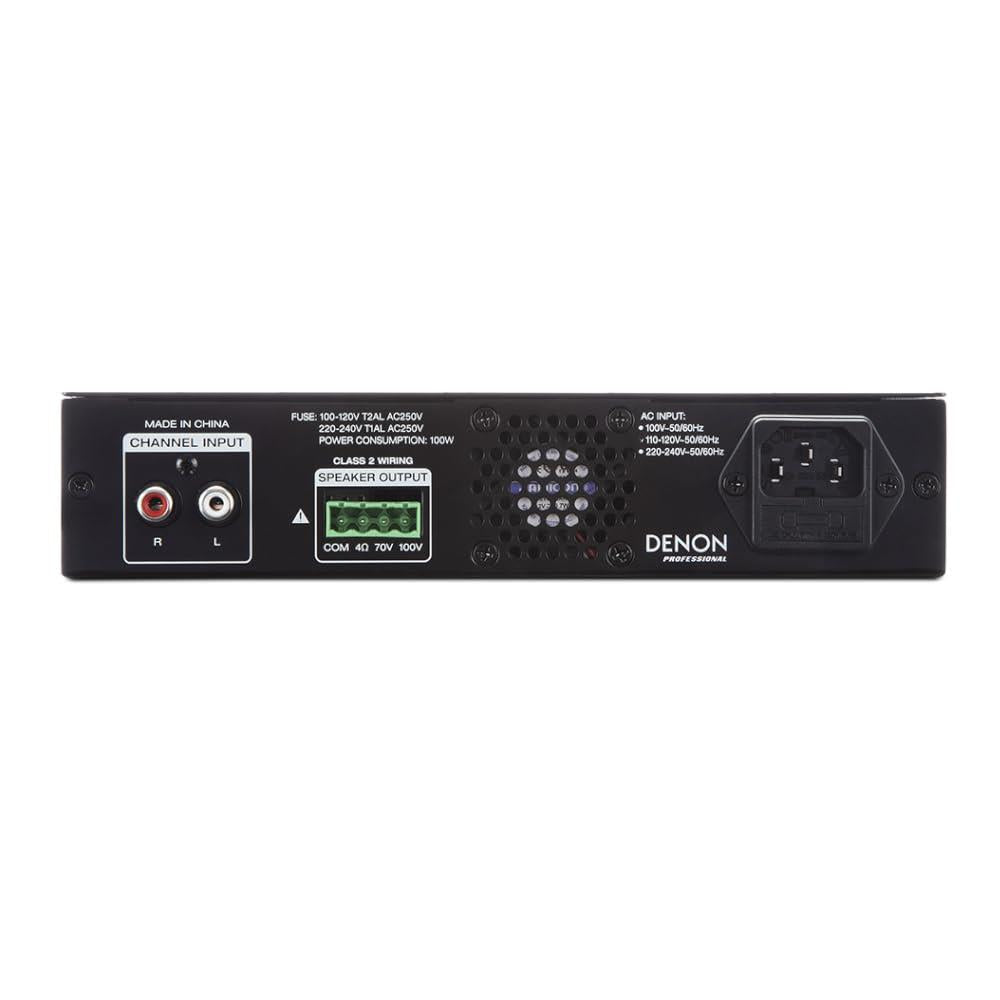

Connectors
(1) Euroblock channel output
(1) Dual RCA input
(1) XLR / TRS 1/4” (6.35mm) combination input
(1) TRS 1⁄8” (3.5mm) auxiliary inpu

Input Sensitivity
Dual RCA input: 0+/-1dBv

Auxiliary input: -10+/-1dBv

Combination input: -30+/-1dBv

Input Impedance: 20kΩ balanced or 10kΩ unbalance

Power
100V ~, 50/60Hz, 100W
110–120V ~, 50/60Hz, 100W
220–240V ~, 50/60Hz, 100W
Voltage Gain:
40+0/-1dB (100V)

Dimensions (width x depth x height): 7.9” x 10.7” x 1.7” (200 x 273 x 43mm)

Weight: 5.3 lbs. (2.4kg)
