Description

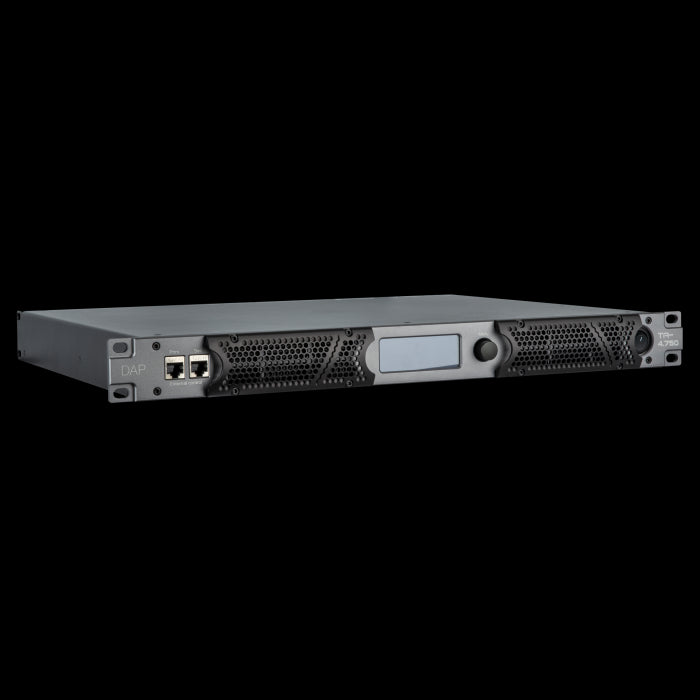

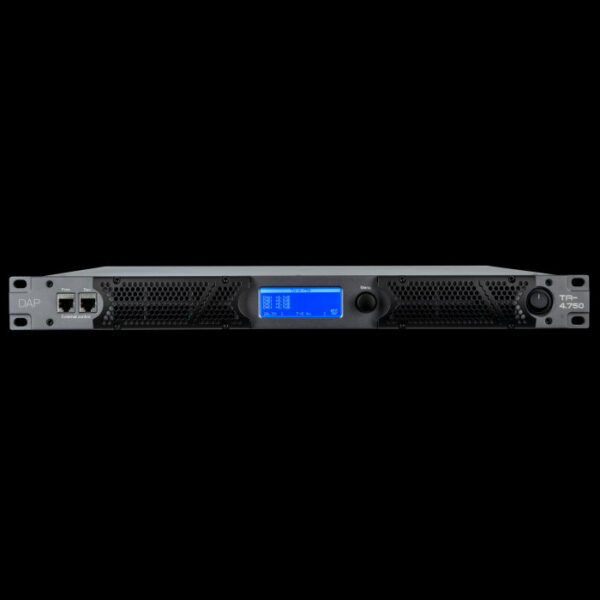

The DAP TA-4.750 is a powerful and compact 4-channel Class D DSP amplifier designed for touring professionals and demanding installations. With 4 x 750 W at 4 ohms and full 2-ohm stability, this amplifier delivers high output and efficiency within a space-saving 1U rack unit. Advanced DSP control via free PC software (Windows 10/11) allows complete system customization including 8-band parametric EQs, FIR filtering, routing, limiters, delays, and more. Real-time monitoring of voltage, current, and thermal status is supported via network, and a built-in network switch enables daisy-chaining multiple amplifiers. Ideal for high-current, low-impedance speaker loads, the TA-4.750 features a rugged steel chassis, LCD control screen, and a universal SMPS with active PFC for global use.

Features

4 x 750W RMS @ 4 ohms, 4 x 450W @ 8 ohms, 4 x 1300W @ 2 ohms
Bridgeable to 2600W @ 4 ohms or 1550W @ 8 ohms
2-ohm stable per channel with excellent current handling
Class D technology with >90% efficiency and <0.05% THD
Integrated 4×4 DSP matrix with extensive processing tools
8-band input and output parametric EQ with shelving filters
High-pass, low-pass, and crossover filters (Bessel, Butterworth, Linkwitz Riley)
FIR filters up to 512 taps
Limiter with adjustable attack/release, phase control, and delays
PC software control via Ethernet (Windows 10/11)
Built-in switch for network daisy-chaining
LCD screen with rotary encoder for local configuration
Front-to-back cooling with axial fan and thermal protection
Universal SMPS (100–240V AC) with soft start and active PFC
Built-in protections: clip limiter, DC, overload, under-voltage, overheat
Compact 1U steel chassis with powder-coated finish
