Description

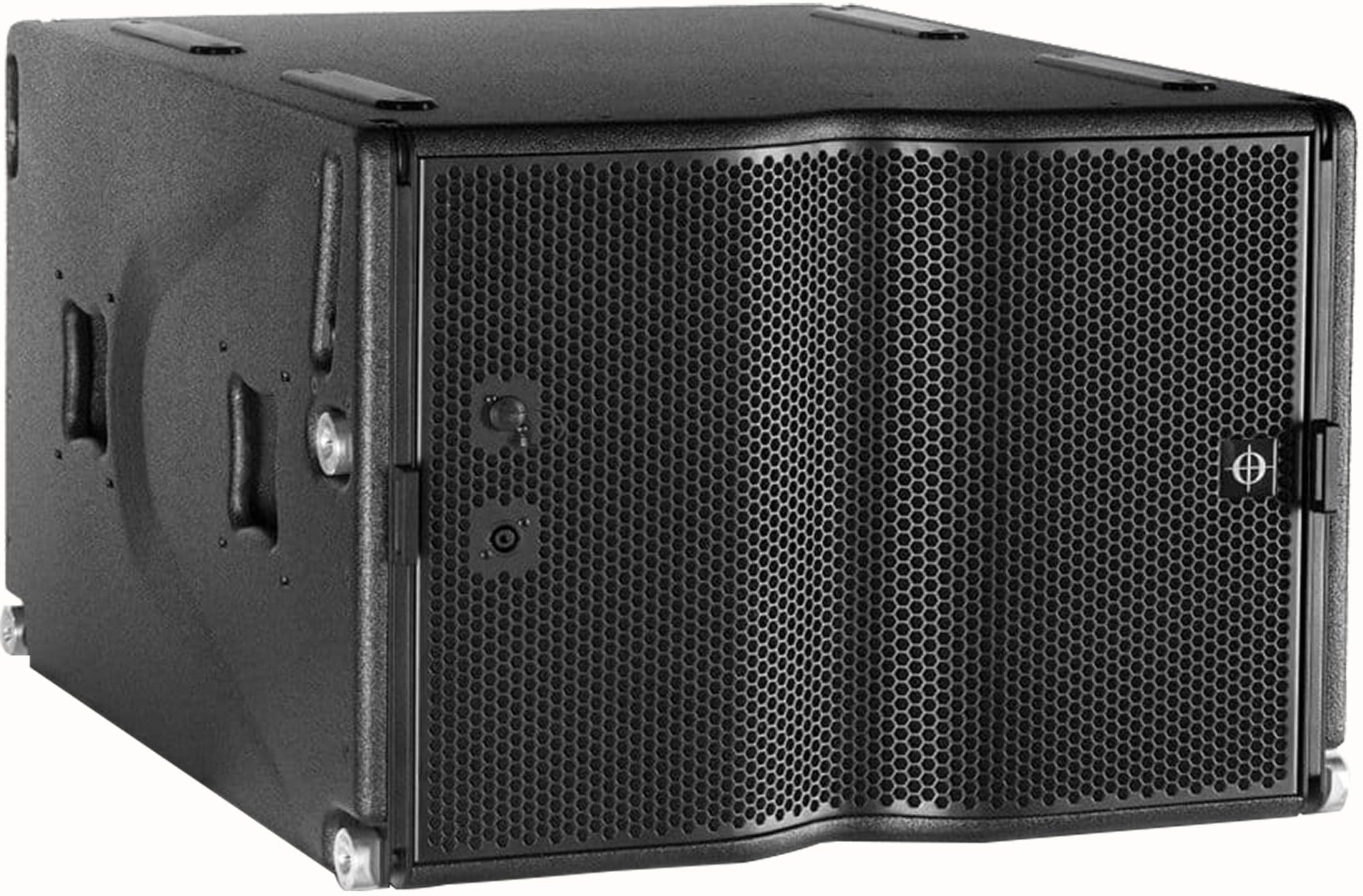

Coda Audio SC2-F Sensor Controlled Bass Extension

The SC2-F is NOT only a subwoofer, it is a sensor controlled bass extension system operating in the range 35 – 200 Hz which overlaps both the low range of ViRAY and the SCV/SCP subwoofers providing essential more energy and control in the lower range of the system.

Features:

• Increases the long throw capability ofViRAY
• Enhances the systems low frequency headroom
• Overlaps both the low range ofViRAYand theSCV-F/SCP subwoofers reducing the need for additional subs
• Provides 15” sonic signature
• Compact 2x 15” sensor controlled bass extension
• Extended frequency range 35 – 200 Hz (-6 dB)
• The feedback loop control ensures extreme fast transient response and ultralow distortion
• Flyable or ground stackable in cardio or omni configurations
• Rigging is compatible with AiRAY, ViRAYandSCV-F
• SC2-F arrays can be curved for perfect time alignment withViRAY
• System integration with CODA Audio amplifier racks

Specifications:

• Type: Sensor controlled bass extension
• Application: Bass Extension for ViRAY
• Frequency response: 35 – 200 Hz (-6 dB)
• Power handling (AES / peak): 2500 W / 10000 W
• Sensitivity 1 W / 1 m:* 103 dB
• Maximum output peak:** 143 dB
• Amplification, cabinets per amplifier:
• LINUS14D Optimum / Maximum: 4/4
• LINUS10 Optimum / Maximum: 2/4
• Components: 2x 15″ neodymium ultra low distortion woofers 4″ (101.6 mm) voice coil, 1250 W (AES) each
• Nominal impedance: 4 Ohm (+1/-1)
• Input connectors: 2x Neutrik™ NL4MP (rear) + 1x Neutrik™ NL4MP (front)
• Velocity sensors output: Neutrik™ NC3MAV (rear) + Neutrik™ NC3MAV (front)
• Suspension: Flying hardware integrated, allows curving (0°, 2.5°, 5°)
• Enclosure material: Birch plywood
• Finish: Polyurea black coating (water resistant)
• Dimensions (WxHxD): 675.3 x 490 x 790 mm / 26.59 x 19.29 x 31.1″
• Net weight: 72 kg / 158.73 lbs
