Description

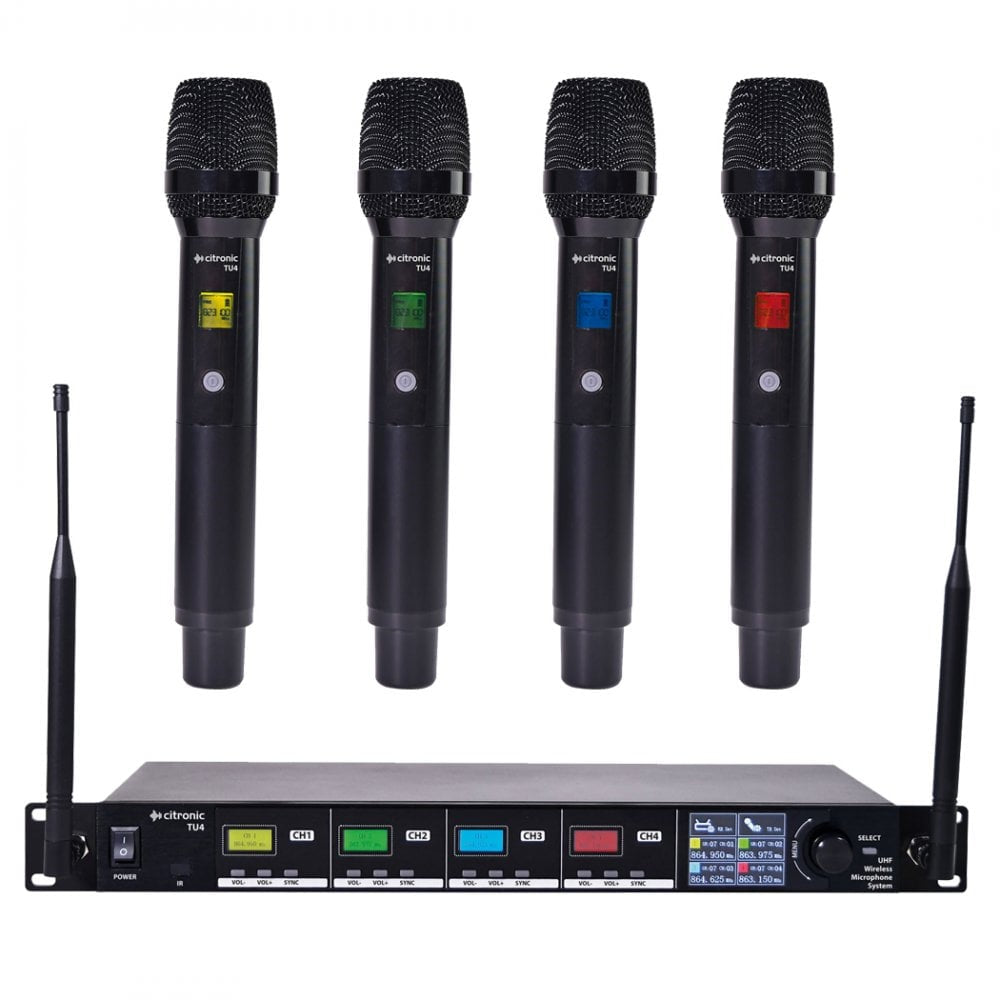

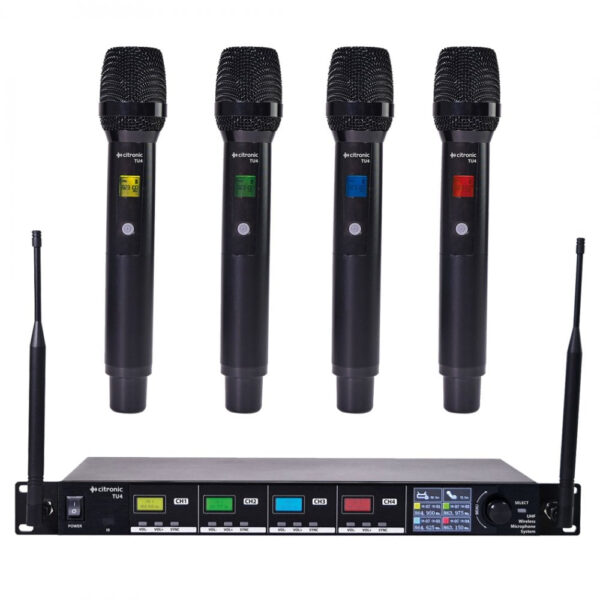

The Citronic TU4 Quad PLL Tuneable UHF Wireless Microphone System is engineered for professional audio applications requiring flexibility, clarity, and reliability. Featuring four fully independent and programmable UHF channels, the system ensures crystal-clear vocal reproduction with robust wireless performance. Each channel can be tailored with EQ settings, transmission power, and even backlight color for easy on-stage identification. Designed with true diversity technology and infrared syncing, the TU4 offers seamless integration into live performances, conferences, or theater productions. Rugged handheld transmitters and a versatile rack-mountable receiver make this system ideal for demanding environments.

Features:
Four independent, programmable UHF channels
True diversity antenna system with internal distribution
Auto frequency sweep for optimal signal selection
Full-color TFT display with rotary encoder control
IR transmitter syncing for fast setup
Handheld transmitters with durable full-metal construction
7-band EQ adjustment per channel
Selectable backlight colors for easy transmitter identification
License-free frequency operation (UK/EU)

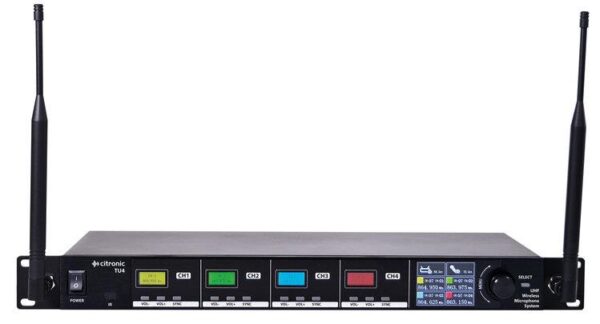

Receiver outputs: individual XLR or mixed 6.3mm jack
Includes BNC extension cables for front-mounting antennas

Specifications:
Carrier frequencies: 823-832 / 863-865MHz
Wireless range: Up to 60m
Power supply: 12-18Vdc, 1000mA (mains adaptor supplied)
Batteries: 8 x AA
Antenna connection: BNC
Receiver dimensions: 482 x 185 x 44mm (1U)
Receiver weight: 1.513kg
Handheld transmitter dimensions: 258 x 47mmØ
Handheld transmitter weight: 354g (no battery)
