Description

Product Description:

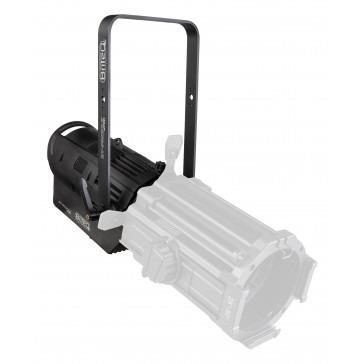

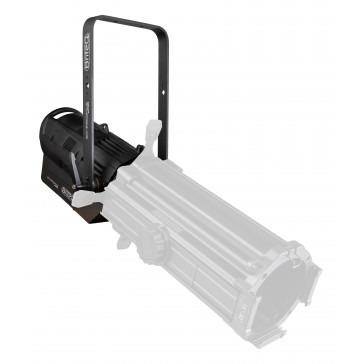

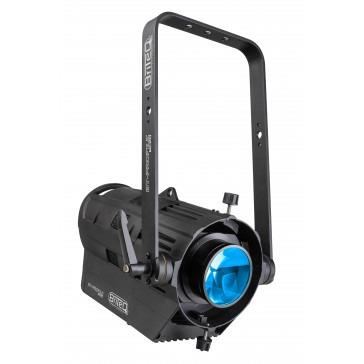

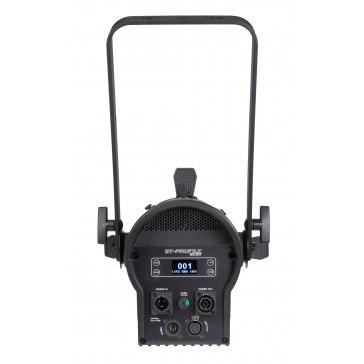

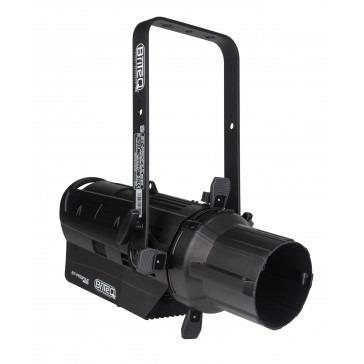

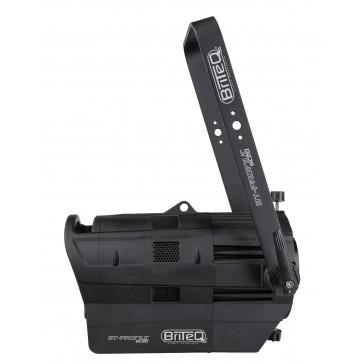

The BT-PROFILE 6C20 ENGINE is a 280W LED profile spotlight designed as an energy-efficient replacement for traditional 2kW halogen lamps in theatrical and stage applications. It features a 6-colour RGBALC LED cluster (red, green, blue, amber, lime, cyan), enabling a wide range of rich colours and precise white presets from 1800K to 10000K, with a CRI greater than 90. The unit supports halogen-like dimming with an amber drift effect and features internal color calibration for consistent output across fixtures. It operates quietly with selectable fan modes for different environments (live, studio, power). The fixture offers standalone or DMX control, with eight DMX modes and RDM support for remote setup. An adjustable high-frequency LED refresh rate ensures flicker-free operation for video and broadcast. It includes an OLED display with a lockable menu interface and is compatible with “ETC Source Four” optics, supporting various zoom and fixed beam lenses.

Specifications:
LED type: 6-color RGBALC (red, green, blue, amber, lime, cyan)
LED power: 280W
Colour temperature range: 1800K to 10000K
CRI: >90
Dimming: halogen emulation with amber drift
Fan modes: selectable (live, studio, power)
Control modes: manual, DMX
DMX channels: 8 modes
Control protocols: DMX, RDM
Display: OLED with menu lock function
Refresh rate: adjustable for flicker-free video use

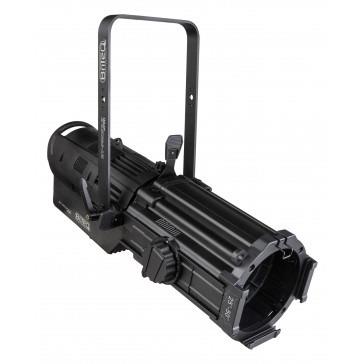

Lens compatibility: ETC Source Four optics
Optional lenses: BT-PROFILE 1530 OPTIC (15°–30°), BT-PROFILE 2550 OPTIC (25°–50°), fixed beam lenses available on request
Power input: AC 100–240V, 50/60Hz
Power consumption: 290W
IP rating: indoor
Colour: black
Fixation: optional standard clamp

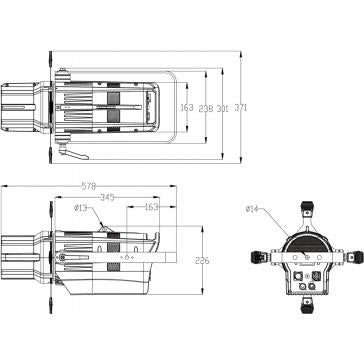

Dimensions and Weight:
Dimensions: 30.1 x 57.8 x 22.6 cm (engine without lens)
Weight: 6.54 kg
