Description

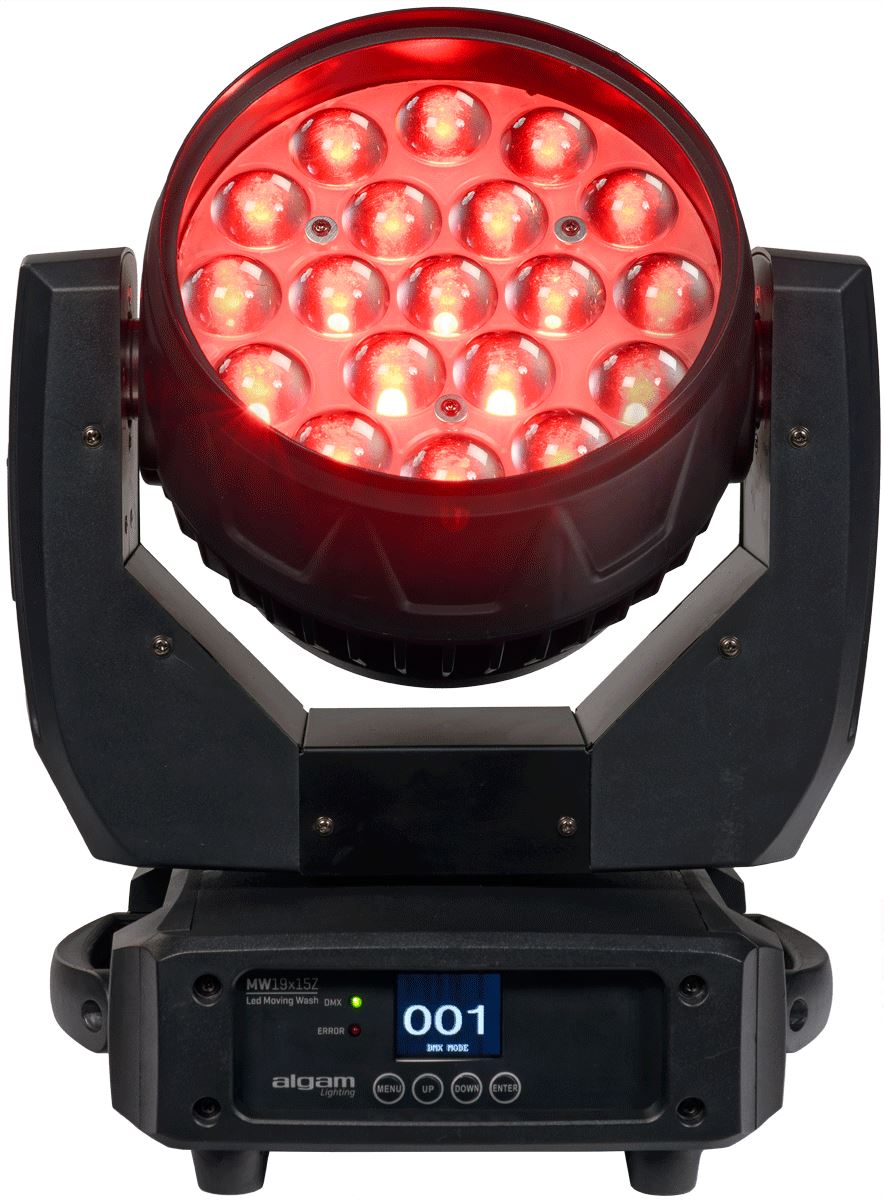

The MW19X15Z is a professional-grade moving head wash fixture equipped with 19 high-powered 15W RGBW LEDs, delivering intense and vibrant colour effects. Designed for versatility and performance, it features a motorised zoom with an adjustable beam angle from 6° to 50°, making it suitable for tight beam effects or wide washes. Its smooth, quiet motorisation enables precise pan (up to 540°) and tilt (up to 270°) movement with remarkable fluidity. The fixture operates in DMX (15 or 23 channels), Auto, Music-controlled, or Master/Slave mode and can be easily configured using the onboard LCD display with 5-button control. Developed for professional use, the MW19X15Z includes Powercon input/output for power linking and dual OMEGA brackets with quarter-turn locks for secure mounting.

Features
19 x 15W RGBW LEDs for powerful, full-colour output, motorised zoom for flexible beam angles from 6° to 50°, smooth 540° pan and 270° tilt with quiet, responsive motors, supports Auto, Music, DMX, and Random operation modes, 15 or 23 DMX channel configuration for detailed control, onboard LCD screen for direct programming, linear 0–100% dimmer for seamless fading, Powercon input/output for daisy-chaining, dual OMEGA brackets with quarter-turn locks for secure and safe rigging.

Specifications
Light sources 19 x 15W RGBW LEDs
Average LED life span 50,000 hours
Dimmer 0–100%, linear curve
Beam angle 6° to 50° (motorised zoom)
Movements PAN 540°, TILT 270°
Operating modes Auto, Music-controlled, Random, DMX
Number of DMX channels 15 or 23
DMX input/output XLR 3-pin
Display LCD screen with 5 control buttons
Frame material plastic
Mounting 2 OMEGA sockets with quarter-turn locking
Power connector Powercon input and output
Supply voltage 100–240V, 50/60Hz
Power consumption 300W
Weight 8.5 kg
Dimensions 325 x 188 x 395 mm
Protection class IP20 (indoor use only)
Supplied with power cable, yoke mounting bracket, and safety sling
