Description

Description:

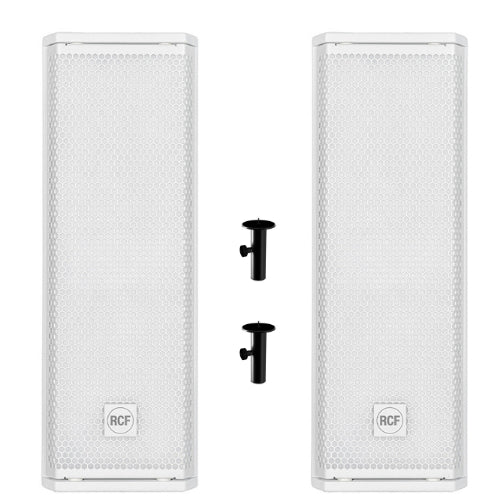

Bundle consists of 2 x RCF NXL 14-A White & 2 x 35mm pole mount adaptor.

NXL modular line-source active speaker systems are specifically designed for rental companies, professional DJs, and musicians but also intended for permanent installation. Their sleek and innovative design commands an incredible size-to-power ratio, featuring powerful amplifiers, full onboard DSP, and a
complete set of rigging accessories.

Small in size but mighty in sound, the new NXL 14-A is the smallest speaker of the NXL Active Column Speaker Series, featuring two 6″ woofers, a 1.75″ PKX driver mounted on a rotable TRW waveguide powered by a 2100W amplifier. Available in black or white color, this versatile speaker can pack serious power in a very compact cabinet. Perfect for portable column systems with a SUB Series subwoofer, ideal in immersive applications or as an unobtrusive fill speaker.

128 dB max Sound Pressure Level
2100W Class-D Bi-Amplification
70-20000 Hz linear frequency range
1.75″ PKX Compression Driver
2 x 6″ High Power Woofers
Rotatable 100×70 TRW Waveguide
FiRPHASE and Bass Motion Control
Available in full black or white

Designed as the ideal sound system for the day-to-day live event, the NXL Series packs a variety of features for professional users. With the
best size to power ratio in its class, advanced DSP, and equipped with multiple rigging points, the NXL Series is a solid and reliable choice.
RCF products represent the 75-year commitment to excellence in manufacturing, precise and careful assembly, and extensive quality control procedures

Specifications:

Acoustical specifications

Frequency Response: 70 Hz ÷ 20000 kHz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 70°

Transducers

Compression Driver: 1 x 1.0” neo, 1.75” v.c
Woofer: 2 x 6.0” neo, 2.0” v.c

Input/Output section

Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Processor section

Crossover Frequencies: 1200 Hz
Protections: Excurs.
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume, RDnet on board

Power section

Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT

Standard compliance

CE marking: Yes

Physical specifications

Hardware: 2x M10 TOP AND BOTTOM, 2X PIN D.10
Handles: 2 TOP AND BOTTOM
Color: White

Size

Height: 567 mm / 22.32 inches
Width: 196.7 mm / 7.74 inches
Depth: 271 mm / 10.67 inches
